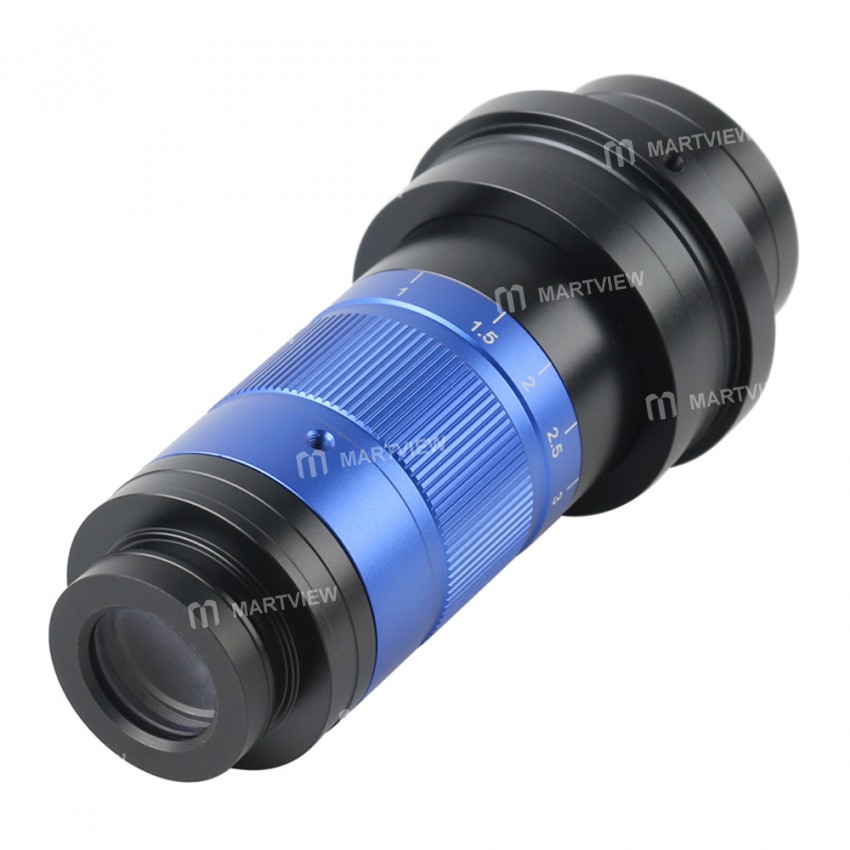

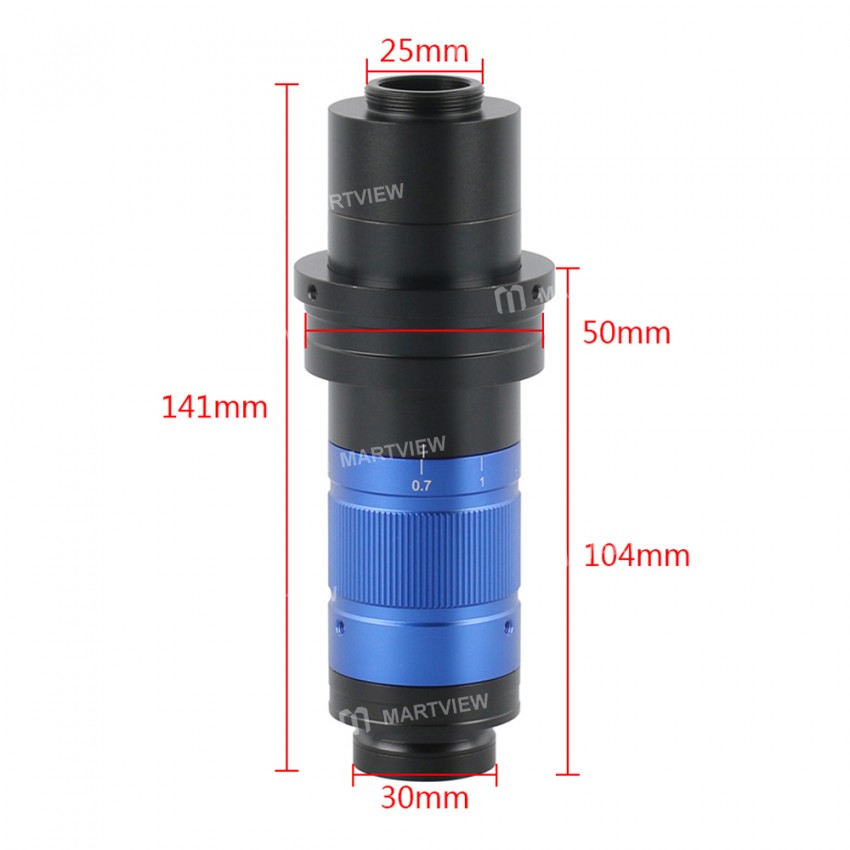

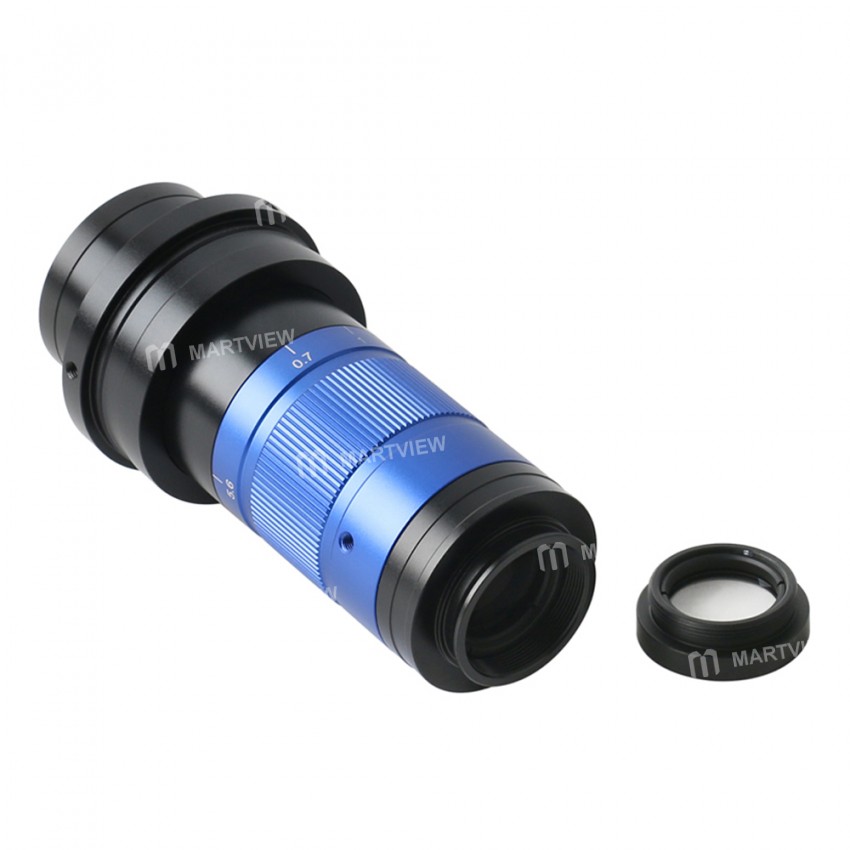

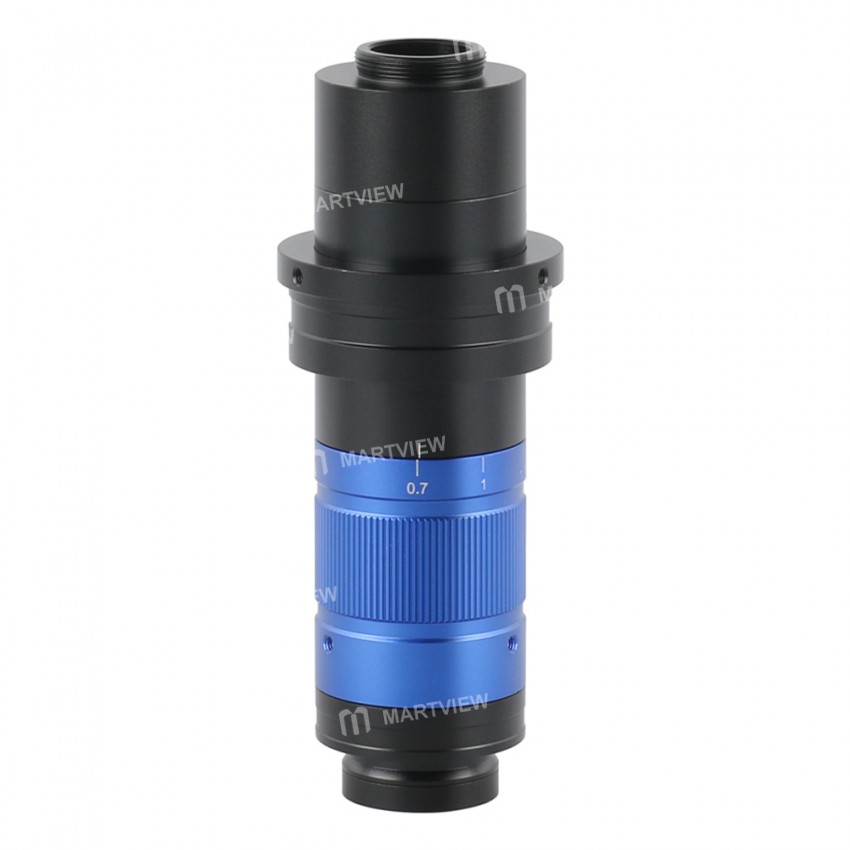

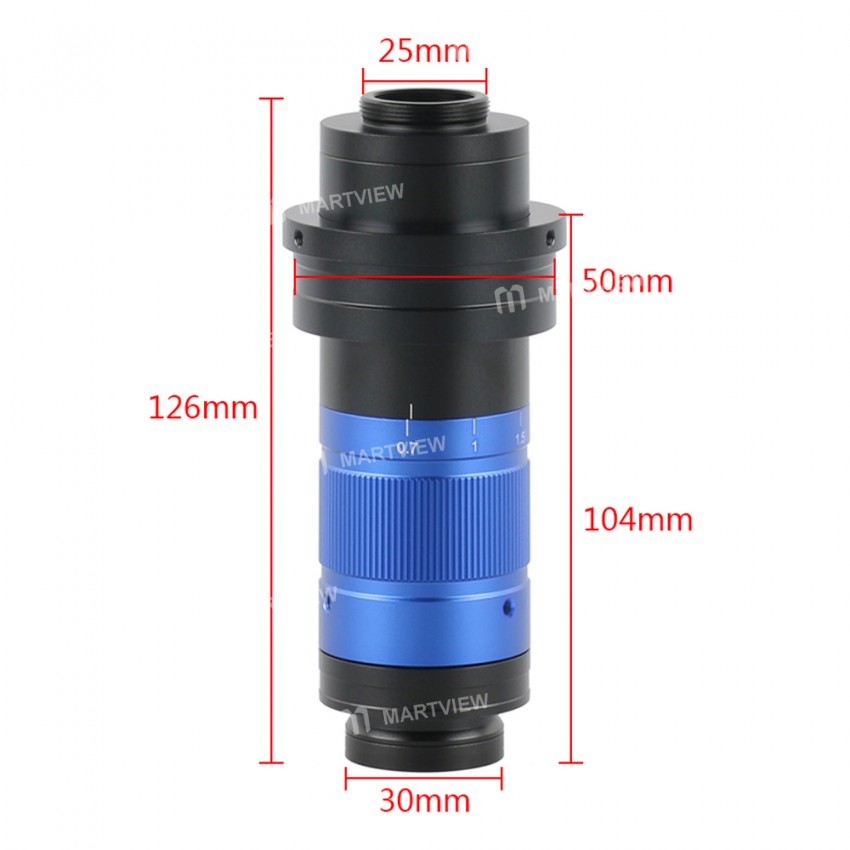

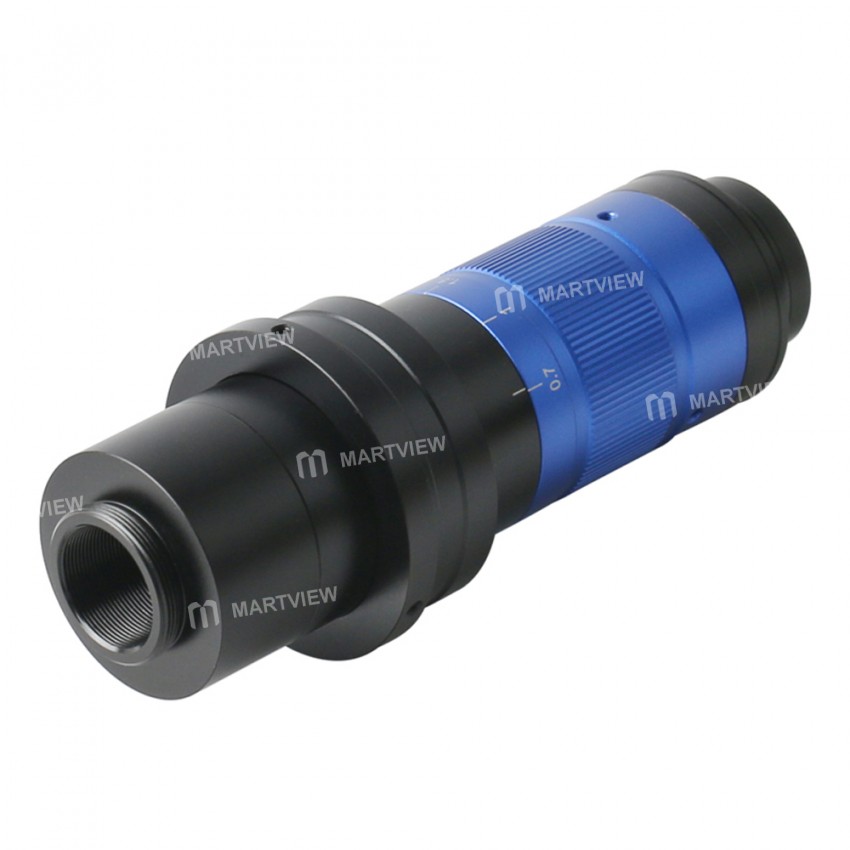

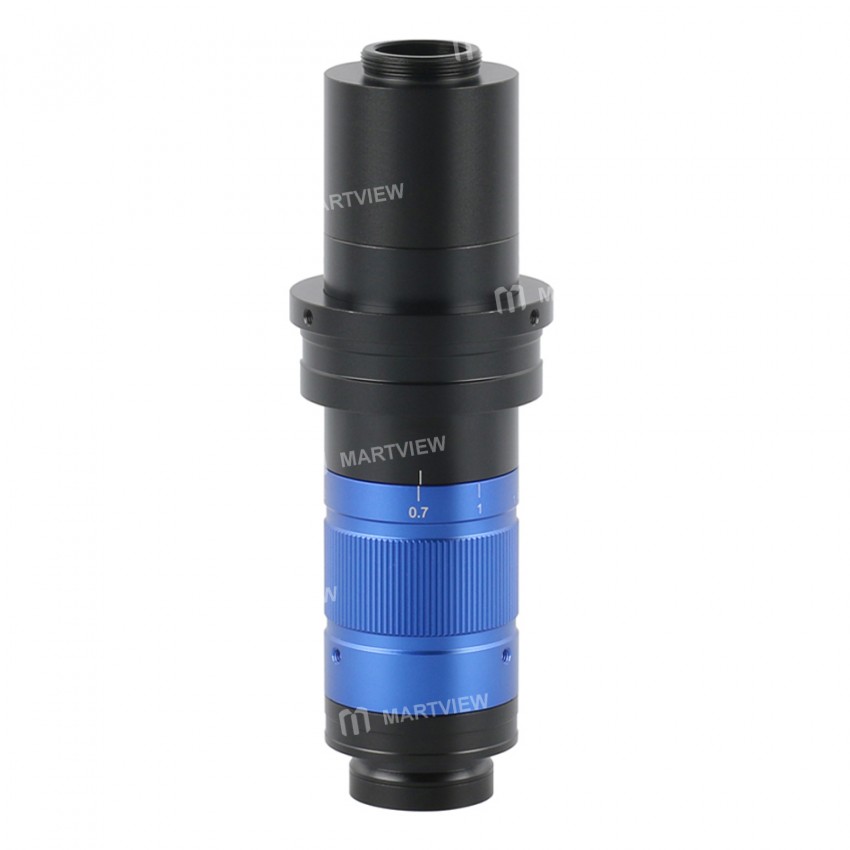

0.7X-5.6X Adjustable Continuous Magnification 300X 450X 600X Zoom C-mount Monocular Lens Suitable For HDMI VGA USB Microscope Camera

0.7X-5.6X Adjustable Continuous Magnification 300X 450X 600X Zoom C-mount Monocular Lens Suitable For HDMI VGA USB Microscope Camera

Features:

• The continuous zoom digital microscope has a zoom ratio of 8X, with high resolution and large depth of field, and can work in the visible and near-infrared bands. It is flexible and convenient to use. When high magnification is required, a high-power auxiliary objective lens or an infinity microscope objective lens can be installed on the lower end of the zoom main body. Different configurations can achieve a magnification range of 0.18X-22.4X and a working distance of 160mm-37.5mm

• Standard magnification: 0.7X-5.6X (when used with a 2/3-inch camera and 21-inch display, the digital magnification is 22X-175X)

• Large zoom ratio: 8X

• Large NA: 0.018-0.092 (using 1X auxiliary objective lens)

• High resolution: 18.6um-3.65um (using 1X auxiliary objective lens)

• Large image area, the maximum adaptable image sensor size: 2/3 inches (using 1X TV lens)

• Large field of view: 0.99mm-31.74mm

• It can be used with infinity microscope objectives

• 300X Working distance:80mm-165mm

• 450X Working distance:75mm-110mm

• 600X Working distance:80mm-100mm

• Connector: CS C mount

• Zoom:Continuously variable zoom

• Magnification:0.35X - 2.8X (about 35-300X on the display)

• 0.525X - 4.2X (about 55-460X on the display)

• 0.7X - 5.6X (about 75-610X on the display)

• Fixed position:50mm

Package includes:

• 1 x FHD Zoom C-mount Lens
