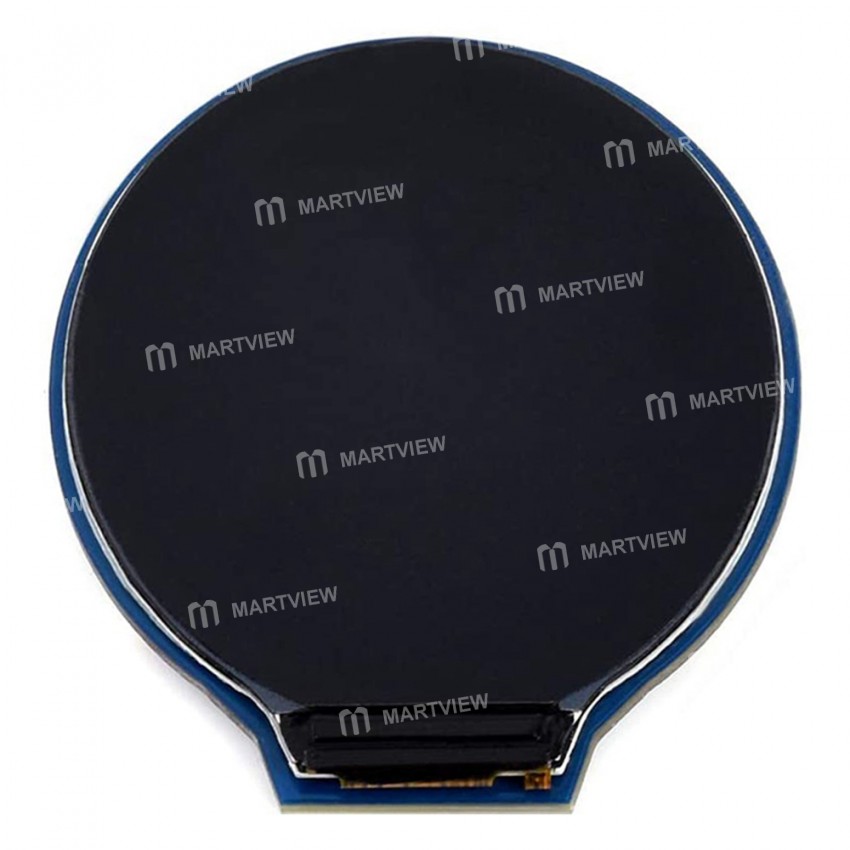

1.28-inch 65K Color Round Display LCD Screen Expansion Module Support Raspberry Pi

1.28-inch 65K Color Round Display LCD Screen Expansion Module Support Raspberry Pi

Features:

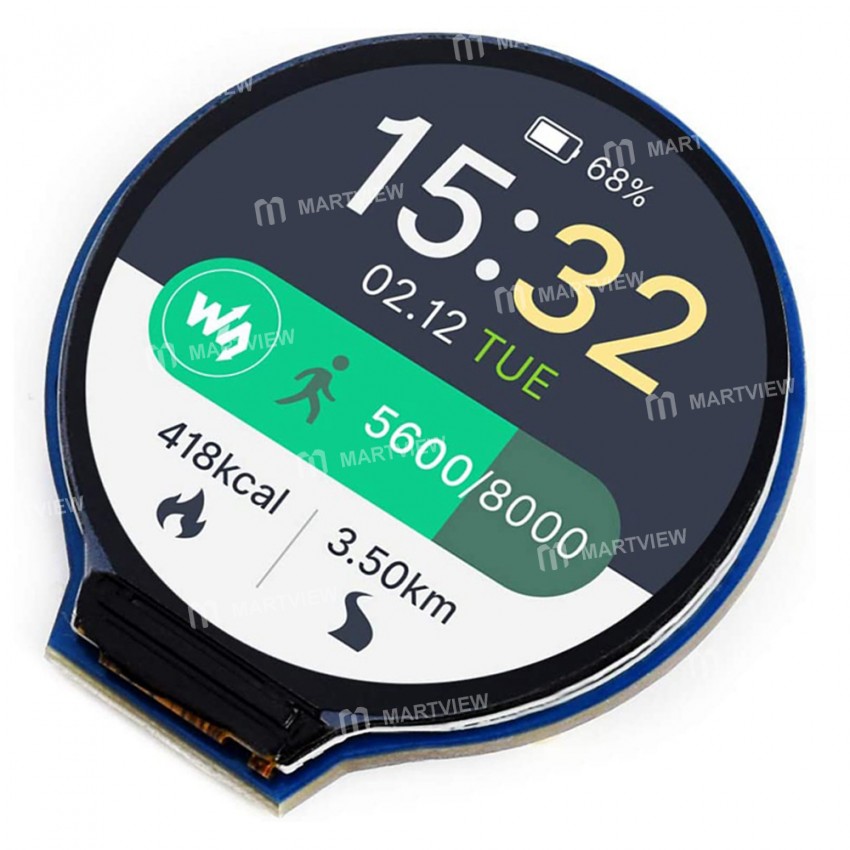

• 240x240 resolution, 65K RGB colors, clear and colorful displaying effect

• SPI interface minimizes required IO pins and supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32 Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

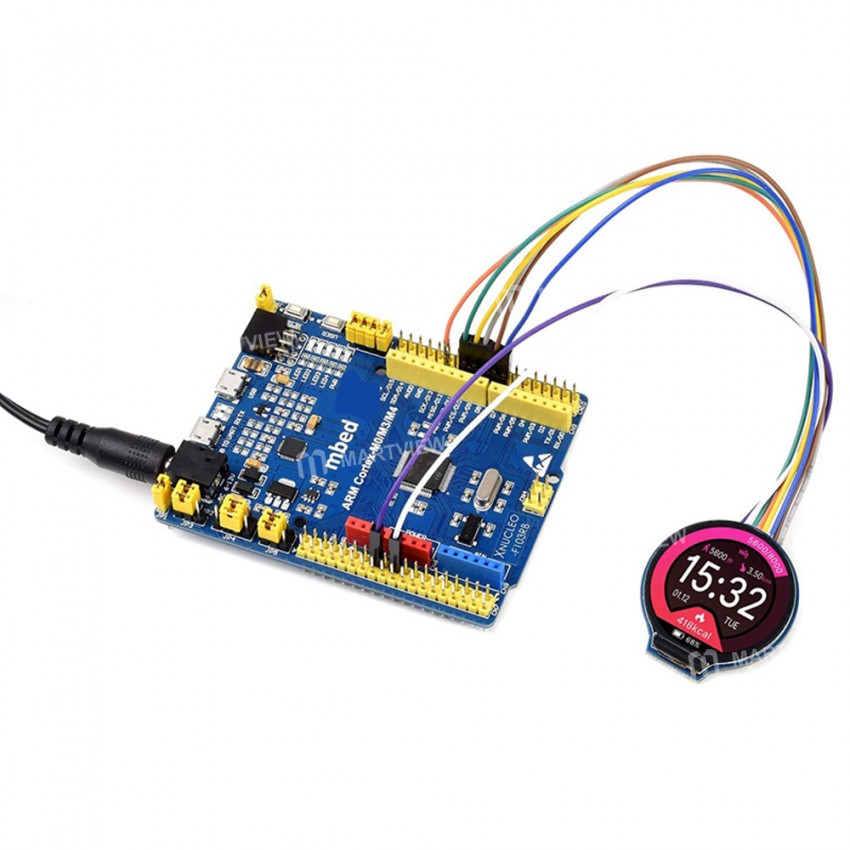

• Controlled Via SPI Bus, supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

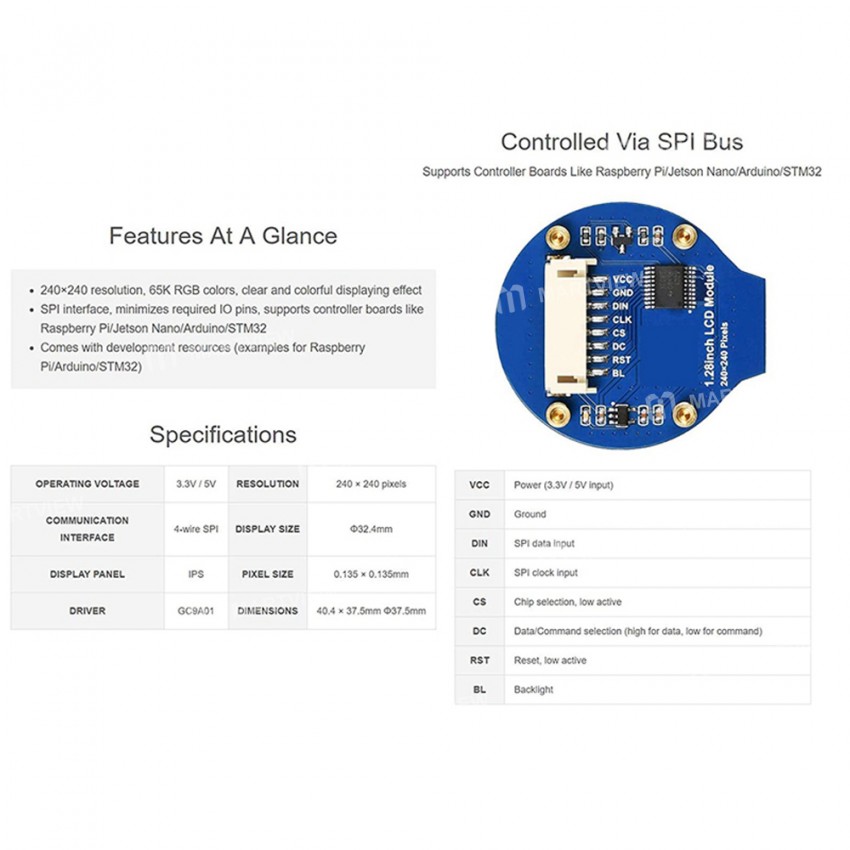

Specification:

• Operating Voltage: 3.3V/5V

• Resolution: 240×240 pixels

• Communication Interface: 4-wire Spi

• Display Size: Φ32.4mm

• Display Panel: IPS

• Pixel Size: 0.135×0.135mm

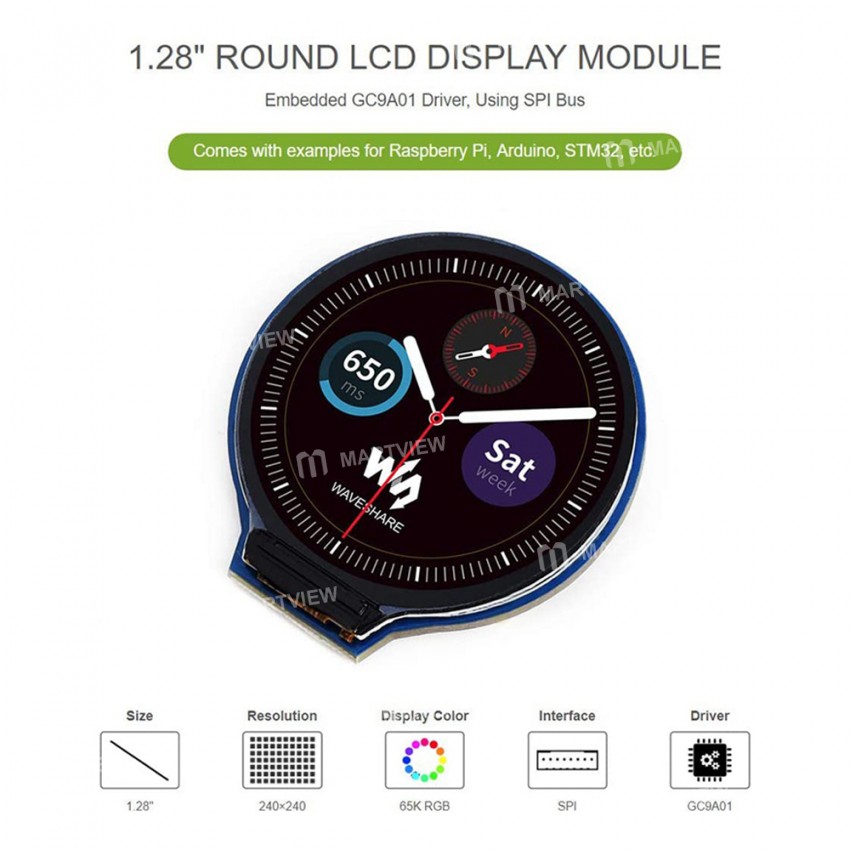

• Driver: GC9A01

• Dimensions: 40.4*37.5mm Φ37.5mm

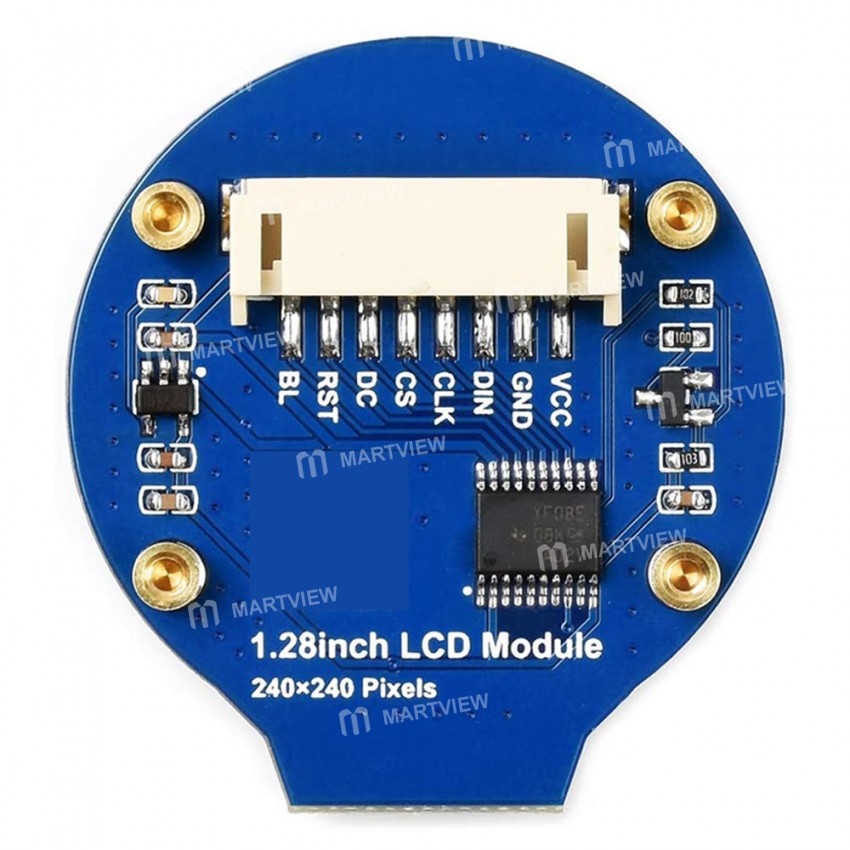

Pin Definition:

• VCC: Power (3.3V/5V input)

• GND: Ground

• DIN: SPI data input

• CLK: SPI clock input

• CS: Chip selection, low active

• DC: Data/Command selection (high for data, low for a command)

• RST: Reset, low active

• BL: Backlight

Package includes:

• 1 x Module

• 1 x Connecting line
