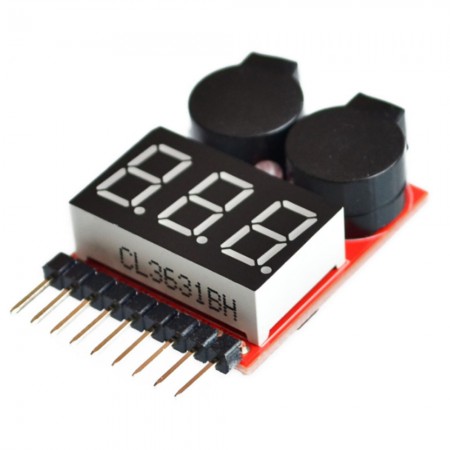

1-8S Lithium Battery Dual Function Power Indicator with Low Voltage Alarm

1-8S Lithium Battery Dual Function Power Indicator with Low Voltage Alarm

Features:

• This voltage display is used for 1~8s lithium battery detection, automatically detects the voltage of each cell and the total voltage of lithium battery, and supports reverse connection protection!

• It allows you to know the working status of your battery anytime and anywhere, so that the battery will not be harmed by over-discharge or over-charge

• When the voltage is lower than the set value, the buzzer will sound and the red LED light will flash; the factory default setting value is 3.3V, press the button to change the voltage setting value, and automatically save the user's current setting value

Specification:

• Use: for 1S-8S lithium battery detection

• Voltage detection accuracy: ±0.01V.

• Group voltage display range: 0.5V~4.5V

• Total voltage display range: 0.5V~36V

• 1S test mode voltage range: 3.7V~30V

• Low voltage buzzer alarm mode: 2S-8S

• Alarm voltage setting range: OFF~2.7~3.8V

• Size: 40*25*11mm

• Alarm sound: BB (using a special frequency, the alarm can be heard even in a noisy environment)

• Weight: 9g

Package includes:

• 1 x Power Indicator
