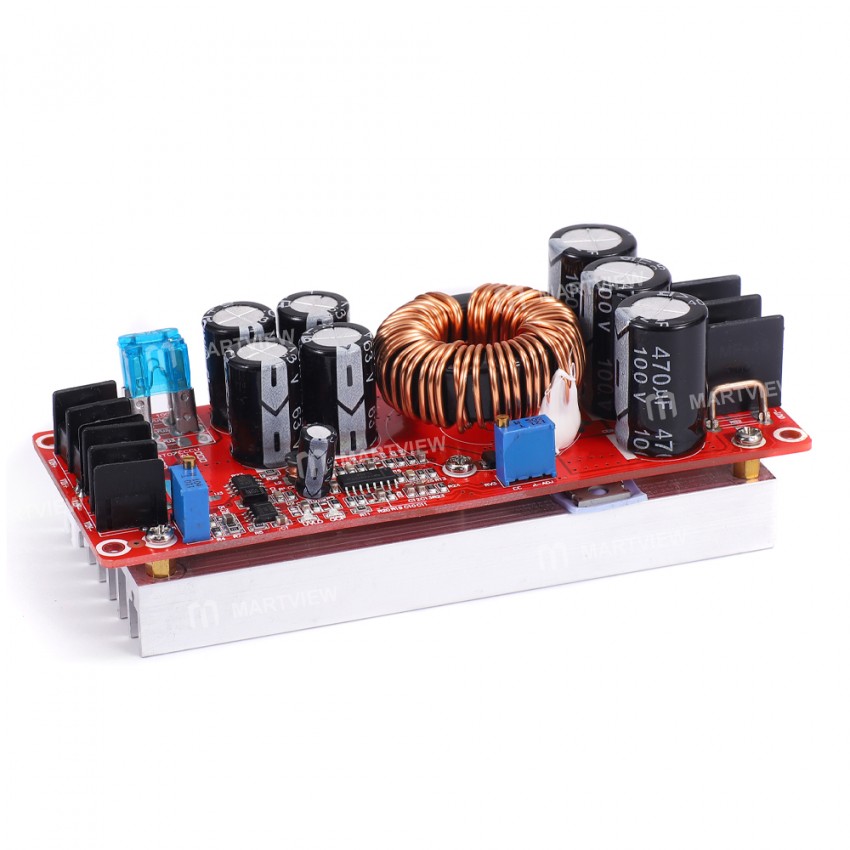

1200W High Power DC-DC Boost Constant Voltage Current Adjustable Car Charging Power Module

1200W High Power DC-DC Boost Constant Voltage Current Adjustable Car Charging Power Module

Features:

• Compared with the old model, the new model optimizes the circuit structure and makes the power supply work more stably

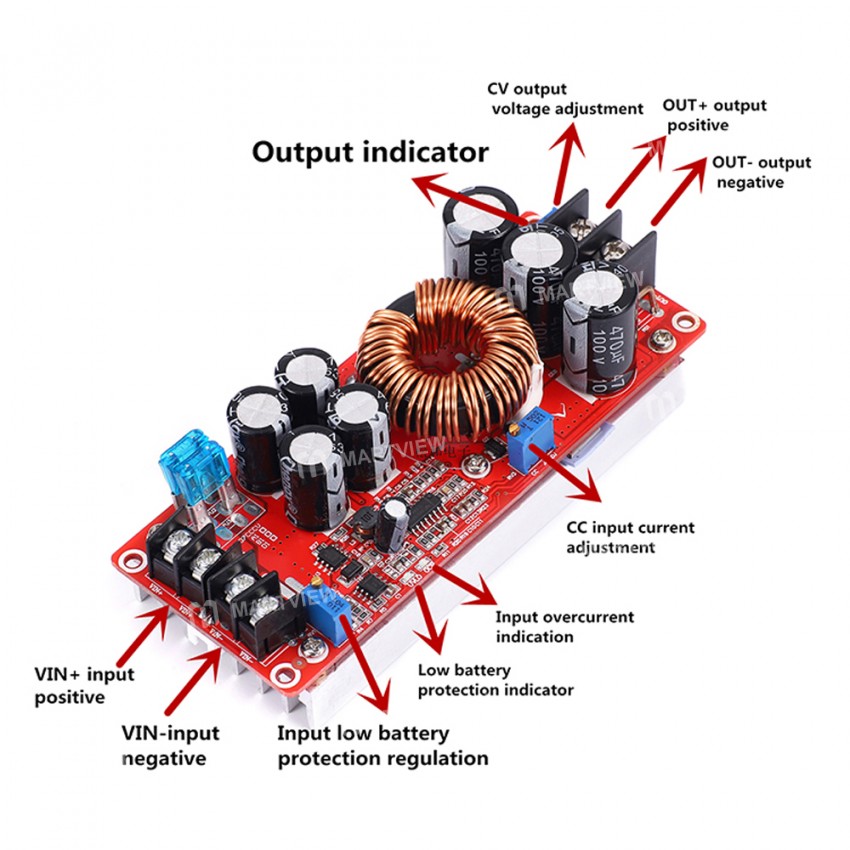

• At the same time, the input anti-reverse connection (using 150A MOS anti-reverse) and input low battery (low voltage) protection, and low battery protection voltage from 9-50 V adjustable, suitable for all kinds of batteries

• When using the battery for power supply, it is unnecessary to worry about damage to the power module and battery when the battery is in low power

Specification:

• Input voltage: 8-60V

• Input Current: 20A

• Quiescent current: 15mA(12V liter 20V, the output voltage, the higher the current will increase too quiet)

• Output voltage: 12-80V continuously adjustable

• Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)

• Constant Range: 0.5-20A

Package includes:

• 1 x Module

Notes:

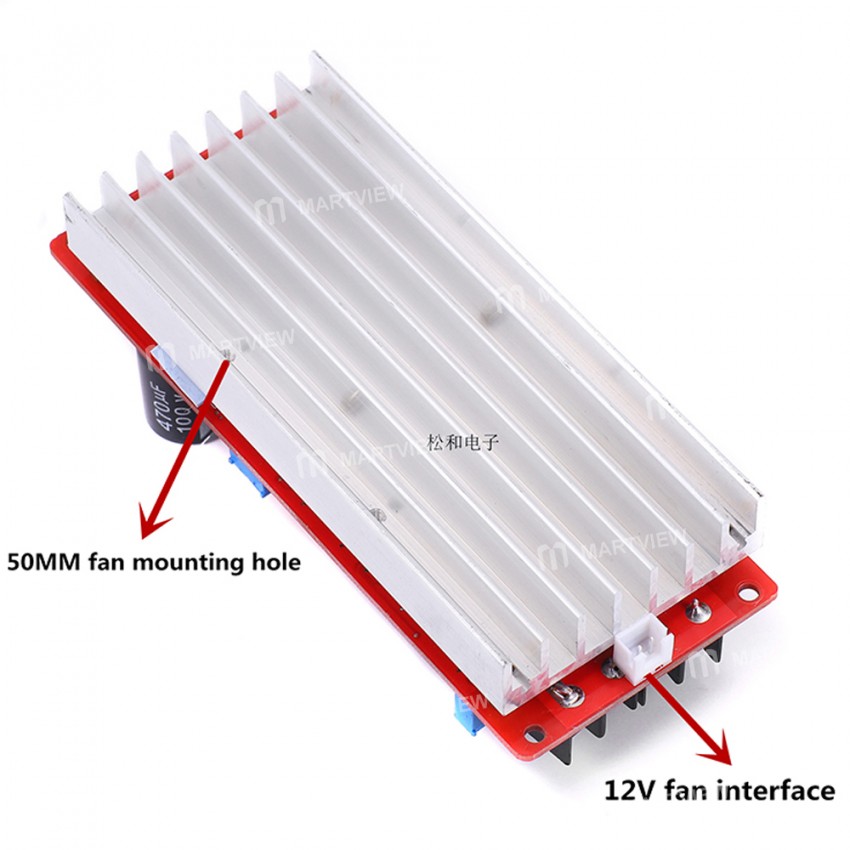

Since the maximum input current of this power supply is 20A, the output power is related to the input voltage. The higher the input voltage, the higher the power. For example, the input 12V * 20A power is 240W; Input 24V * 20A is 480W This is the maximum power. Due to the limited heat dissipation area, a 12V fan shall be added for heat dissipation when the input voltage exceeds 10A or the output current reaches
