255MESH 255MG Industrial Grade Multi-Channel Wireless LoRaWAN Gateway - 4G Version

255MESH 255MG Industrial Grade Multi-Channel Wireless LoRaWAN Gateway - 4G Version

Features:

• Easy to deploy and stable: supports up to 8 LoRa channels, Wi-Fi, and cellular connection

• Supports Power over Ethernet, easy to deploy, and has a long transmission distance, low power consumption, and high stability

• Can access ChirpStack, TTN, or Tencent Cloud IoT platform LoRa web server, easy to configure, strong compatibility

• Built-in PA+LNA: Built-in power amplifier+low noise amplifier, output power up to 25dBm

• The ESP32-driven LoRa gateway, CLASS A+CLASS C, supports FSK demodulation at the same time, with sensitivity up to -141DBM

• 65 LORA demodulators, dynamic data rates Adaptive Data Rate (ADR), Automatic Adaptive Spreading Factor (AASF), 10 programmable parallel demodulation paths

Specification:

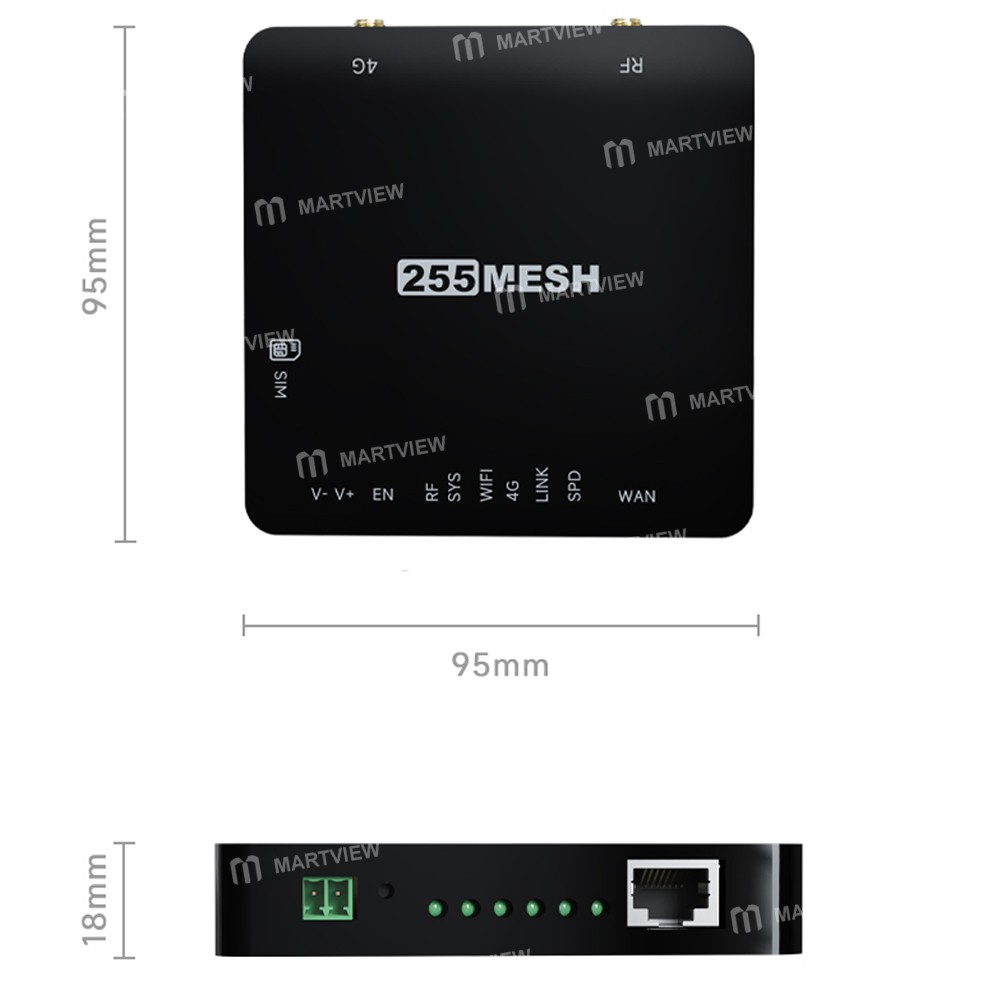

• Dimensions: 95*95*18mm

• Main Control: ESP32S3

• Operating Temperature: -35°C~75°C

• Operating Frequency Bands: 470/868/915Mhz Multi-band

• Operating Voltage: DC 9~28V

• Transmitting Power: Type: +25dbm

• Protocol Type: Supported LoRa WAN class A class C

• Spreading factor: SF7-SF12 optional

• Regular SIM: MicroSIM-card supported

Package includes:

• 1 x LoRa Gateway

• 1 x POE Splitter

• 1 x Antenna

• 1 x Network Cable

• 1 x Power Adapter

• 1 x 4G Antenna
