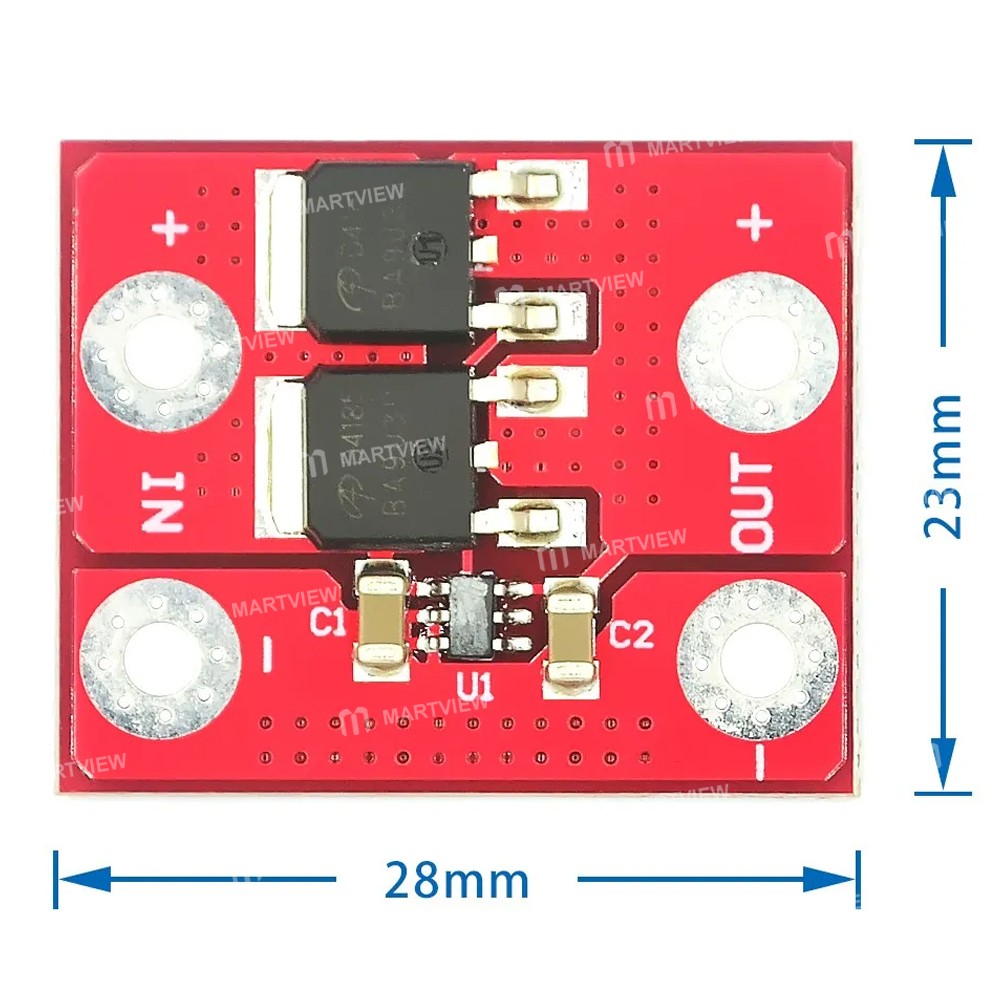

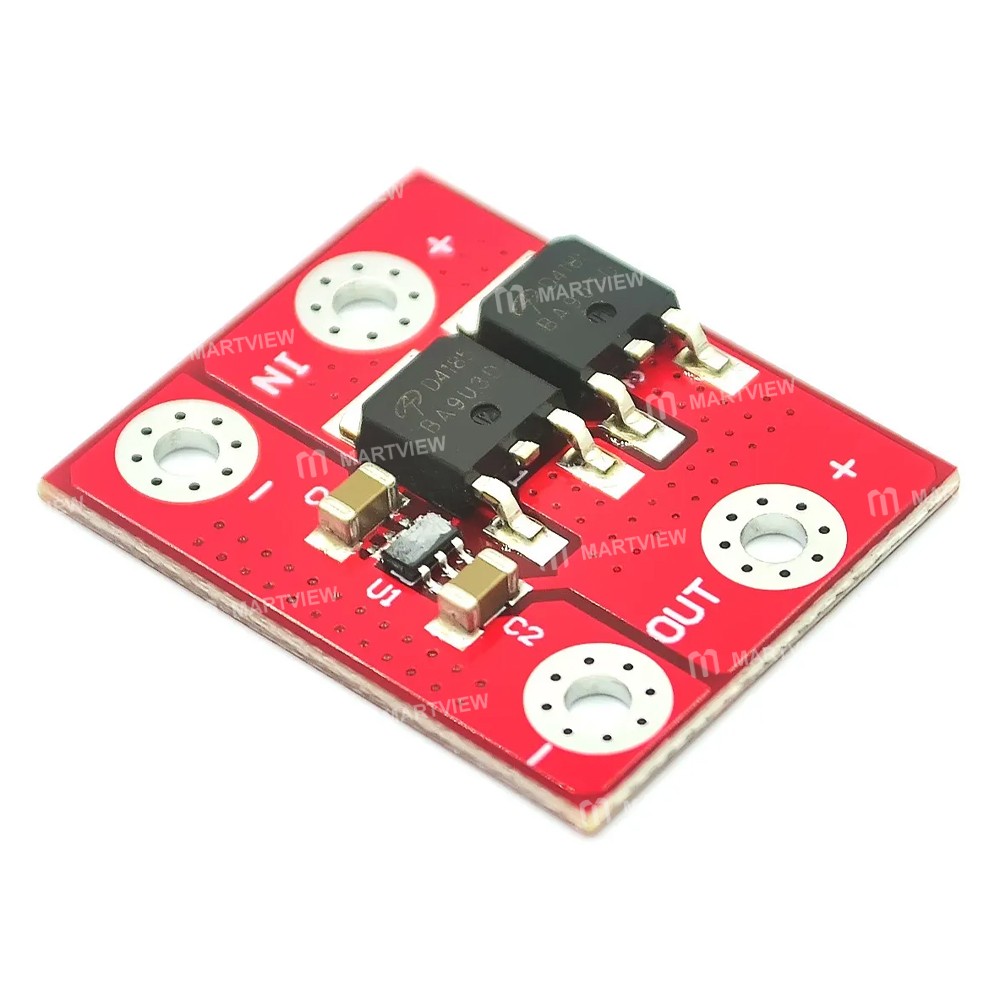

3-28V 15A High Current Ideal Diode for Anti Backflow Protection of Solar Energy Charging

3-28V 15A High Current Ideal Diode for Anti Backflow Protection of Solar Energy Charging

Features:

• Ideal diode controller with reverse input protection, with low forward voltage diode function

• This provides a lower loss path compared to Schottky diodes, and in high power applications, this provides a more efficient solution and saves valuable board space by reducing the need for heat dissipation.

• Voltage drop across the MOSFETs when on, typically 20mV, a wide power supply operating range supports 1 to 6 series Li-Ion batteries for operating power supply

• Low quiescent current (11μ typical) is independent of load current, and the gate driver includes an internal voltage clamp for MOSFET protection, with diode-equivalent inputs and outputs.

• Detection of an output voltage greater than the input immediately shuts down the output, with millivolt detection and very fast response time

Package includes:

• 1 x Diode
