3-in-1 10Mhz 600V Handheld High-Precision Oscilloscope Graphical Multimeter

3-in-1 10Mhz 600V Handheld High-Precision Oscilloscope Graphical Multimeter

Features:

• This product is an example of a combination of an oscilloscope, an electrical test pen, and an auto-range multimeter

• It can detect whether the circuit is energized, simultaneously measure a variety of electrical parameters or capture waveforms, and display the electrical parameters or waveforms of electrical signals

• Multifunctional design, with auto-ranging, 6000 count true RMS measurement, data hold, and automatic shutdown functions. Supports voltage, resistance, capacitance, diode, current and frequency test

• It can easily handle measurement in various fields, widely used in the fields of testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc

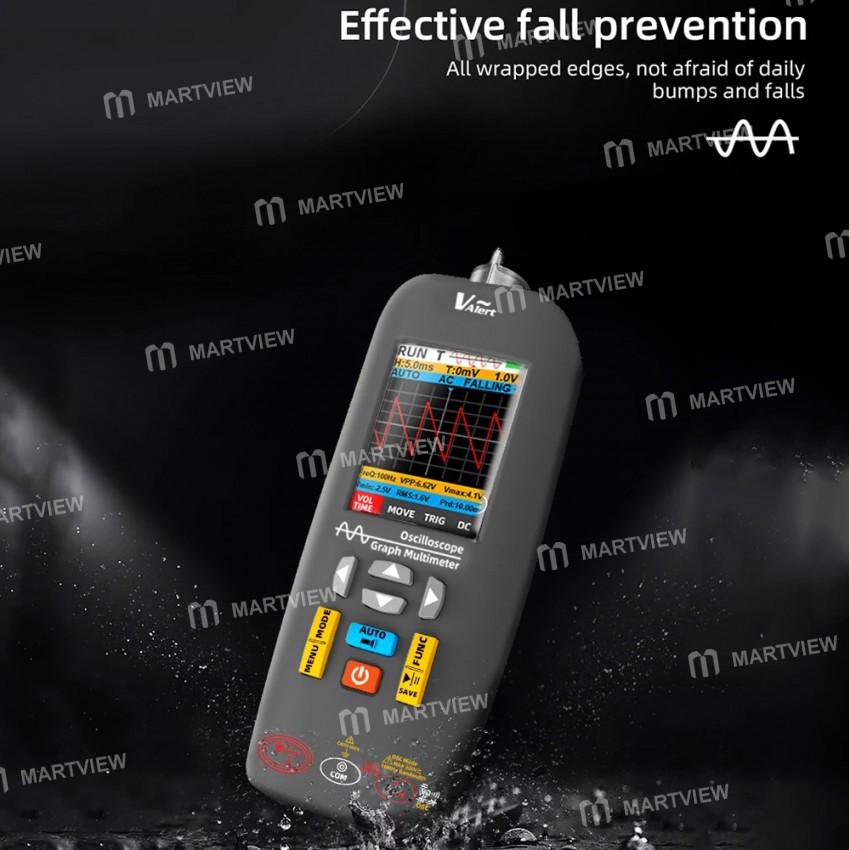

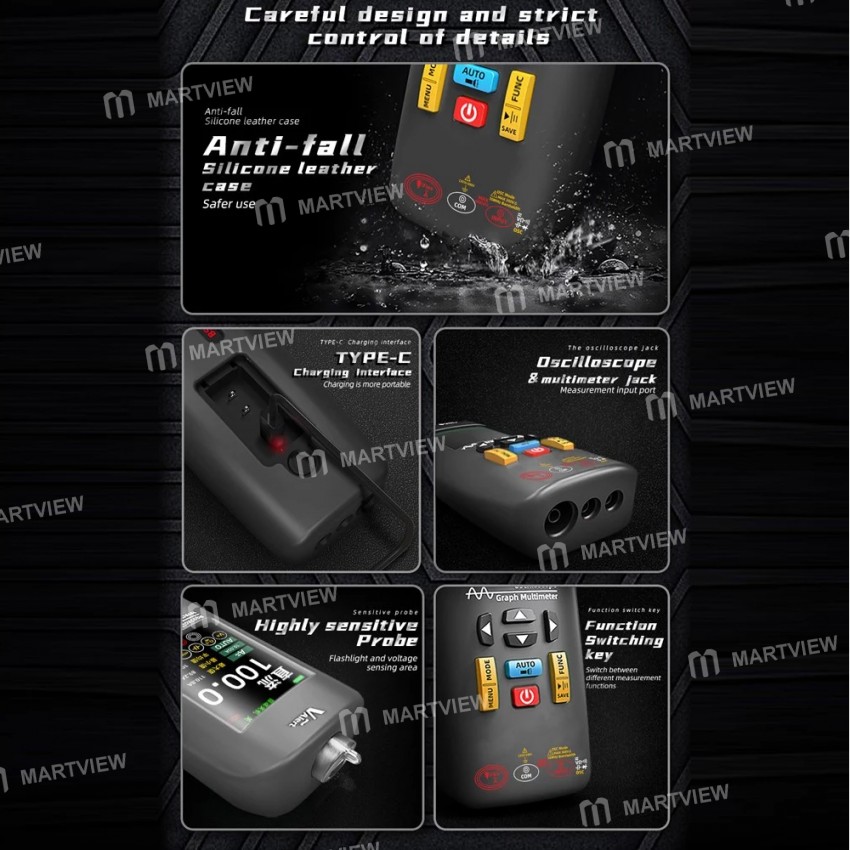

• Compact and portable body design with a simple and elegant appearance, easy to carry, does not occupy space, saying goodbye to the traditional bulky and easy to carry. With silicone protective cover, comfortable hand feeling, anti-drop and wear-resistant, safer to use

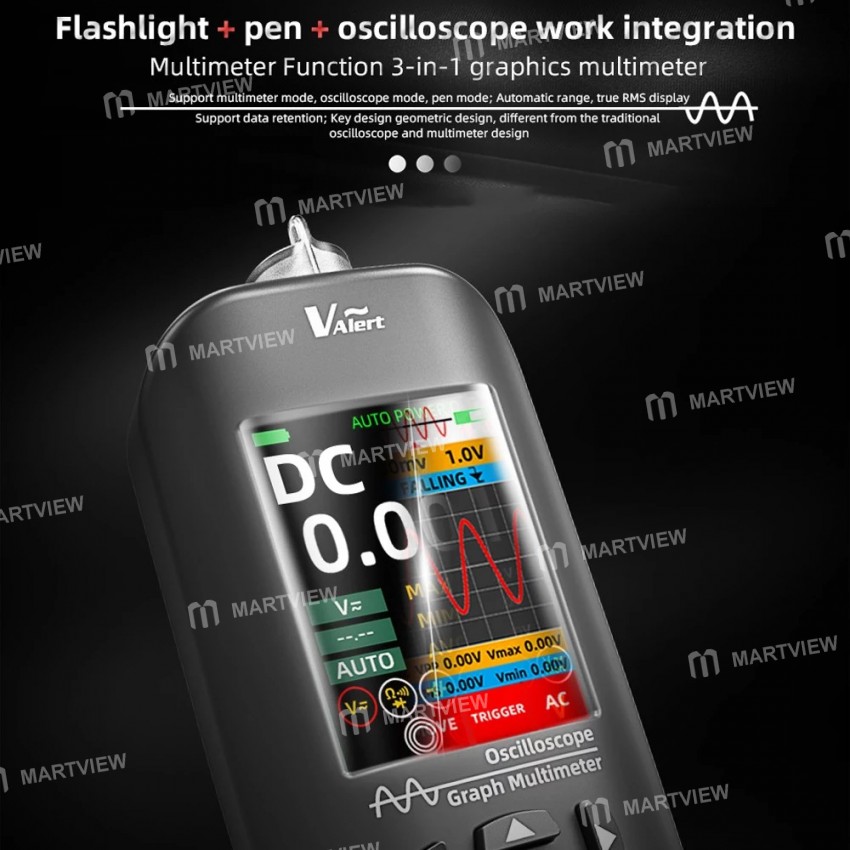

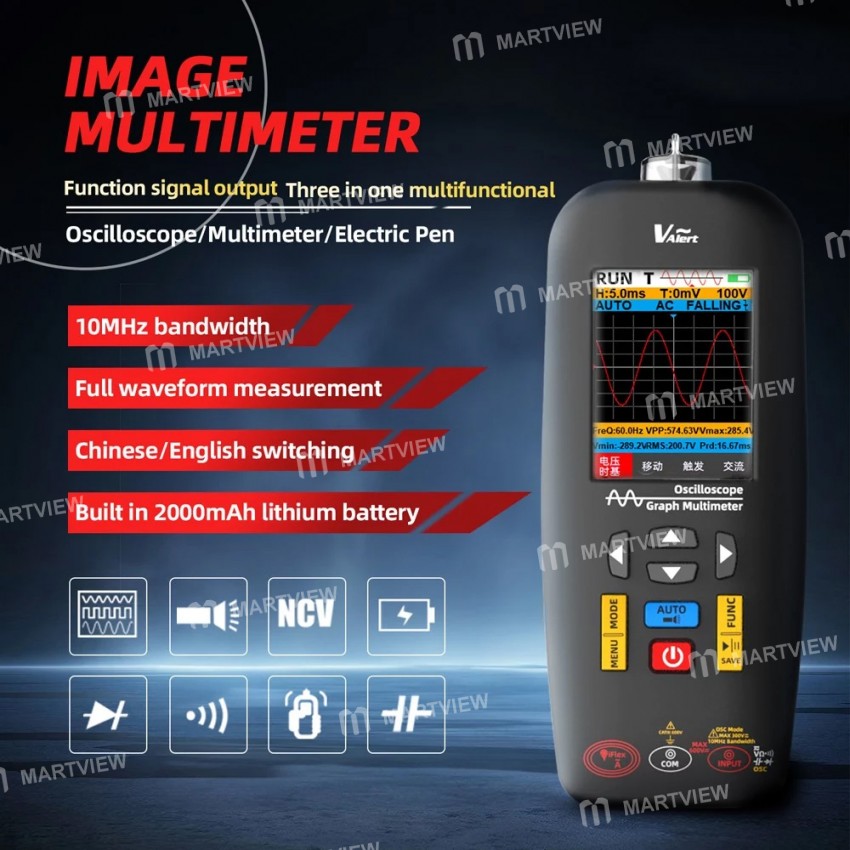

• This product ingeniously integrates the functions of a digital oscilloscope, electrical test pen, and multimeter into one device. It can detect whether the circuit is powered, simultaneously measure various electrical parameters or capture waveforms, and display electrical parameters and signal waveforms

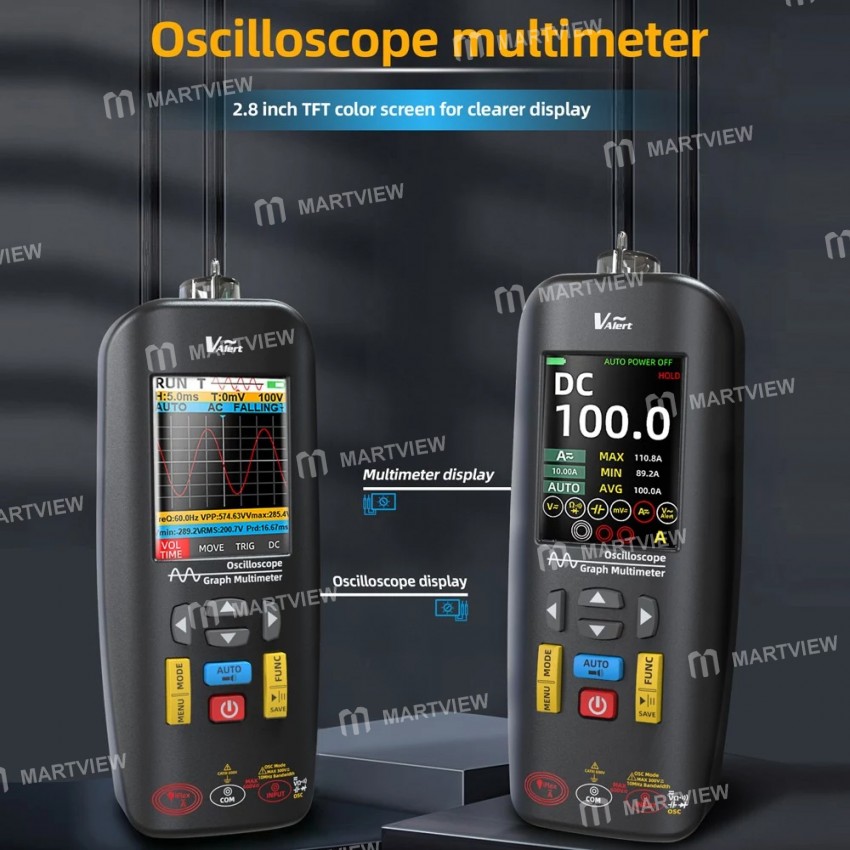

• With a high accuracy 2.8-inch TFT color display, the large font design makes you see the readings clearly at a glance. Applicable to various measurements under complex environments, greatly enhances the reading experience. Suitable for middle-aged and elderly electricians to use, easy to operate

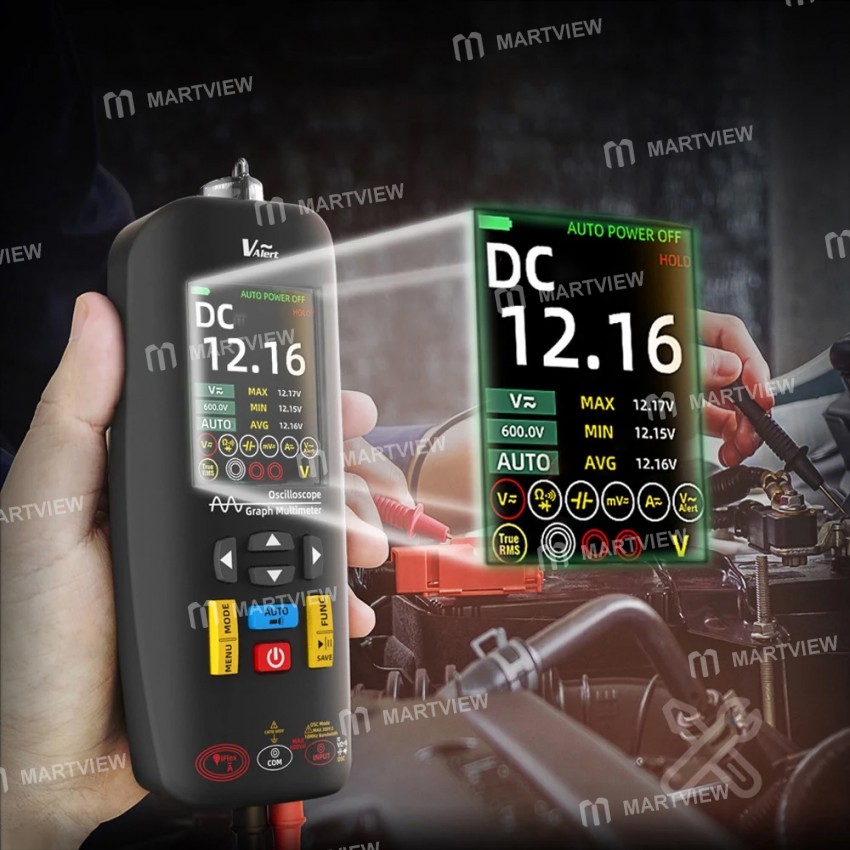

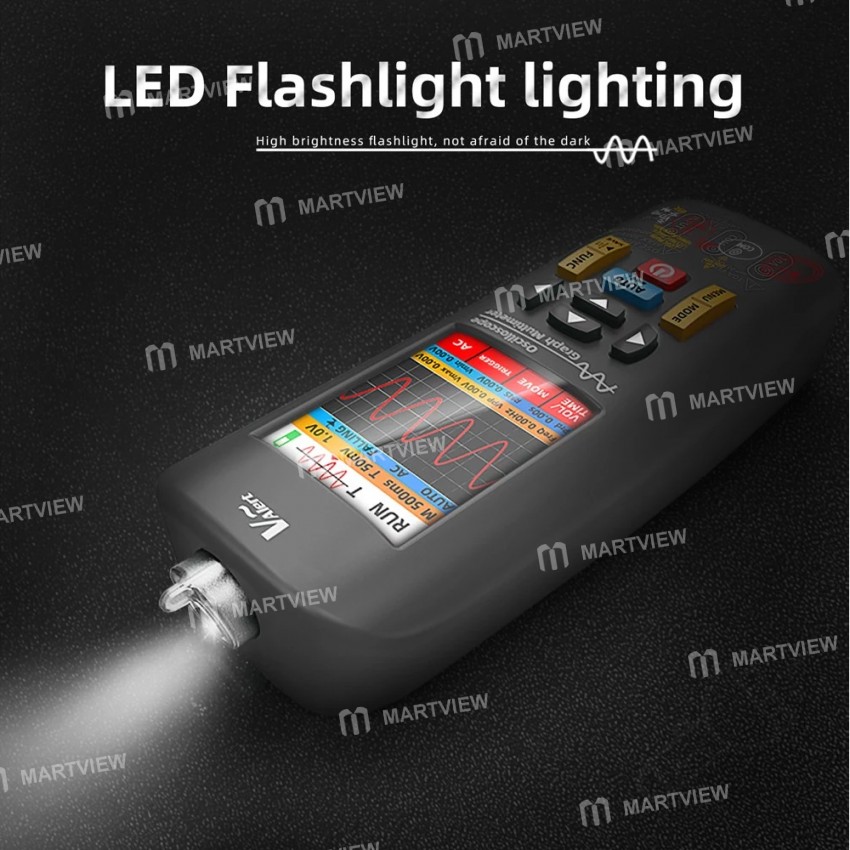

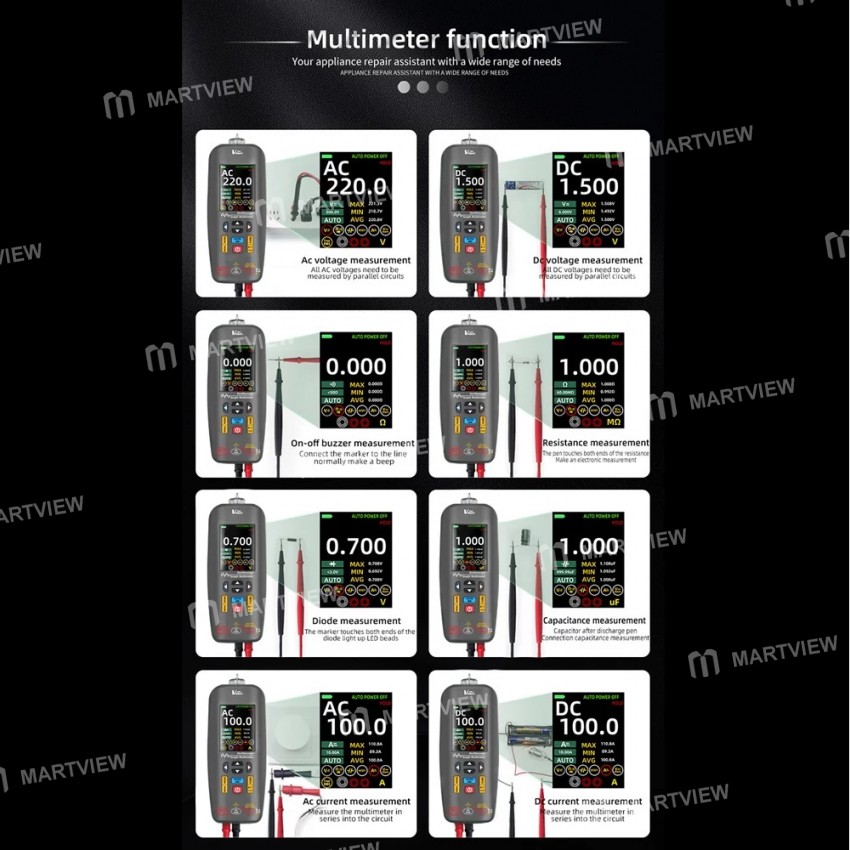

• 6000 counts True RMS multimeter supports the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, diode, frequency, etc. And with the NCV test, screenshot, automatic shutdown, and data hold function. With a flashlight for various working environments, you can use flashlight illumination in dark environments

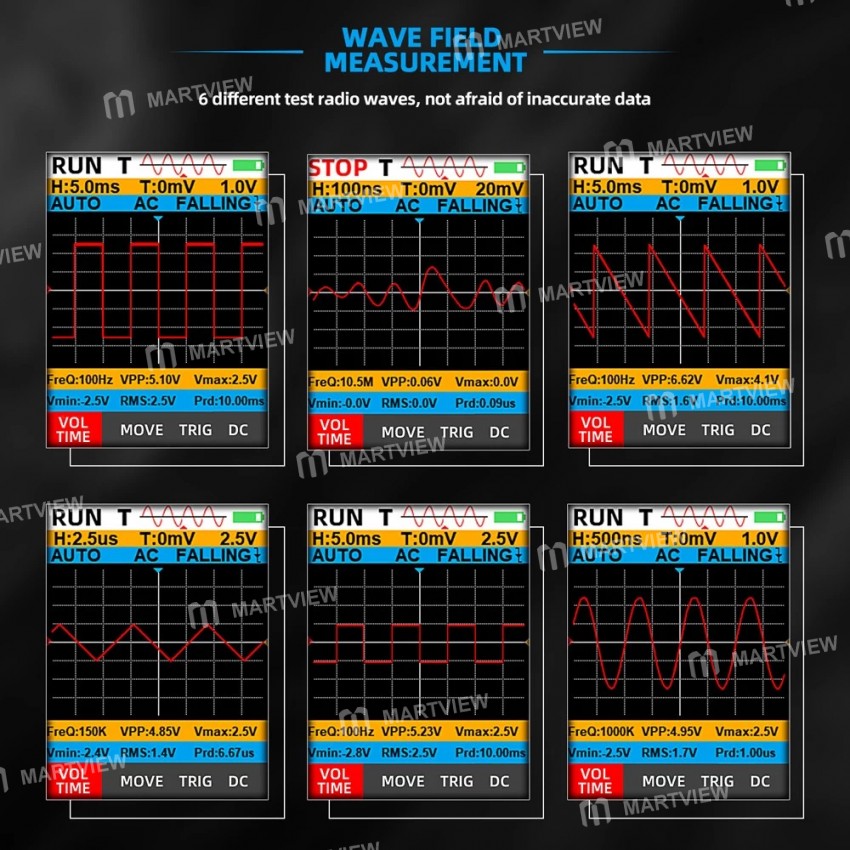

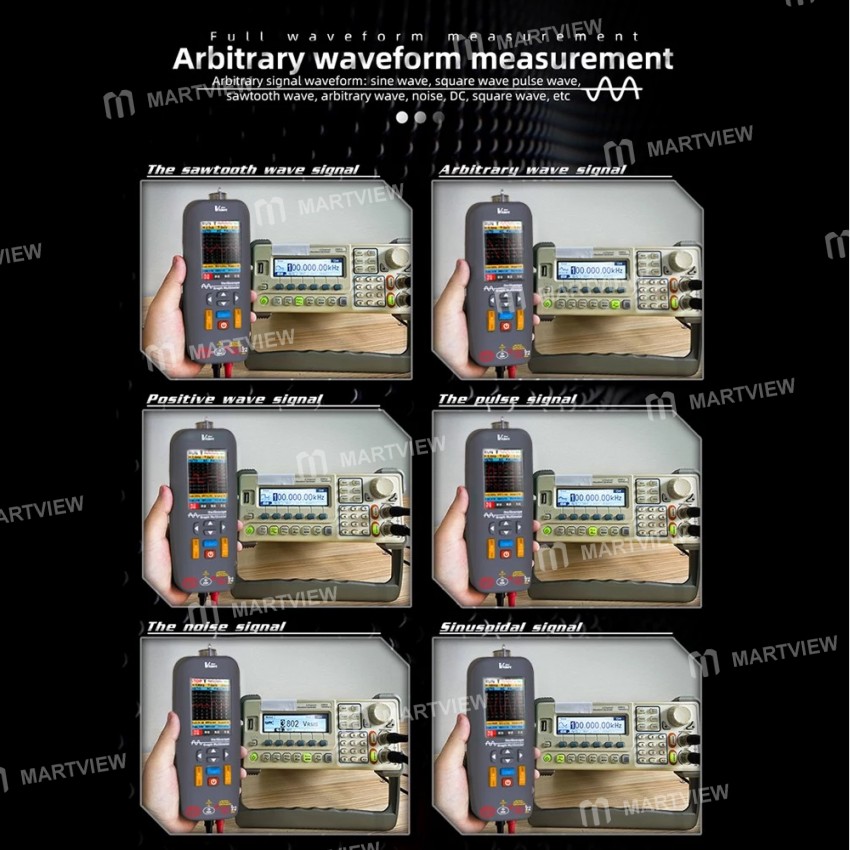

• With 10MHz bandwidth, 48NSa/S real-time sampling rate, auto-tuning measurement waveform display with voltage/time base, shift, trigger, and coupling (DC/AC) functions, to meet the waveform capture needs of different users. No complicated operation, you can quickly detect and display the waveforms, suitable for sinewaves, square waves, pulse square waves, sawtooth waves, arbitrary waves, noise, etc. With an automatic waveform capture function, supports automatic measurement of frequency, period, maximum, minimum, RMS value, etc. There are three waveform trigger modes of automatic/normal/single and two trigger edges of rising and falling

• It can be used to detect electrical power systems and home circuits, detect whether the circuit is energized or not, and detect the presence of leakage and poor grounding in the circuits to ensure the safety of home electricity, which is very convenient for circuit maintenance and testing

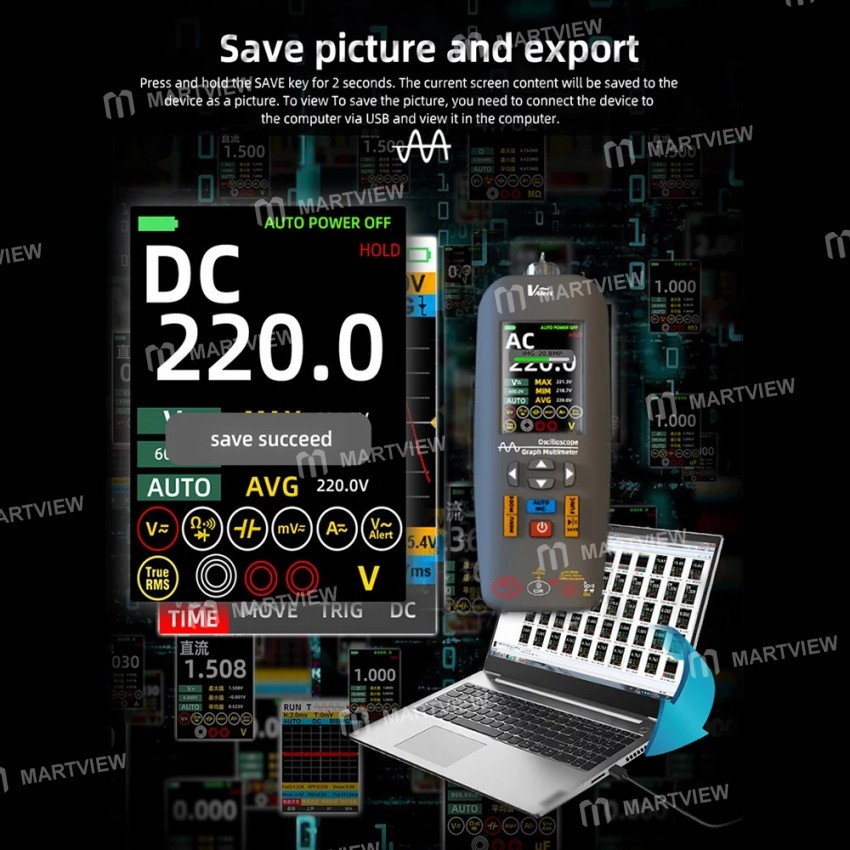

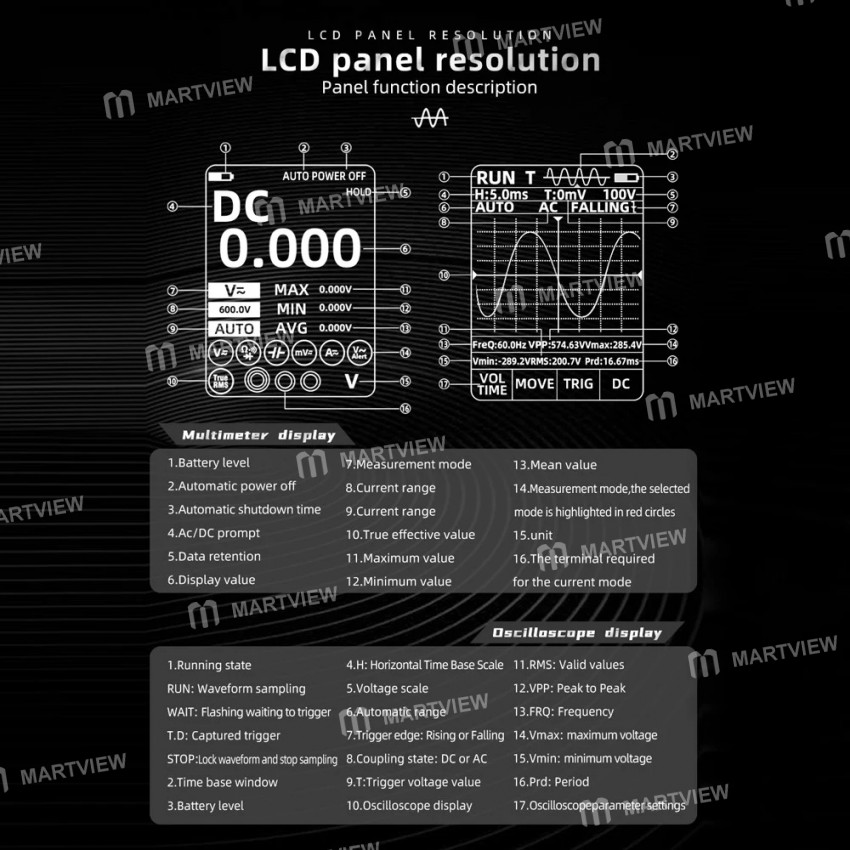

• The display interface is intuitive and simple and supports Chinese and English interface switching. The current screen content can be saved as a picture on the device. To view the saved picture, you need to connect the device to the computers via USB and view it on the computers

• It can easily handle measurement in various fields, such as testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc. Suitable for use in the electrical testing industry, electrician industry, electronic overhaul industry, LED industry, auto repairing industry, and so on

Specifications:

• Name: 3-in-1 Multimeter

• Material: Plastics + Silicone

• Battery: Built-in 2500mAh battery

Oscilloscope Parameters:

• Bandwidth: 10ΜΗz

• Sampling frequency: 48MSa/s

Input:

• Impedance: 1ΜΩ

• Ratio: ×1, ×10

• Max voltage: ±300V

• Horizontal:

• Sampling rate: 1.5Sa/s~48MSa/s

• Sweep: 100ns/div~20s/div

• Time base accuracy: 20ppm

• Sampling depth: 64KB

Vertical:

• Sensitivity: 200mV/div-100V/div

• Low-frequency response: > 10Hz

• Sampling depth: <10ns

• Gain accuracy: ±3%

• Measure: Automatic measurement: Frequency, period, maximum, minimum, RMS value, etc.

• Trigger mode: automatic, normal, single shot

• Trigger edges: rising edge, falling edge

Multimeter Parameters:

• DC Voltage: 0.1mV~600V, 0.01mV, ±(1.0%+5)

• AC Voltage: 0.1mV~600V, 0.01mV, ±(1.2%+5)

• DC Current: 0.001A~10A, 0.001A, ±(1.2%+3)

• AC Current:0.001A~10A, 0.001A, ±(1.2%+3)

• Resistance: 0.1Ω~60ΜΩ, 0.1Ω, ±(1.2%+5)

• Capacitance: 0.01nF~99.99mF, 0.01nF, ±(5.0%+10)

• Flexible electricity current clamp current: 600.0A (60mV signal) 6000A(600mV signal), 0.1A, ±(1.0%+5)

• Diode: 0.000V~3.000V

• Continuity: If the resistance ＜50Ω, the buzzer sounds

• Max display: 6000

• Auto power off: 10/30/60min or not to shut down

• Saving imaging's: Yes

• Hold: Yes

• V-Alert: Yes

• Flashlight: Yes

• Item size: 187*74*40.5mm

• Item weight: 209g

• Package size: 232*130*52mm

Package includes:

• 1 x Meter

• 1 x Pair of Test Pen
