30W DC to Dual Type-C Interface Multi-Protocol DC Power Converter

30W DC to Dual Type-C Interface Multi-Protocol DC Power Converter

Features:

• This multi-protocol converter for idle DC power adapter, make it rejuvenates its vitality and can make the DC power adapter expand the Type-C interface fast charging, fast charging for smart devices

• The maximum output power of the converter is 30W, and the input voltage is recommended for chargers within the range of 12V to 28V, i.e., 12V/3A or above, and power supplies with power greater than 36W

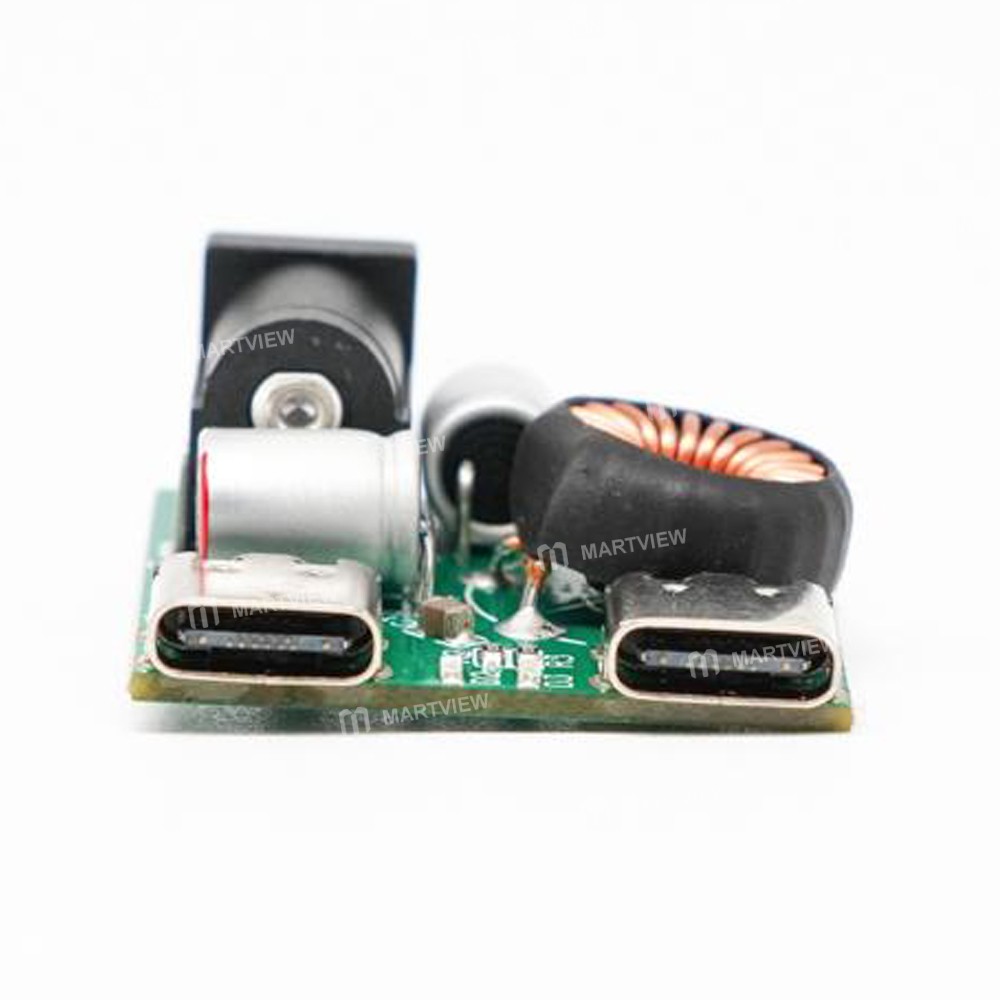

• The converter PCB carries two 100uF/25V filter capacitors and inductors wrapped in insulating rubber sleeves, MIC capacitors, port female chassis, and other devices.

• Soldered DC female chassis has all copper nickel-plated pins, more resistant to oxidative wear, the specifications for the DC 5520

• USB port configuration between the power LED indicator, connected to the charging display blue light effect

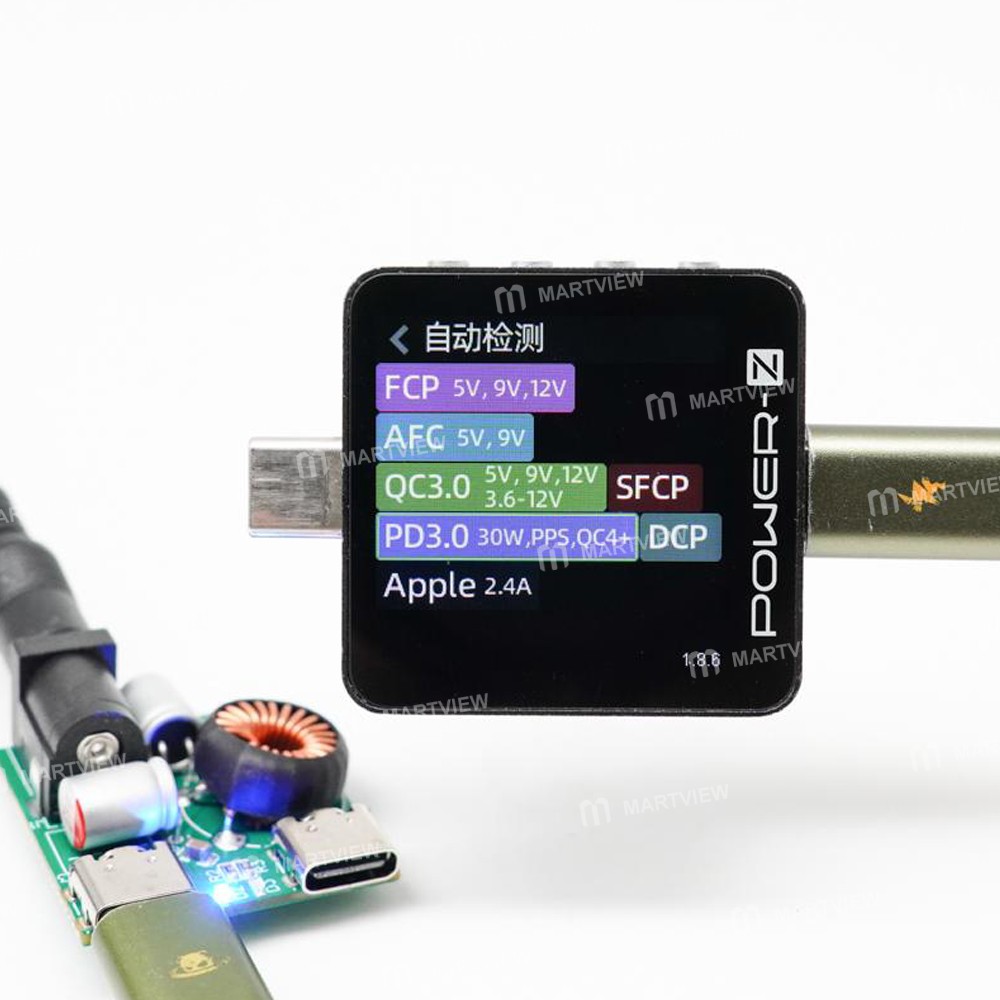

• Type-C port supports FCP, AFC, QC3.0, SFCP, PD3.0, PPS, QC4+, DCP and Apple 2.4A charging protocols

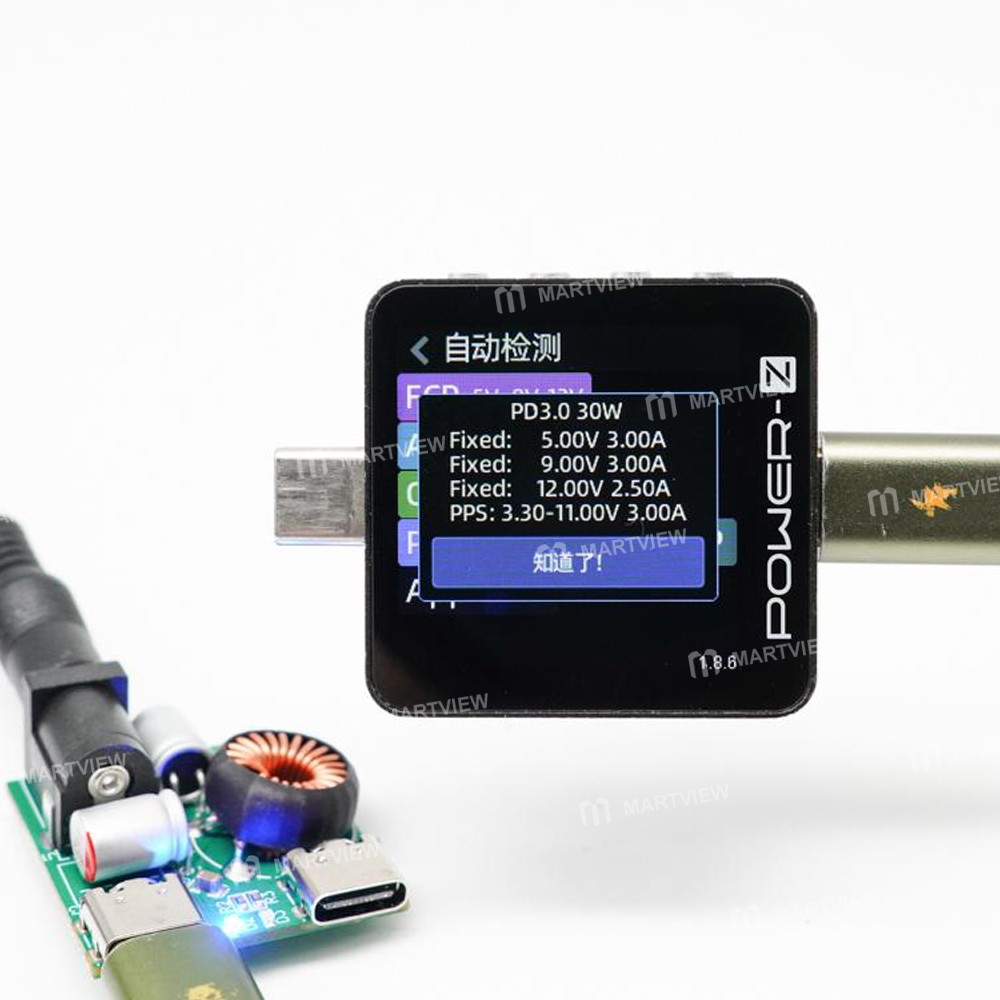

• The Type-C port has three fixed voltage steps of 5V/3A, 9V/3A, 12V/2.5A, and one PPS voltage step of 3.3~11V/3A

Package includes:

• 1 x DC Power Converter
