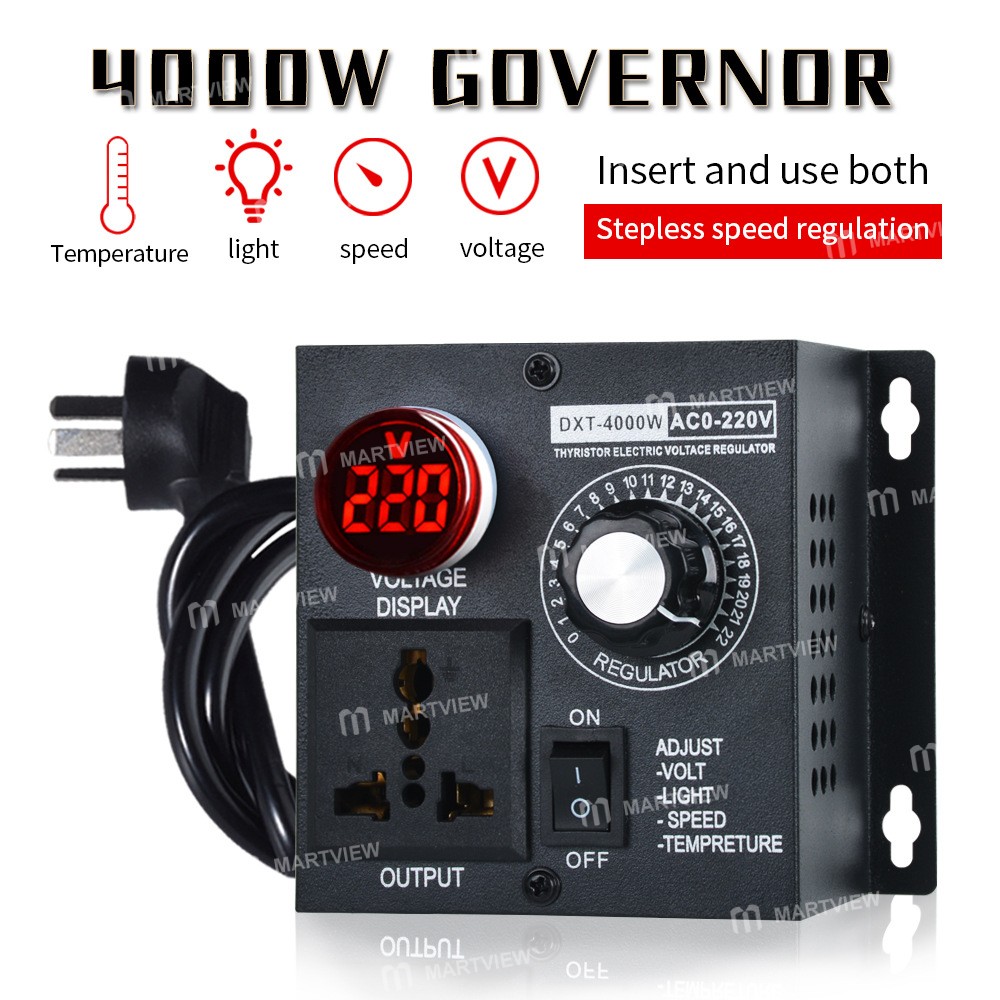

4000W Silicon Controlled Electronic Voltage Regulator with Digital Display

4000W Silicon Controlled Electronic Voltage Regulator with Digital Display

Features:

• This is a kind of fine quality high power SCR voltage regulator, with stepless regulation, that helps adjust speed, temperature, voltage, and light Mini size, portable and lightweight, strong power, and easy to use

• High-power SCR voltage regulator, and stepless regulation, help adjust speed, temperature, voltage, and light

• Adopt high temperature resistant FR-4 circuit board, origin imported chip SCR, full aluminum thermal fin, precisions resistance with high voltage condenser

• Separate switch control, freely control the input power and cut-off power

• No postponement and no delay, with a crest voltage absorb circuit, can protect the high-power SCR effectively

• Anti-surge, anti-spike, RC absorb, and multiple protection

• Flame retardant insulation nutshell, high temperature resistant, rustproof, anti-high pressure, and with fine durability

• Adopt multi-functional industrial sockets, thicken copper part design, with fine contact and safety

• Humanized installation hole design, keeping flat place or hanging on it is decided by yourself

• Silent work, energy saving, stable anti-noise, and with a wide range of use

• Suitable for electrical components, such as electric stoves, water heaters, heat transfer lamp dimming, small motors, electric soldering temperature, etc

Specification:

• Name: SCR Voltage Regulator

• Model: NHT-4000W

• Material: Aluminum

• Color: Black

• Input voltage: AC 220 V

• Output voltage: 0~220 V

• Max power: 4000W

• Voltage adjusting range: 0-220V

• Rated current: 9A(Max 18A)

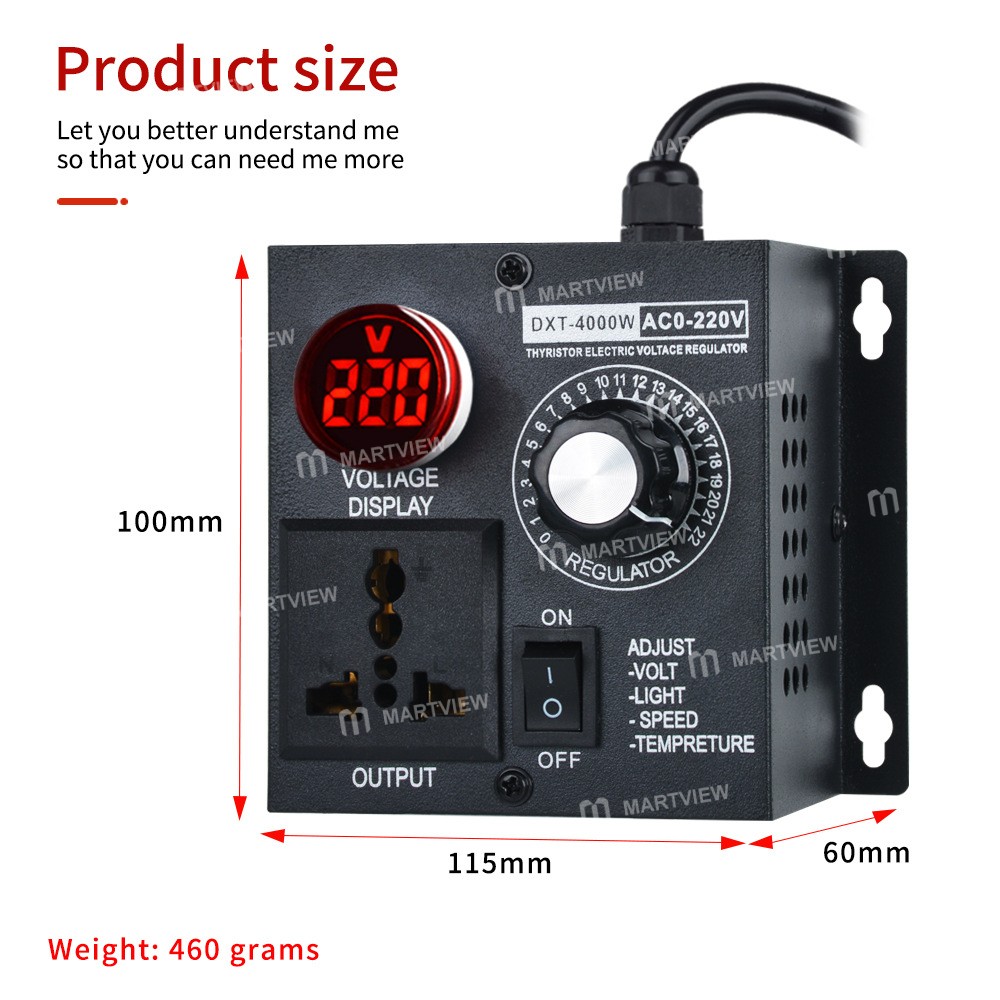

• Main machine size: 115*100*83mm

Package includes:

• 1 x SCR Voltage Regulator

Notes:

• When measuring the output voltage when it is empty, it is a virtual voltage. It must be connected to a load of 20W or more to measure the correct output voltage

• Input AC power, the output is also AC, not DC

• The above-mentioned 4000W refers to the ultimate power when working under a resistive load

• The inductive load is 13 of the resistive load. The resistive load means that the inductive load such as a tungsten filament lamp or a heating wire is a series-excited motor, etc., and the circuit board electronic products are used with caution

• This product is a metal case and must be grounded safely
