498 Anti-static Strap Digital Display Tester for Factory Workshop Production

498 Anti-static Strap Digital Display Tester for Factory Workshop Production

Features:

• Static wrist strap tester for electrostatic wrist straps can be quickly and easily checked

• The electrostatic wrist strap can quickly and easily check the connection between the electrostatic wrist strap and the grounding wire

• The contact impedance between the electrostatic wrist strap and the skin

• The connection with the electrostatic grounding plate, mat, and other grounding tools

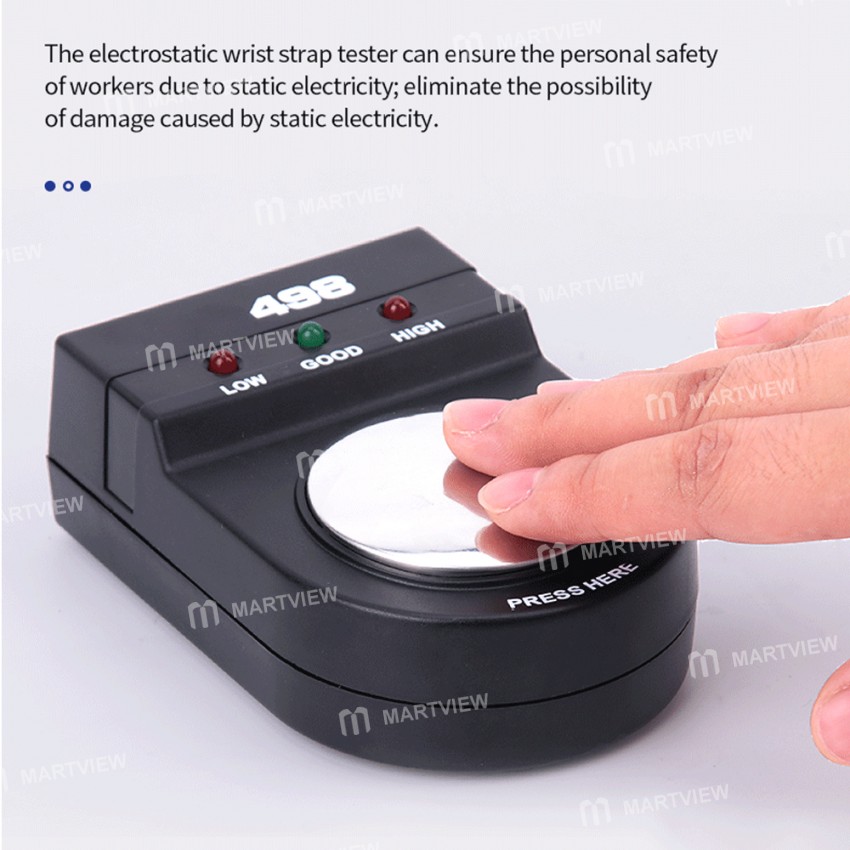

• The electrostatic wrist strap tester can ensure the personal safety of workers due to static electricity; eliminate the possibility of damage caused by static electricity

Specification:

• Model: 498

• Name: Static Wrist Strap Tester

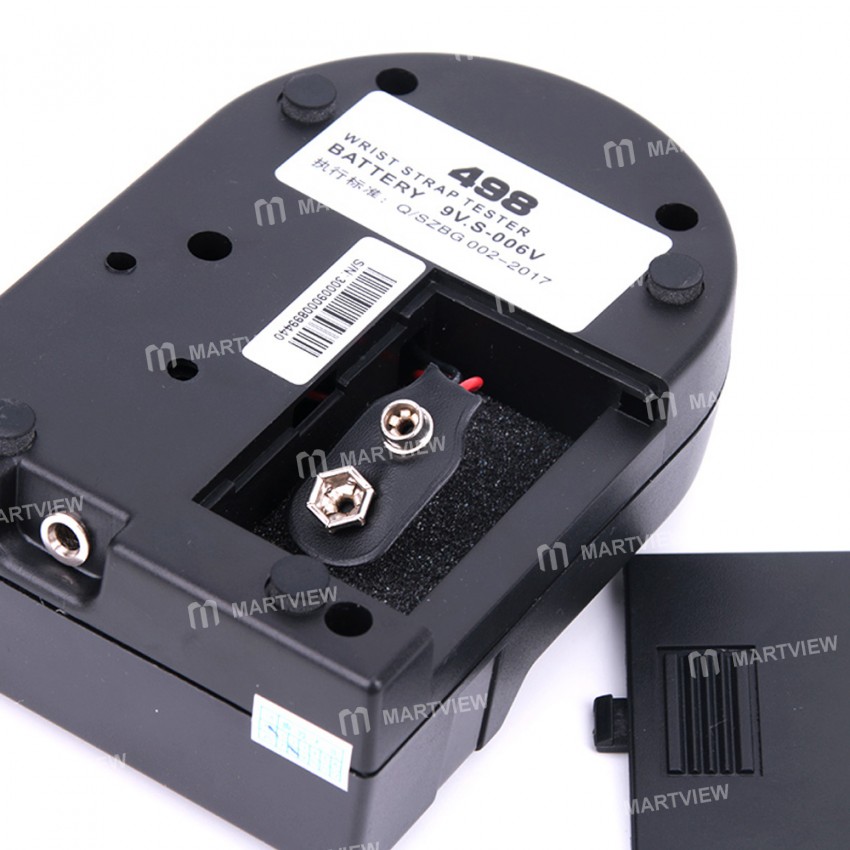

• Power supply: 9V battery(Not included)

• Ground wire: 2M

• Outside size: 80*40*117mm

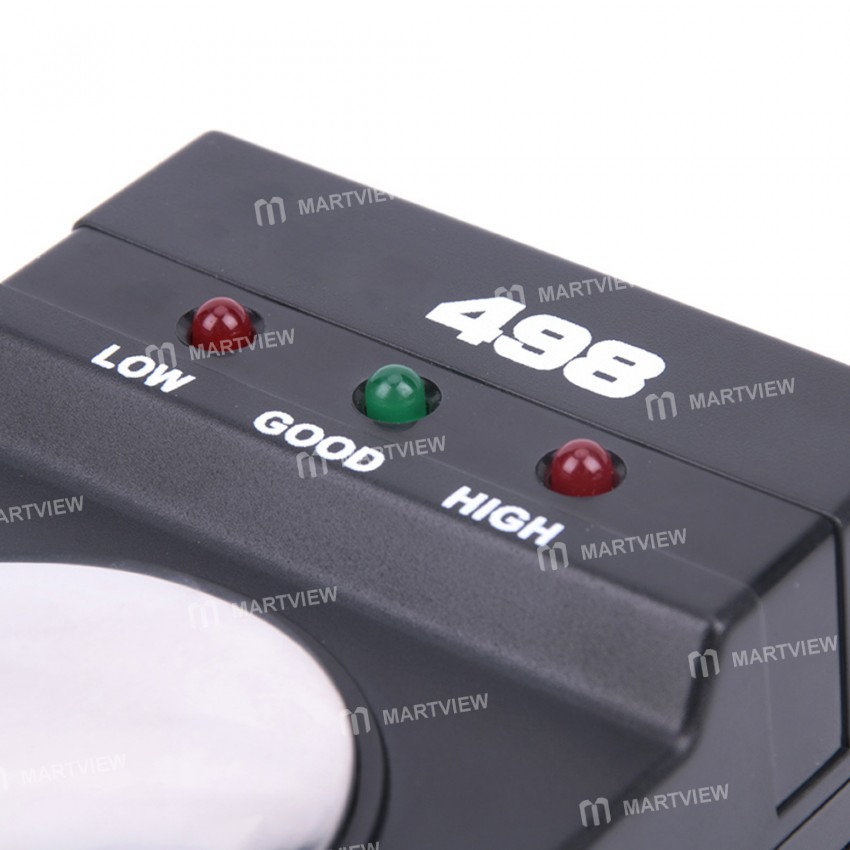

• LED indicator: Test impedance

• Red light (LOW): R<800KΩ

• Greenlight (GOOD): 800KΩ≤R≤9MΩ

• Red light (HIGH): R>9MΩ

Indicator Light Description:

• The red light LOW light is on, and the resistance between the wrist strap and the ground wire should be checked

• When it is less than 800 kilohms, it will affect the human body

• When the green GOOD light is on, the grounding system is safe, and there is an audible signal prompt

• The red light HIGH is on, please check whether the wrist strap is tightly worn on the wrist, and then check the resistance between the wrist strap and the ground wire to ensure that the ground wire is not broken

Package includes:

• 1 x Static Wrist Strap Tester(without Battery)
