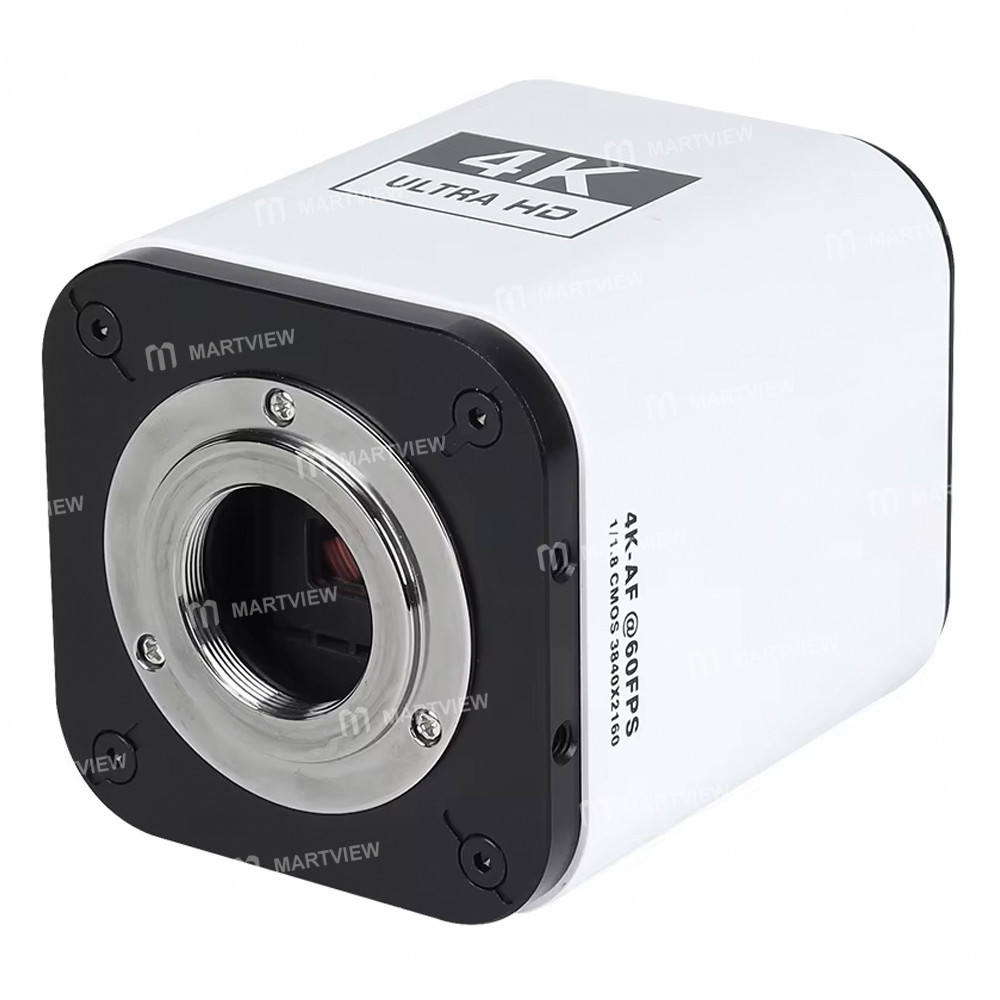

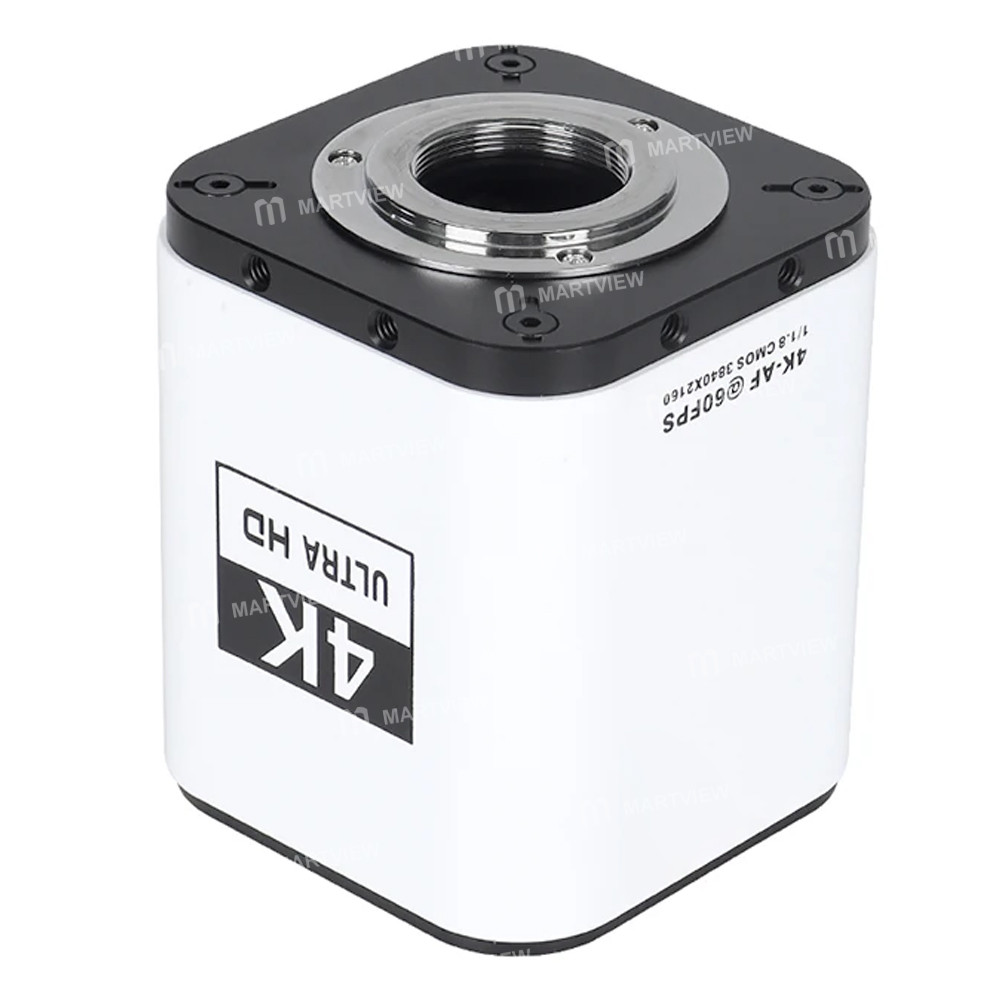

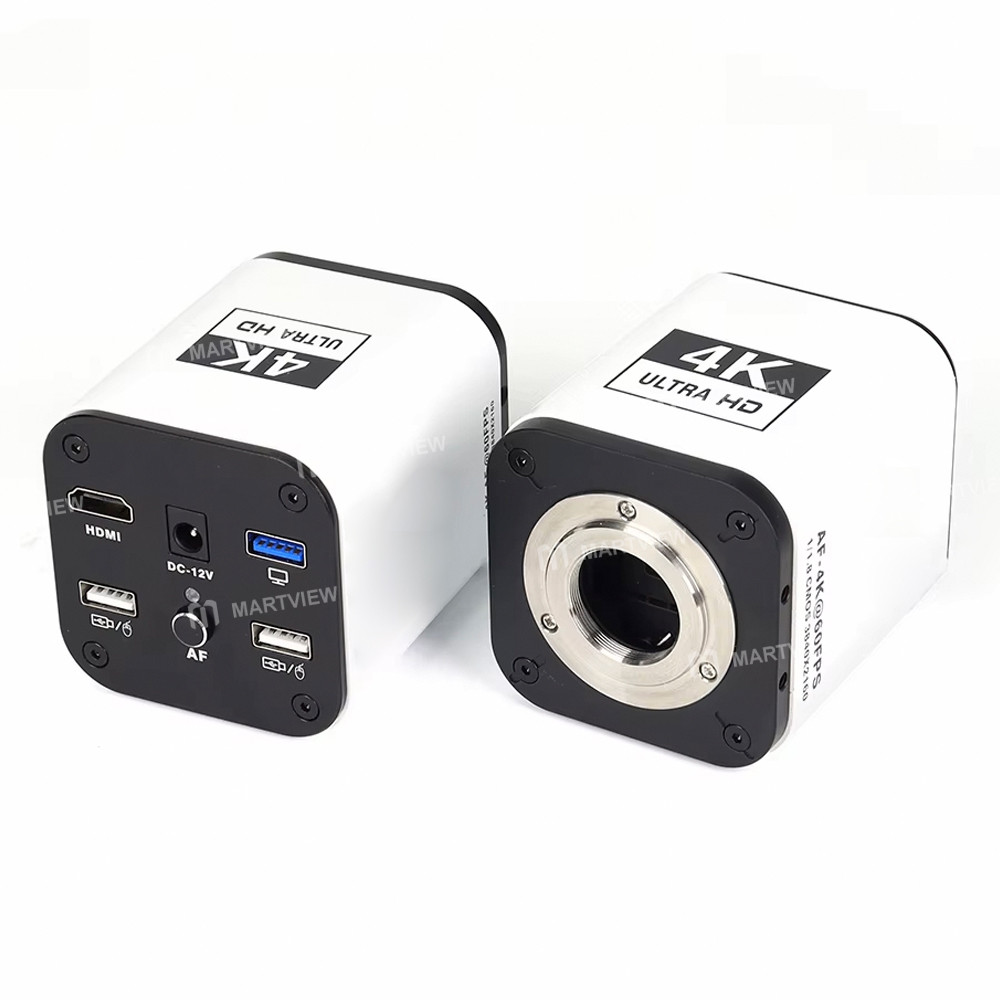

4K-AF 4K Ultra HD Autofocus Microscope Industrial Camera with Integrated Measurement System

4K-AF 4K Ultra HD Autofocus Microscope Industrial Camera with Integrated Measurement System

Features:

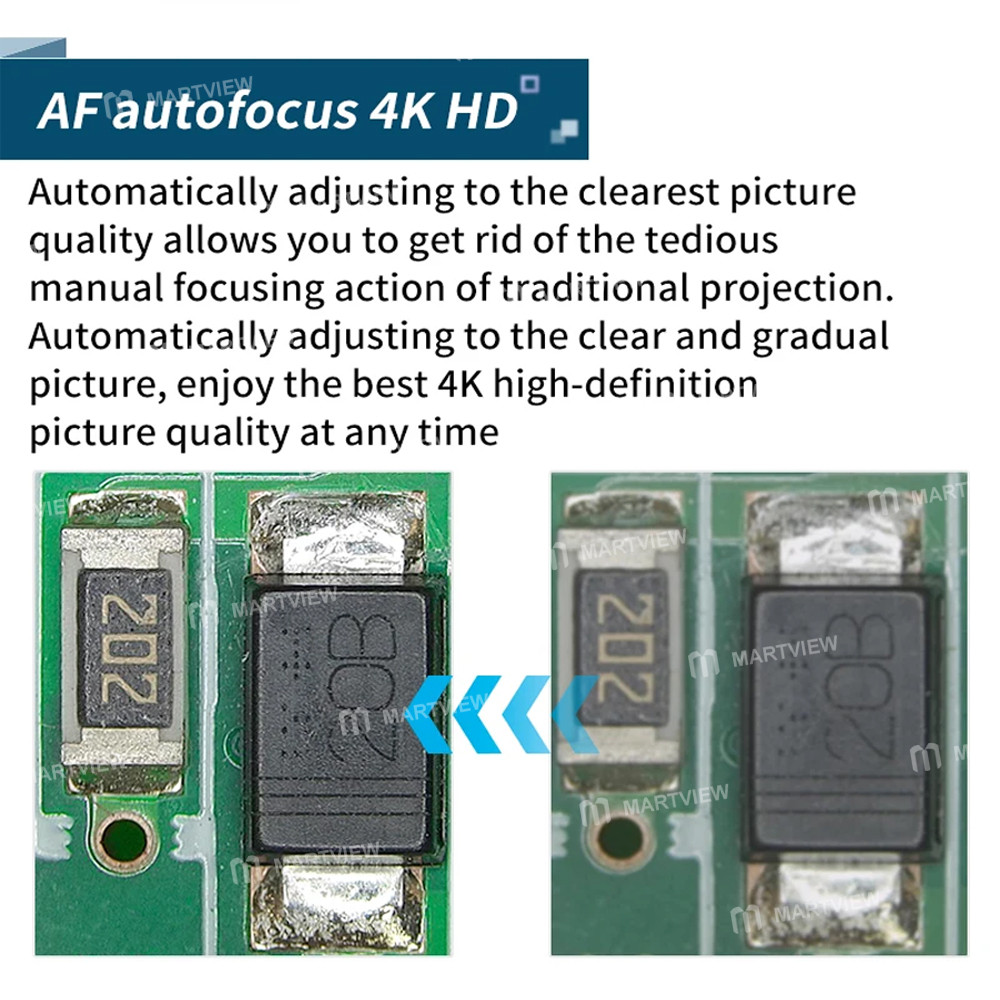

• Automatically adjusting to the clearest picture quality allows you to get rid of the tedious manual focusing action of traditional projection

• Automatically adjusting to the clear and gradual picture, enjoy the best 4K high-definition picture quality at any time

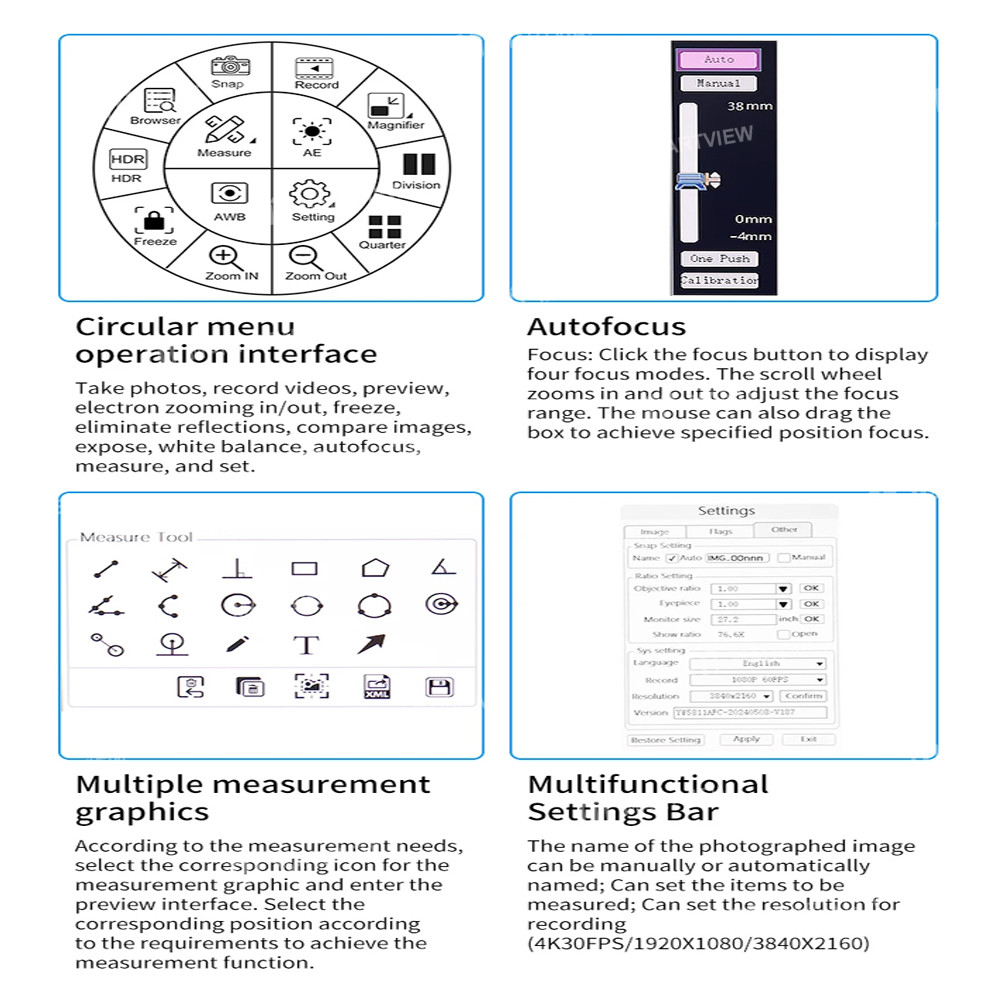

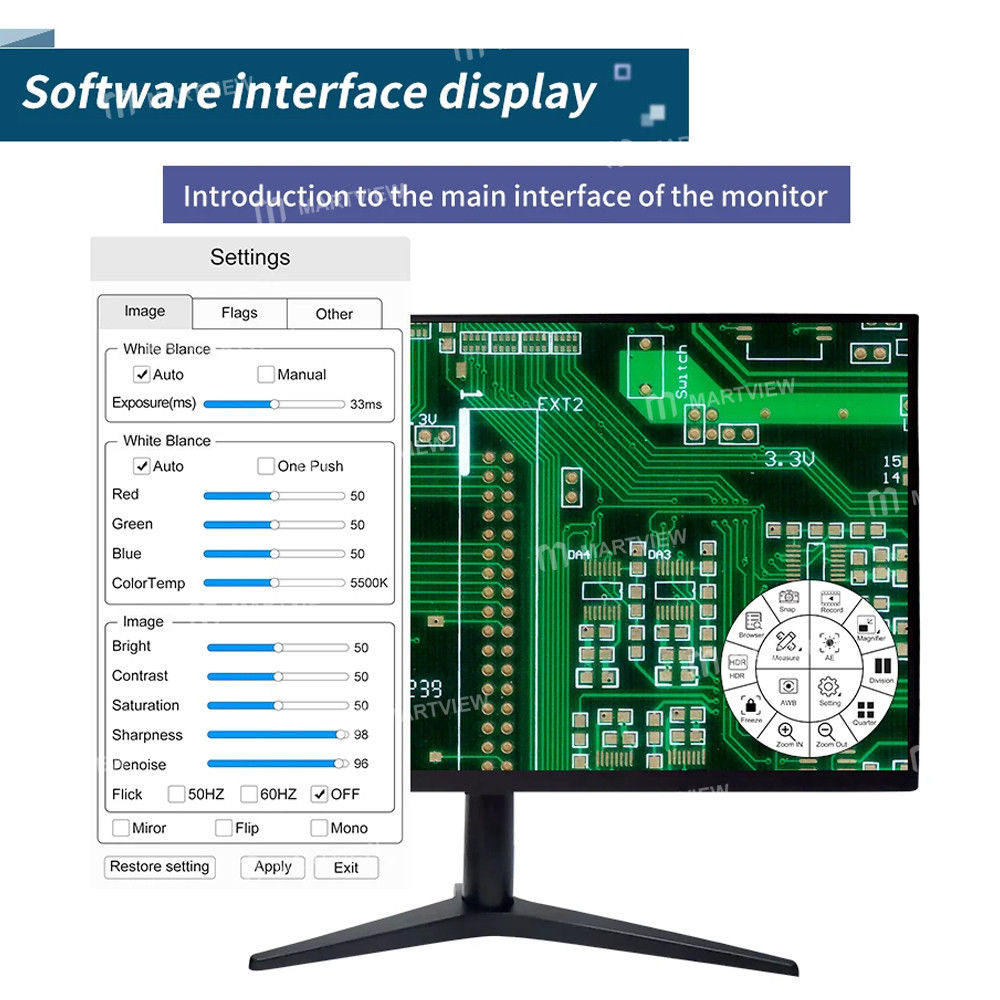

• Circular menu operation interface: Take photos, record videos, preview, electron zooming in/out, freeze, eliminate reflections, compare images, expose, white balance, autofocus, measure, and set

• Autofocus Focus: Click the focus button to display four focus modes. The scroll wheel zooms in and out to adjust the focus range. The mouse can also drag the box to achieve the specified position focus

• Multiple measurement graphics: According to the measurement needs, select the corresponding icon for the measurement graphic and enter the preview interface. Select the corresponding position according to the requirements to achieve the measurement function

• Multifunctional Settings Bar: The name of the photographed image can be manually or automatically named; Can set the items to be measured; Can set the resolution for recording (4K@30FPS/1920*1080/3840*2160)

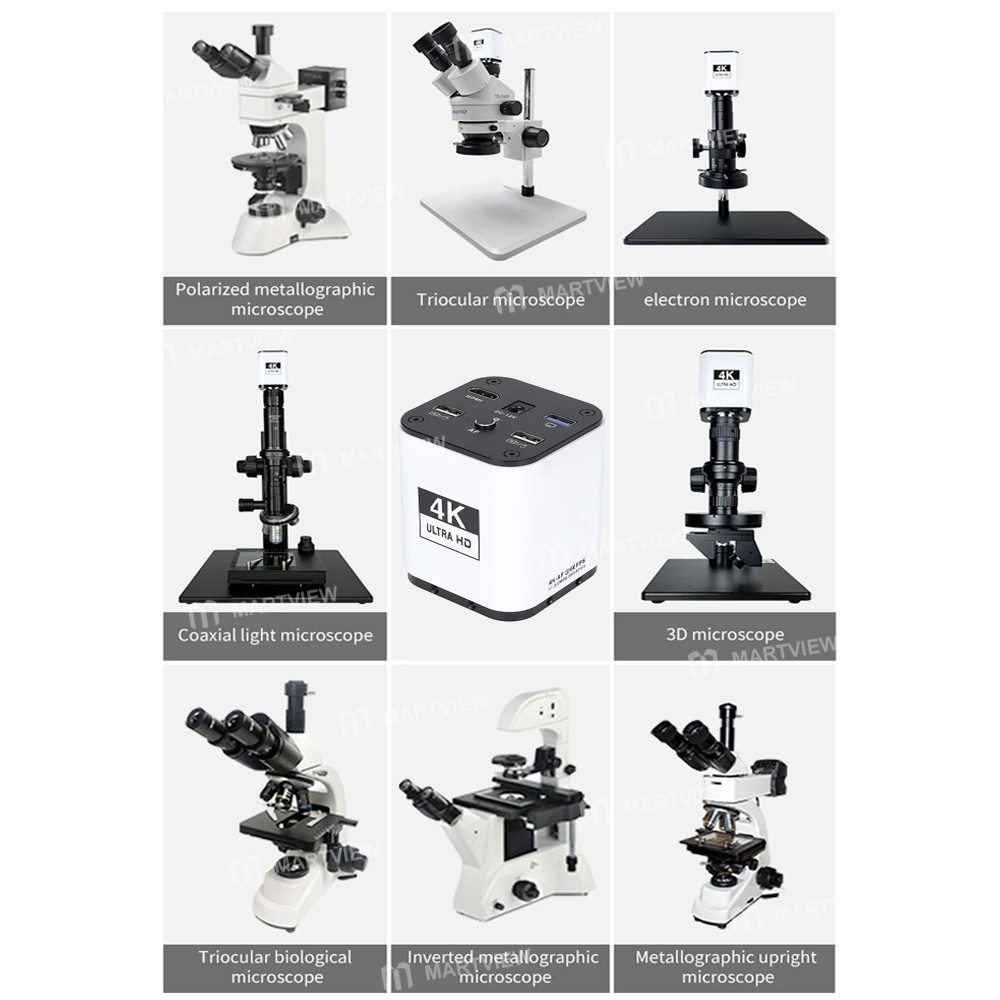

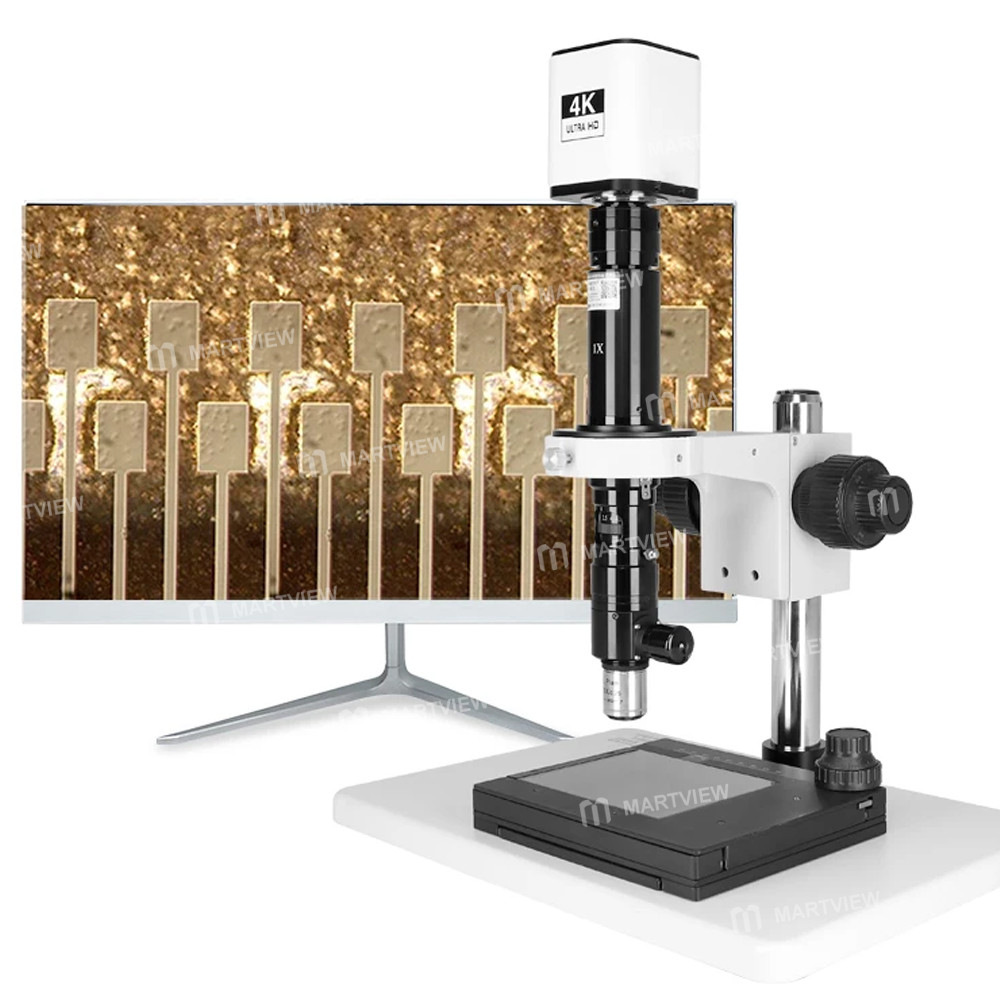

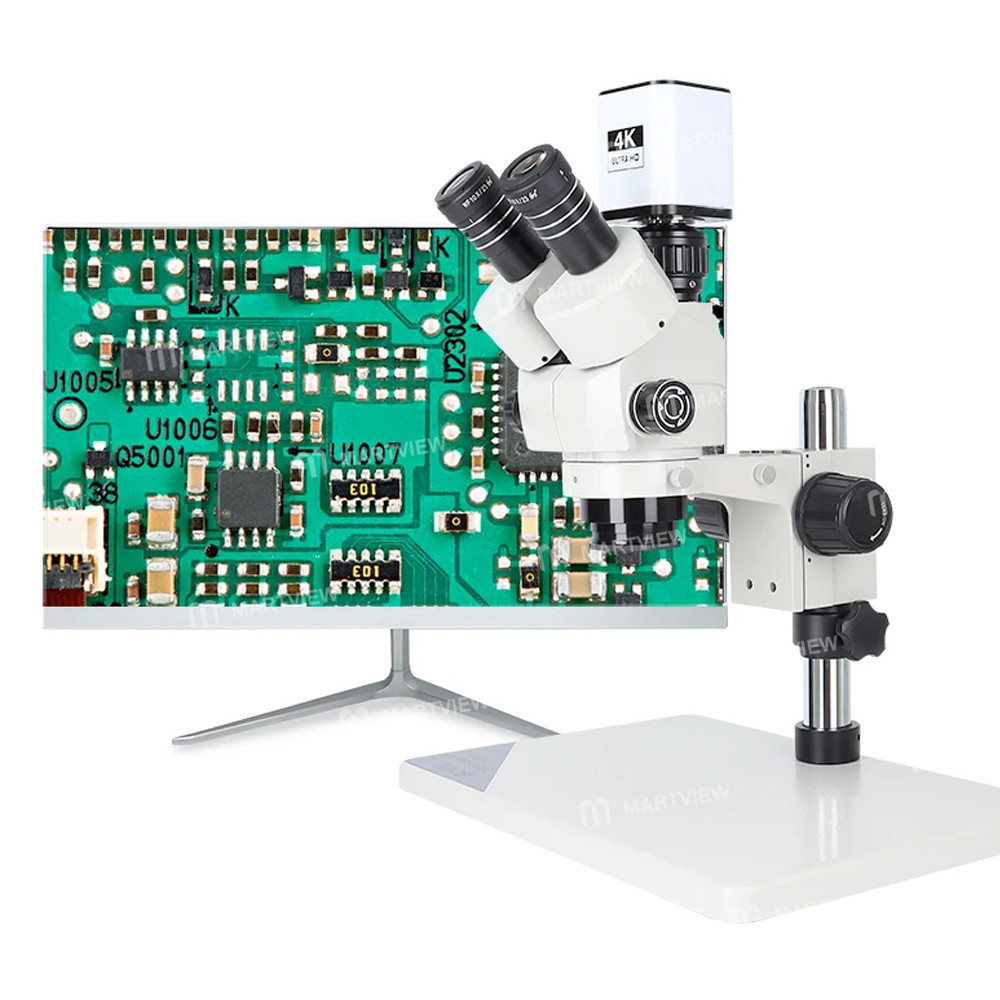

• Support domestic and imported microscopes: High definition industrial cameras support domestic/imported: Olympus microscope, upright metallographic microscope, inverted metallographic microscope, biological microscope, stereo microscope, electron microscope, etc.

Specifications:

• Name: CDD 4K Autofocus Industrial Camera

• Model: 4K-AF

• Chip structure: ARM dual-core architecture

• Sensor Size: 1/1.8 inch

• Resolving power: 3840*2160P@60FPS

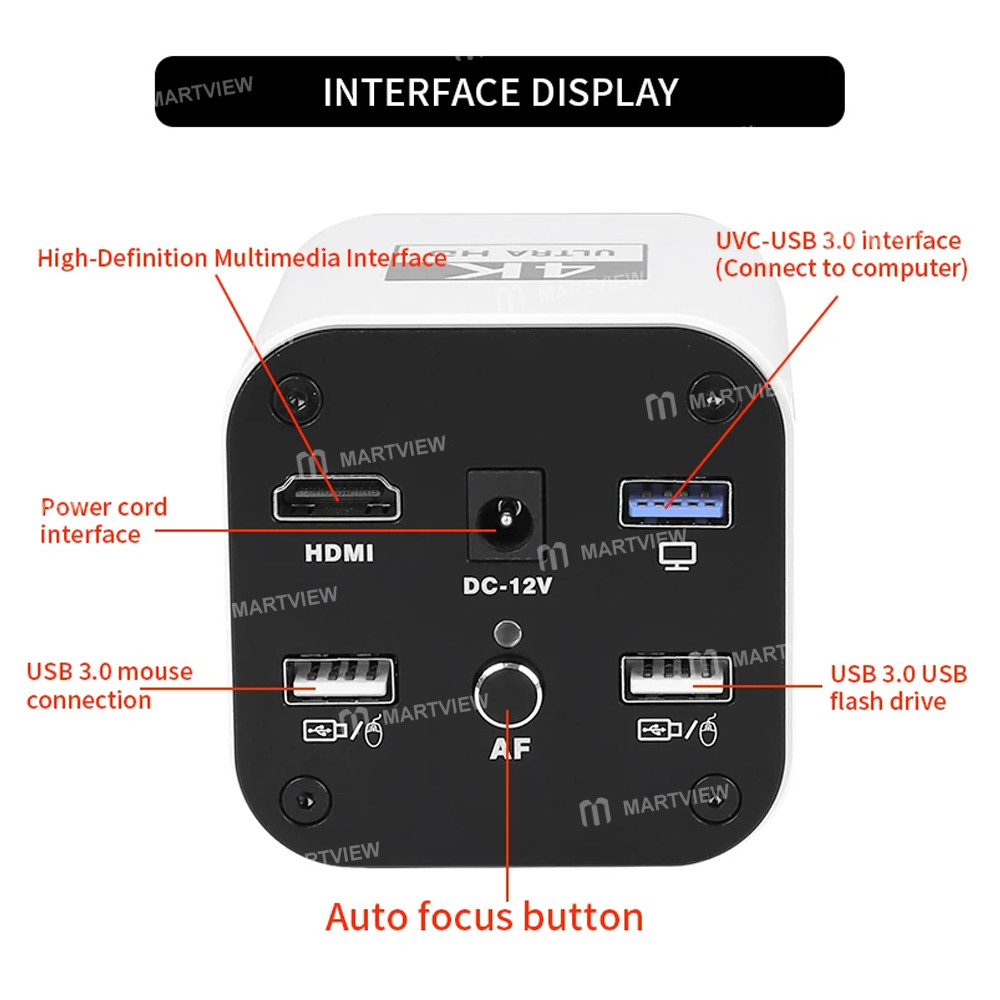

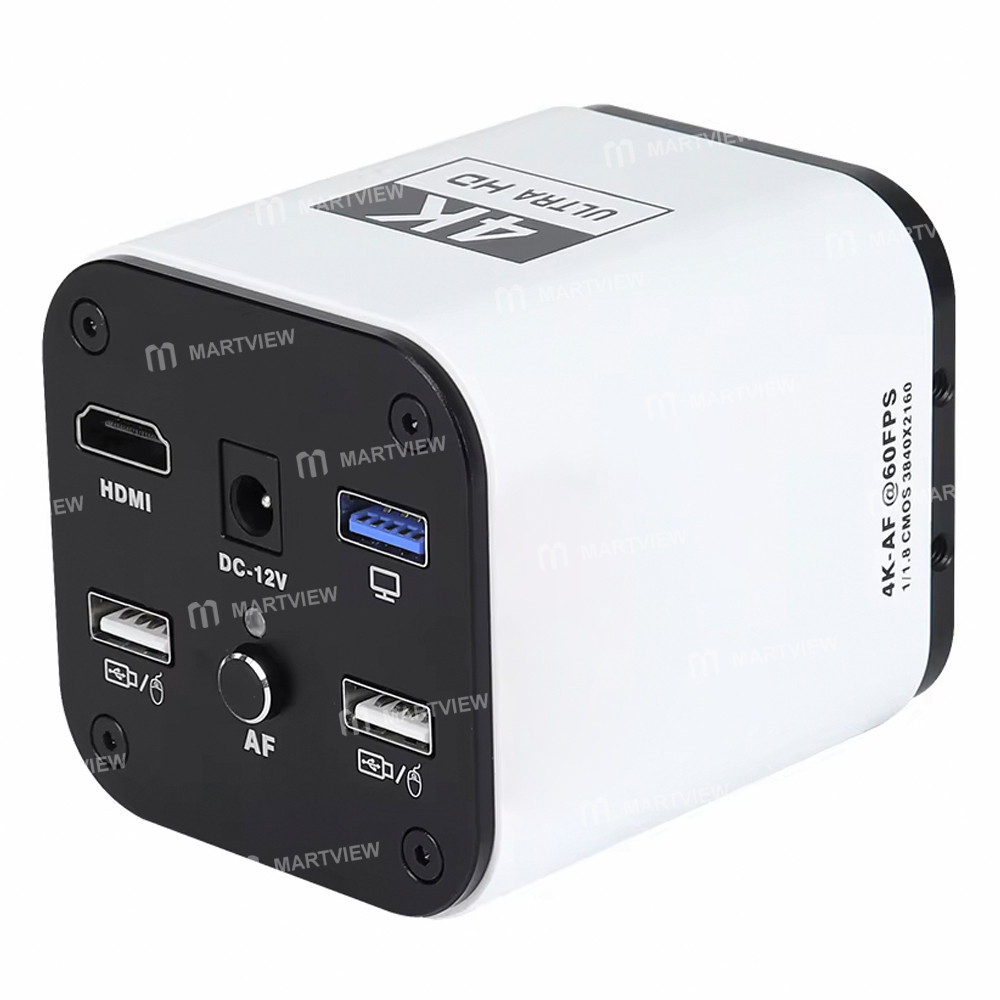

• Output interface: High-Definition Multimedia Interface + USB 3.0 High-Speed Output

• Source:  DC-12V

• Pixel size: 2.0μm*2.0μm

• External equipment: HD Monitor + Computer

• Grid Lines: 8 sets of grid lines (8 colors to choose from and 4 line widths to choose from)

• Basic Function: Photography, video recording, measurement, storage

• Image quality adjustment: Color, color temperature, white balance, exposure

• Camera functions: AF autofocus, image freezing, automatic exposure, white balance, local magnification, HDR wide dynamic, image preview, electronic zooming in/out, two/four screen comparison

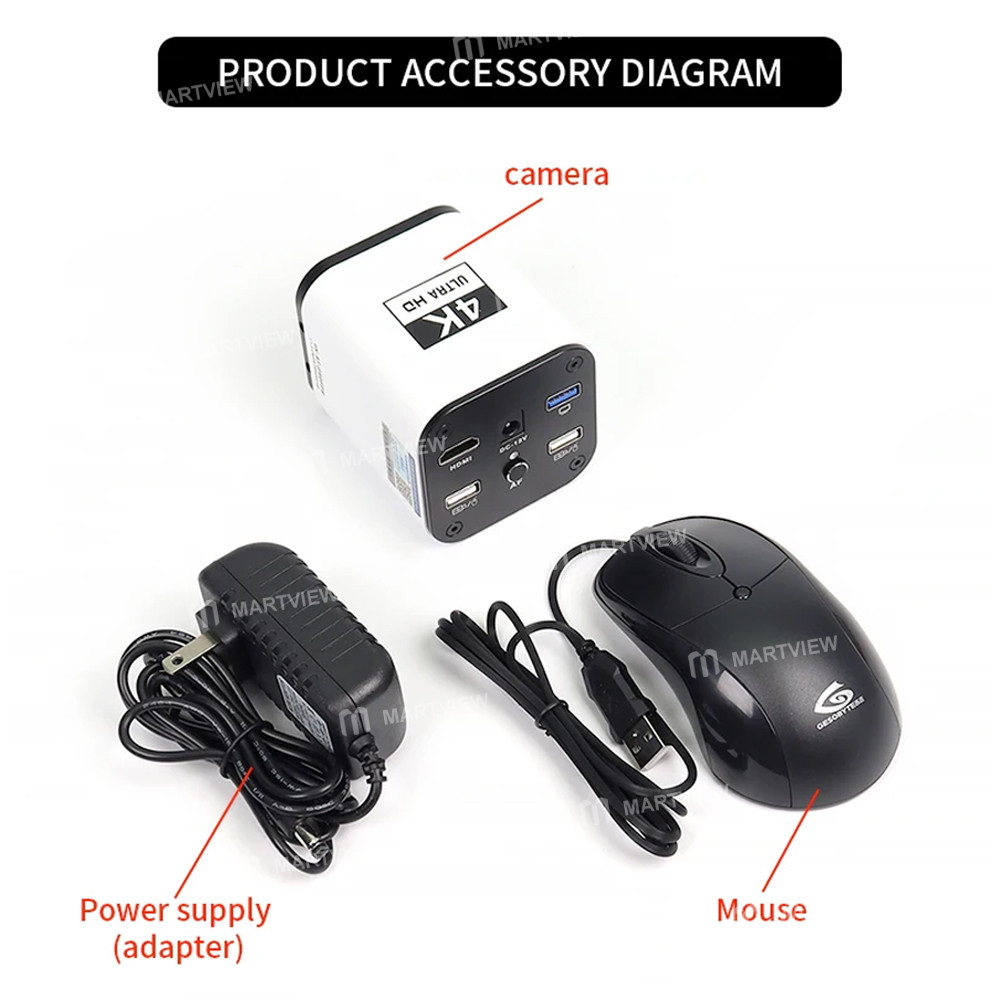

Package includes:

• 1 x Camera

• 1 x Mouse

• 1 x Power Cord
