Features:

• This is a 4K dual-screen splicer, by using this adapter board, the user can easily cut 3840x1080/60Hz input into two 1080P outputs, or two exactly the same content

• 1*HDMI2.0 (600MHz broadband) input, support HDCP1.4, and HDCP2.2

• 2*HDMI1.4 (300MHz broadband) output

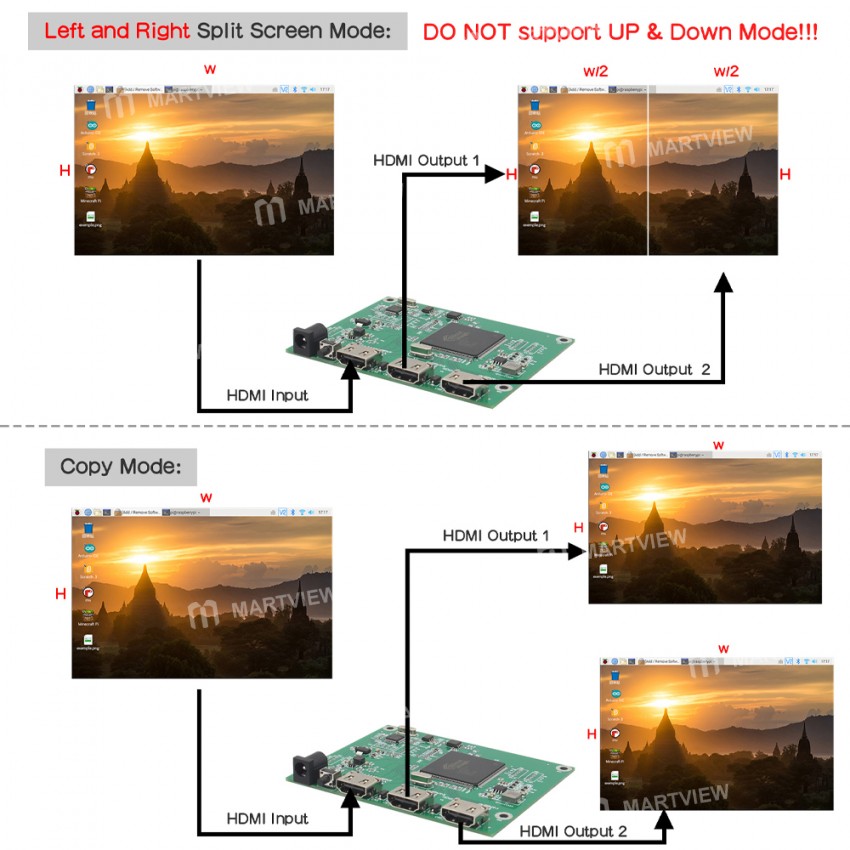

• Output Split Screen Mode: Cut the input signal into left and right parts and output from two HDMI ports respectively

• Output Copy Mode: the output content of the two HDMI ports is exactly the same as the input content

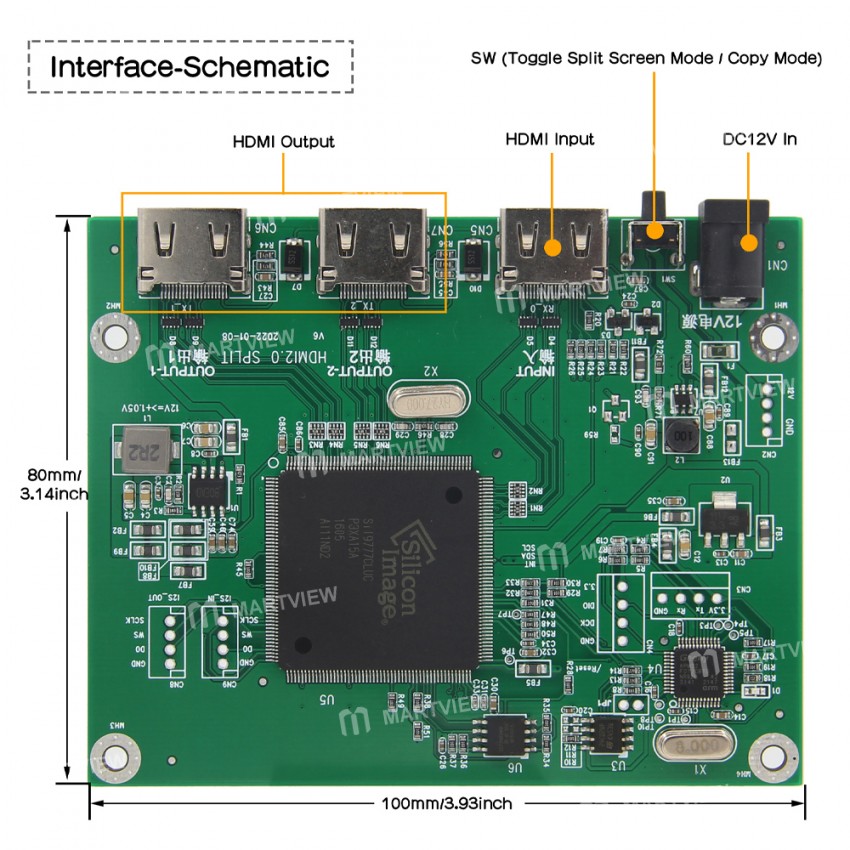

• Simple Switching: easily toggle split screen mode/copy mode by on-board switch

• Sound and pictures are transmitted synchronously

• Power requirements: DC 12V

Package includes:

• 1 x 4K Splicer Board

Note:

• Only supports cutting into 2 horizontal left and right picture splicing, not support up and down splicing
