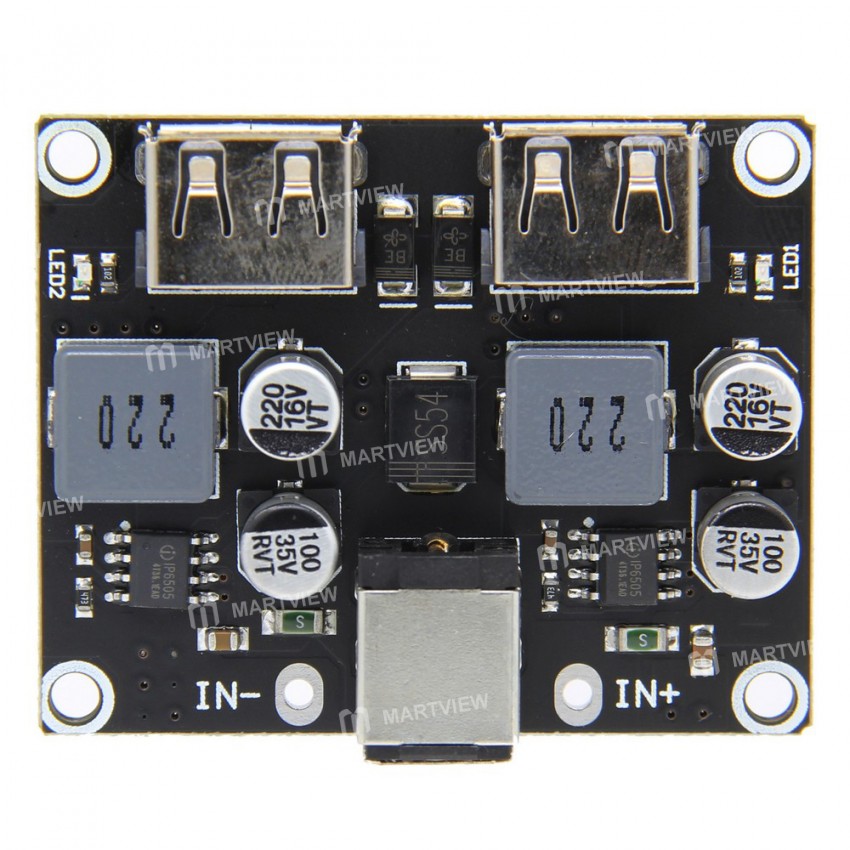

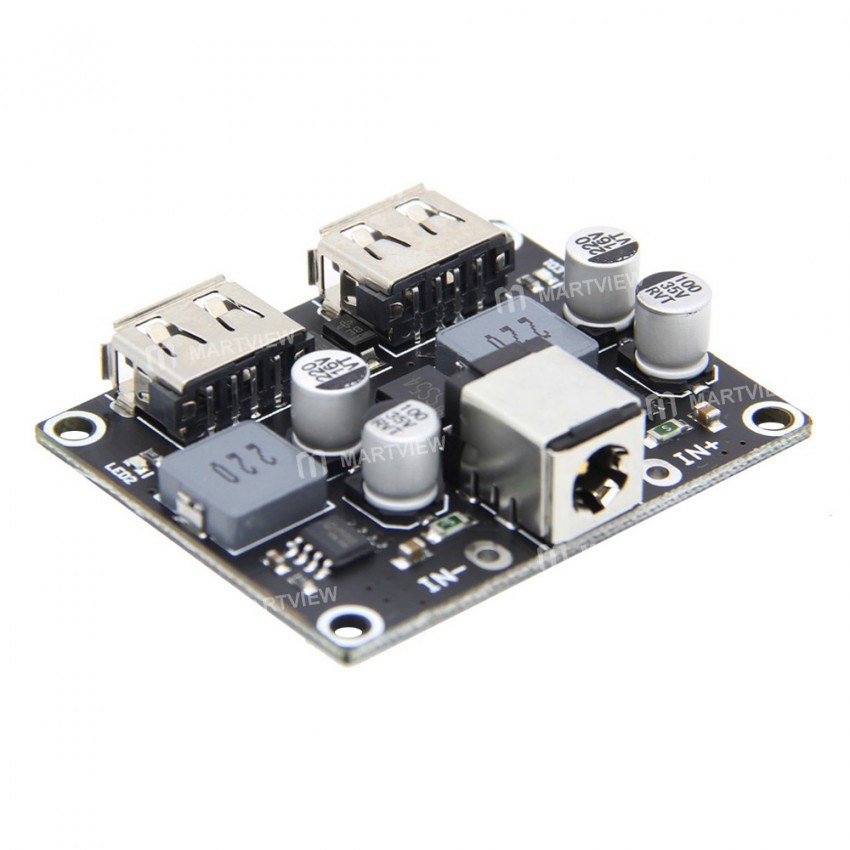

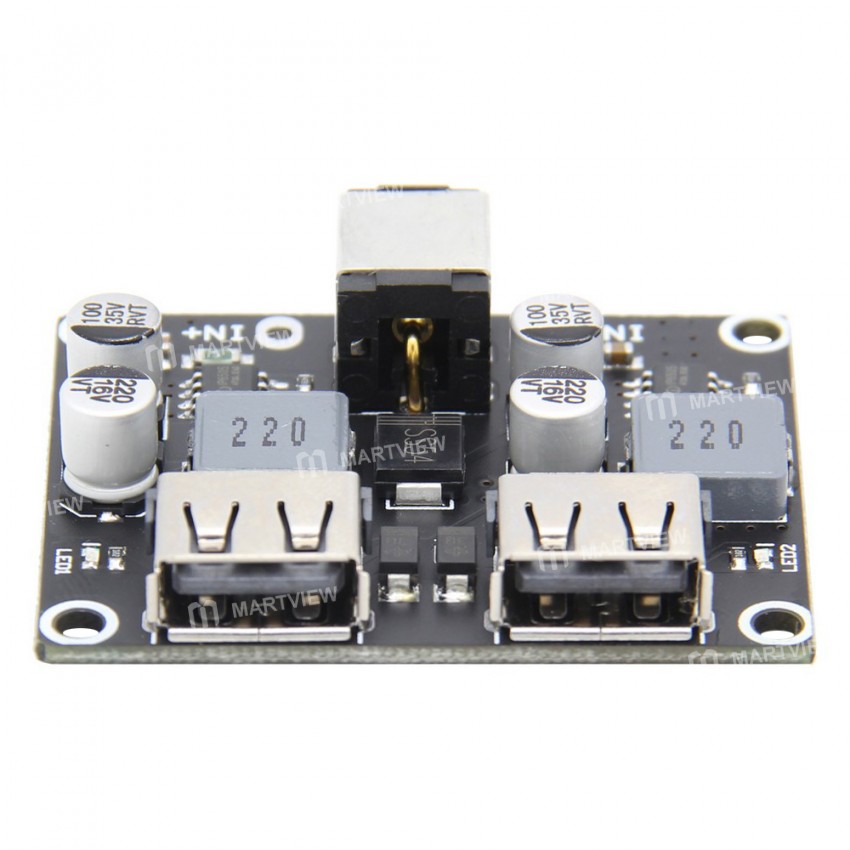

6-32V 2-way Fast Charging Buck Module Support QC3.0 Compatible with Raspberry Pi 4B & Jetson Nano

6-32V 2-way Fast Charging Buck Module Support QC3.0 Compatible with Raspberry Pi 4B & Jetson Nano
Features:

• This 2 USB buck fast-charging module integrates the common 5V charging recognition function, which is compatible with 99% of the mobile phones on the market

• Compared with products without a charging recognition function, this module can save a lot of charging time by triggering the peak current via fast charging protocol

• It features 6~32V input and 3~12V output(default 5V)

• The voltage can be changed through a fast-charging decoy

• Multiple fast-charging protocols are supported and the 2 channels work independently

• With steady output, this Fast Charge Module can work for a long time without voltage shift

• It can be suitable for projects like mobile phone fast charging, car charging retrofit, solar charger, DIY power source, etc.

Specification:

• Input Voltage Range: 6V-32V

• Output Voltage: 3-12V, automatically adjust according to the fast charge protocol (default output is 5V, input is 2V higher than output)

• Output Current: 0-3A

• Output Power: ≤24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)

• Chip Protection: input over-voltage and under-voltage protection, input over-current protection, output over-current and short-circuit protection, whole machine over-temperature protection

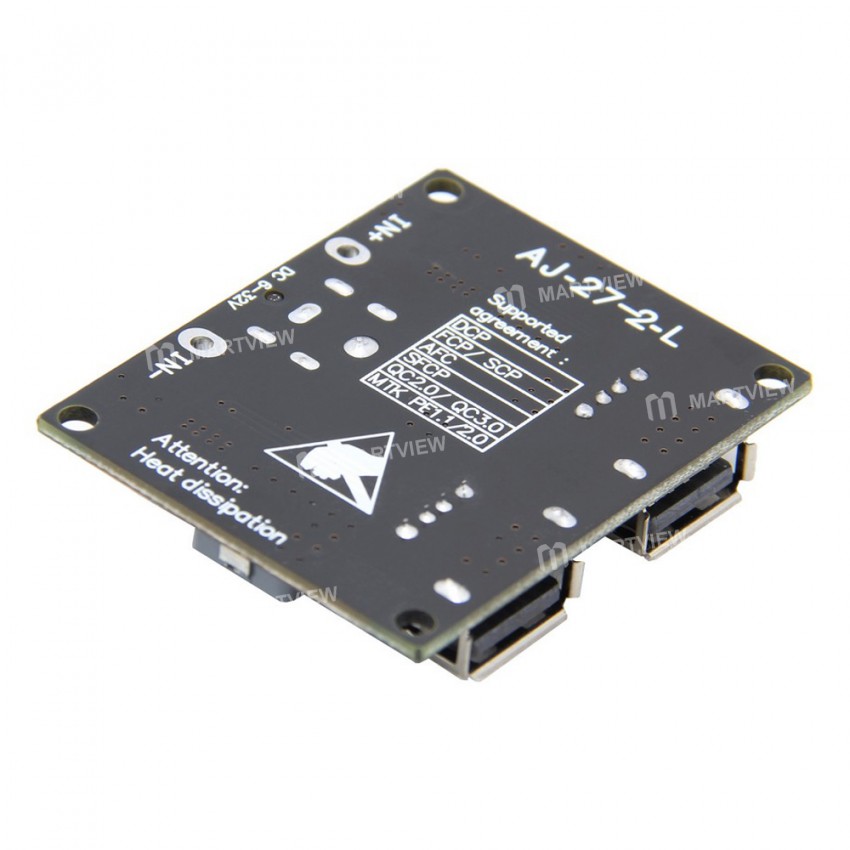

• Support DCP protocol, BC1.2, Apple, Samsung protocol

• Support Huawei fast charge protocol FCP/SCP, AFC

• Support Spreadtrum fast charge protocol SFCP

• Support Qualcomm QC2.0 and 3.0

Package includes:

• 1 x Module
