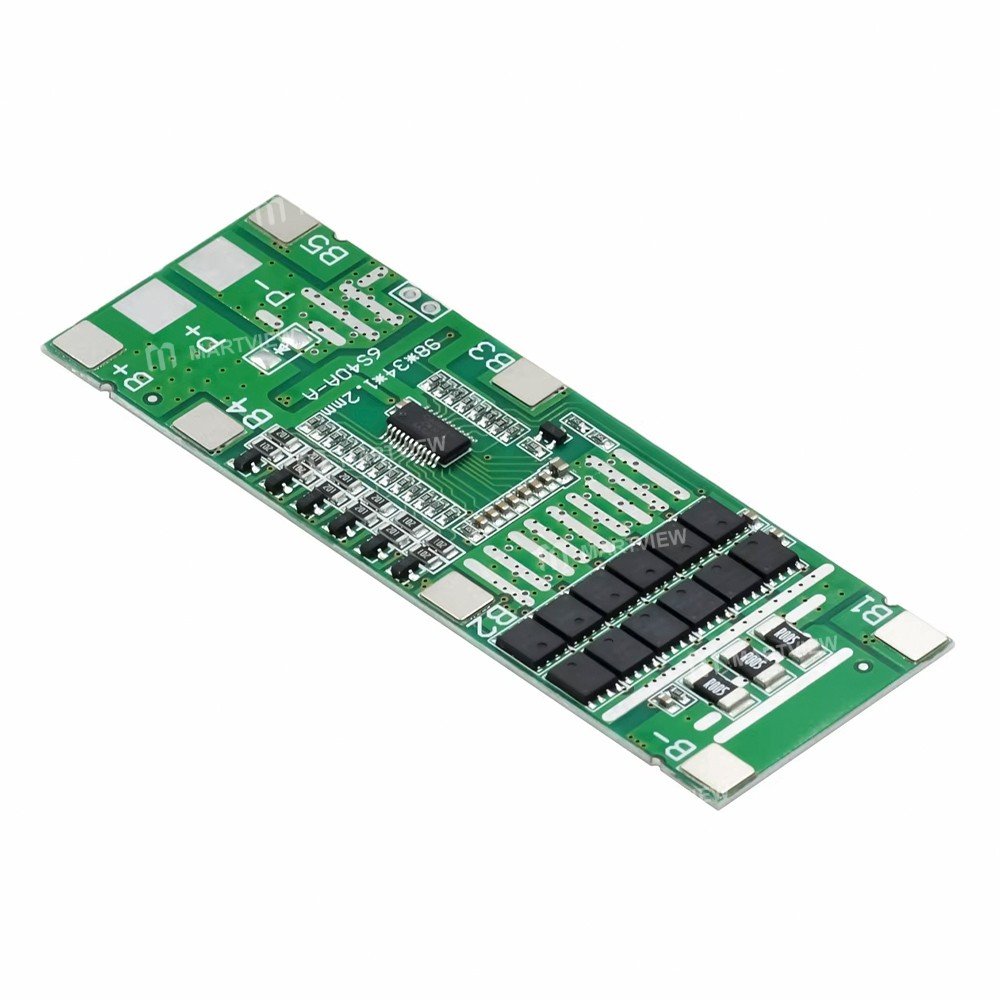

6S 24V / 40A Solar Lighting 18650 Lithium Battery Protect Board with Balancing Device

6S 24V / 40A Solar Lighting 18650 Lithium Battery Protect Board with Balancing Device

Features:

• Disconnect protection, integrated solution, same port with equalization, high quality MOS low internal resistance tube

• Ultra-thin MOS, 18650 special protection board, three layers of efficient moisture-proof, safety for your continuous escort

• Fine component precision, strong anti-interference ability, high input impedance, low-temperature rise of charging and discharging

Specification:

• Charging voltage: 25.2V

• Discharge current: 40A

• Internal resistance of main circuit conduction: ≤20MΩ

• Charging current (same port): 40A

• Charging current (sub-port): NA

• Operating temperature range: Maximum can not exceed 80 ℃

• Protection board size: 88*34*2.8mm

Equalization voltage:

• Detection voltage: 4.25±0.025V

• Detection delay: NA

• Equalization current: 41±5MA

Overcharge protection:

• Detection voltage: 4.25±0.025V

• Detection delay time: 1000±500MS

• Release voltage: 4.15±0.05V

Over-discharge voltage protection:

• Detection voltage: 2.7±0.1V

• Detection delay time: 1000±500MS

• Release voltage: 3.0±0.1V

Overcurrent protection:

• Detection voltage: 100MV

• Detection delay: 1000±500MS

• Current protection: 75±5A

Short circuit protection:

• Trigger condition: external load short circuit

• Detection delay: 250US

• Disarm condition: Load disconnect/charge activation

Temperature control protection:

• Discharge over-temperature protection: NA

• Discharge High Temperature Release Temperature: NA

Self power consumption:

• Working power consumption: ≤40UA

• Dormant over-discharge power consumption: ≤I1OUA

Package includes:

• 1 x Board
