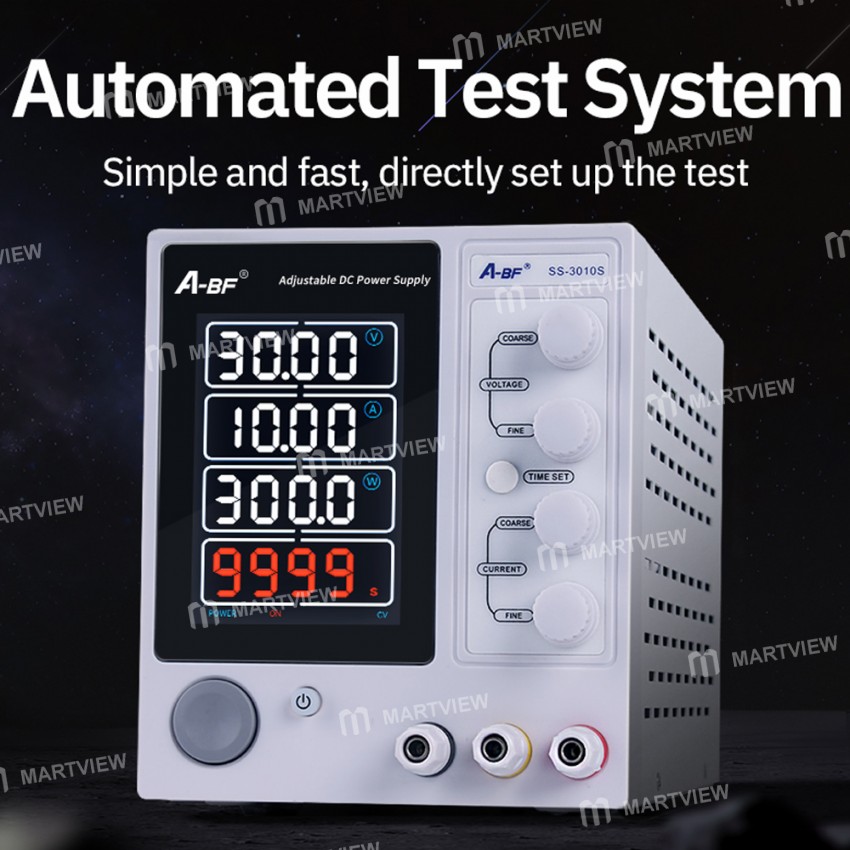

A-BF Four-digit Display High-precision Bench Adjustable DC Regulated Power Supply

A-BF Four-digit Display High-precision Bench Adjustable DC Regulated Power Supply

Features:

• Four-digit high-precision DC-regulated power supply, your next power supply must, has a small size, large screen, stable features

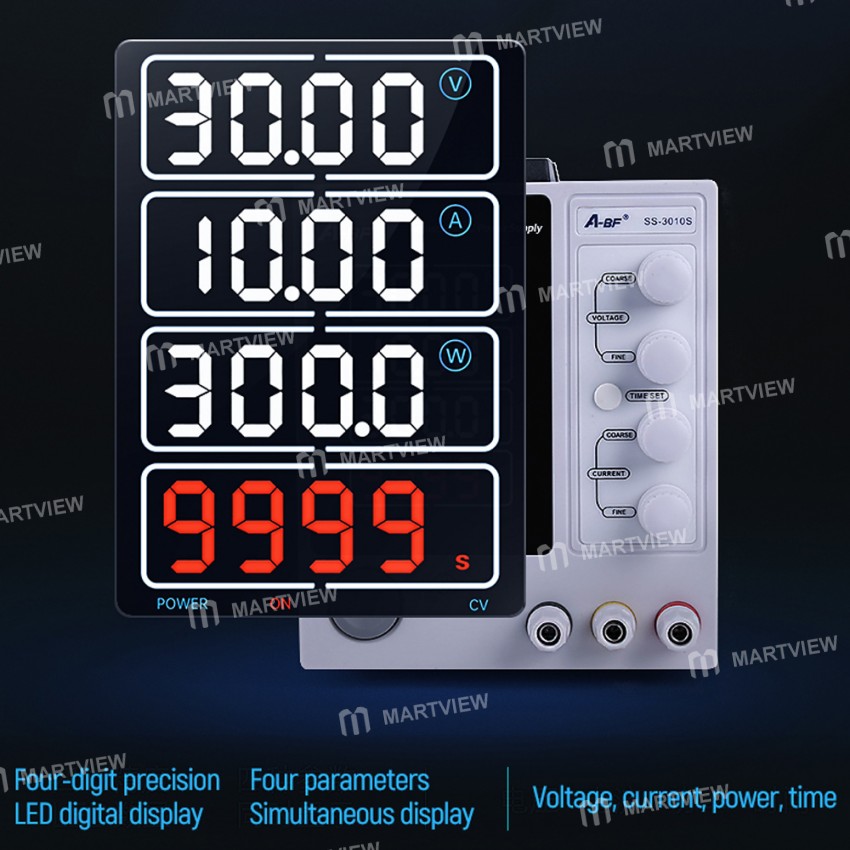

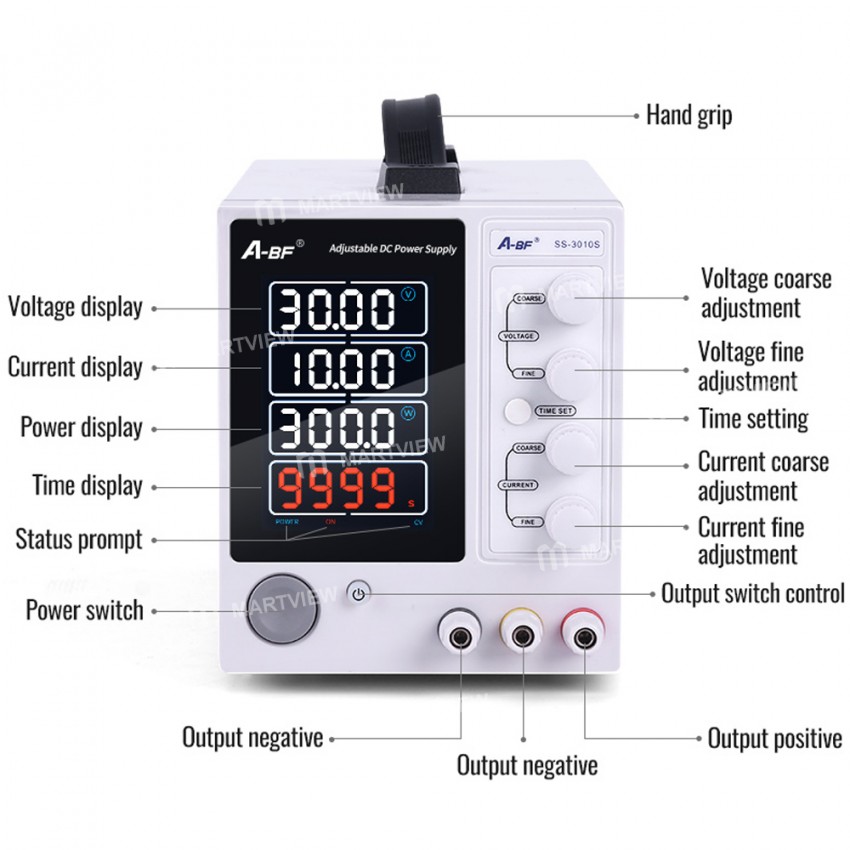

• Four-digit precision digital display, four parameters are displayed simultaneously

• Easy and practical, the output control switch, supports preset voltage value and current value

• Voltage coarse adjustment/fine adjustment, current coarse/fine adjustment, precise controllability

• Color LED digital display, small body, and big screen, simultaneous display of four data

• Smaller size and lighter weight, improve space utilization, and a more convenient layout

• Support two output modes, automatic switching, between steady voltage and steady current output

• Timing output, timing, and accumulation dual mode set timer time

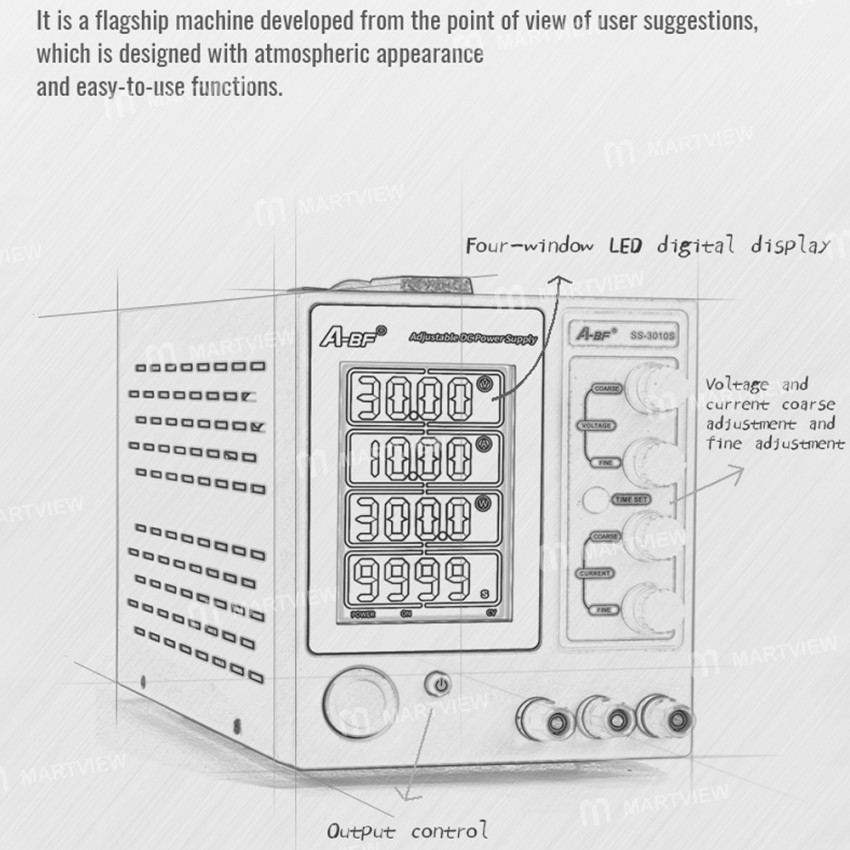

• It is a flagship machine developed from the point of view of user suggestions, which is designed with an atmospheric appearance and easy-to-use functions

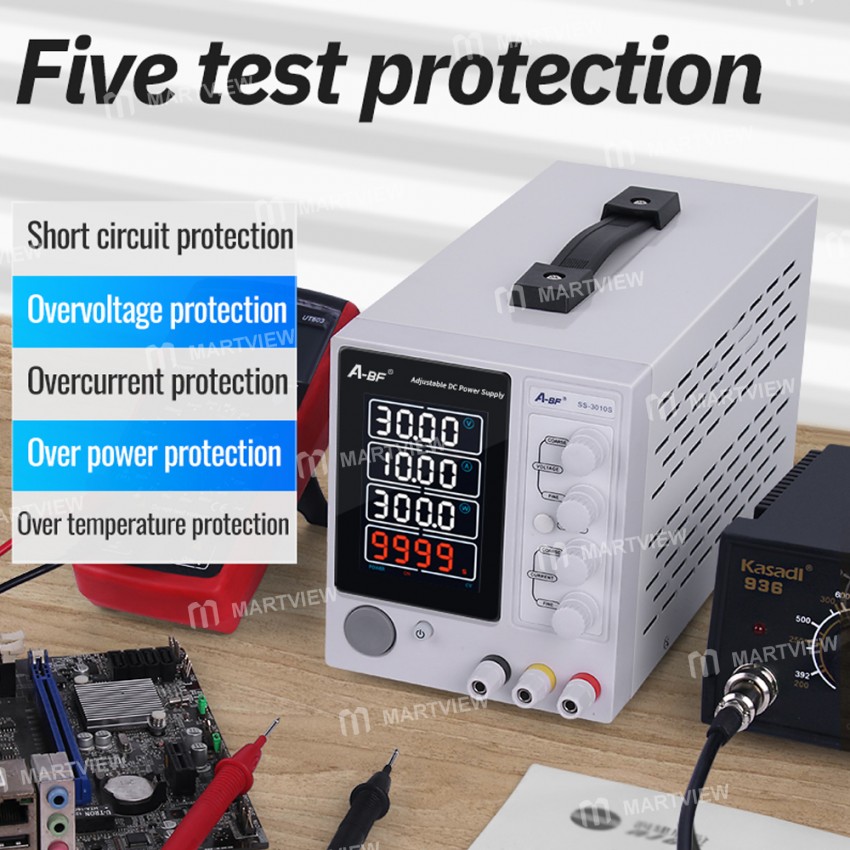

• Five test protection, Overvoltage protection, Overcurrent protection, Short circuit protection, Over power protection, Temperature protection

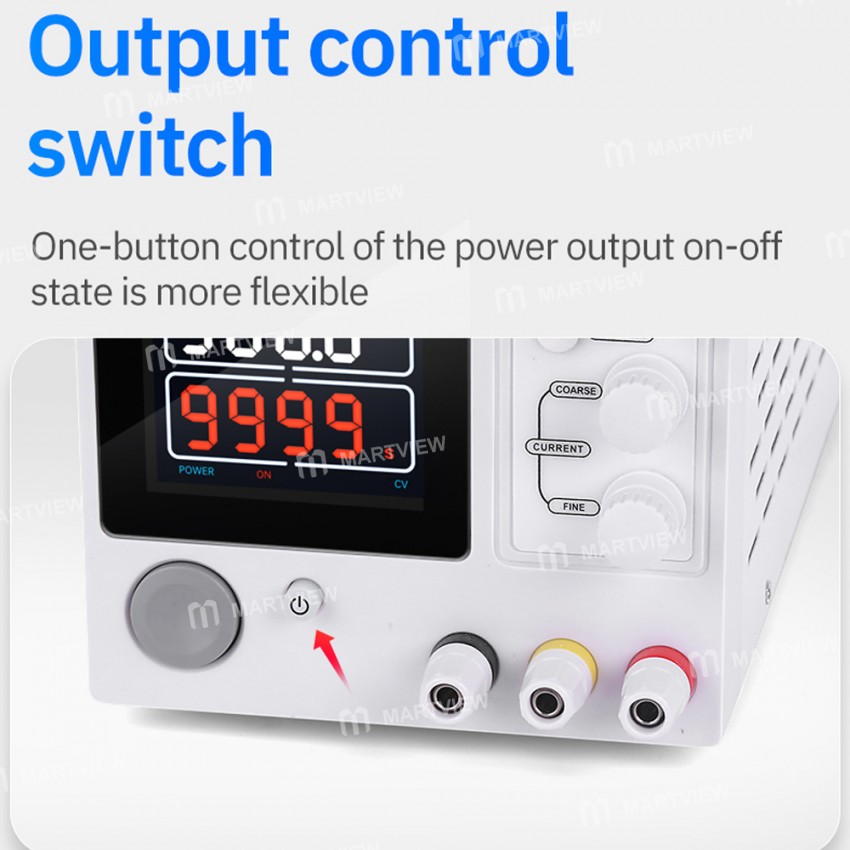

• One-button control of the power output on-off the state is more flexible

• Socket with fuse, safe and anti-burn, high safety factor, and more stable

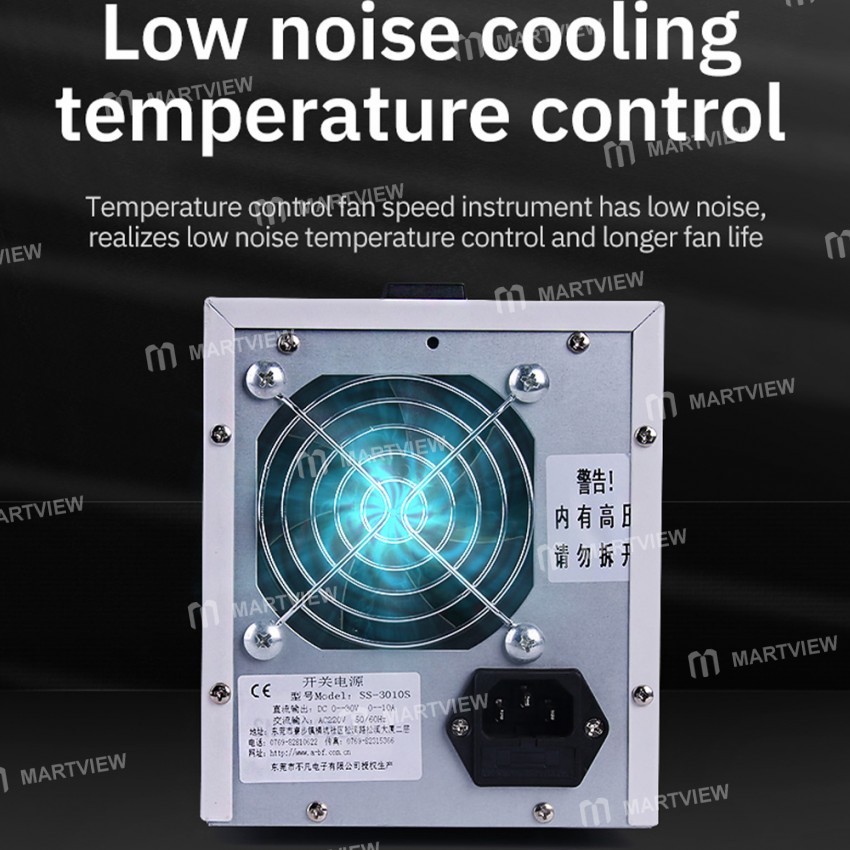

• Temperature control fan speed instrument has low noise, realizes low noise temperature control, and longer fan life

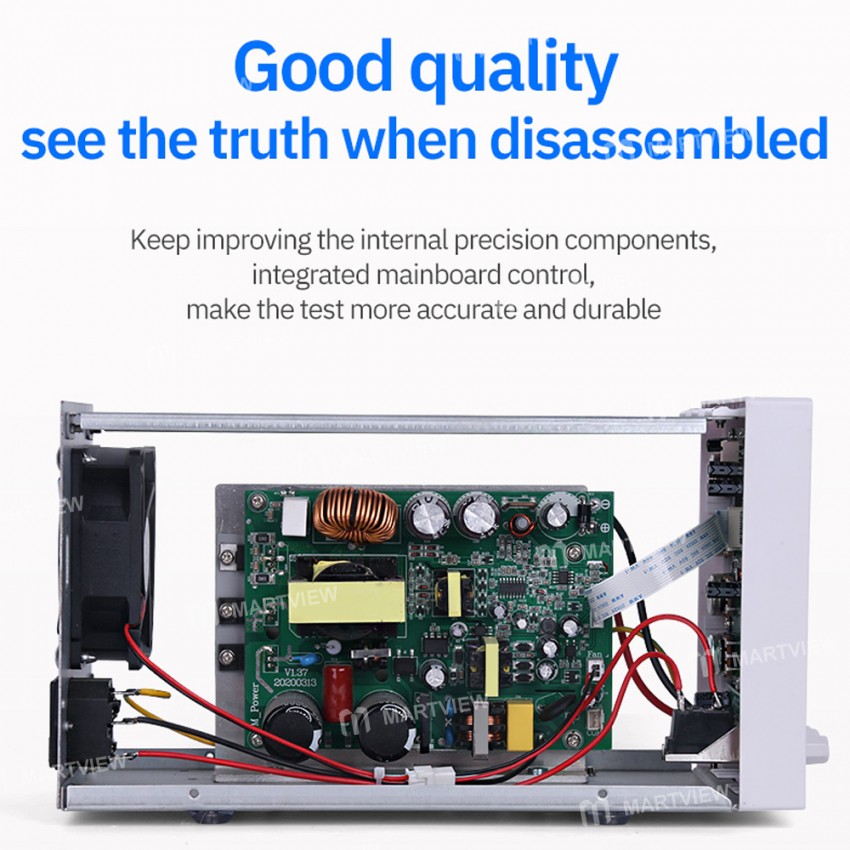

• Keep improving the internal precision components, and integrated mainboard control, and make the test more accurate and durable

• Body reinforcement design, rational distribution of scientific rigor, enough material, quality assurance

Specification:

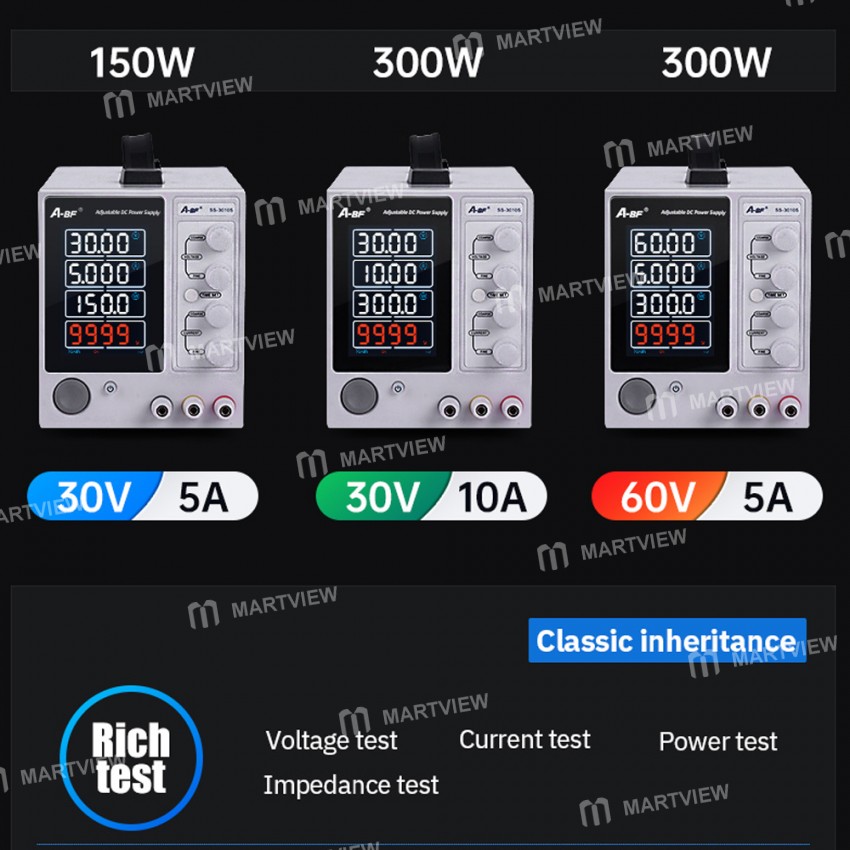

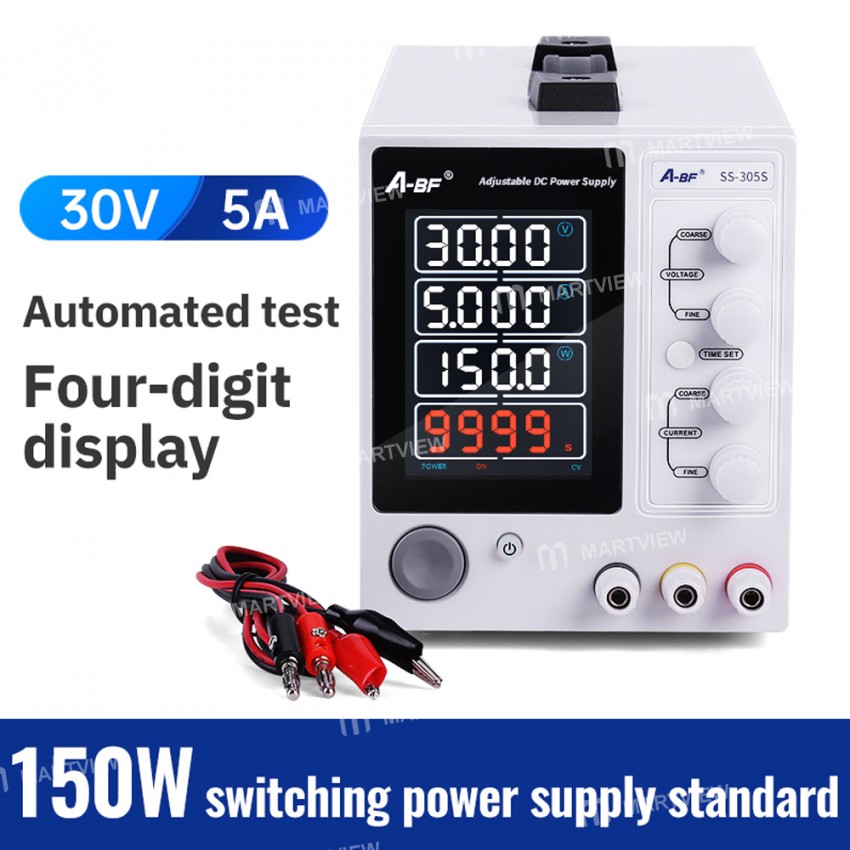

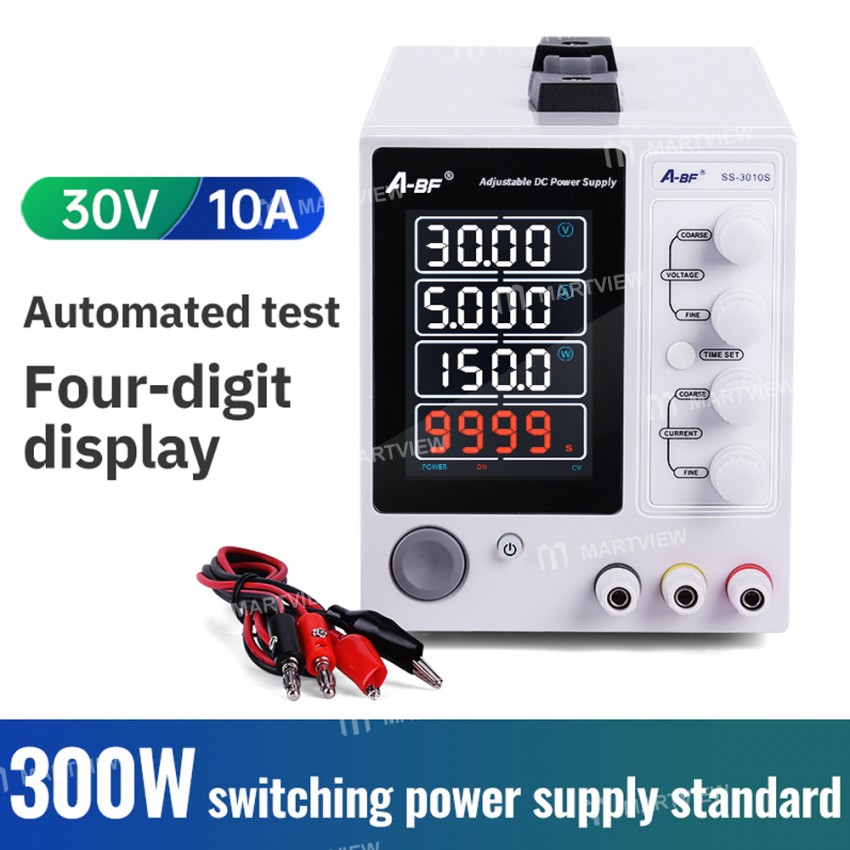

• Model: SS-305S/SS-3010S/SS-605S

• Voltage: 0~30V/0~30V/0~60V

• Current:0~5A/0~10A/0~5A

• Power: 150W/300W/300W

• Display: 4-digit LED

Voltage output

• Power effect: ≤0.01%+3mV

• Load effect: ≤0.01%+2mV

• Ripple noise: ≤8 mVrms

Current output

• Power effect: ≤0.01%+3mV

• Load effect: ≤0.02%+10mV

• Ripple noise: ≤10 mVrms

Display resolution:

• Voltage resolution: <100V: 10mV; ≥100V: 0.1V

• Current resolution: <10A: 1mA; ≥10A: 10mA

• Power resolution: <10W: 1mW; ≥10W: 10mW; ≥100W: 0.1W

• Time resolution: 1S

• Preset accuracy of voltage and current values: ±0.1V

• Output voltage preset accuracy: ±0.1A

Package includes:

• 1 x Power Supply

• 1 x Power Cable

• 1 x Test Cable
