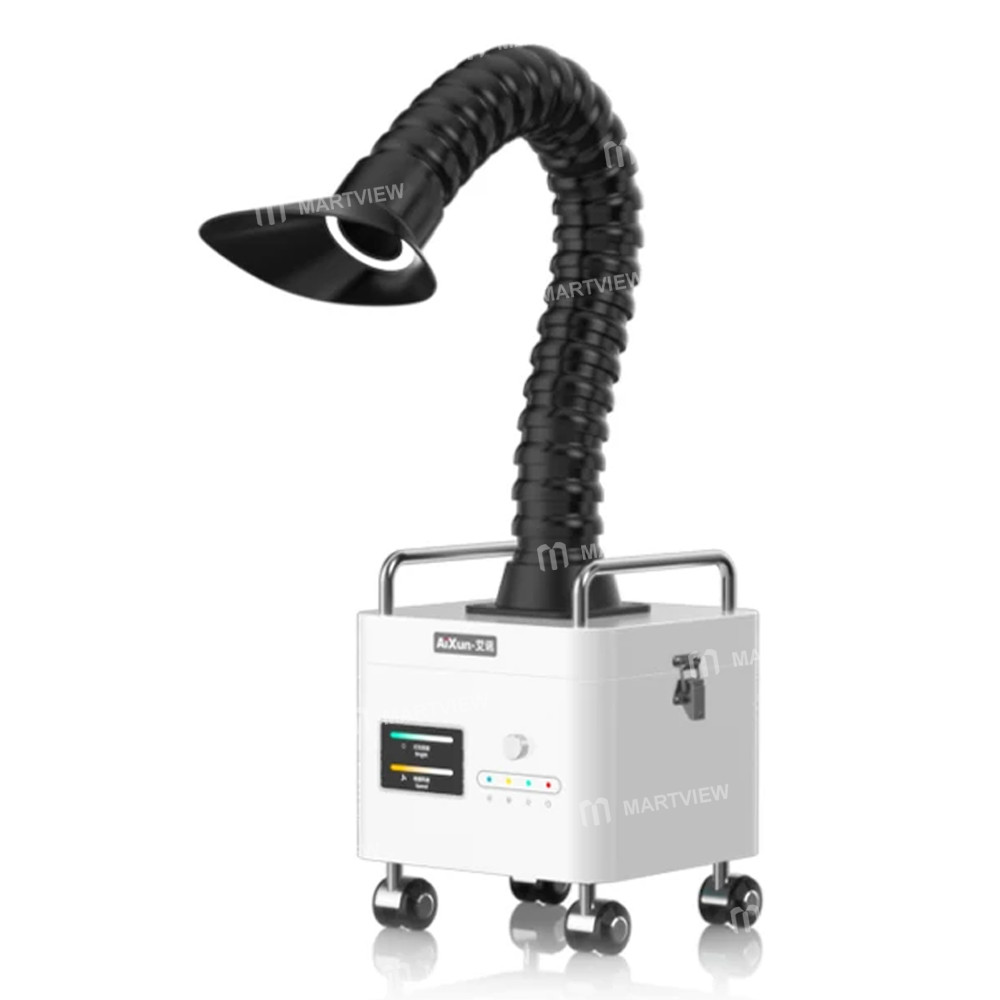

Aixun ES03 3-Layer Filtration Low-Noise Industrial Fume Extractor for PCB Soldering Working

Aixun ES03 3-Layer Filtration Low-Noise Industrial Fume Extractor for PCB Soldering Working

Features:

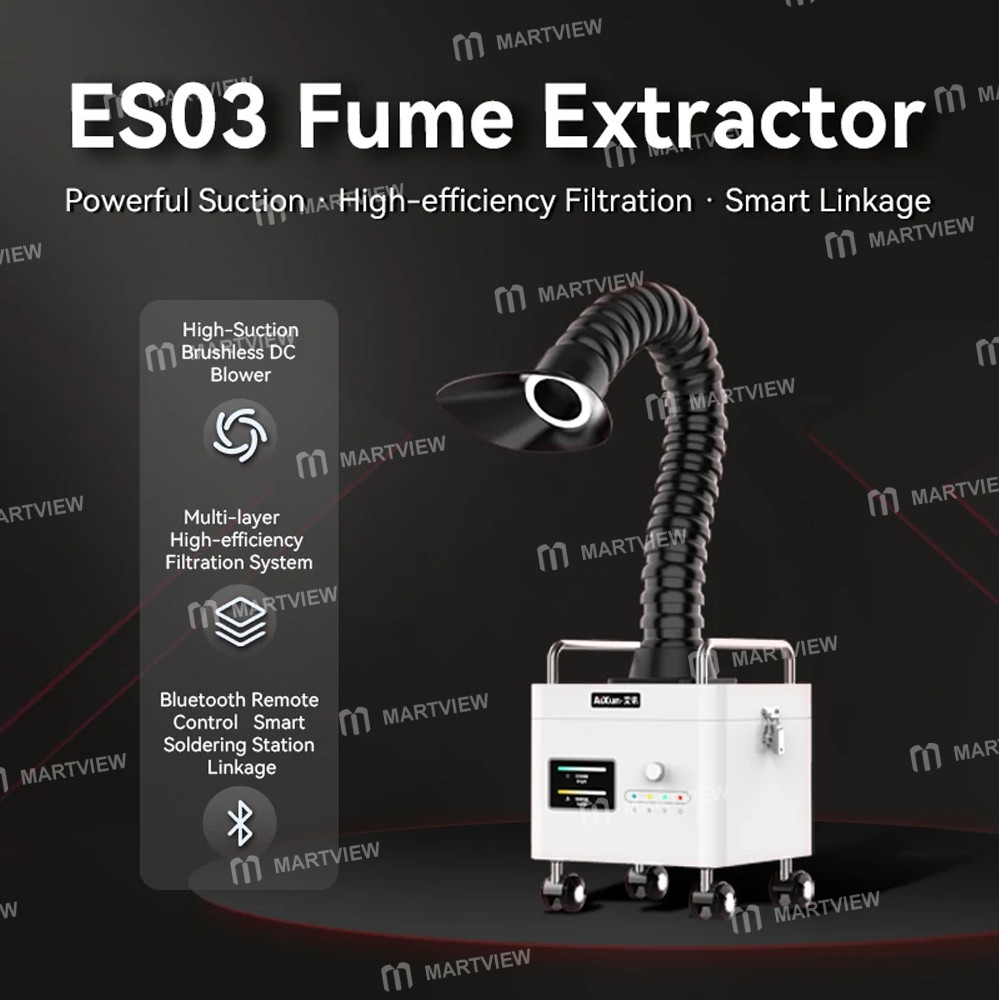

• The AiXun ES03 Fume Extractor delivers powerful suction and intelligent control, providing a highly efficient and clean air solution for electronics soldering and laboratory environments

• Equipped with a brushless DC blower, it offers strong suction with low-noise performance, supported by an anti-vibration structure for enhanced stability and durability

• The removable 360° bamboo-shaped ducting is made of flame-retardant material and allows flexible directional adjustment for precise fume capture across various work scenarios.

• The ES03 features a three-stage high-efficiency filtration system, pre-filter, HEPA, and activated carbon, which effectively removes heavy smoke, odors, and harmful chemical substances

• With the included Bluetooth remote controller, users can operate a single unit or multiple units simultaneously. It also supports intelligent linkage with AiXun soldering stations, enabling automatic “start when soldering begins, stop when soldering ends” operation

• The diamond-shaped fume hood offers full-range rotation, while the Type-C port enables convenient firmware upgrades

• Silent casters with built-in locks for smooth movement; knobs allow for precise control of air speed, start/stop, and lighting

• Combining strong performance with intelligent control, the ES03 delivers a safer and more efficient soldering workspace

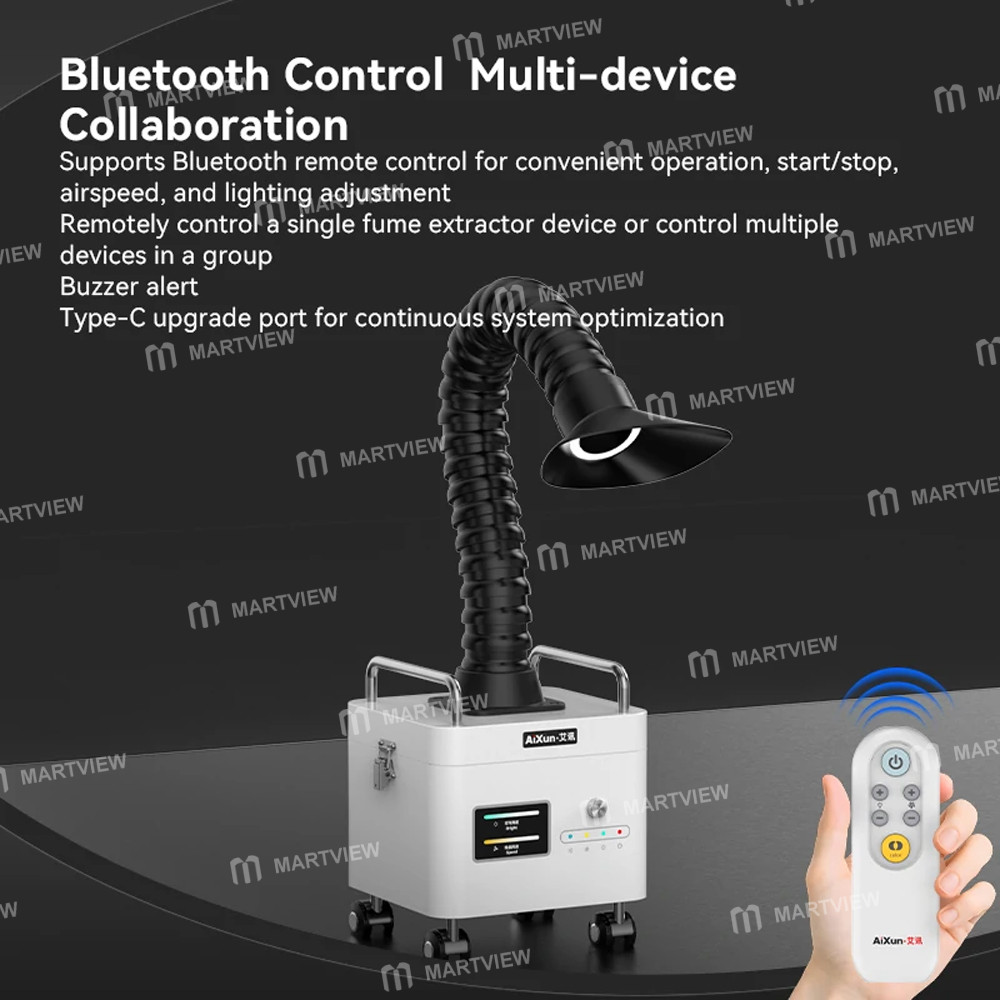

• Bluetooth remote control for easy operation, supporting both single and multi-device synchronized control

• RS485 + Bluetooth Linkage with AiXun soldering station, automatically activates when soldering starts, stops when soldering ends

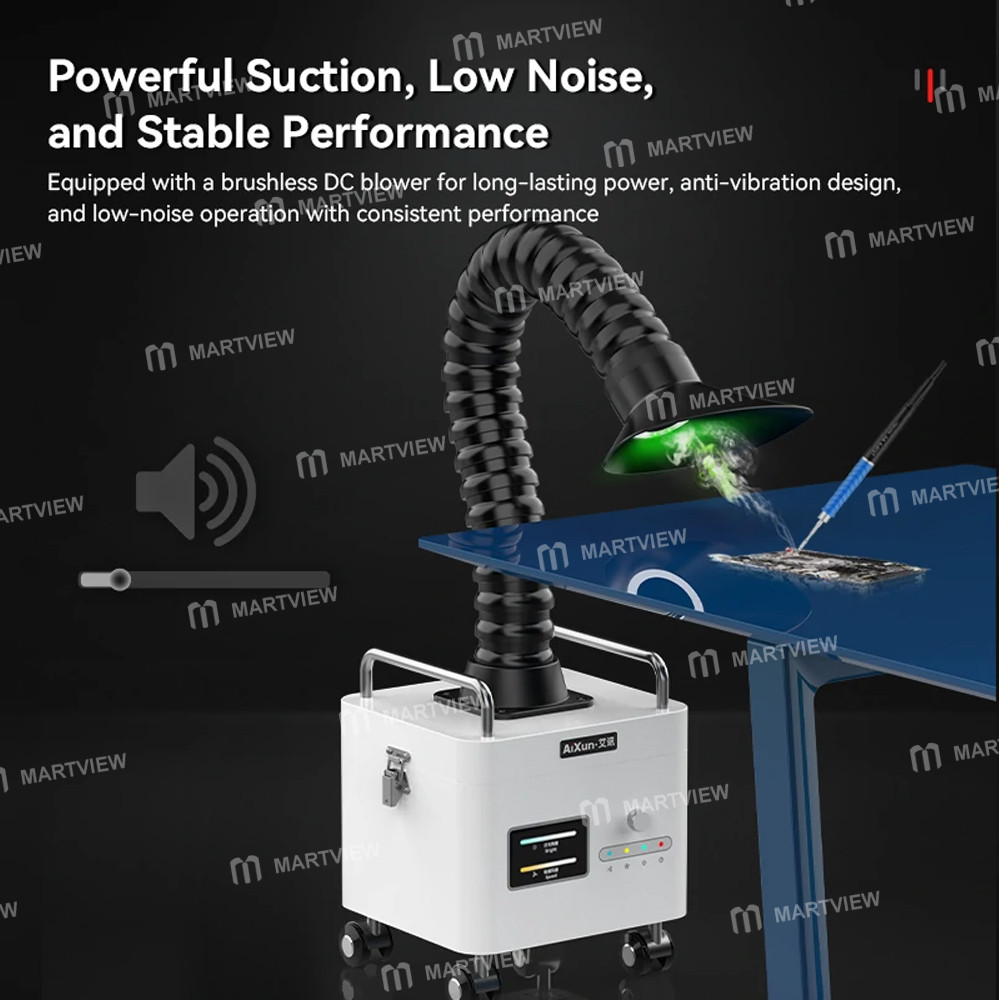

• Powered by a high-suction brushless DC blower for powerful suction, low noise operation, and long-lasting anti-vibration performance

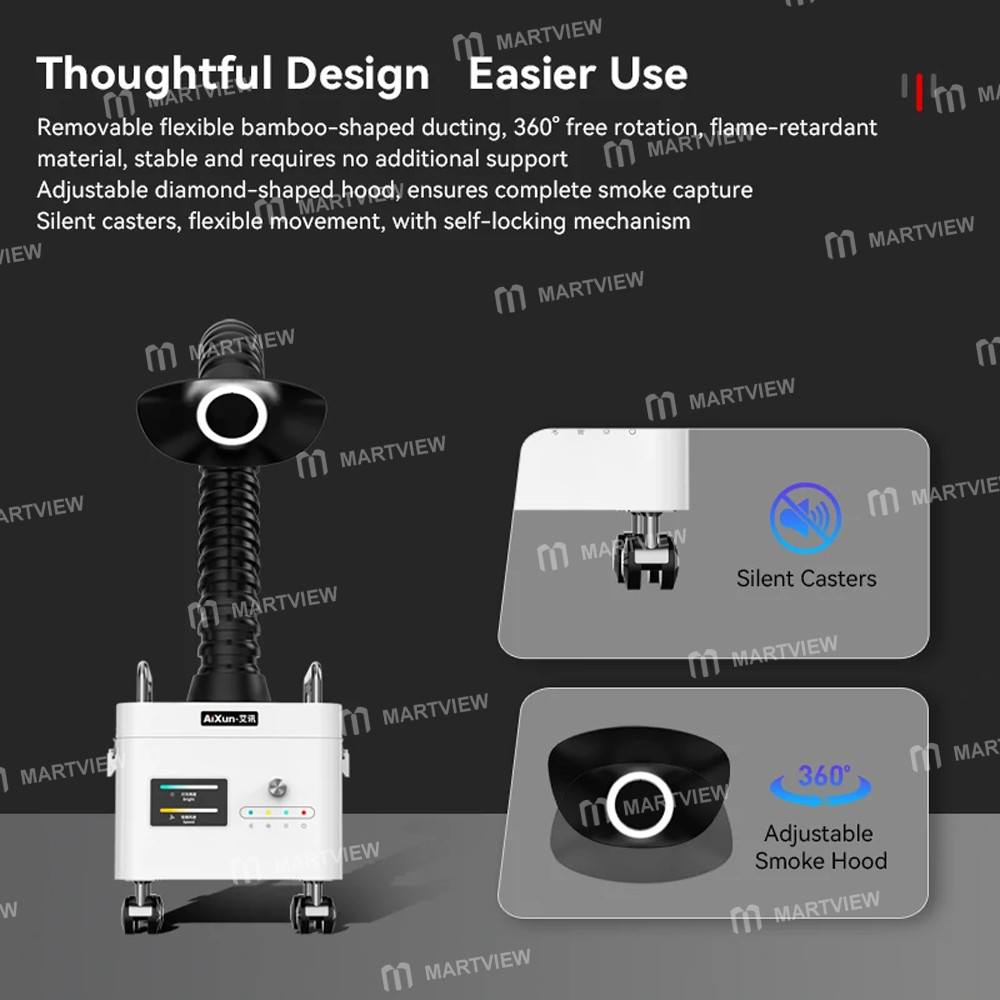

• Removable flexible bamboo-shaped ducting, 360° free rotation, flame-retardant material, stable, and requires no additional support

Specification:

• Product name: ES03 Fume Extractor

• Model: ES03

• Brand: AiXun

• Power: 80W

• Input voltage: AC 100~240V

• Air inlet: Outer Ø75mm / Inner Ø68mm

• Hose length: 1.2M

• Hood size: 200*150mm

• Host dimensions: 288*254*313mm

• Negative pressure: 2000pa

• Air flow: 200m³/h

• Communication: USB / Bluetooth / RS485 (comes with Bluetooth remote)

• Fuse: 5A

• Material: Sheet metal

• Flexible bamboo-shaped ducting: Flame-retardant material

• Net weight: 7.4kg

• Blower speed: 5800rpm

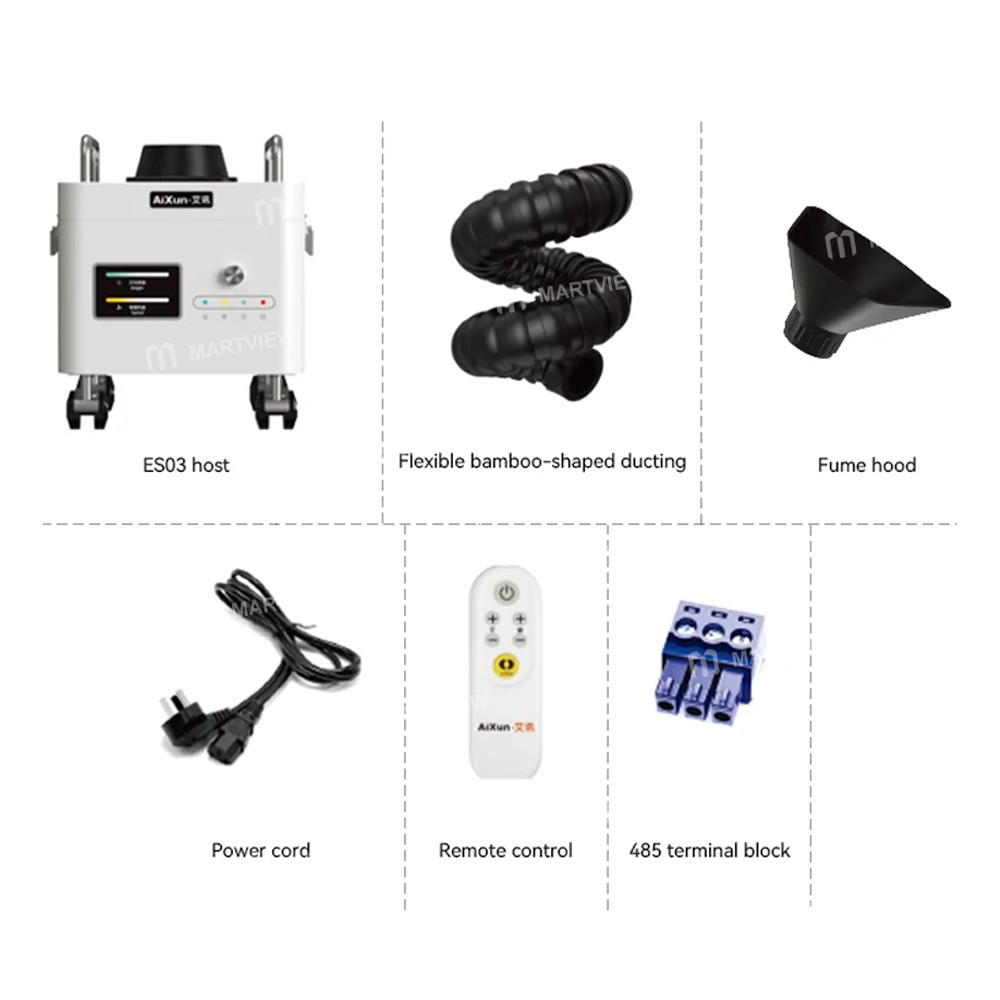

Package includes:

• 1 x Host

• 1 x Flexible Bamboo-Shaped Ducting

• 1 x Fume Hood

• 1 x Power Cord

• 1 x Remote Control

• 1 x 485 Terminal Block
