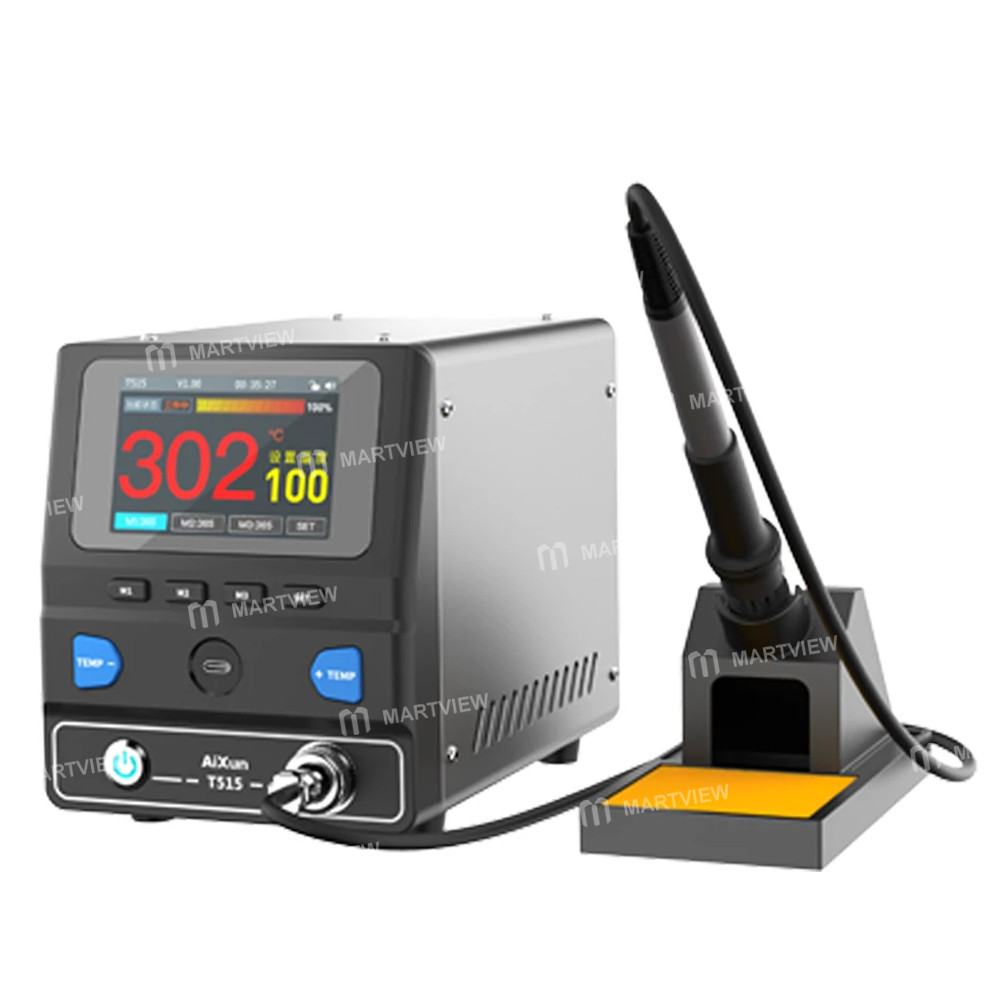

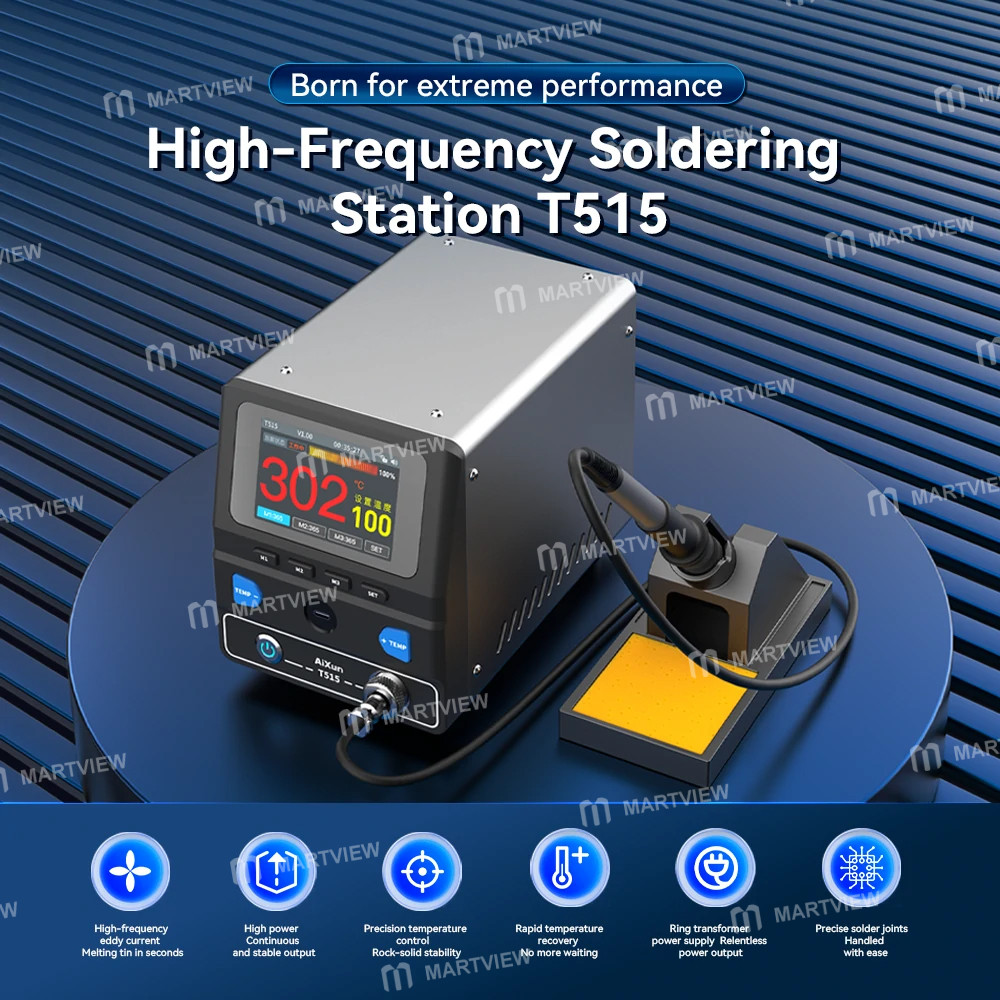

Aixun T515 150W HD Color Display High-Frequency Soldering Station with USB+RS485 Communication

Aixun T515 150W HD Color Display High-Frequency Soldering Station with USB+RS485 Communication

Features:

• Wide temperature range of 90~550°C, with 150W rated power / 200W peak output, efficiently handling large solder joints

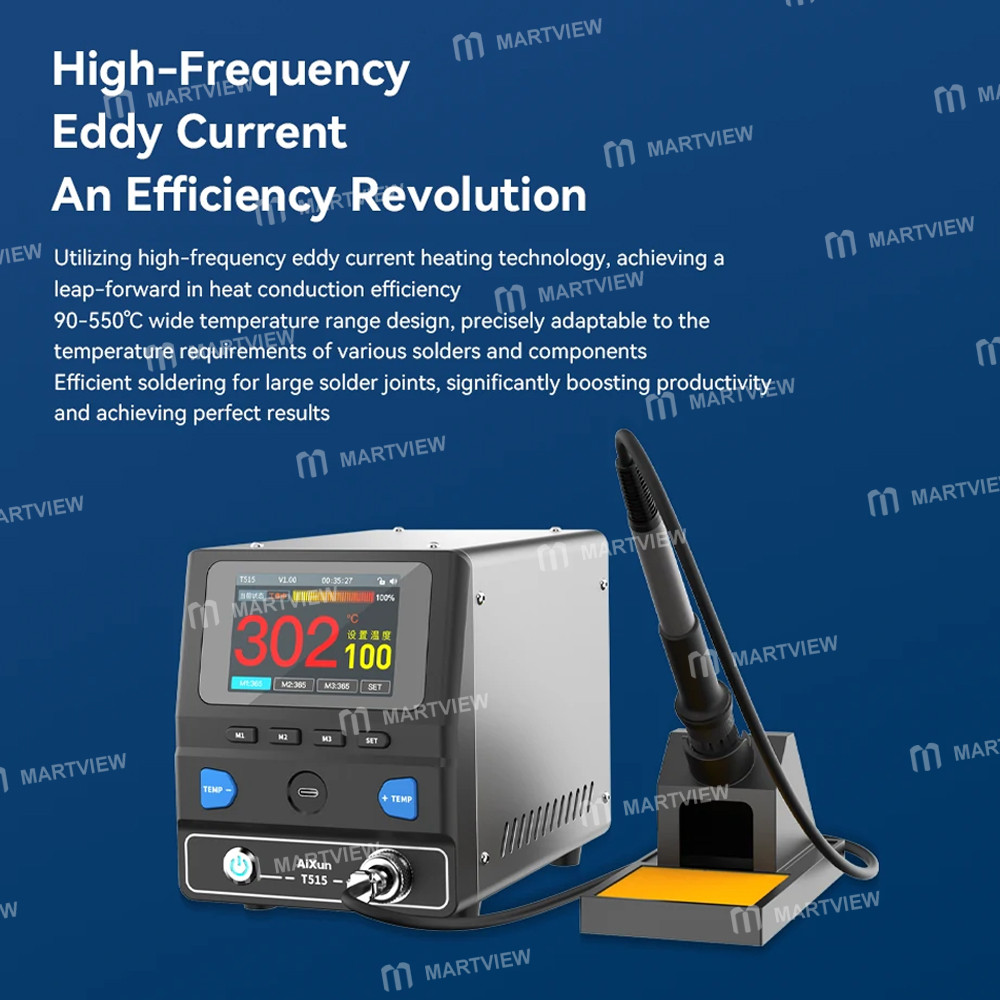

• High-frequency eddy current heating technology enables instant solder melting and ultra-fast temperature recovery with no waiting

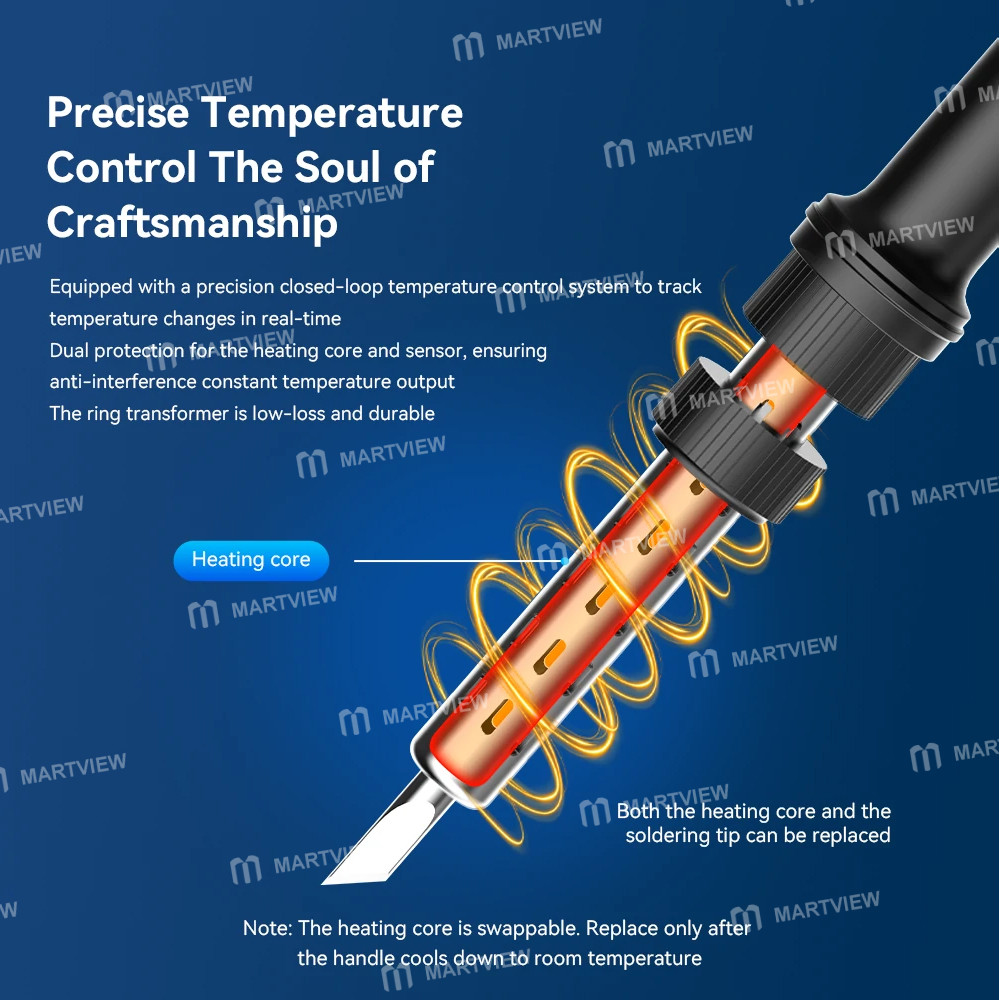

• Precision closed-loop temperature control system provides real-time temperature tracking for consistently stable solder joints

• Low-loss ring transformer power supply with dynamic temperature compensation ensures long-term accurate output

• 3.5-inch IPS HD color display supports digital and curve dual-interface visualization for intuitive temperature management

• Dual protection from heating core and sensor delivers interference-resistant, constant-temperature output for enhanced safety and reliability

• Supports multi-language selection and temperature unit switching, with adjustable backlight and sound for smarter interaction

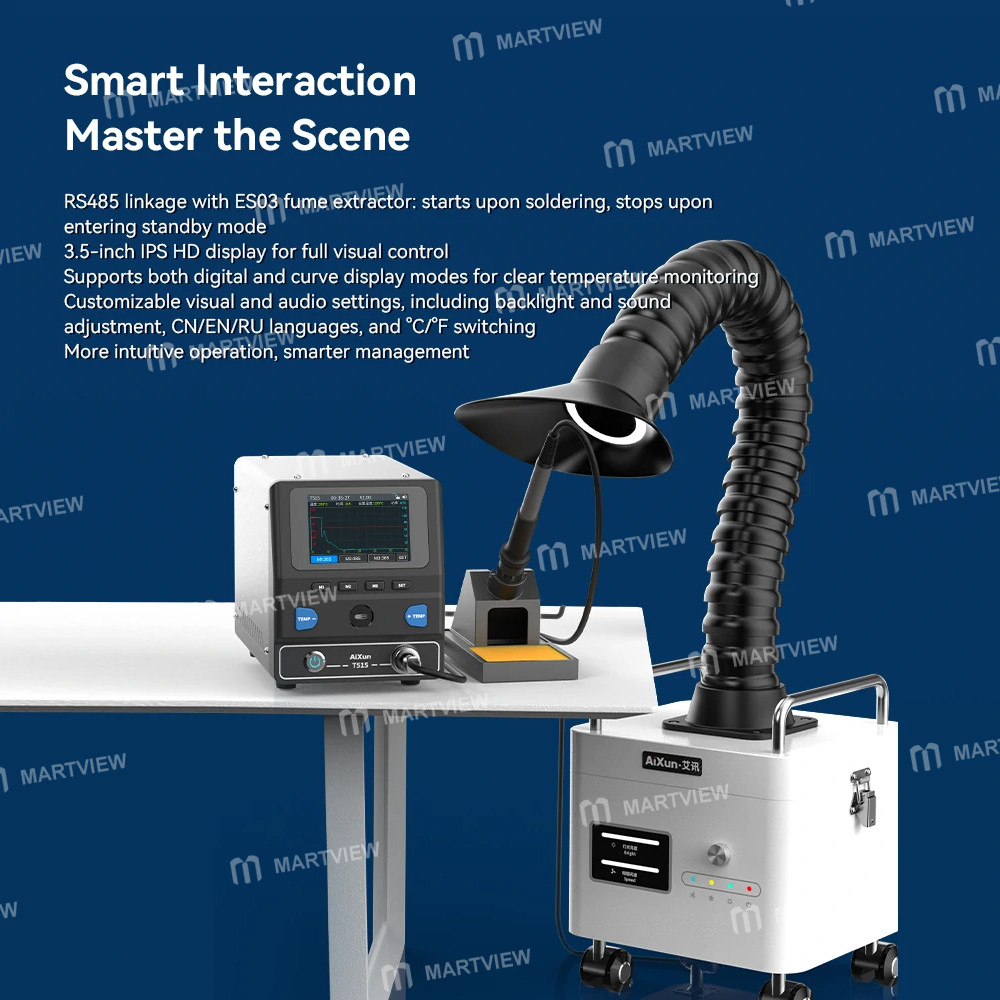

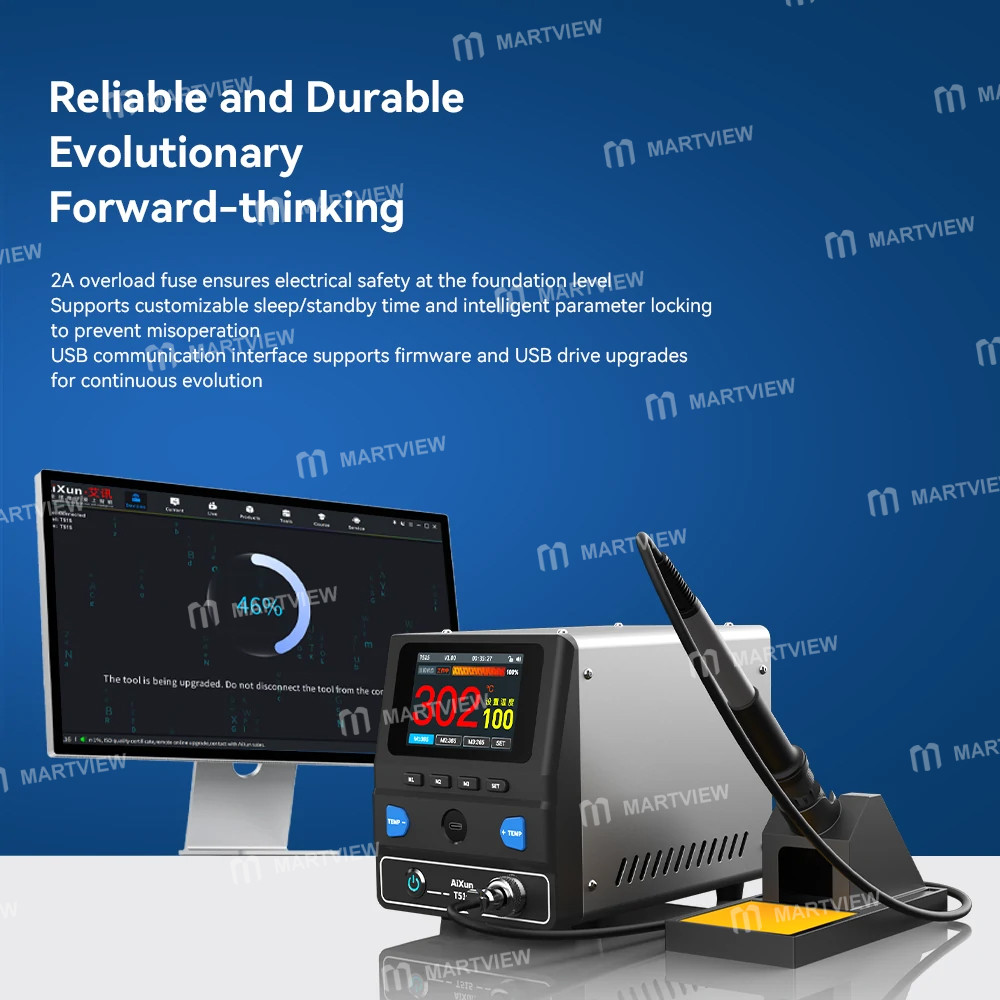

• RS485 + USB communication interfaces support firmware upgrades and host PC connectivity, with password lock protection for continuous evolution beyond today

Specifications:

• Brand: AiXun

• Model: T515

• Name: High-Frequency Soldering Station

• Rated power: 150W

• Peak power: 200W

• Input voltage: AC 110V/220V ±10%

• Temperature stability: ±2℃

• Tip-to-Ground resistance: 2Ω

• Tip-to-Ground potential: 2mV

• Input fuse: 2A

• Compatible handle: 205H

• Soldering tip: 500-3C/500-SK

• Communication: USB+RS485

• Display type: 3.5-inch IPS HD screen (Res: 480×320)

• Standby mode: Delayed standby

• Net weight: 3.5kg

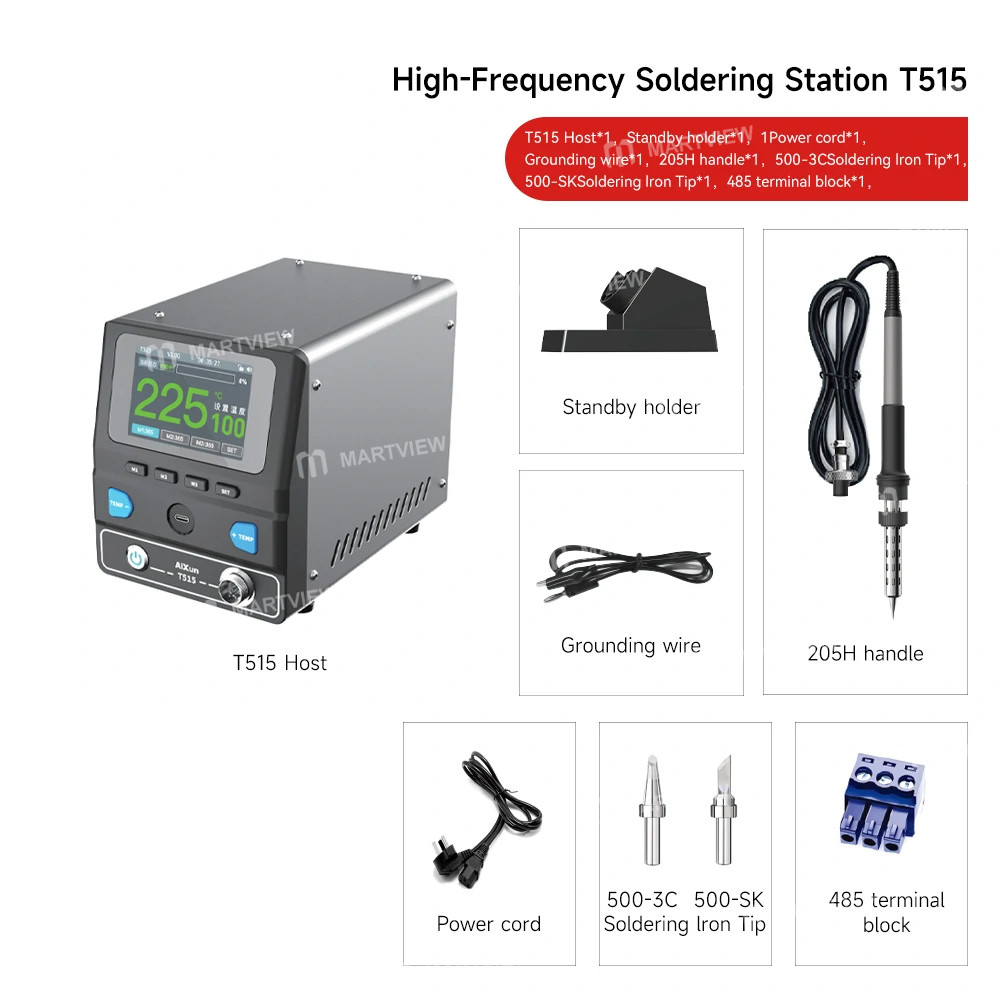

Package includes:

• 1 x T515 Host

• 1 x Standby Holder

• 1 x Grounding Wire

• 1 x 205H Handle

• 1 x 500-3C Soldering Tip

• 1 x 500-SK Soldering Tip

• 1 x 485 Terminal Block

• 1 x Power Cord
