Amaoe AM-DCC2B Dual-Channel HDMI Production Capture Card Supports 4K and Picture-in-Picture

Amaoe AM-DCC2B Dual-Channel HDMI Production Capture Card Supports 4K and Picture-in-Picture

Features:

• Dual HDMI inputs for simultaneous multi-angle capture: Supports simultaneous input and capture of two HDMI signals from devices like cameras and camcorders

• Director mode: Seamless switching between multi-screen live streams with built-in picture-in-picture/multi-screen switching

• Multiple input/output ports for connecting external devices, including microphones, headsets, mixing consoles, cameras, monitors, and computers

• Driver-free operation compatible with Windows, Linux, and Mac OS systems

Specifications:

• Input Interfaces: 2 HDMI video inputs, 1 line-in audio input, 1 microphone audio input

• Output Interfaces: 1 HDMI video loop-out output, 1 Type-C PC capture output, 1 audio monitoring output

• USB 3.0 Capture Video Format: RGB24 6i-near, uncompressed high color, 1080P/60fps, backward compatible; YUY 216-bit, 1080p/60fps, backward compatible

• Input Resolutions: 480p, 576p, 720p, 1080p/60, 4K/30fps, 4K/60fps

• HDR: Supports HDR capture. Color Depth: Backward compatible

• Split-screen mode support: Left-right split, top-bottom spli,t dual-view

• Picture-in-picture mode support: Top-left, bottom-left, top-right, bottom-right corners; PIP can be zoomed; dual-view split

• HDCP support: Supports Xbox, PS4, PS5, Switch, Blu-ray, etc.

• Operating system support: Windows 7/8/8.1/10/11, Linux OS, and Mac OS

• Compatible Development Interfaces: DirectShow (Windows) and standard UVC interfaces

• Power Consumption: 3.5W

• Operating Temperature: 0°C to 70°C

• Product Dimensions: 112*82*25mm

• Net Weight: 172g

Package includes:

• 1 x Capture Card

• 1 x Type-C to USB Cable

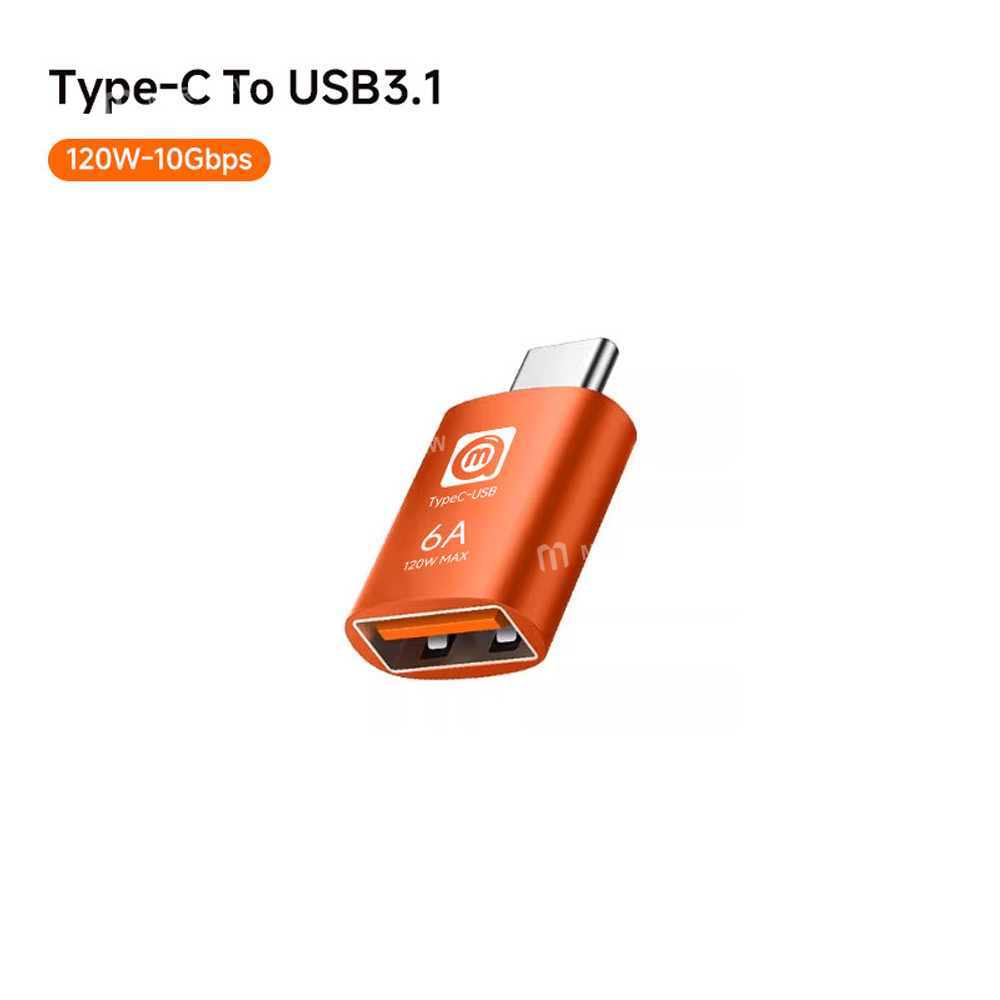

• 1 x Type-C to USB Adapter
