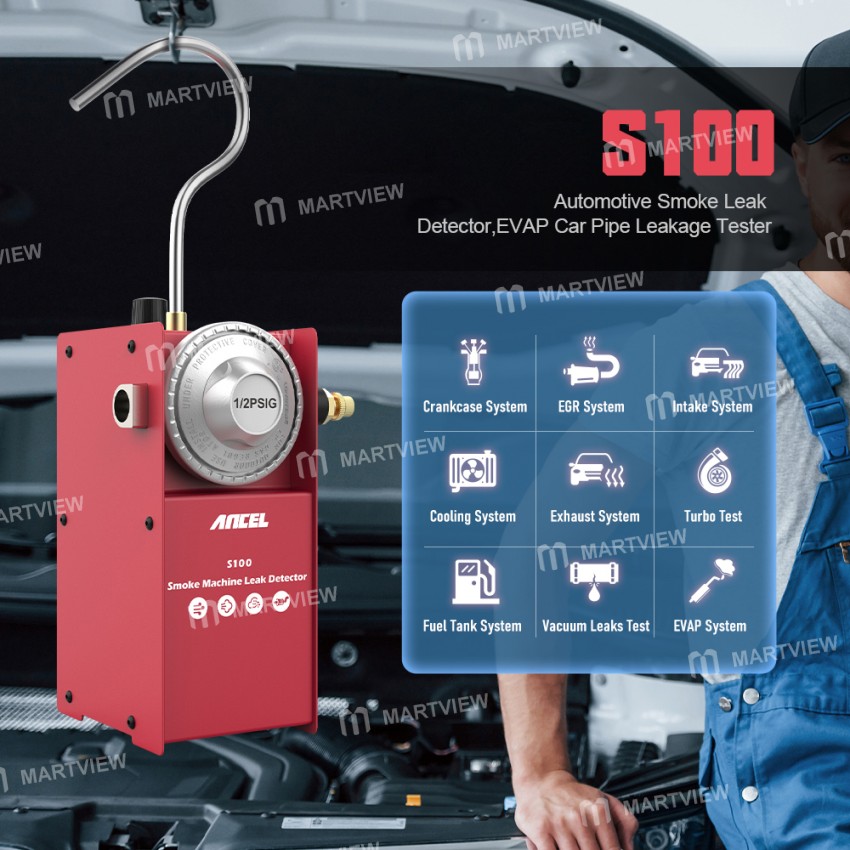

Ancel S100 EVAP Diagnostic Car Pipe Smoke Leak Detector

Ancel S100 EVAP Diagnostic Car Pipe Smoke Leak Detector

Features:

• For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks, and speedboats boats, works on all car makes and models.

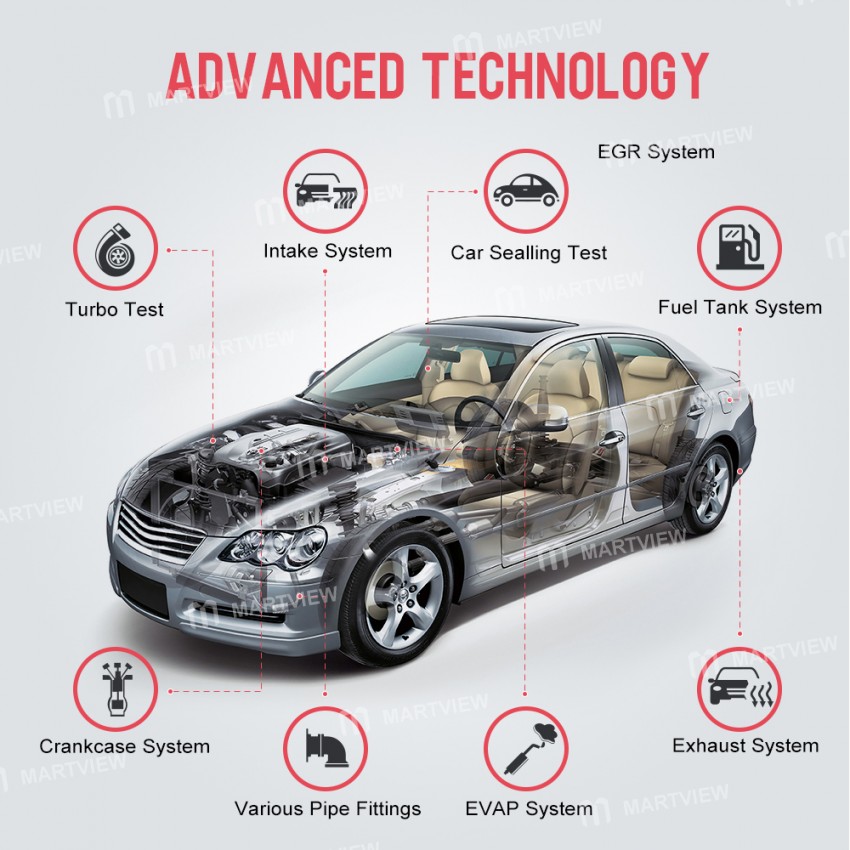

• The S100 smoke leak detector can do the following work - EVAP systems test, vacuum leaks, low-pressure turbo leaks, intake manifolds, cooling exhaust systems, door & windows seals, EGR system test, various pipe fittings test, oil leaks, and more

• Equipped with ANCEL's latest smoke generator and 1/2PSI high-pressure unit, which ensures the continuous output of a large amount of smoke

• The dense smoke output detects even the smallest leaks and helps you diagnose faults quickly and accurately, significantly improving the efficiency of diagnosis

• High temperatures are generated during the operation of the smoking machine, which will cause the internal parts to permanently disintegrate at high temperatures and the machine will stop working, therefore, the S100 smoke machine uses a solid, thick metal structure to protect the internal parts from heat, which greatly extends the service life

• Most smoking machines are relatively large, which is a hindrance when transporting and storing them. This machine weighs only 3 pounds, and is small and lightweight, making it not only easy to store but also easy to transport. It is an indispensable tool for any car owner

• By constantly changing materials and improving heating technology, the smoke produced by the S100 smoke machine is environmentally friendly and harmless. When the operating temperature of the machine exceeds 75°C, it will shut down automatically. This effectively ensures the safety of each car owner

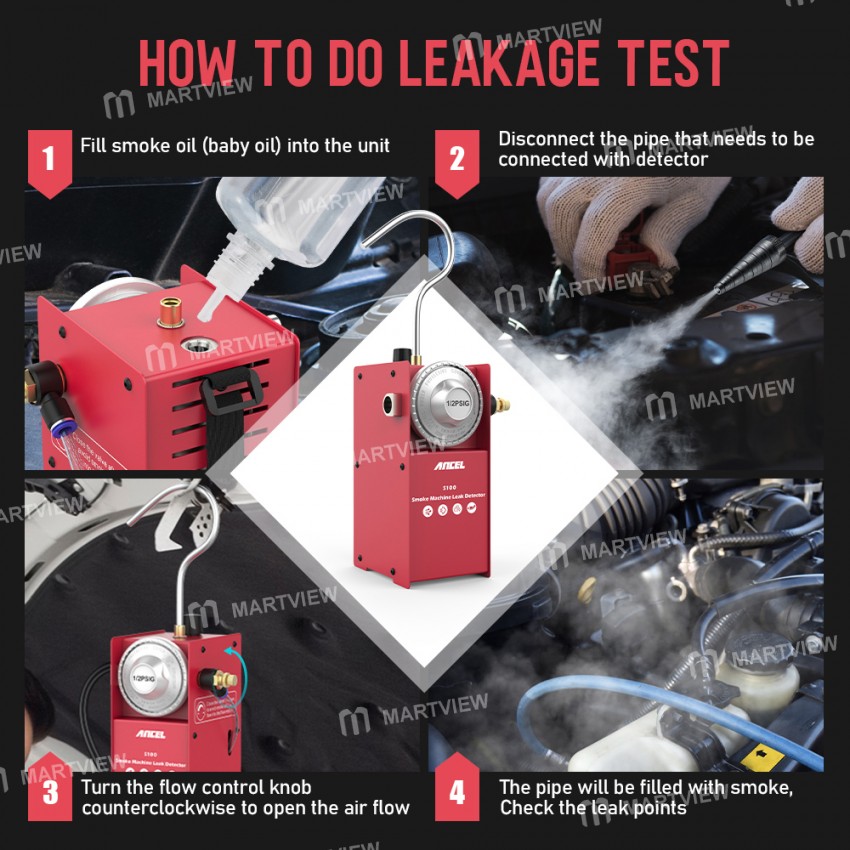

How to do a leakage test:

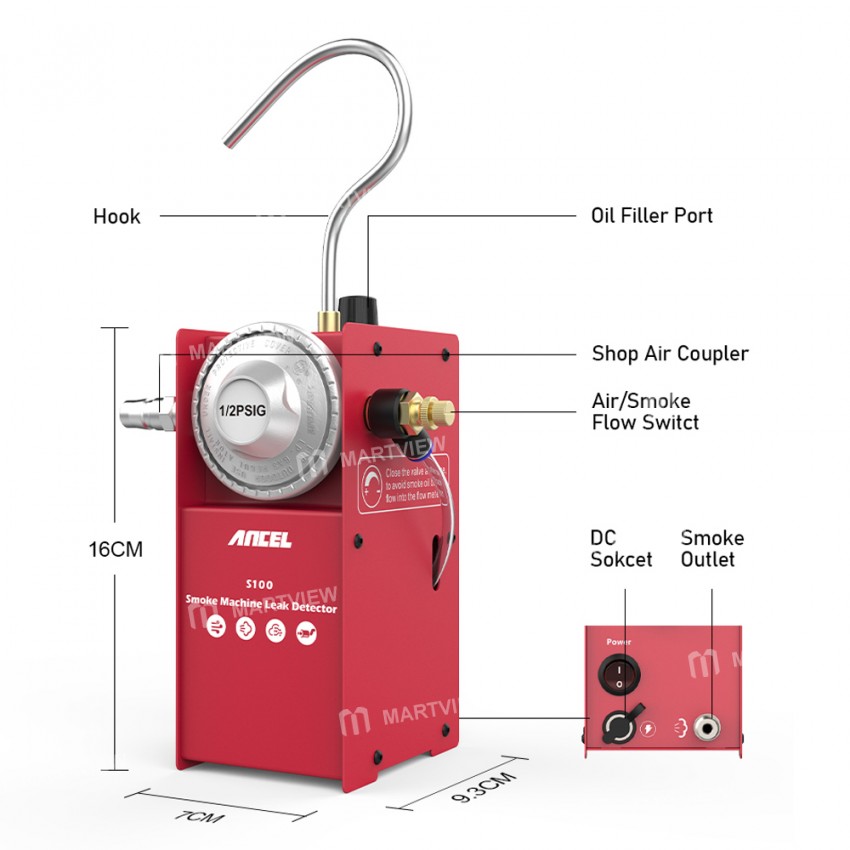

• Attach the hook to the device

• Attach the workshop air adapter to the unit

• Plug the power cord into the power outlet

• Screw the smoke hose to the unit

• Fill smoke oil (mineral oil based) into the unit via the refill opening on the top (Note: The oil level must not be higher than the level indicator)

• Connect the factory air supply

• Connect the vehicle's 12V power supply

• Introduce workshop air into the unit

• Turn the flow control knob counterclockwise to open the airflow

• Turn on the power on the back of the unit, then the unit will start to generate smoke.

• Introduce the smoke into the system

Package includes:

• 1 x Smoke Leak Detector

• 1 x Power Cord

• 1 x Hook up

• 2 x EVAP Kit

• 1 x Smoke Delivery Hose

• 1 x Air Adpt
