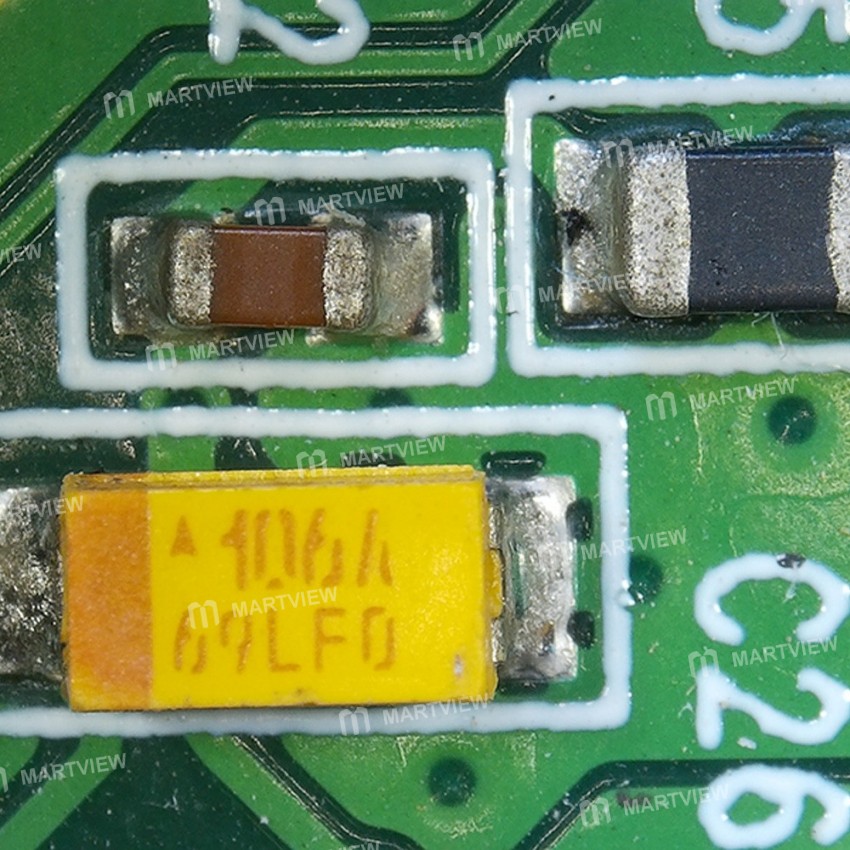

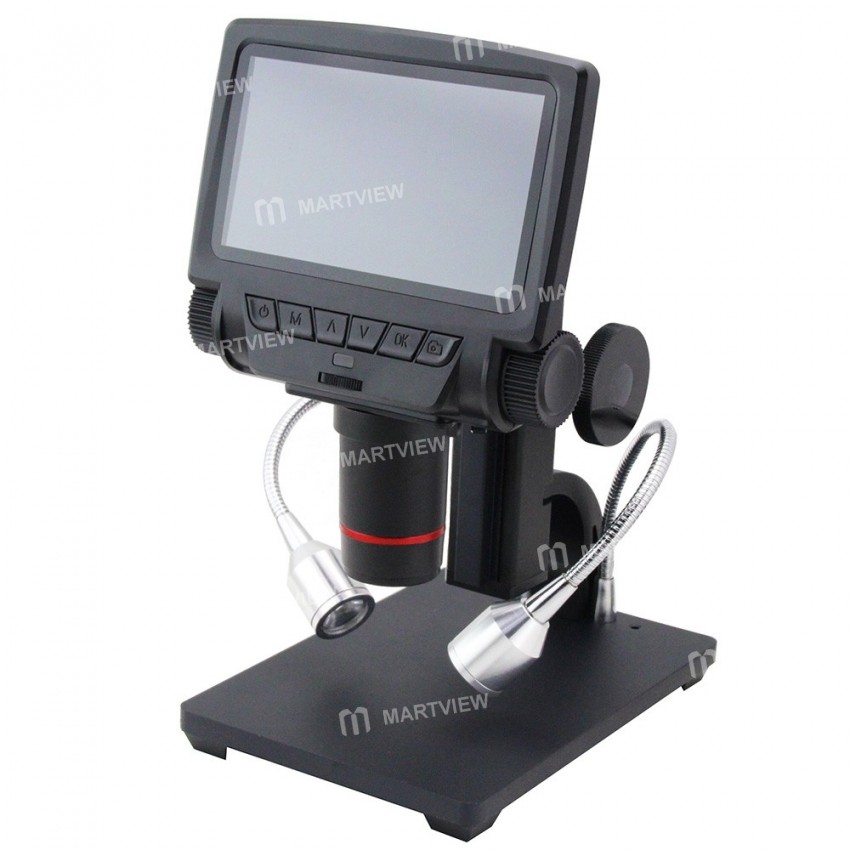

Andonstar ADSM301 5‑inch HDMI Digital Microscope with 1080P Camera, LED Lighting, Large Base Stand – Ideal for Mobile Phone, PCB, Mainboard Repair, Soldering & Electronics

Feature:

• Key Features Summary: UV filter protection, four versatile output options, advanced image analysis, 4× digital zoom, high‑resolution display, and robust construction.
• UV Filter: Shields the lens from heat, smoke, dust and soldering fumes; reduces ultraviolet rays for clearer images and more accurate colors.
• Multiple Output Options: Supports AV, USB, HDMI, and microSD card (up to 32 GB) for flexible connectivity. Only one output can be used at a time.
• Image Analysis & Special Effects: Includes inverse, black‑&‑white, crosshair, brightness/contrast adjustment, and more. Saveable effects (e.g., black‑&‑white) can be exported as JPEG or MOV files.
• Digital Zoom: 4× digital zoom allows precise inspection. Adjust via monitor buttons or the included IR remote.

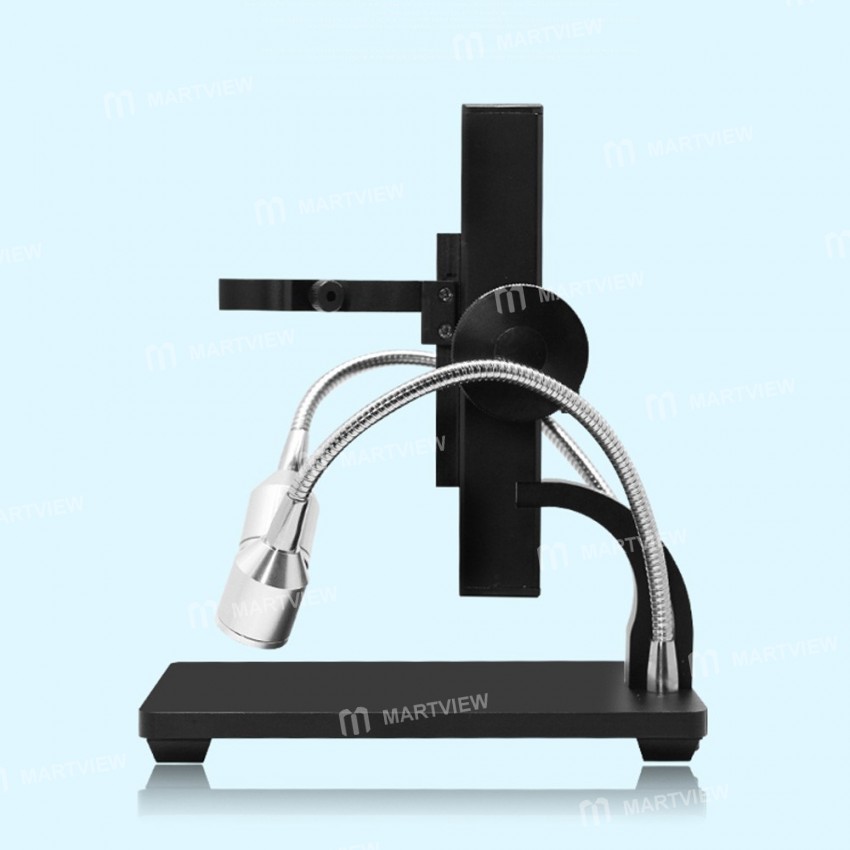

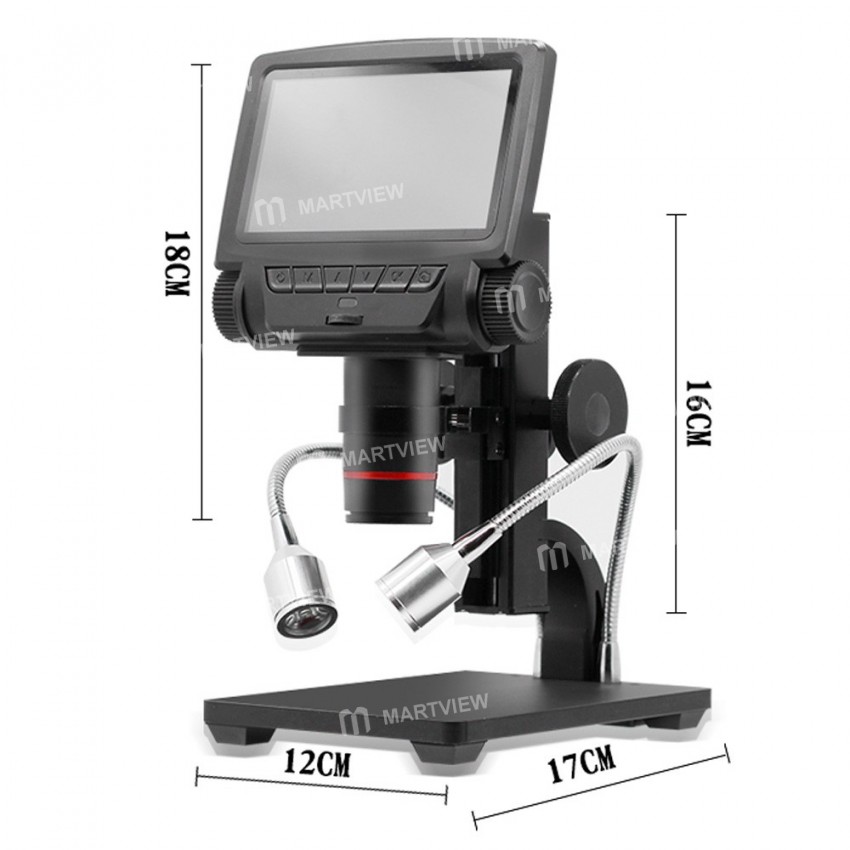

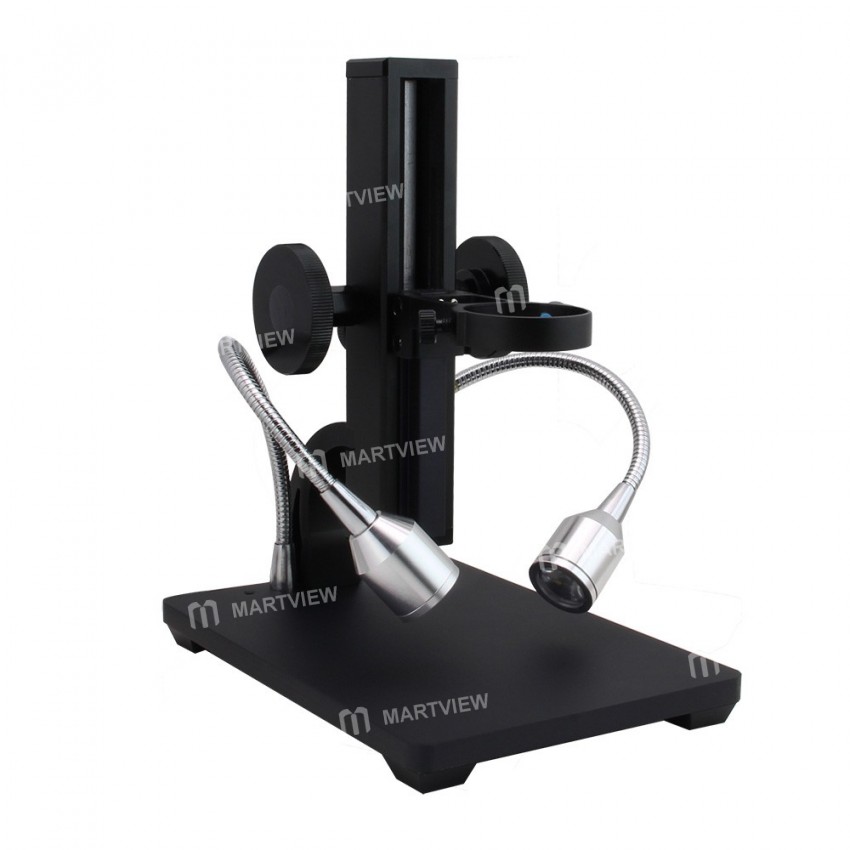

• Ergonomic Design: Ample working distance and a large metal stand provide a stable platform for examination and repair.
• Exclusive Lens: Reduces veiling glare and prevents smudging during soldering.

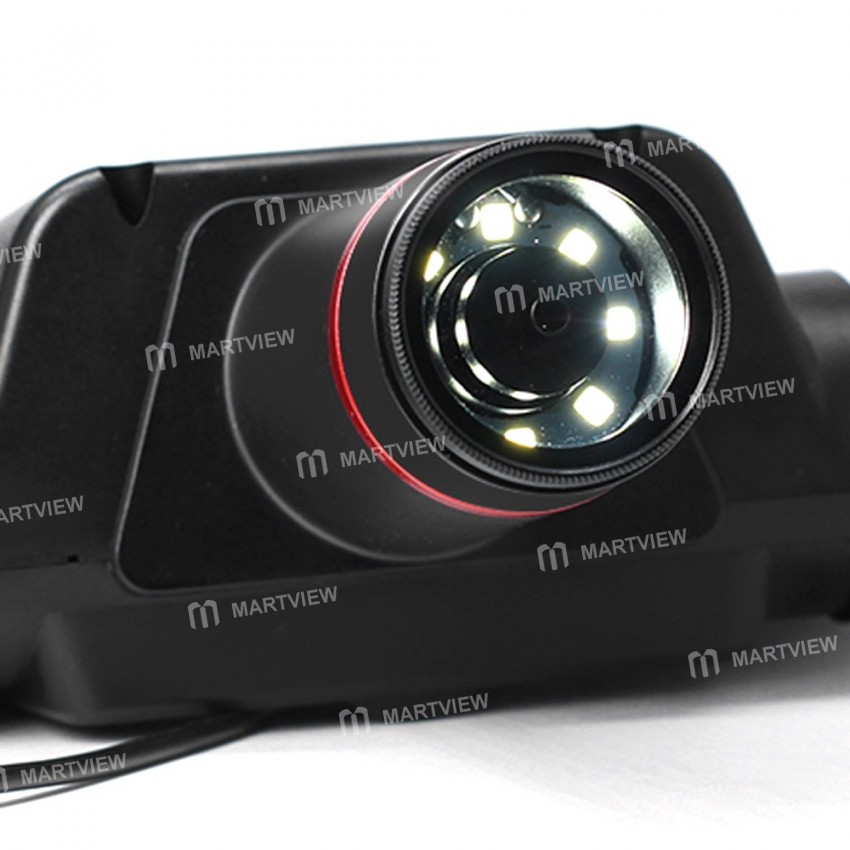

• Dual LED Lighting: Eight LEDs inside the camera and two on the base minimize shadows for a clear view.
• Real‑Time Imaging: No smear, delivering smooth live video.

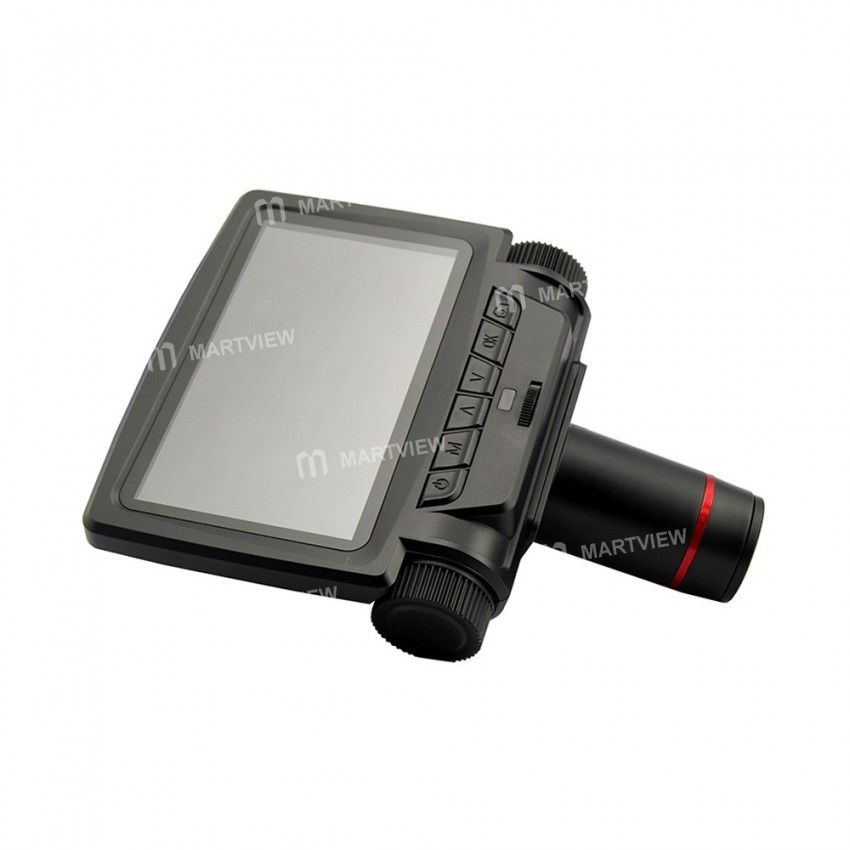

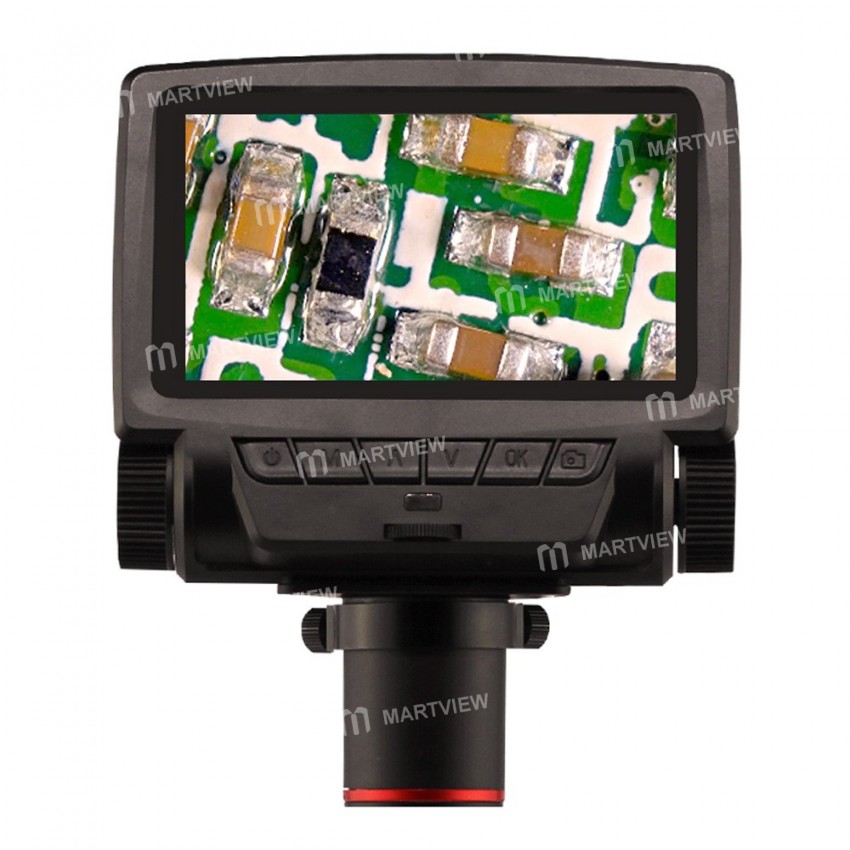

• Portability: View directly on the 5.0‑inch screen or connect to external displays for on‑site work.
• HDMI Output: Connect to a 1080p HD monitor for collaborative research or presentations.
• Computer Connectivity: USB connection enables easy repair documentation while viewing.
• Technical Specs:
• Display: 5.0 inches
• Image sensor: 3 MP
• Video output: 1080p Full HD (HDMI); 720p (USB)
• Video format: MOV
• Photo format: JPEG
• Focus range: 5 cm – 15 cm
• Frame rate: Up to 30 fps at 600 lux
• Magnification: 10× – 300×
• Video‑output interface: HDMI / AC
• Storage: MicroSD card, up to 32 GB
• Power source: 5 V DC
• Supported OS: Windows XP, 7, 8, 10
• Supported languages: English, Chinese, Russian, Spanish, etc.
• LEDs: 8 pcs inside camera, 2 pcs on base stand

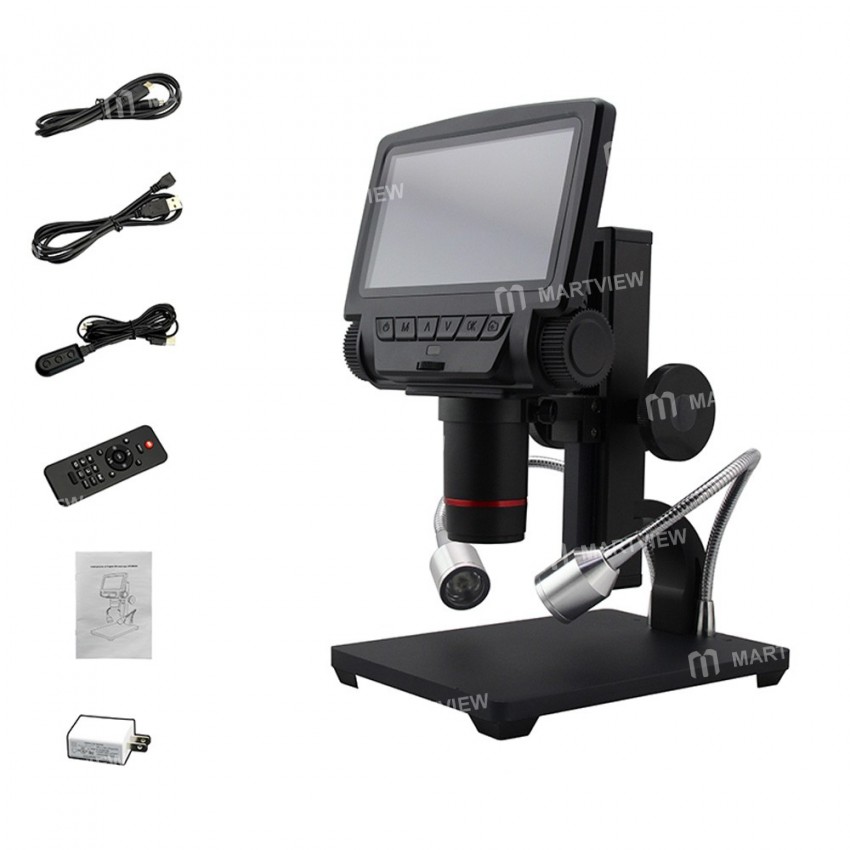

Package included:
1 × Digital Microscope Camera
1 × Metal base stand
1 × HDMI cable
1 × USB cable
1 × DC adapter

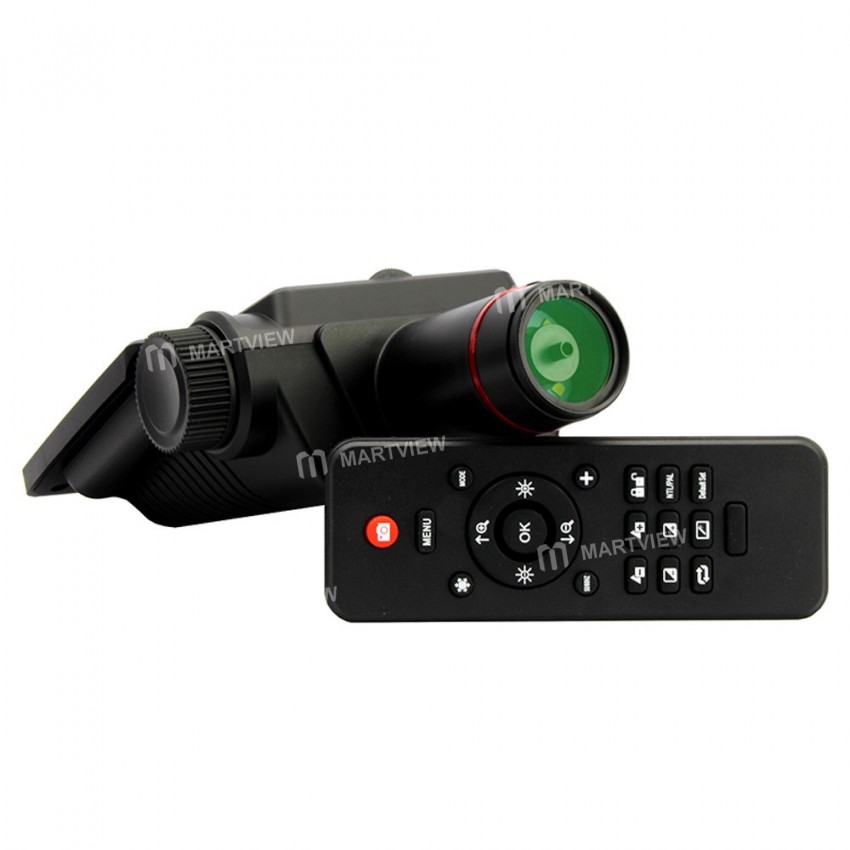

1 × IR remote control

Download Software (Support Windows OS only):
https://drive.google.com/open?id=1C2UYEeRLdkfWsesXj2BN0ldj6NbMrVE1
