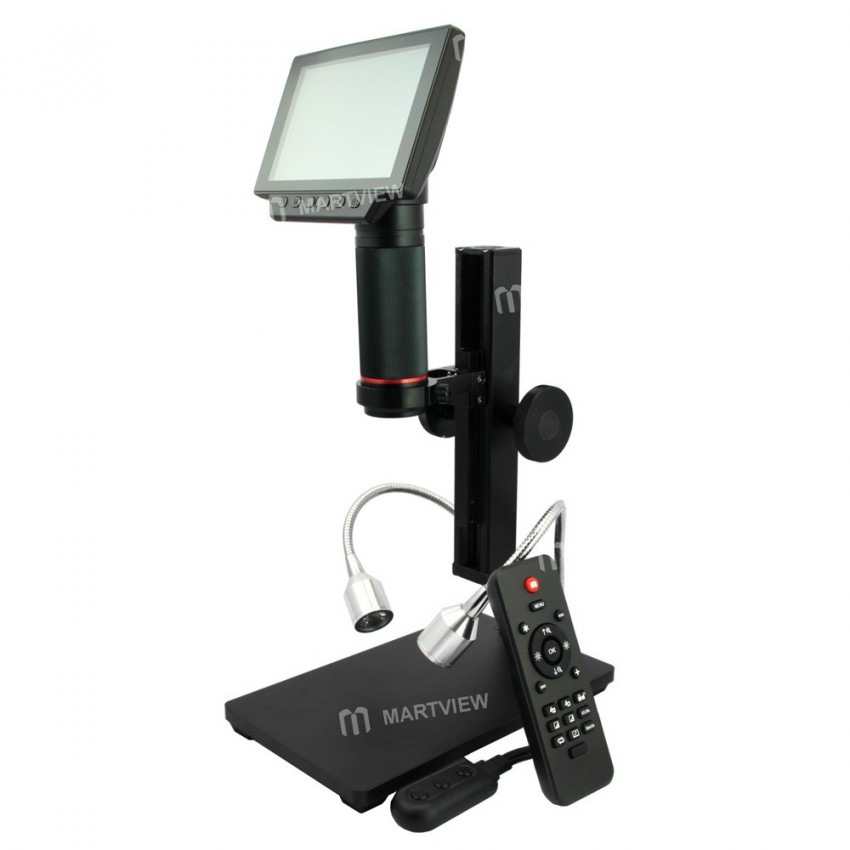

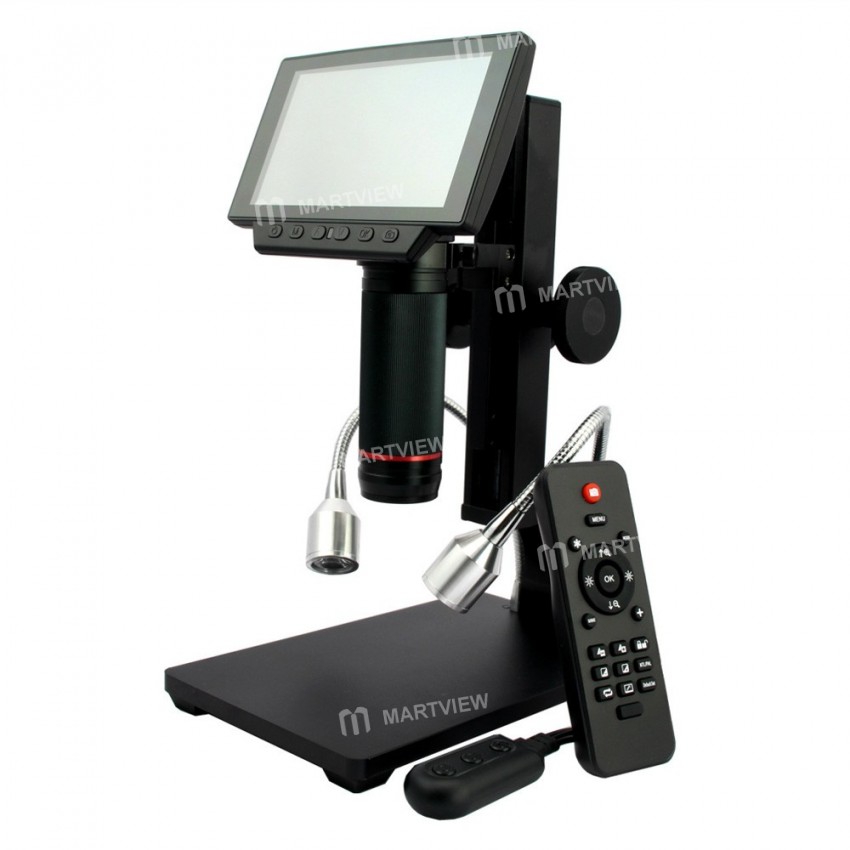

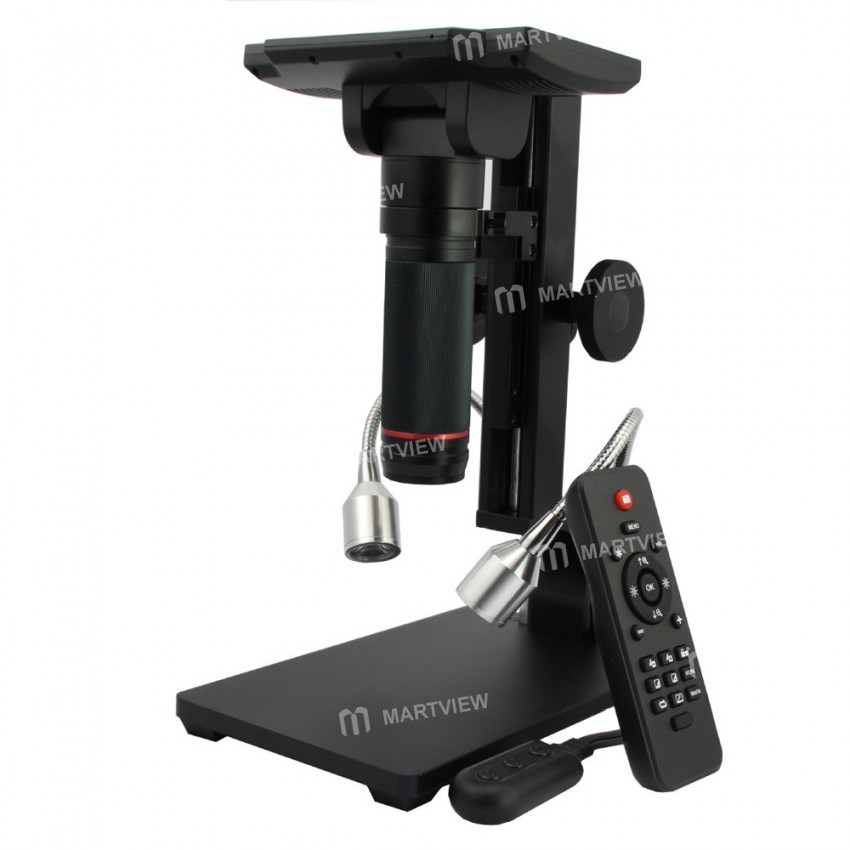

Andonstar ADSM302 5‑inch HDMI Digital Microscope with 1080P 560× Zoom, LED Illumination, Large Base Stand – Ideal for Mobile Phone, PCB, Mainboard Repair, Soldering & Electronics

Feature Summary: UV filter, multiple output options, image analysis, digital zoom, dual lighting, real‑time HD imaging, sturdy metal stand, and portable design.

Features:

• UV Filter: Protects the lens from heat, smoke, dust and soldering fumes; reduces ultraviolet rays for clearer images and more accurate colors.

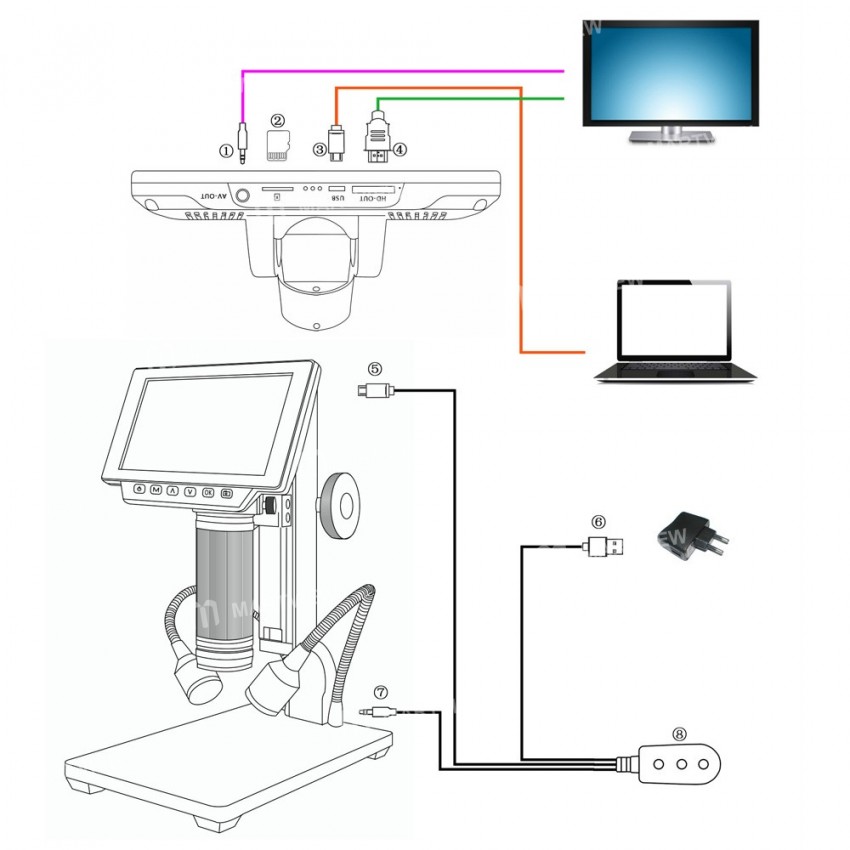

• Four Output Options: AV, USB, HDMI and micro‑SD card (up to 32 GB) – choose the best connection for your setup. Only one output can be used at a time.
• Image Analysis & Special Effects: Inverse, black‑&‑white, crosshair, brightness/contrast adjustment, etc. Saveable effects (e.g., black‑&‑white) can be stored as JPEG or MOV; non‑saveable overlays like crosshair are for on‑screen reference only.

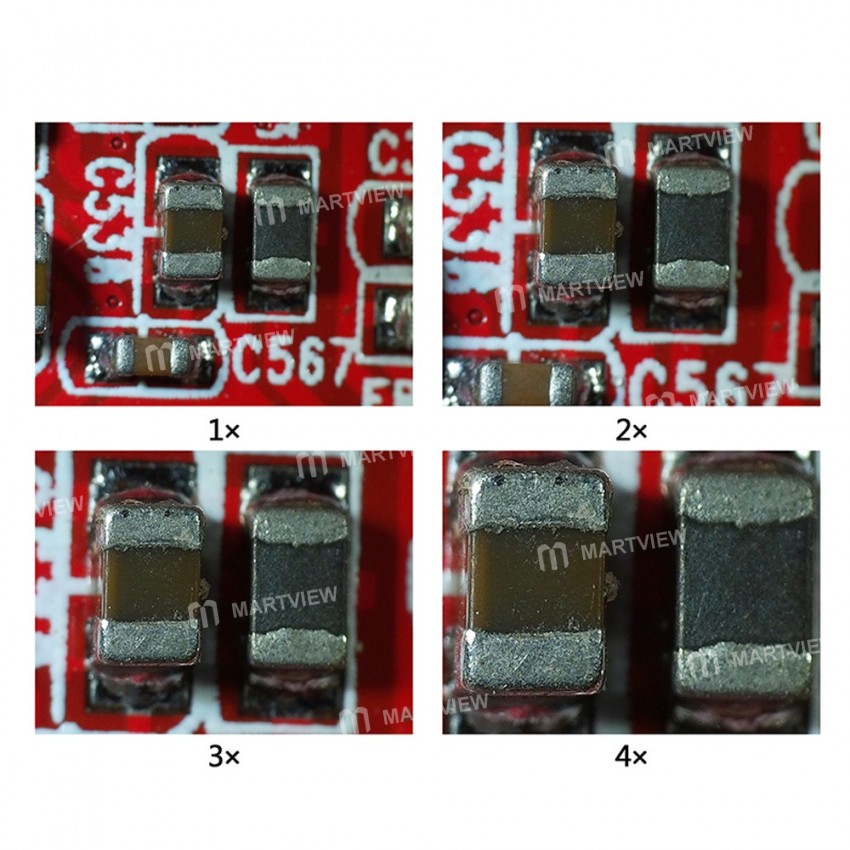

• 4× Digital Zoom: Zoom in/out with the monitor buttons or remote control for precise inspection.
• Ample Working Distance: Large stand space lets you examine and repair comfortably.
• Exclusive Lens: Reduces veiling glare and prevents smudging during soldering.

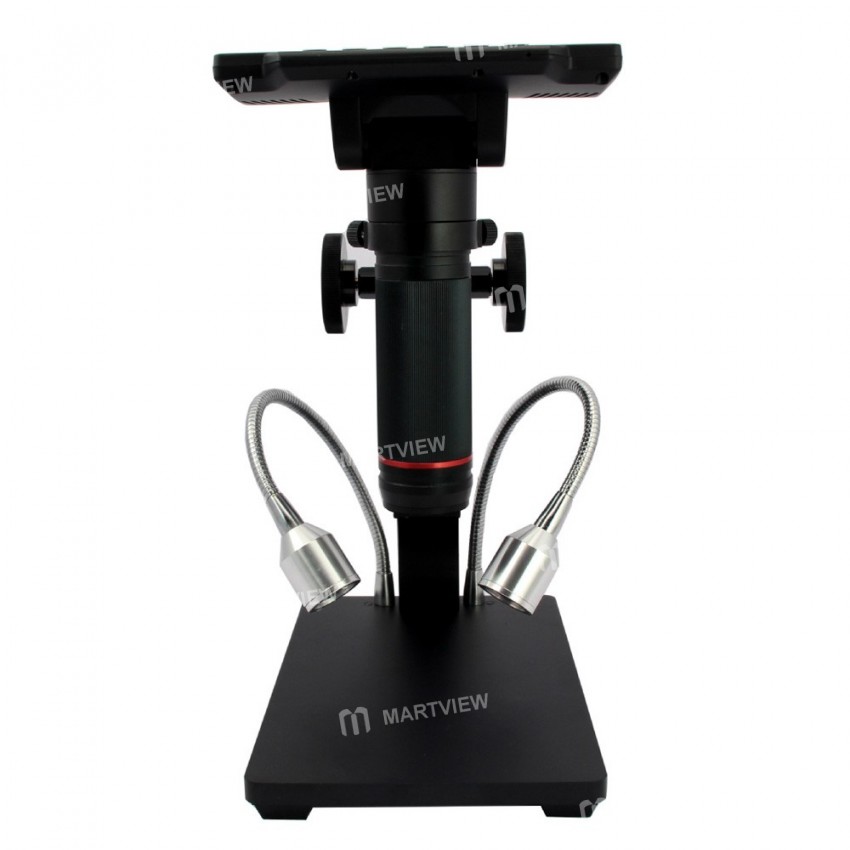

• Dual LED Lights: Minimizes shadows and provides uniform illumination.

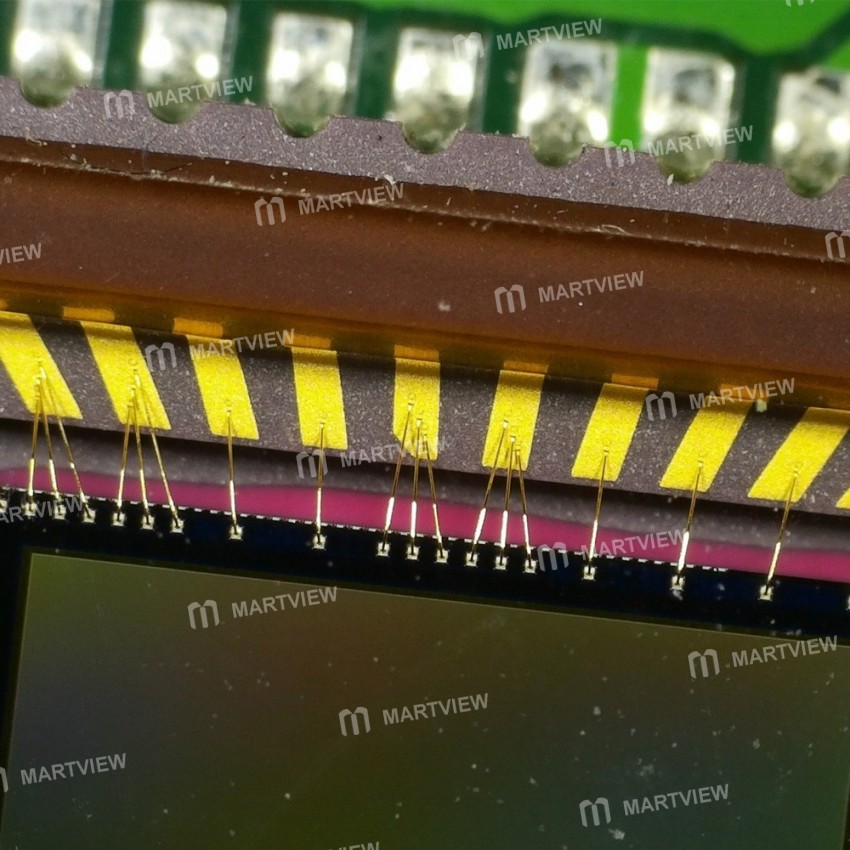

• Real‑Time Imaging: No smear, 1080p Full HD video.

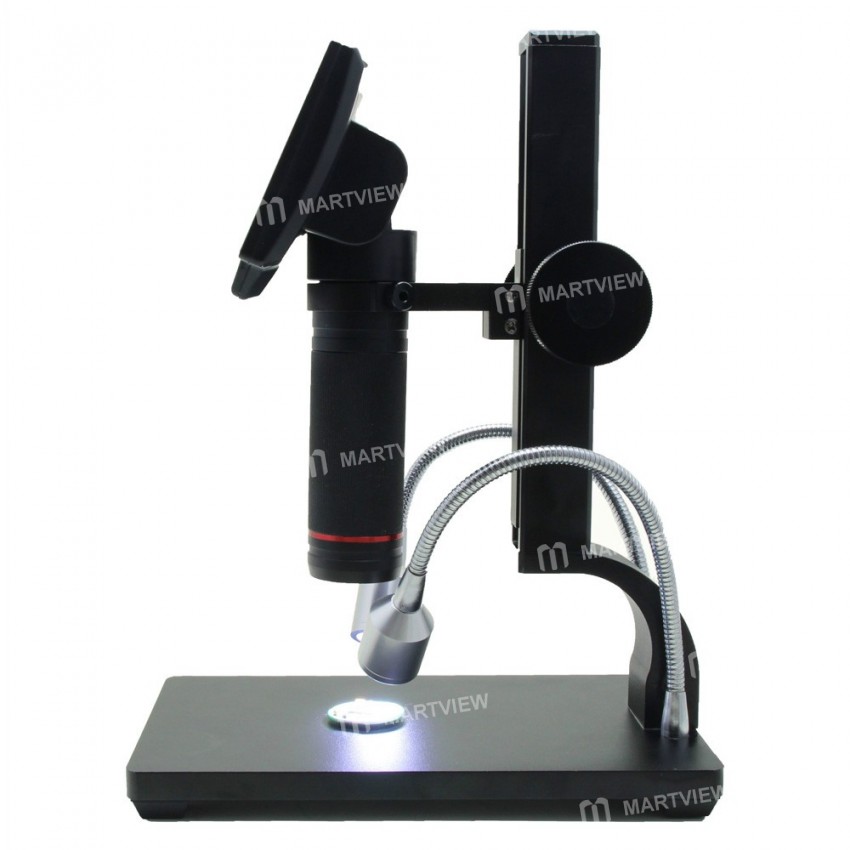

• Sturdy Metal Stand: Durable construction demonstrates quality.

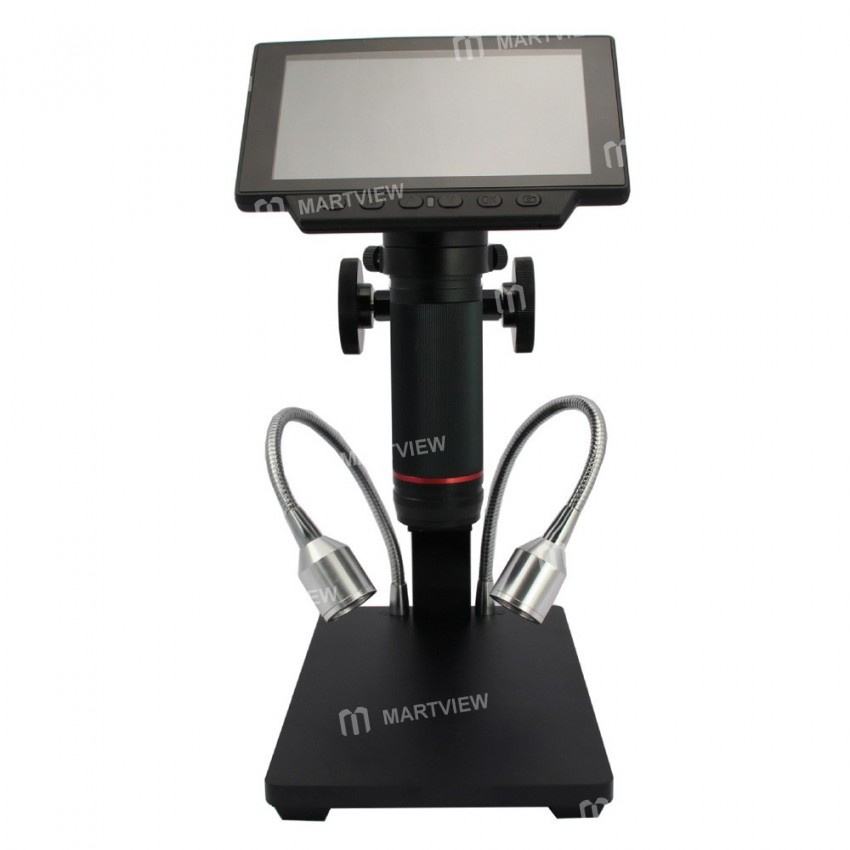

• Portability: View directly on the 5‑inch microscope screen; easy to carry for field work.
• HDMI Output: Connect to a 1080p display for collaborative research.
• Computer Connectivity: USB connection for repair monitoring and image capture.
• Display: 5.0‑inch screen.
• Image Sensor: 12 MP.
• Video Output: 1080p Full HD (HDMI); 720p (USB).
• Video Format: MOV.
• Photo Format: JPEG.
• Focus Range: 5 cm – 22 cm.
• Frame Rate: Up to 30 fps at 600 lux brightness.
• Magnification Ratio: 560× (when displayed on a 22‑inch HD monitor).
• Video‑output Interface: HDMI / AC.
• Storage: MicroSD card, up to 32 GB.
• Power: 5 V DC via adapter.
• Base Stand Size: 22 × 12 × 26.5 cm.
• Supported OS: Windows XP, 7, 8, 10.
• Supported Languages: English, Chinese, Russian, Spanish, etc.
• LED Lights: 8 inside the camera, 2 on the base stand.

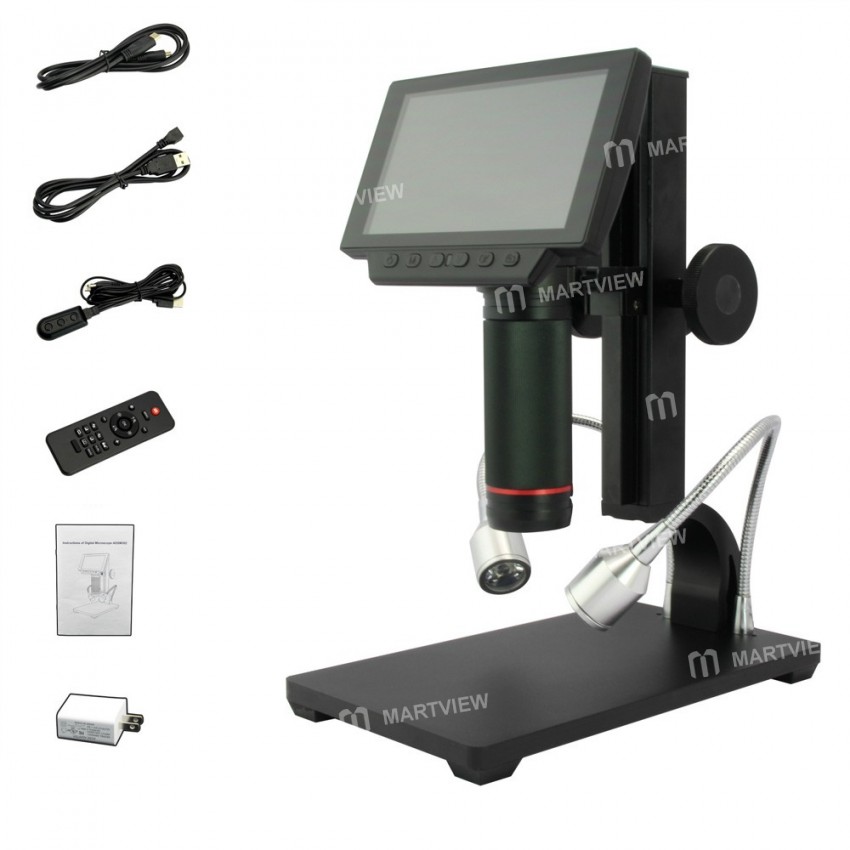

Package Included:
1 × Digital Microscope Camera
1 × Metal Base Stand
1 × HDMI Cable
1 × USB Cable
1 × DC Adapter

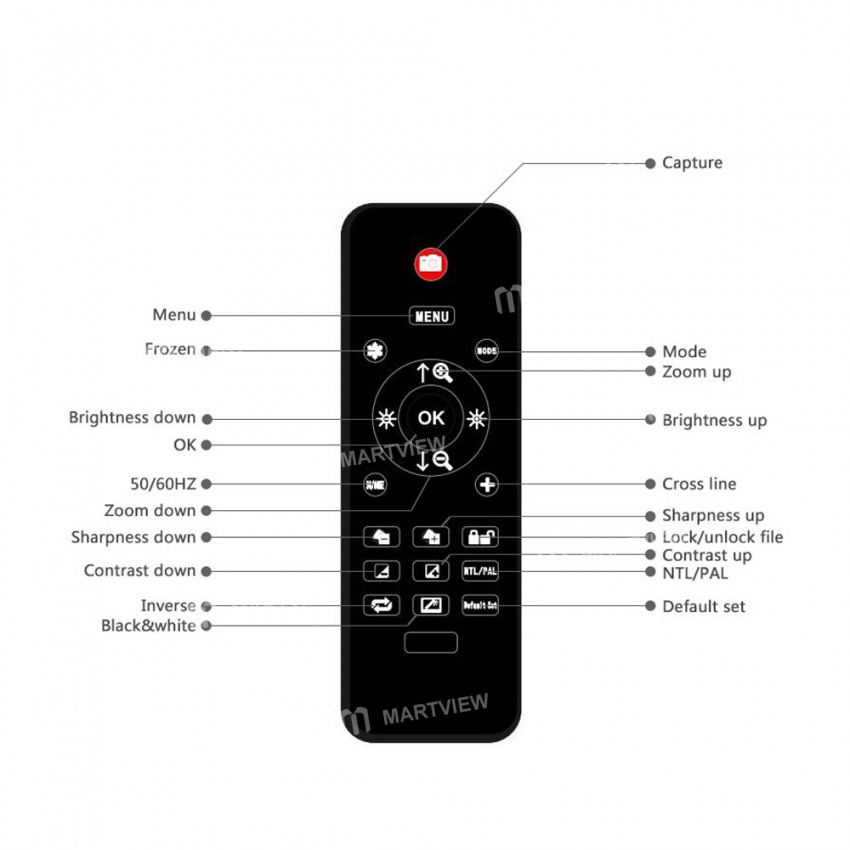

1 × IR Remote Control

Download Software (Windows only):
https://drive.google.com/open?id=1C2UYEeRLdkfWsesXj2BN0ldj6NbMrVE1
