Aneng 622A Multi-function Auto Range Intelligent LCD Display Multimeter with Laser Lamp

Aneng 622A Multi-function Auto Range Intelligent LCD Display Multimeter with Laser Lamp

Features:

• This digital multimeter has an automatic selection of measurement functions and ranges, making it easy for users to get accurate readings without any guesswork

• The intelligent multimeter has stable performance, high accuracy, clear reading, and overload protection, ensuring reliable and safe operation

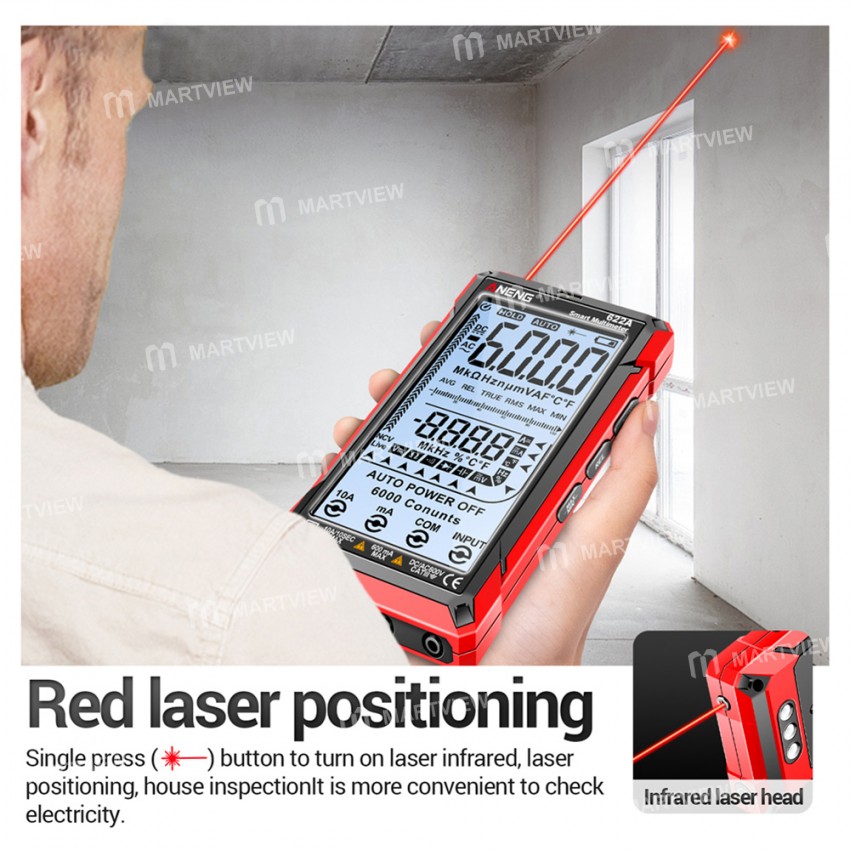

• This multimeter comes equipped with a laser light, which helps users to target the measurement point more accurately, ensuring more precise readings

• With a maximum voltage of 1000V DC or 750V AC between measuring terminal and ground, this ncv multimeter is capable of handling a wide range of electrical measurements

• When detecting the power supply, the screen signal grid gradually becomes full, the alarm buzzer prompts, and the LED light red light flashes

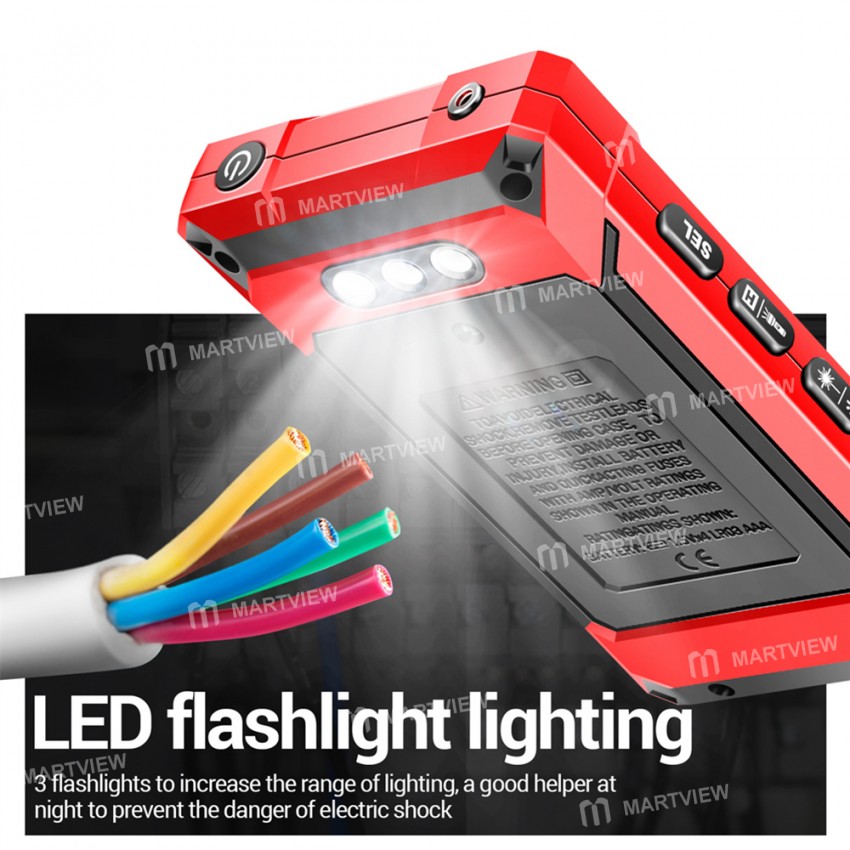

• 3 flashlights to increase the range of lighting, a good helper at night to prevent the danger of electric shock

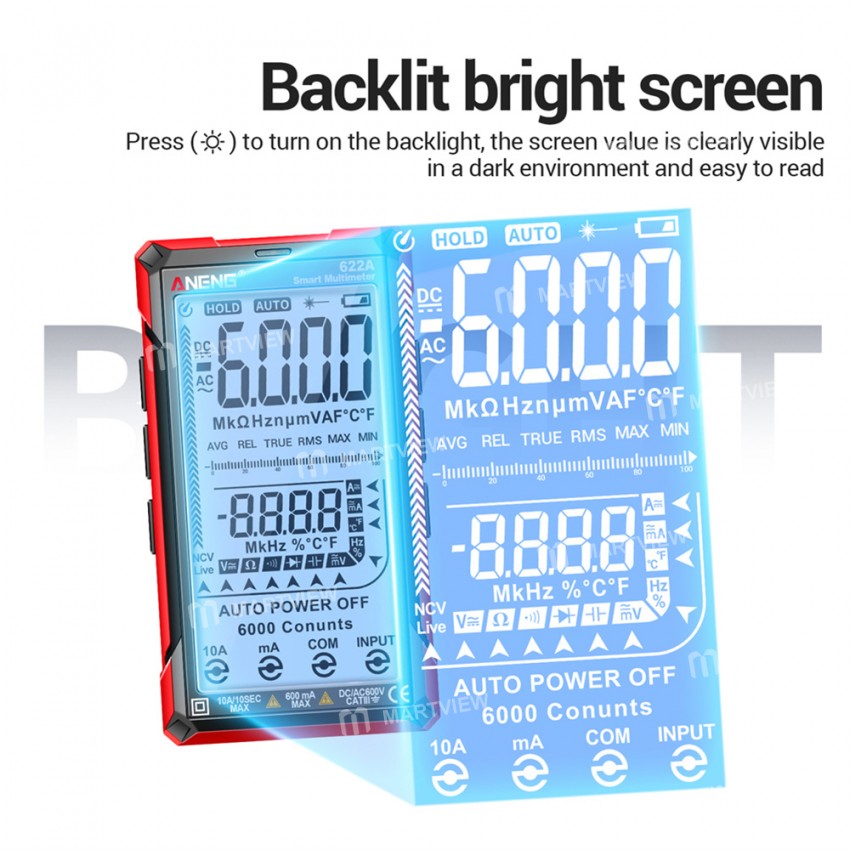

• Press to turn on the backlight, the screen value is clearly visible in a dark environment and easy to read

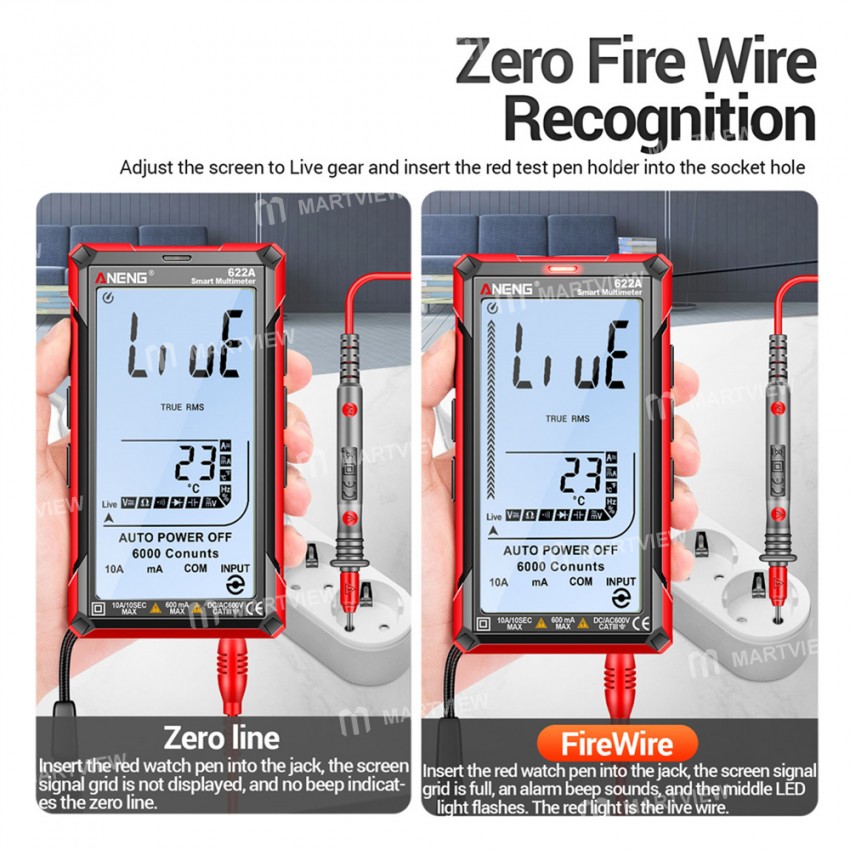

• Adjust the screen to Live gear and insert the red test pen holder into the socket hole

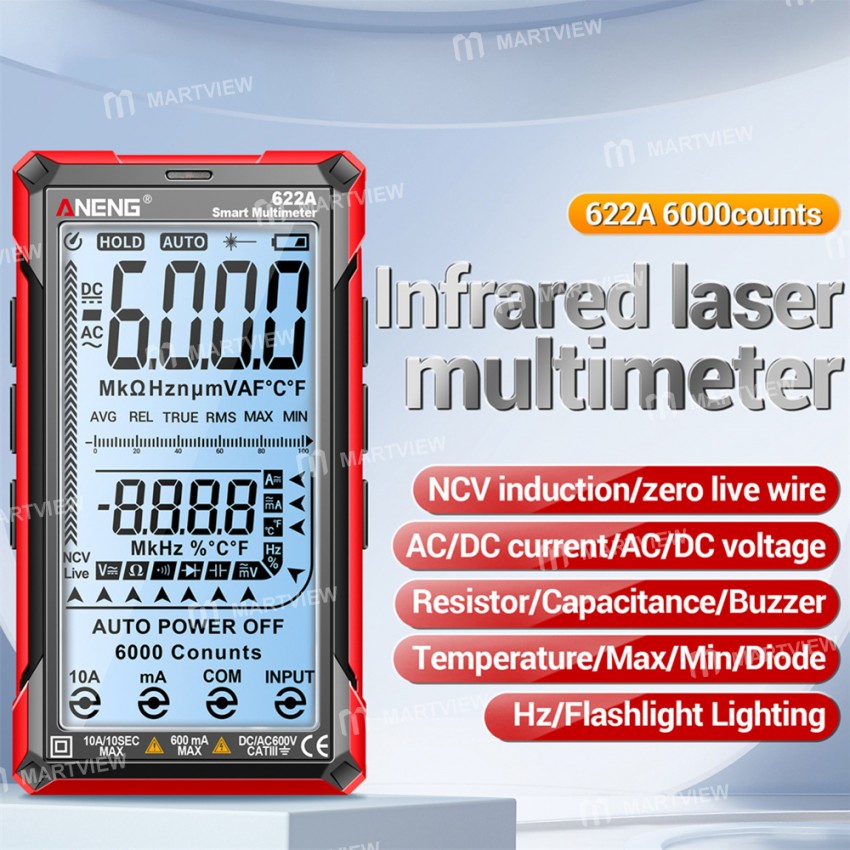

• The infrared laser multimeter features a larger high-definition LCD that makes it easy to read data even in low light conditions, ensuring you get accurate results every time.

• With a maximum display value of 9999, this multimeter can provide precise readings for various electrical parameters, making it ideal for both professionals and DIY enthusiasts

Specification:

• Display Type: Digital display

• Model Number: Digital Multimeter

• Supervision display: "OL" or "-OL".

• Sampling time: About 3 times/second

• AC current: 60mA-10 A ±(1.0% reading+8 words)

• DC current: 60mA-10A ±(1.0% reading+5 words)

• AC voltage: 600mV-999.9V ±(0.8% reading+5 words)

• DC voltage: 600mV-999.9V

• ±(0.5%reading+3words)

• Resistance: 0-99.99MΩ ±(0.8% reading+3 words)

• Capacitor: 0-99.99mF ±(2.5% reading+20 words)

• Temperature: -40-1000°C/-40-1832°F ±(1% reading+3 words)

• Frequency: 0-10MHz ±(3% reading+5 words)

• Duty cycle: 1-99% ±(3% reading+3 words)

• Infrared laser: Yes

• Automatic range: Yes

• Zero Fire Wire: Yes

• Automatic shutdown: Yes

• NCV induction: Yes

• Maximum/Minimum: Yes

• Diode: Yes

• Flashlight: Yes

• Buzzer: Yes

• Data retention: Yes

• Automatic shutdown time: 15 minutes

• Power supply: 1.5V AAA battery x 4 (not included)

• Display (LCD): 6000 counts

• Ranging: Automatic/Manual

• Shell material: ABS

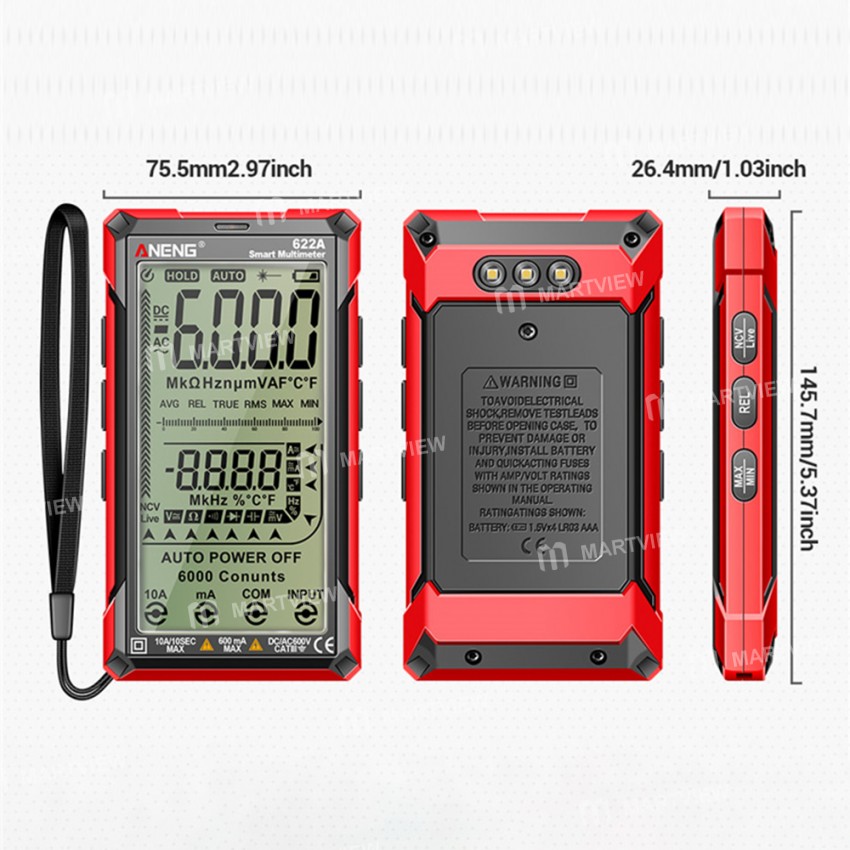

• Size: about 145.7*75.5mm

Package includes:

• 1 x Multimeter(without Battery)

• 2 x Test Lead

• 1 x Thermocouple
