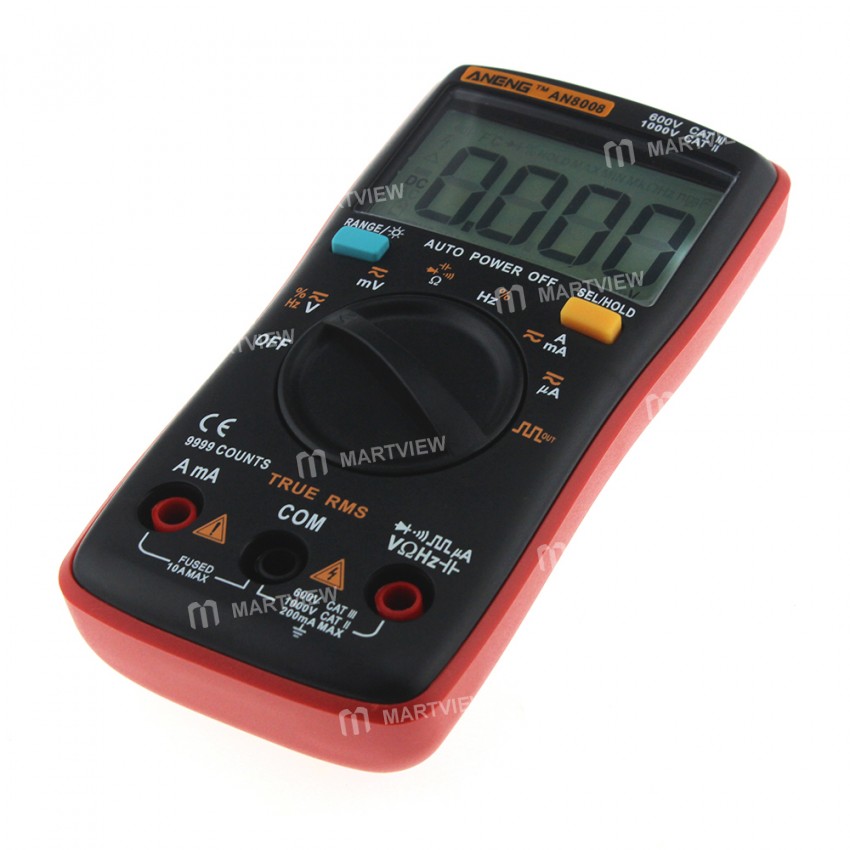

ANENG AN8008 Ammeter Voltage Ohm Current Square Voltmeter Meter Digital Multimeter

ANENG AN8008 Ammeter Voltage Ohm Current Square Voltmeter Meter Digital Multimeter

Features:

• Auto/manual ranges, True RMS

• 550V protection in Resistance, Capacitance and Frequency ranges

• Large LCD display, MAX display 9999 counts

• Sample rate: 3 times per second

• backlight

• Relative measurement

• Data hold

• Polarity identification

• Low voltage indication

• Square wave output

• 9.999A high current and low current measurement

• Auto power off

• Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing, Frequency, and duty cycle.

• Frequency: 0.01Hz to 9.999MHz

• Capacitance: 0.001nF to 9.999mF

• AC volts: 0.001mV to 750V

• DC volts: 0.001mV to 999.9V

• AC current: 0.01uA to 9.999A

• DC current: 0.01uA to 9.999A

• Resistance: 0.01Ω to 9.999MΩ

• Duty cycle: 1% to 99%

• Square Wave Output:50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/

• 900Hz/1000Hz/2000Hz/3000Hz/4000Hz/5000Hz


Package includes:

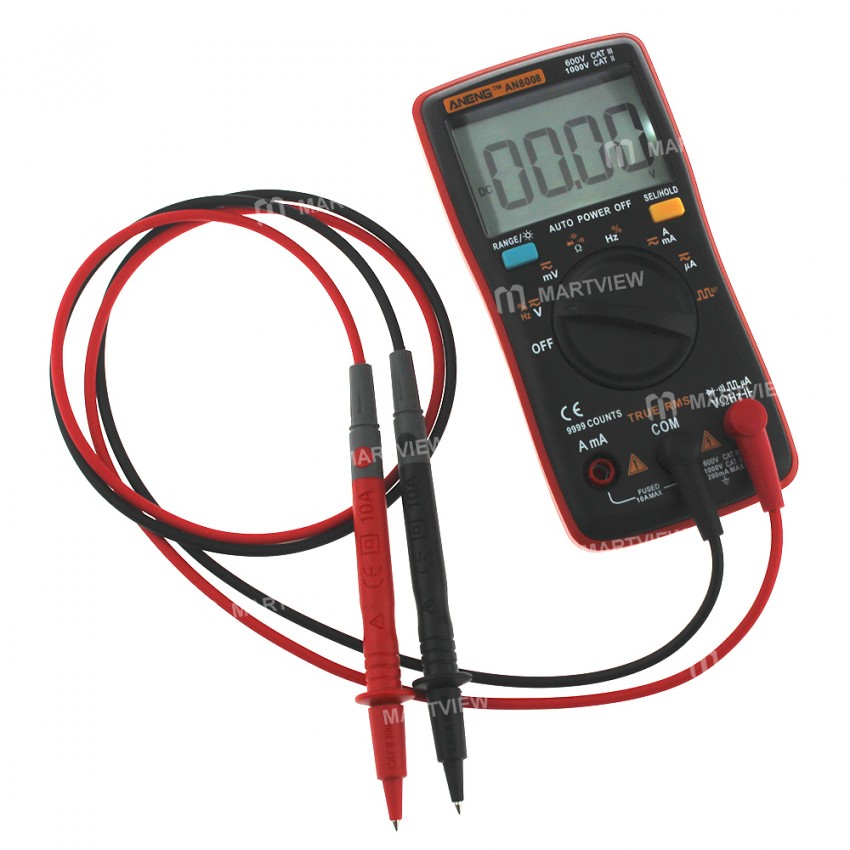

• 1 x AN8008 True-RMS Digital Multimeter (not include battery)

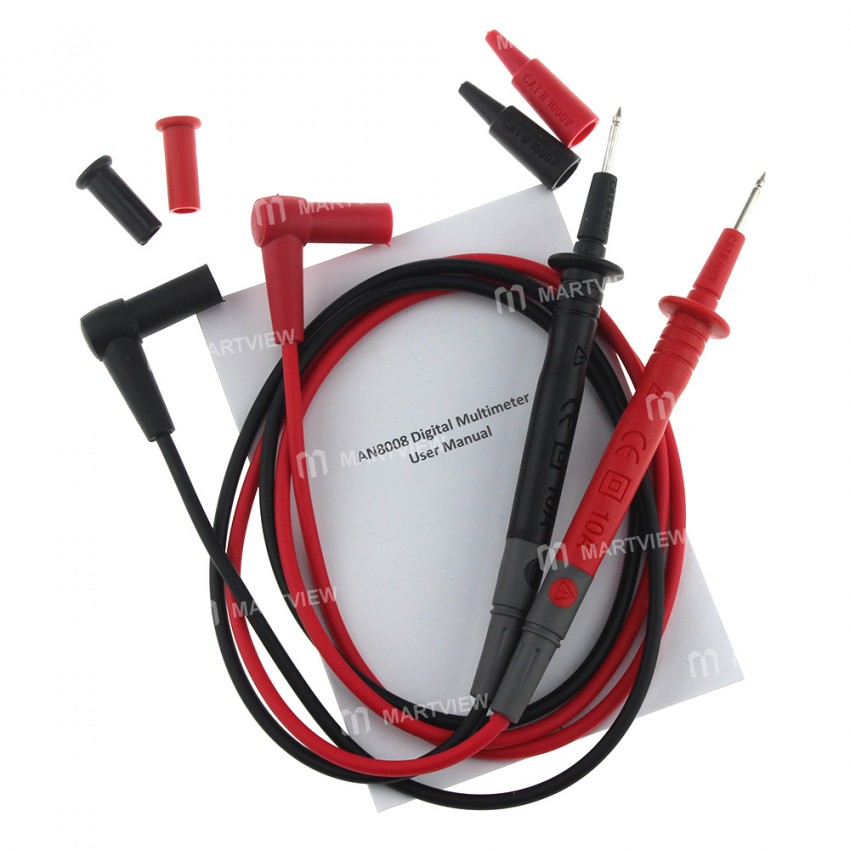

• 2 x Test Leads
