Aneng AN8205C Portable AC / DC Digital Multimeter

Aneng AN8205C Portable AC/DC Digital Multimeter

Features:

• 1/2inch digital LCD screen, maximum display value 1999.

• Multimeter features a clear, easy-to-read LCD, with white back Light

• Portable & Compact Design

• Data retention

• The low voltage symbol display

• Background light function

• Overload protection

• Pass measurement

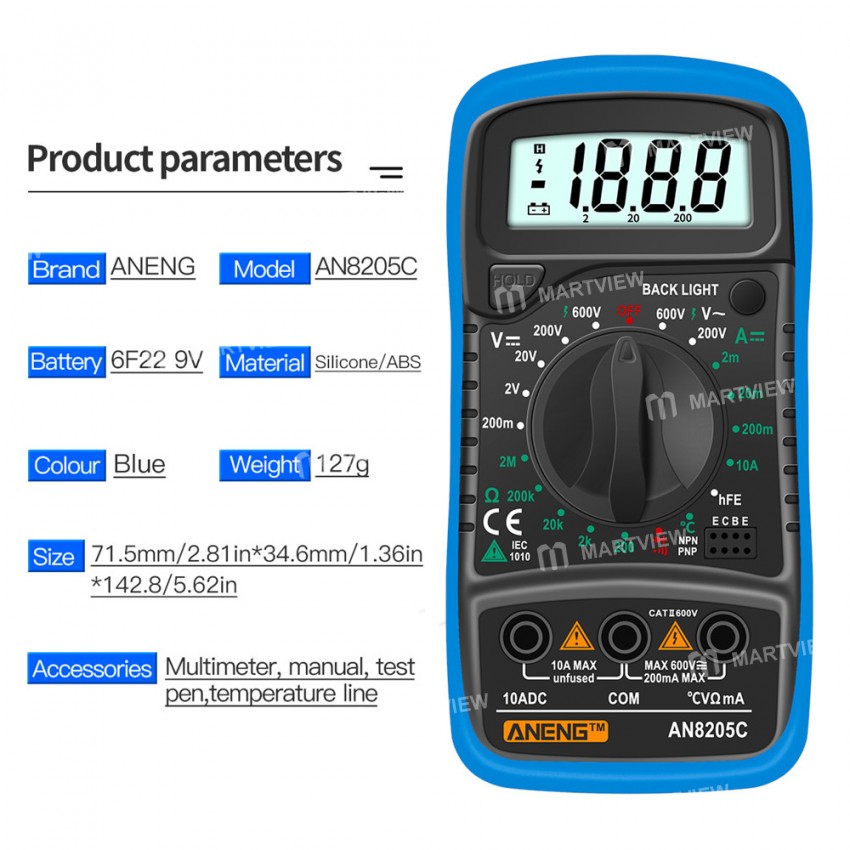

• Specification:

• DC voltage: 200mV - 2-20-2000-600v plus or minus 0.5%

• AC voltage: 200V - 600V plus or minus 1.0%

• DC current: 2m - 20m - 200m - 10A + 1.8%

• Resistance: 200-2-20 k to 200 k, 2 k m Ω plus or minus 1.0%

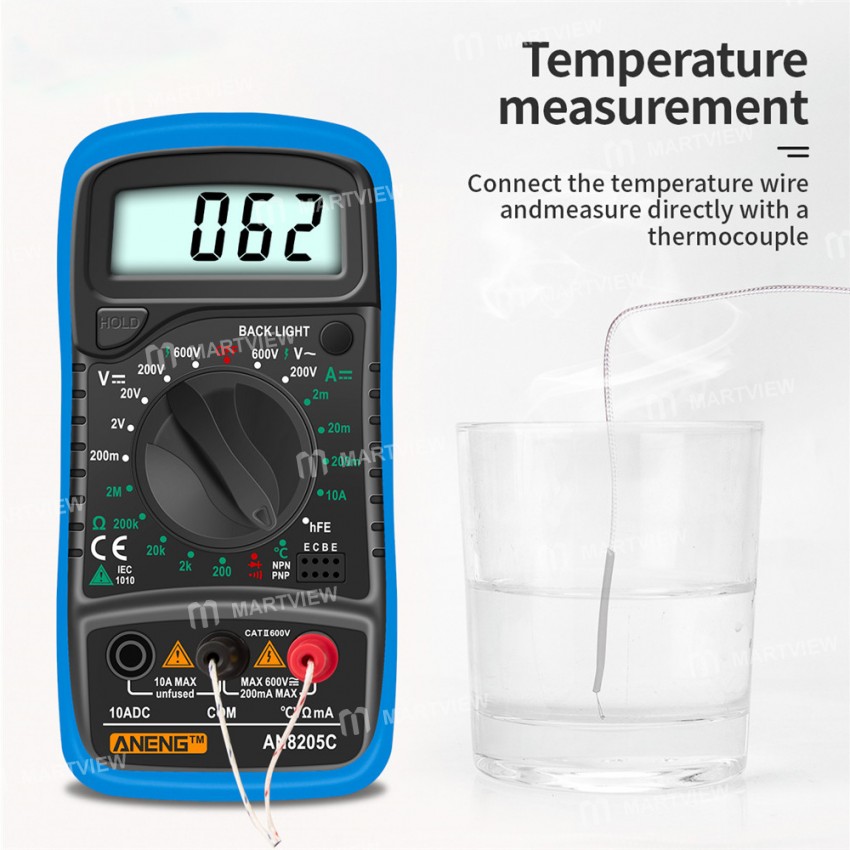

• Temperature measurement: K type thermocouple, - 20 ℃ ~ 1300 ℃ (+ / - 3%)

• Triode measurement: (PNP/NPN triode hFE)

• Diode measurement: Yes

• Pass test: Yes

• Input resistance: 1 m Ω

• Electric pool: 9V, 6F22  (Battery is not included)

• Maximum display: 1999 (3 semi-liquid crystal displays)

• Display size: 45 x 18mm

• Pass-through measurement: Yes

• Data retention: Yes

• Background light: Yes

• Maximum display: 1999

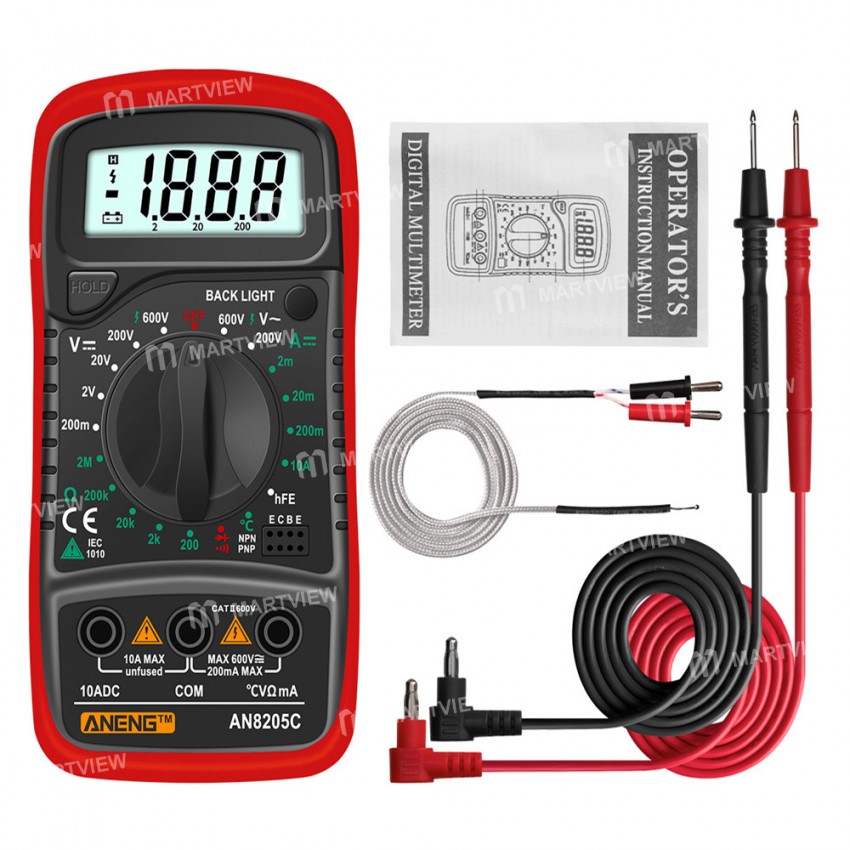

Package includes:

• 1 x ANENG AN8205C Digital Multimeter (Battery is not included)（Random Color）

• 2 x Pair Electronic Probe

• 1 x User Manual
