Aneng AOS02 Portable 2-in-1 Digital Multimeter & Professional Oscilloscope with Temperature Test

Aneng AOS02 Portable 2-in-1 Digital Multimeter & Professional Oscilloscope with Temperature Test

Features:

• With a 10MHz bandwidth and a powerful 18650 lithium-ion battery, this professional digital oscilloscope offers exemplary battery life for continuous usage. The battery ensures that you don't have to worry about running out of juice during important measurements

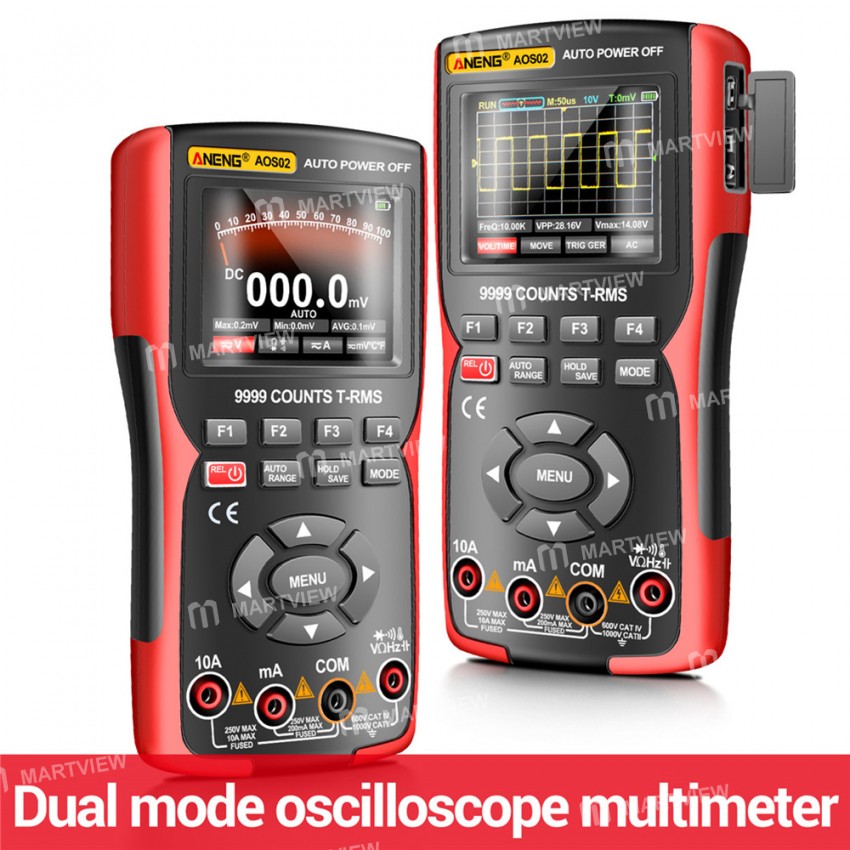

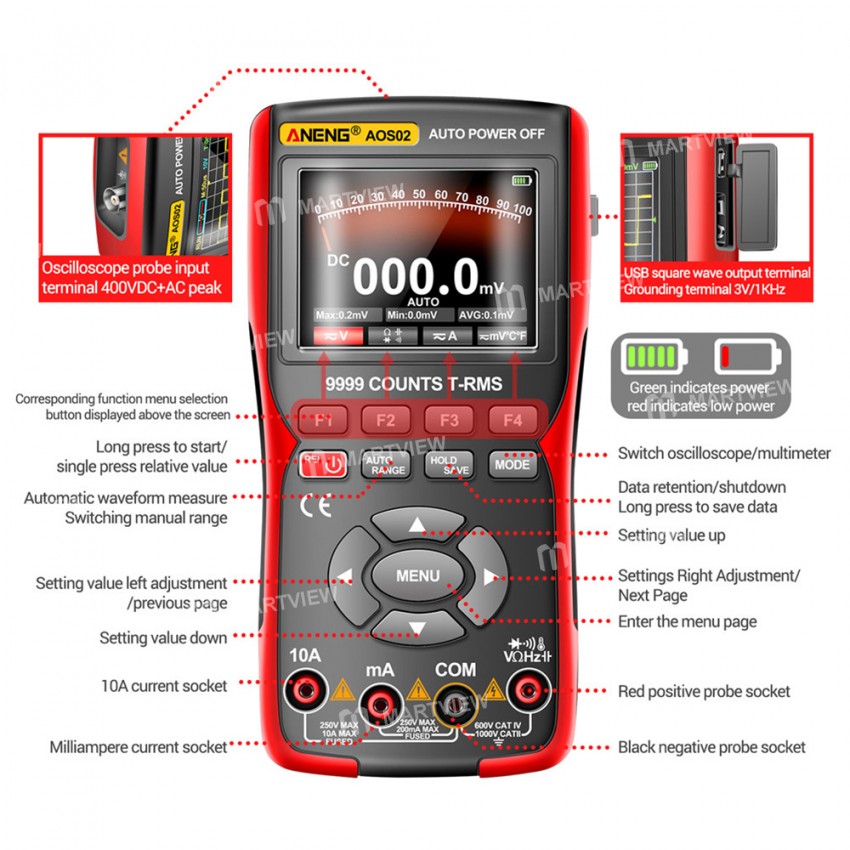

• The MODE key allows you to seamlessly switch between using the oscilloscope multimeter as a digital multimeter or an oscilloscope. This versatility means you can use it for a wide range of applications, making it a valuable addition to your toolkit

• This handheld oscilloscope makes it easy to store and format waveform data. You can capture and analyze waveforms on the go, saving them in a user-friendly format for later analysis or sharing.

• Customize the portable USB oscilloscope's brightness and auto-off settings to match your preferences. This feature not only saves power but also provides a more comfortable experience during extended usage

• This storage oscilloscope kit delivers high-quality output through image format. It has an impressive sampling rate of 48M/S and a storage depth of 64Kpts, enabling you to transfer data to your computer with ease. This feature is especially useful when sharing data with colleagues or clients

Specification:

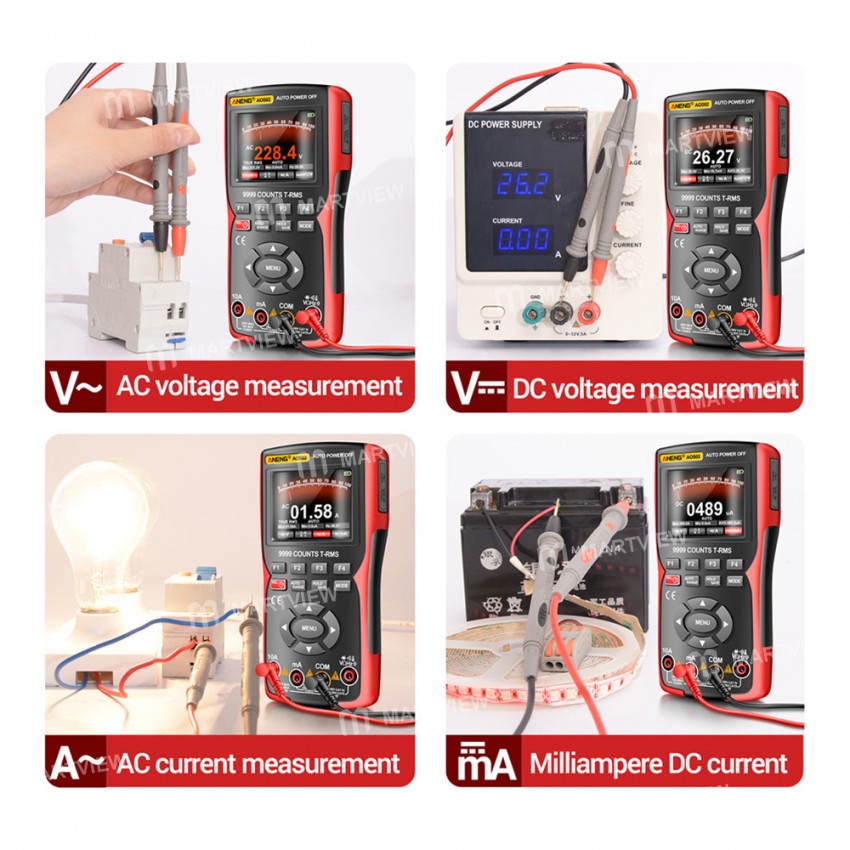

• DC voltage: 999.9mV~999.9V ±(0.5%+3)

• DC voltage: 9.999mV~99.99mV ±(0.5%+3)

• AC voltage: 999.9mV~750V ±(1.0%+3)

• AC voltage: 9.999mV~99.99mV ±(1.0%+3)

• DC current: 9.999A~999.9mA ±(1.0%+3)

• DC current: 99.99mA~9999μA ±(0.8%+3)

• AC current: 9.999A~999.9mA ±(1.2%+3)

• AC voltage: 99.99mA~9999μA ±(1.0%+3)

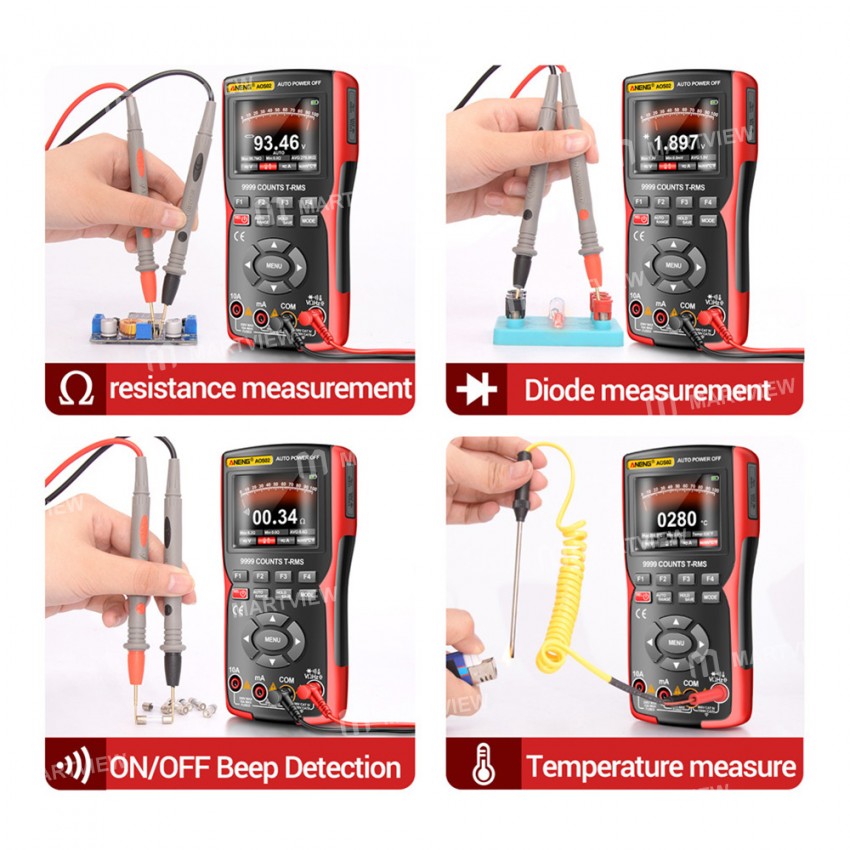

• Resistance: 0~99.99mΩ ±(3.0%+5)

• Capacitance: 9.999nF~99.99mF ±(5.0%+5)

• Frequency(ACV): 40Hz~1kHz ±(0.1%+2)

• Temperature: -20~1000℃ ±(2.5%+5)

• Temperature: -4~1832℉ ±(2.5%+5)

• Diode: Yes

• Data retention: Yes

• Two safety tubes: 200mA/250V; 10A/250V

• Language selectable: Chinese/English

• BRIGHTNESS: 30%, 50%, 80%, 100%

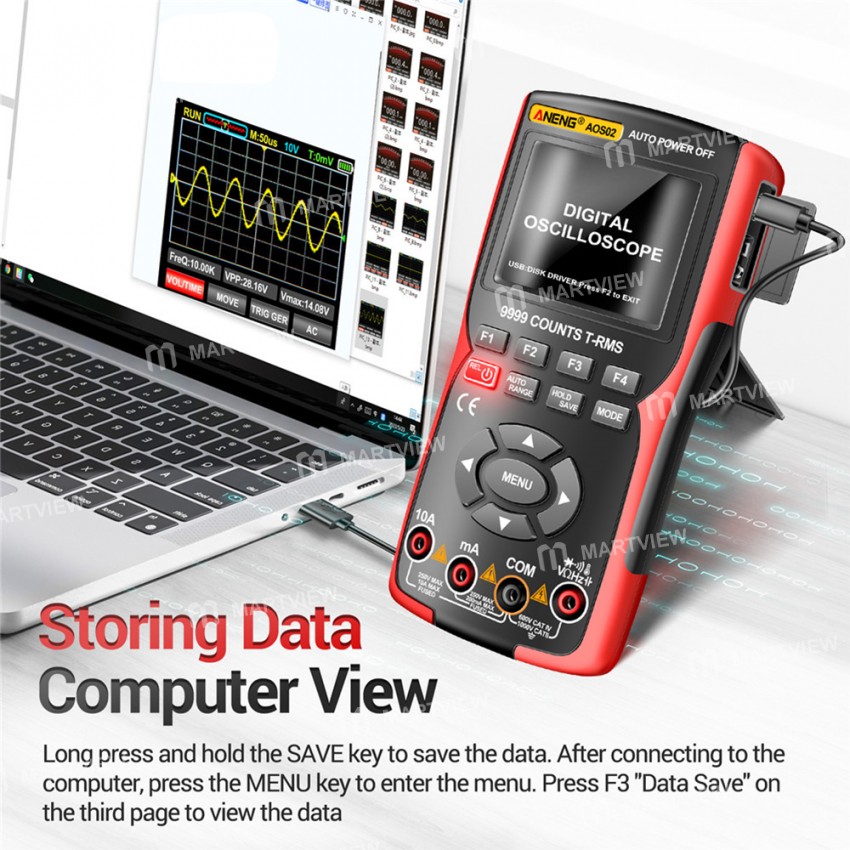

• Data storage/viewing: USB connection to a computer

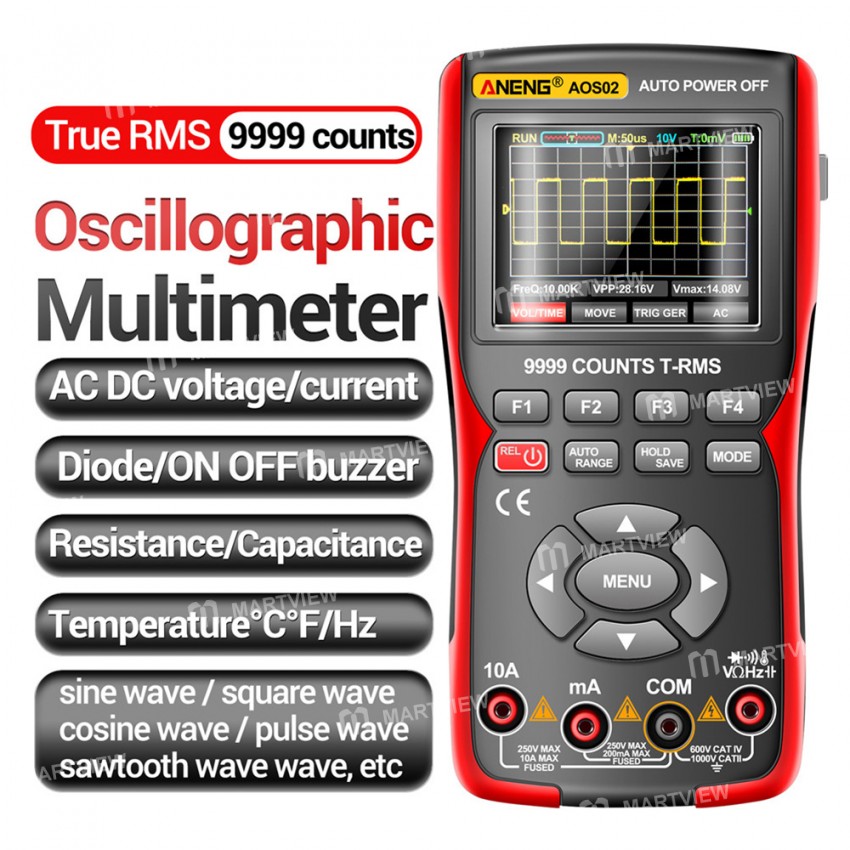

• True effective value: Yes

• ON/OFF Beep: Yes

• Max Count: 9999 Count

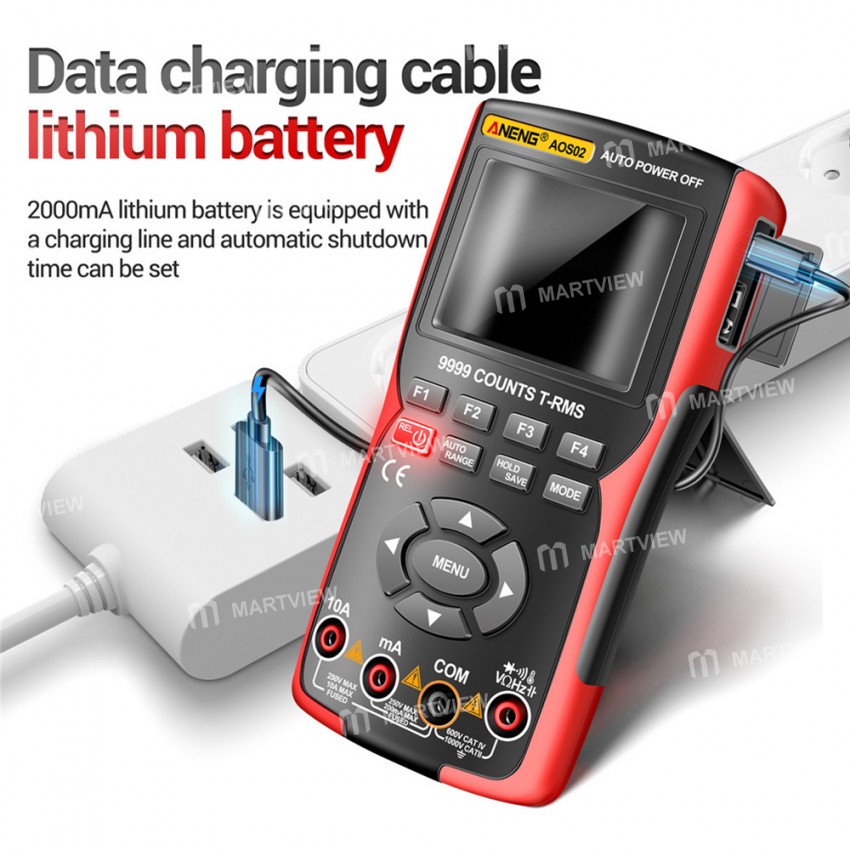

• Battery model: 3.7V lithium battery

• Product Material: ABS/TPE

• Pen material: Brass/PVC

• Pen line length: 107cm/42.1inch

• Product weight: 305g

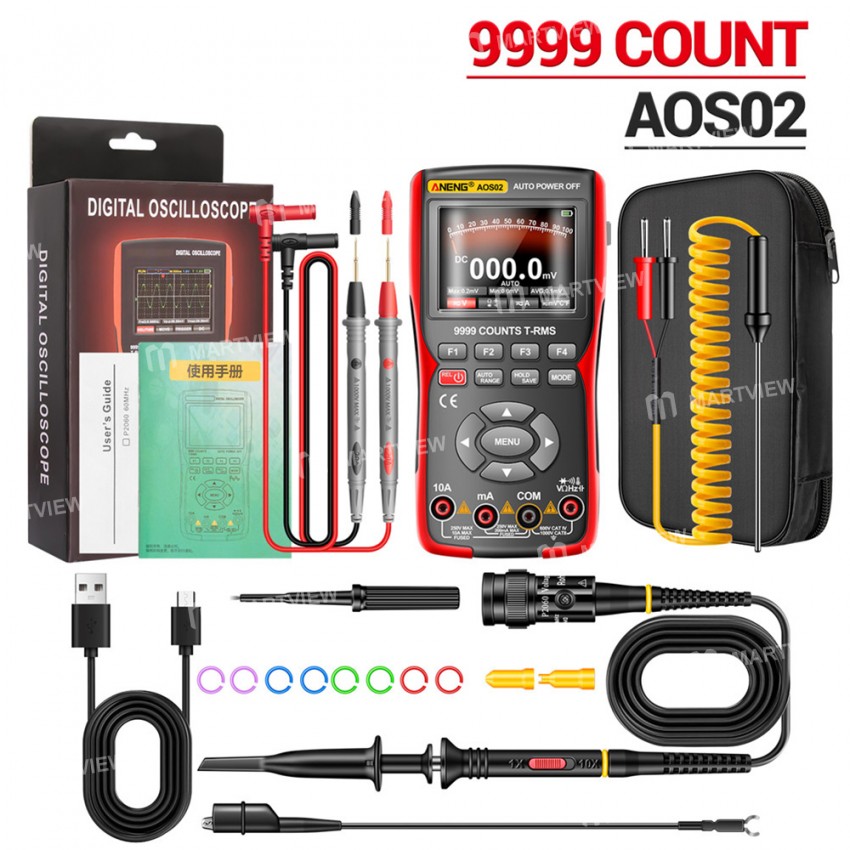

Package includes:

• 1 x Professional Digital Oscilloscope

• 2 x Test Leads

• 1 x Thermocouple
