Aneng AOS03 3-in-1 Dual Channel 50MHz Bandwidth Oscilloscope Multimeter Signal Generator

Aneng AOS03 3-in-1 Dual Channel 50MHz Bandwidth  Oscilloscope Multimeter Signal Generator

Features:

• This handheld oscilloscope adopts a dual injection molding process, featuring a beautiful appearance, compact size, convenient portability, and flexible operation

• The functional buttons have a clear and intuitive menu interface. The screen utilizes a 3.5-inch IPS full-view color display, with a multimeter display of up to 25,000 counts

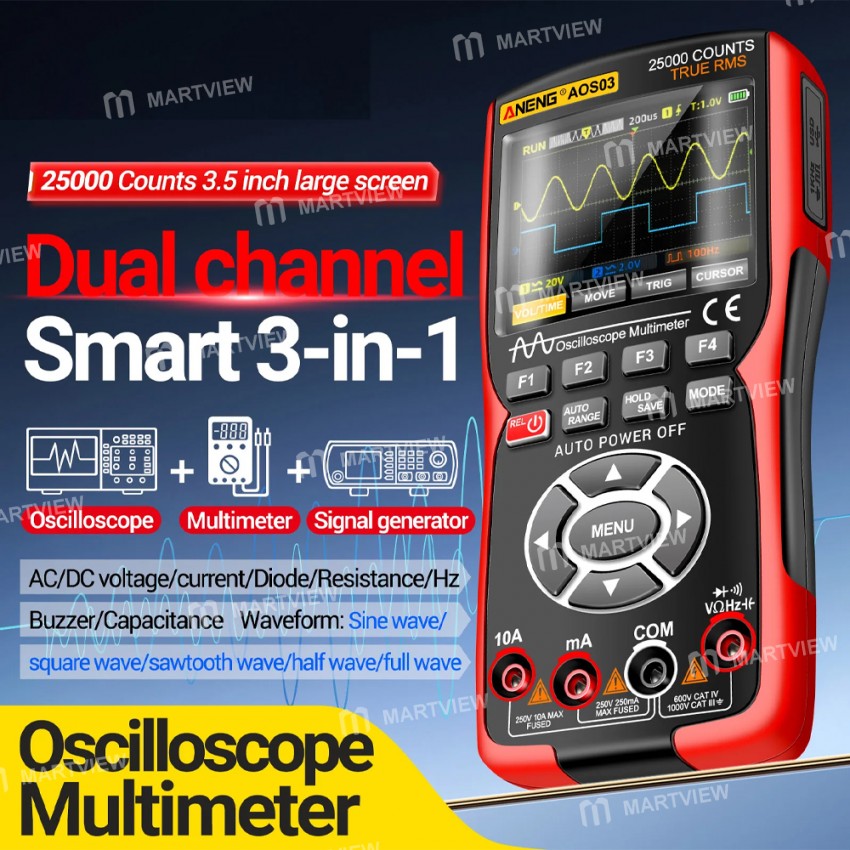

• This product integrates the functions of an oscilloscope, signal generator, and multimeter into a three-in-one device. it can be used in various measurement scenarios, meeting a wide range of user measurement needs

• The oscilloscope multimeter is a dual-channel handheld device with both oscilloscope and multimeter and signal generator functions, featuring a 3.5" IPS display, 50MHz bandwidth, 280MSa/s fast real-time sampling rate, 25,000 counts, 128Kb recording depth, and tri-mode switching between oscilloscope and multimeter and signal generator

• Oscilloscope Mode: 2-channel handheld oscilloscope with 50MHz bandwidth, 280MSa/s real-time sampling rate, 128kb recording depth, automatic measurement function, auto/normal/single trigger function, vertical sensitivity 20mv/div-10v/div, support waveform image storage and export.

• Multimeter Mode: 25000 counts; AC Voltage: 0V-750.00 V; DC Voltage: 0V-1000.0 V; DC/AC Current: 0A-10.000A; Resistance: 0Ω-250.00MΩ; Capacitance: 0nF-99.99mF Frequency: 0Hz-999.9 kHz; Diode measurement. Versatile measuring instrument ideal for professionals, factories, schools, hobbyists, and families

• Double injection molded ABS and TPE reinforced structure, excellent impact resistance and durability; large font design, easy to read data. Equipped with a signal generator function, can output sine wave, square wave, sawtooth wave, full wave, and half wave.

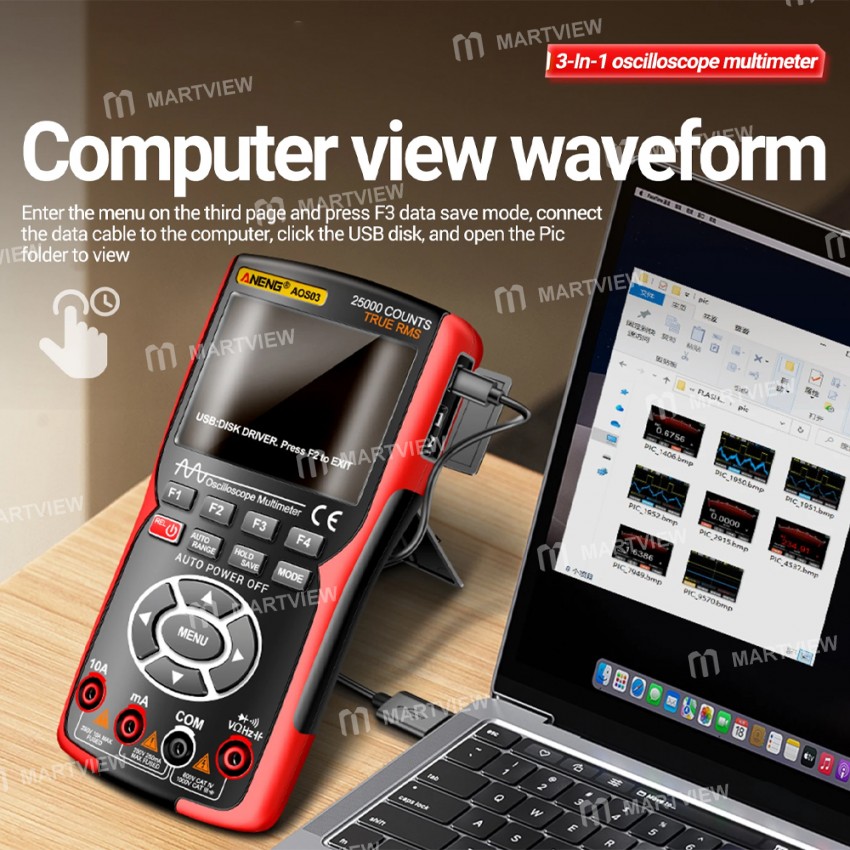

• The oscilloscope automatically stores the current measurement waveform data in the form of run number and image in the memory; connect the oscilloscope to the computer by connecting the Type-C cable, click on the USB flash drive, and open the image folder to access or download the waveform to a safer location in the computer for easy backup and analysis. Auto Power Off: You can choose the auto power off time

Specifications:

• Material: ABS + TPE

Oscilloscope Information:

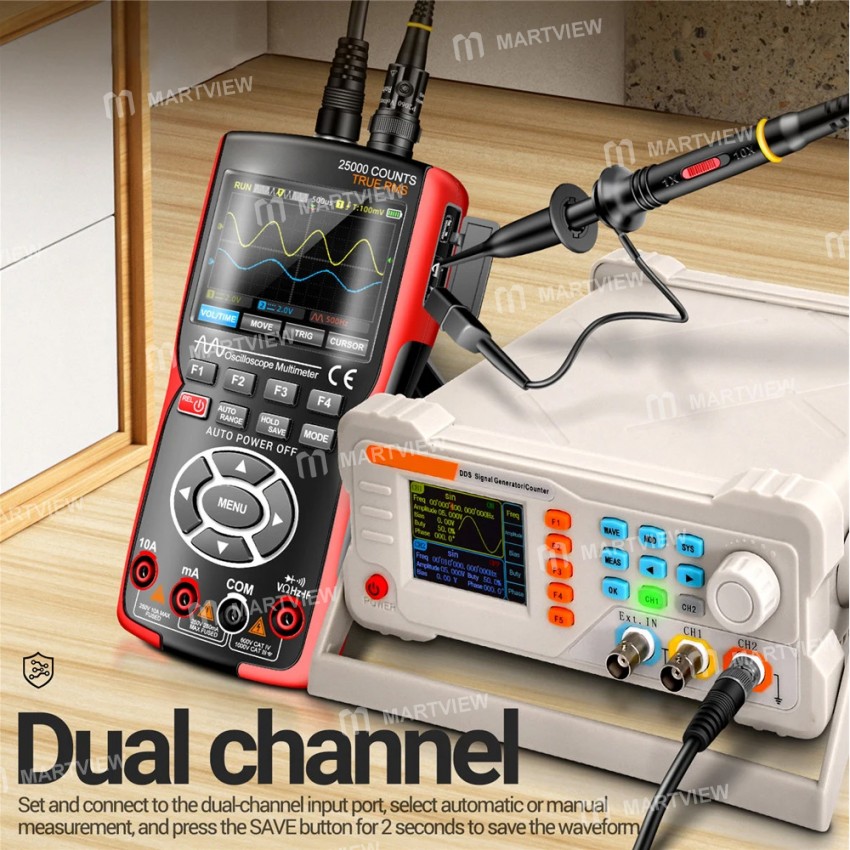

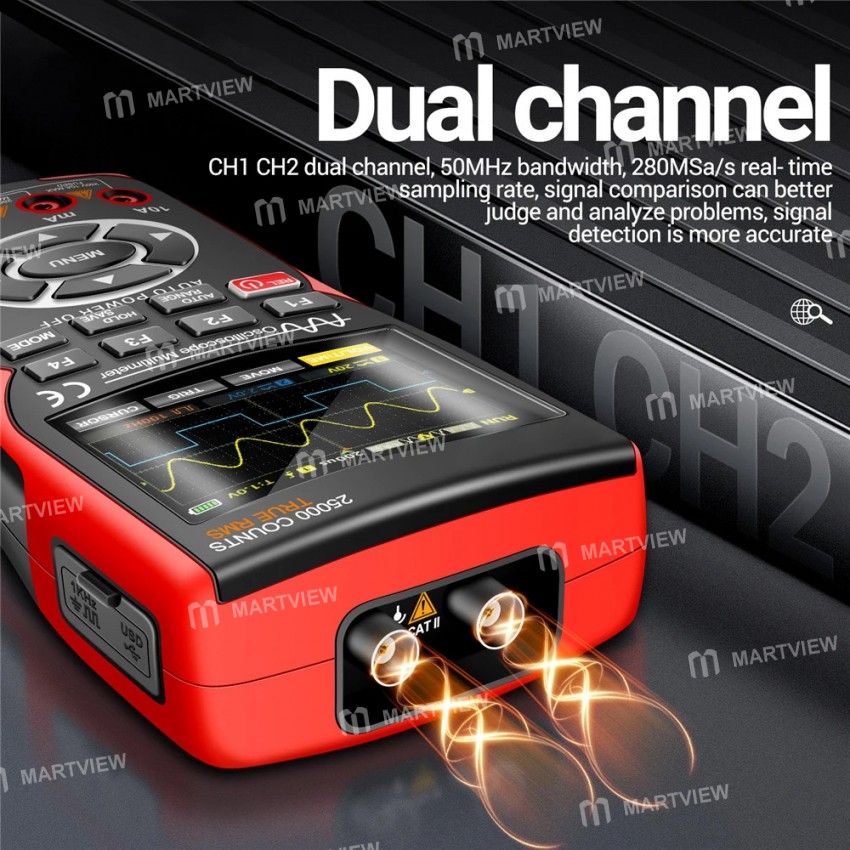

• Bandwidth: 50MHz, Dual channel

• Sampling Method: Real-time sampling

• Sampling Rate: 200M/280MSa/s

• Channel: Dual channel

• Input Coupling: DC,AC

• Input Impedance: 1MΩ, @16pf

• Attenuation: X1, X10

• Maximum Input Voltage: X1 range＜150V, X10 range＜300V (DC+AC peak)

Level:

• Rate Range: 1.5Sa/s-280MSa/s

• Interpolation: (sinx)x

• Sweep Range: 10ns/div-20s/div

• Time Base: 20ppm

• Record Length: Up to 128Kbyte

Vertical:

• Sensitivity: 20mV/div-10V/div

• Offset Range: 4 grids (positive and negative)

• Analog Bandwidth: 50MHz

• Low-Frequency: More than 10Hz

• Rise Time: Less than 10ns

• DC Gain Accuracy: ±3%

• Measure: Auto Measurement: Period / Frequency / Peak / Maximum / Minimum / RMS / Duty Cycle / Number of Pulses

Trigger:

• Trigger Modes: Auto, normal, single

• Trigger Edges: Rising edge, falling edge

• Operating Mode: Normal mode 200MSa/s, High-speed mode 280MSa/s

• Display Mode: YT / XY / Roll

• Afterglow Mode: Minimum, 500ms, 1S, 10S, Infinite

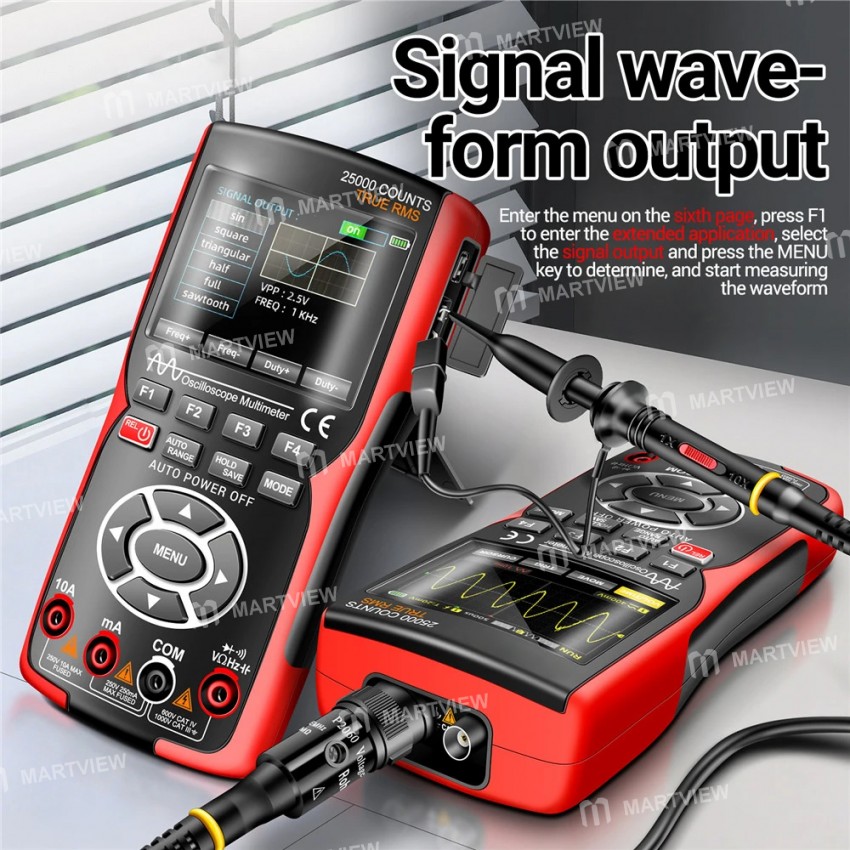

• Signal Generator Output: Sine wave / square wave / sawtooth wave / half wave / full wave

Multimeter Information:

• AC Voltage: 0V-750.0V, 0.0001V-0.1V, ±(0.5%+3)

• DC Voltage: 0V-1000.0V, 0.0001V-0.1V, ±(0.05%+3)

• AC/DC Voltage: 25.000mV-250.00mV, 0.001mV-0.01mV, ±(0.05%+3)

• AC/DC Current: 0A-10.000A, 0.0001A-0.001A, ±(0.5%+3)

• AC Current: 25.000mA-250.00mA, 0.001mA-0.01mA, ±(0.8%+3)

• DC Current: 25.000mA-250.00mA, 0.001mA-0.01mA, ±(0.5%+3)

• Resistance: 0Ω-250.0MΩ, 0.01Ω-0.1MΩ, ±(5.0%+5)

• Capacitance: 0nF-99.99mF, 0.001nF-0.01mF, ±(5.0%+20)

• Hz (only 100kHz bits can be detected in AC voltage gear): 0Hz-999.9kHz, 0.01Hz-0.1kHz, ±(0.1%+2)

• Diode/Buzzer: Yes

• Data Retention: Yes

• Low Battery Indication: Yes

• Support Frame: Yes

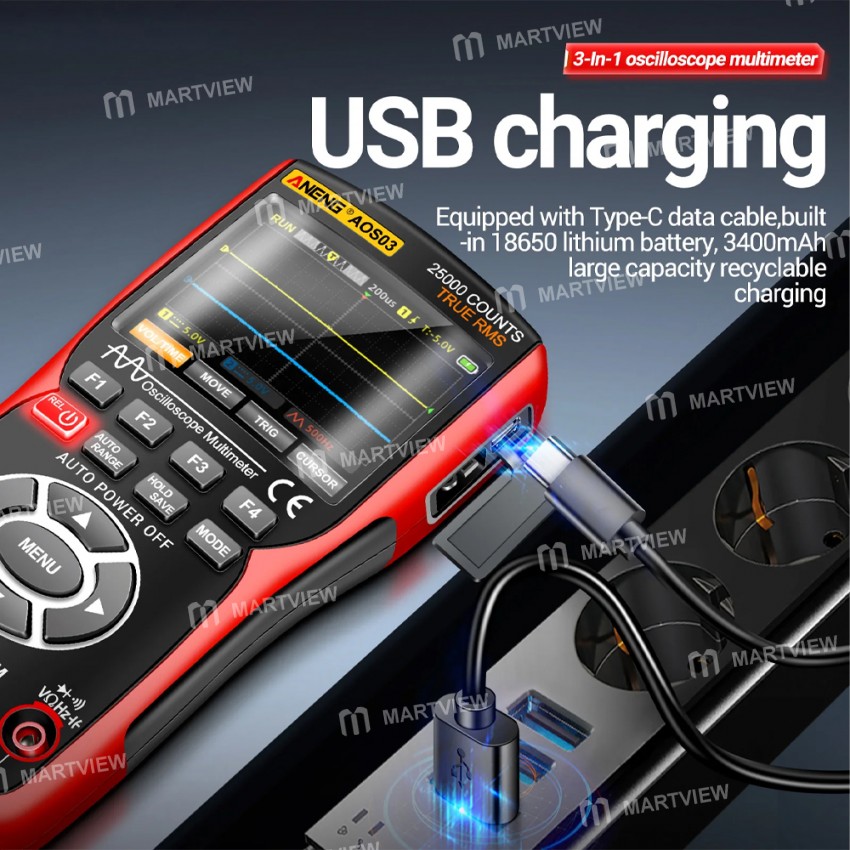

• USB Charge: Yes

• True RMS: Yes

• Battery Model: 1 * 3.7V 18650 battery

• Data Storage/Viewing: USB connect to computer

• Sampling Rate: 3 times/second

• Language Optional: Chinese/English

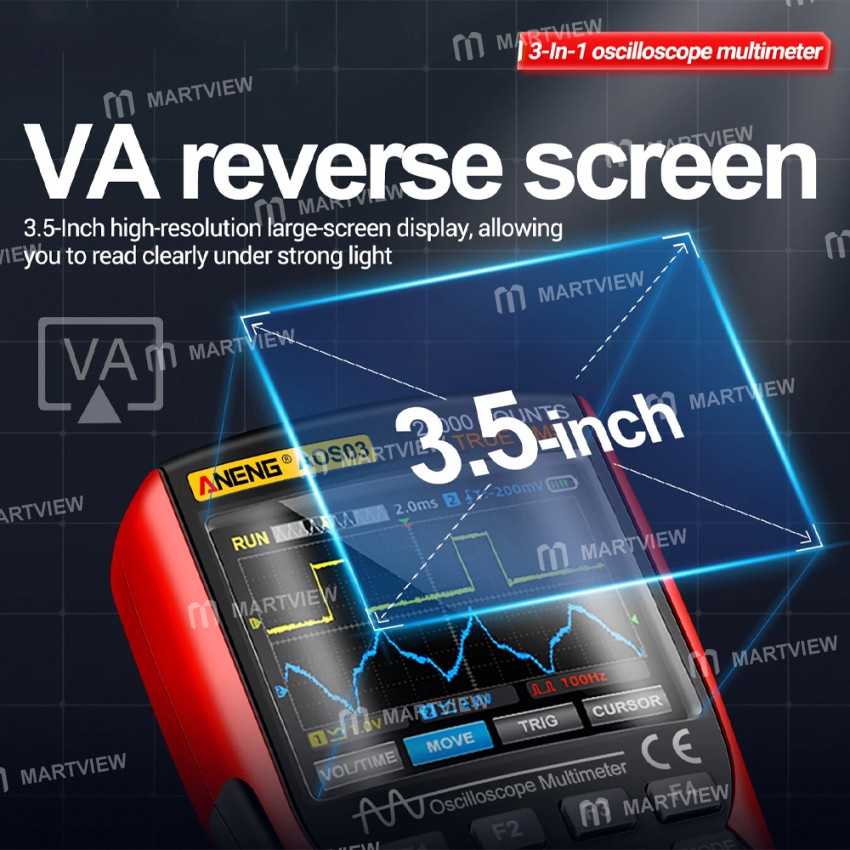

• Screen Display: VA reverse color screen

• Max Count: 25000 Counts

• Screen Brightness Can Be Adjusted: 30%, 50%, 80%, 100%

• Range: Auto/Manual

• Auto Power Off: Automatic shutdown can be set 1 minute/10 minutes/30 minutes/60 minutes/120 minutes/shutdown (unlimited time)

• Item Size: 175 * 90.5 * 40.5mm

• Item Weight: 380g

Package includes:

• 1 x 3-in-1 Oscilloscope Multimeter

• 1 x Oscilloscope Pen

• 2 x Positioning Sleeve

• 8 x Tag Ring

• 1 x Alligator Clip Ground Lead

• 1 x Storage Bag

• 1 x USB Data Cable
