Aneng CM86 600A High-precision Automatic Digital Display AC / DC Current Clamp Meter

Aneng CM86 600A High-precision Automatic Digital Display AC/DC Current Clamp Meter

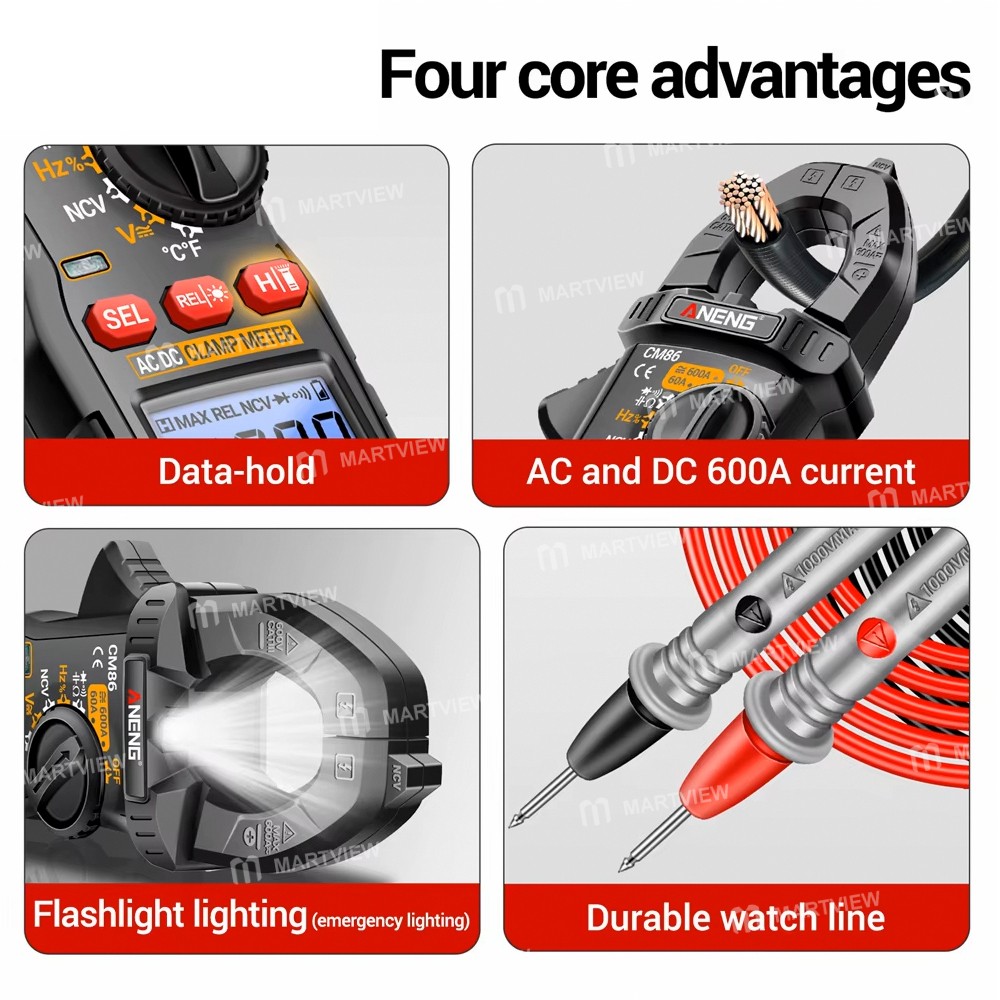

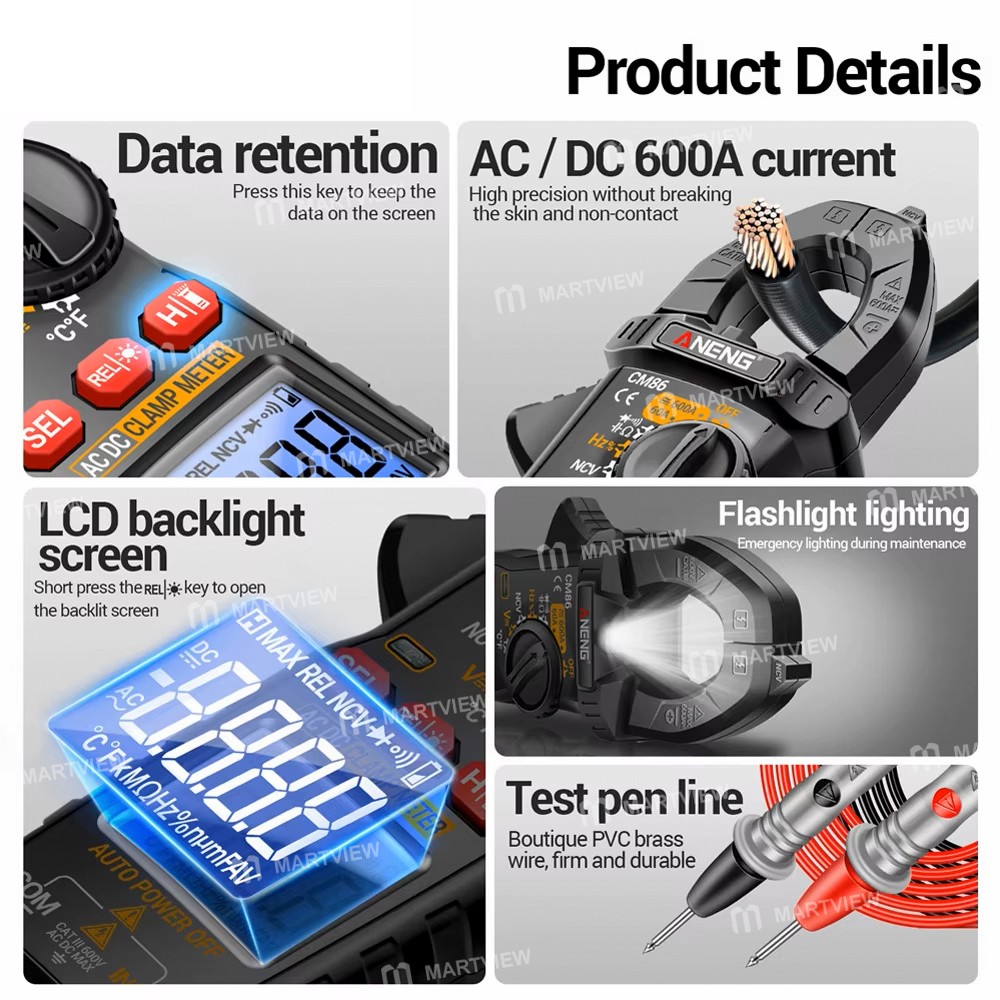

Features:

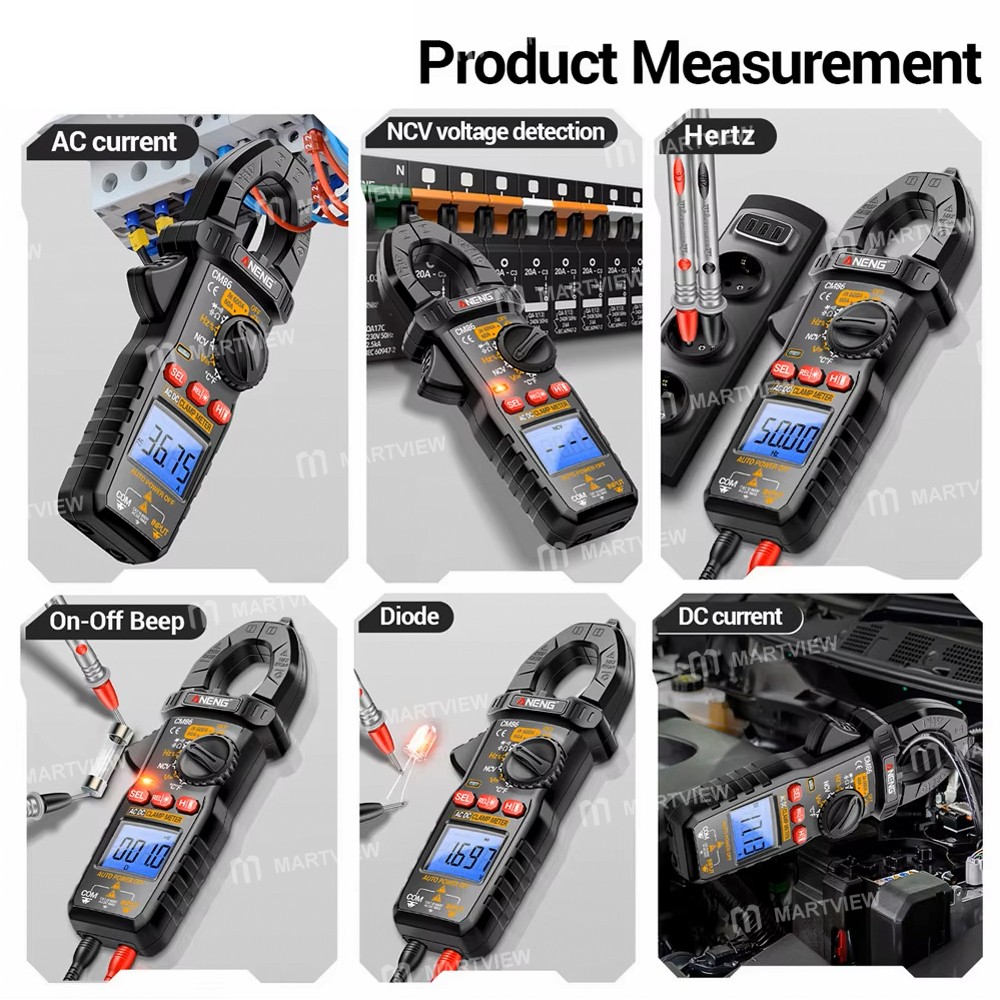

• 600A AC/DC clamp meter, can be AC/DC voltage/current, NCV voltage, and temperature °C/°F detection

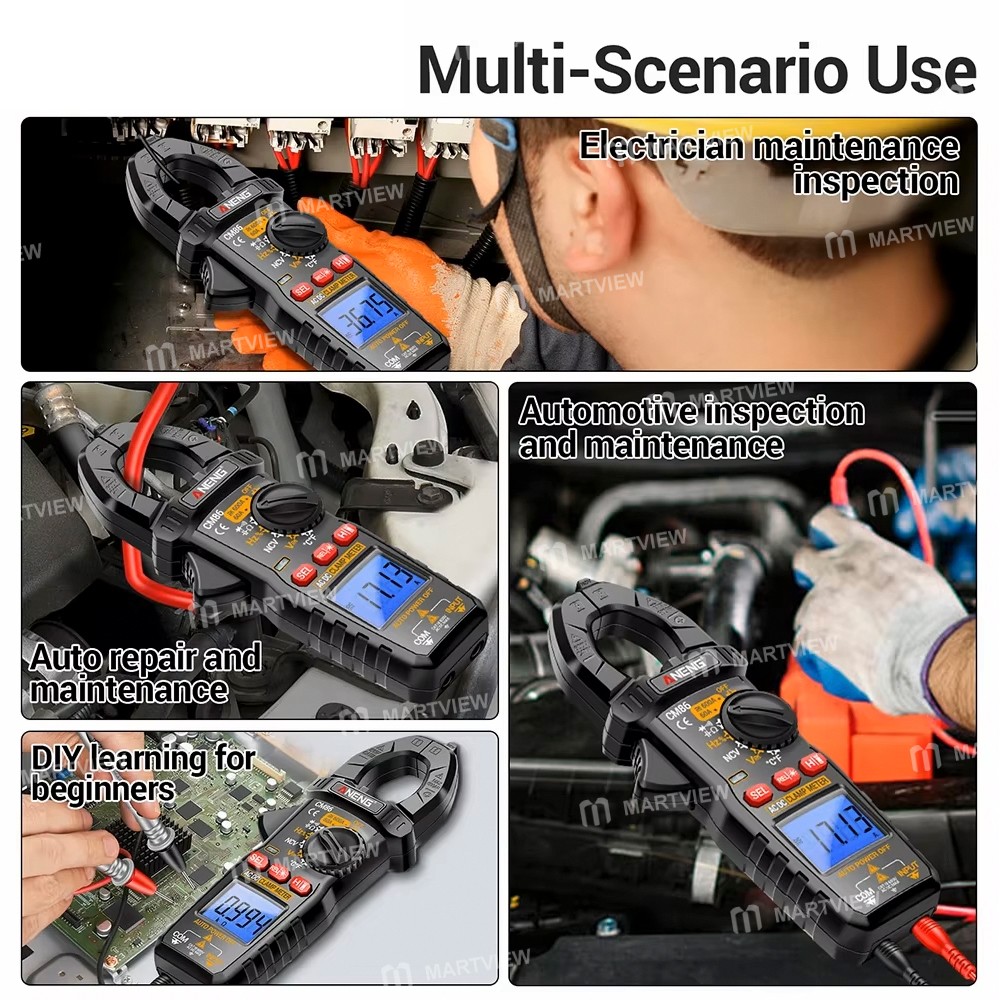

• Multi-scene measurement: Adopting the main control chip, it has a higher and more stable experience, sensitive/stable/intelligent

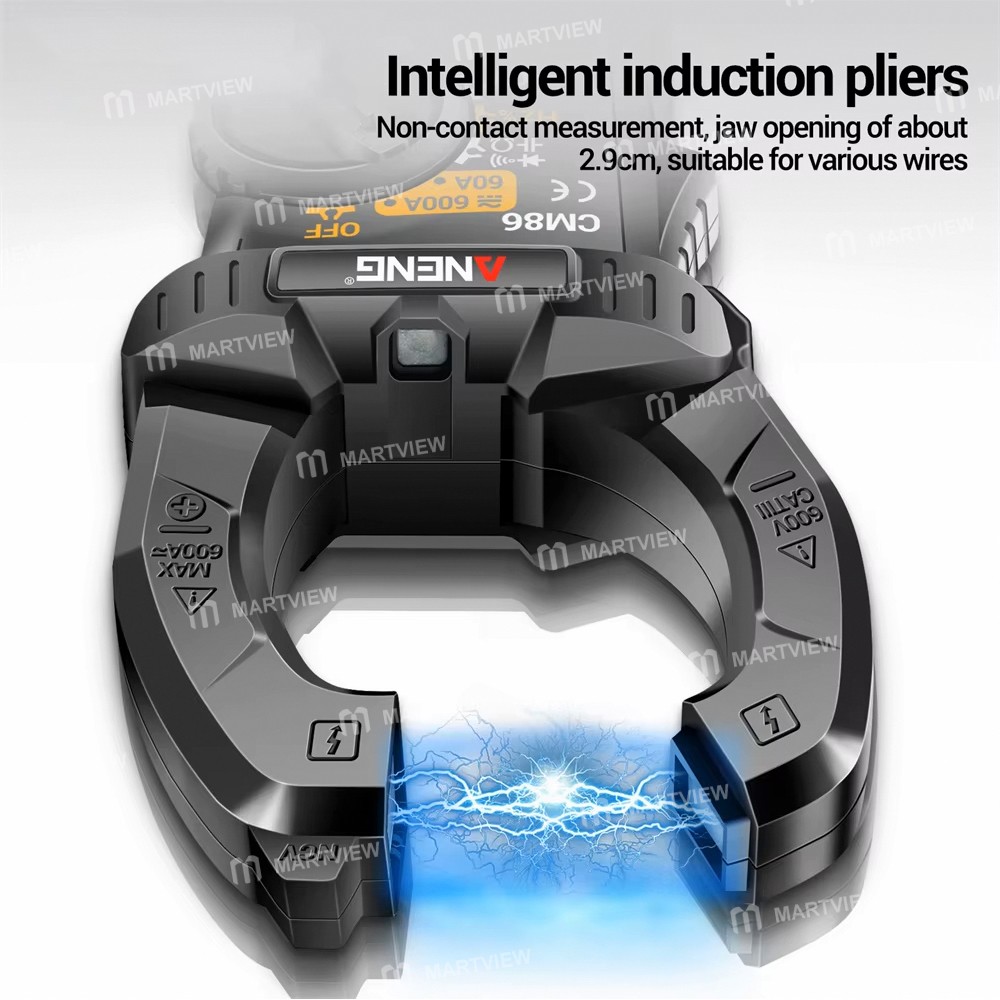

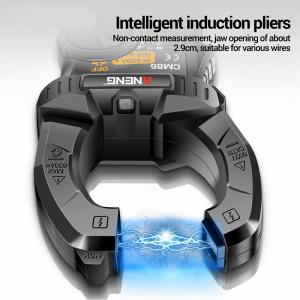

• Intelligent induction pliers, non-contact measurement, jaw opening of about 2.9cm, suitable for various wires

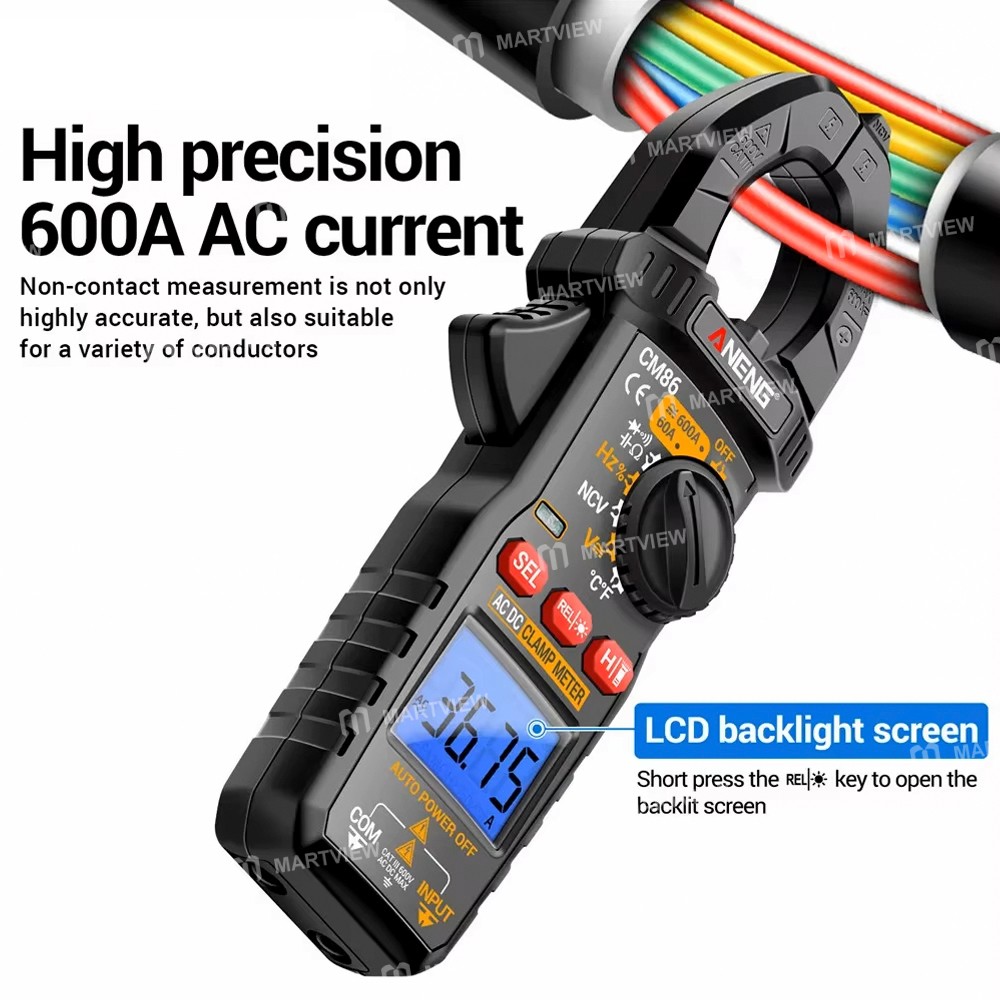

• High precision 600A AC current, non-contact measurement is not only highly accurate, but also suitable for a variety of conductors

• Automotive DC current detection: You can measure the current of the car battery without breaking the wire, manually switch to the DC current gear, and clamp the single-stranded wire with the pliers.

• Flashlight lighting, night support work: You can clearly see the position of the measured object in a dimly lit environment

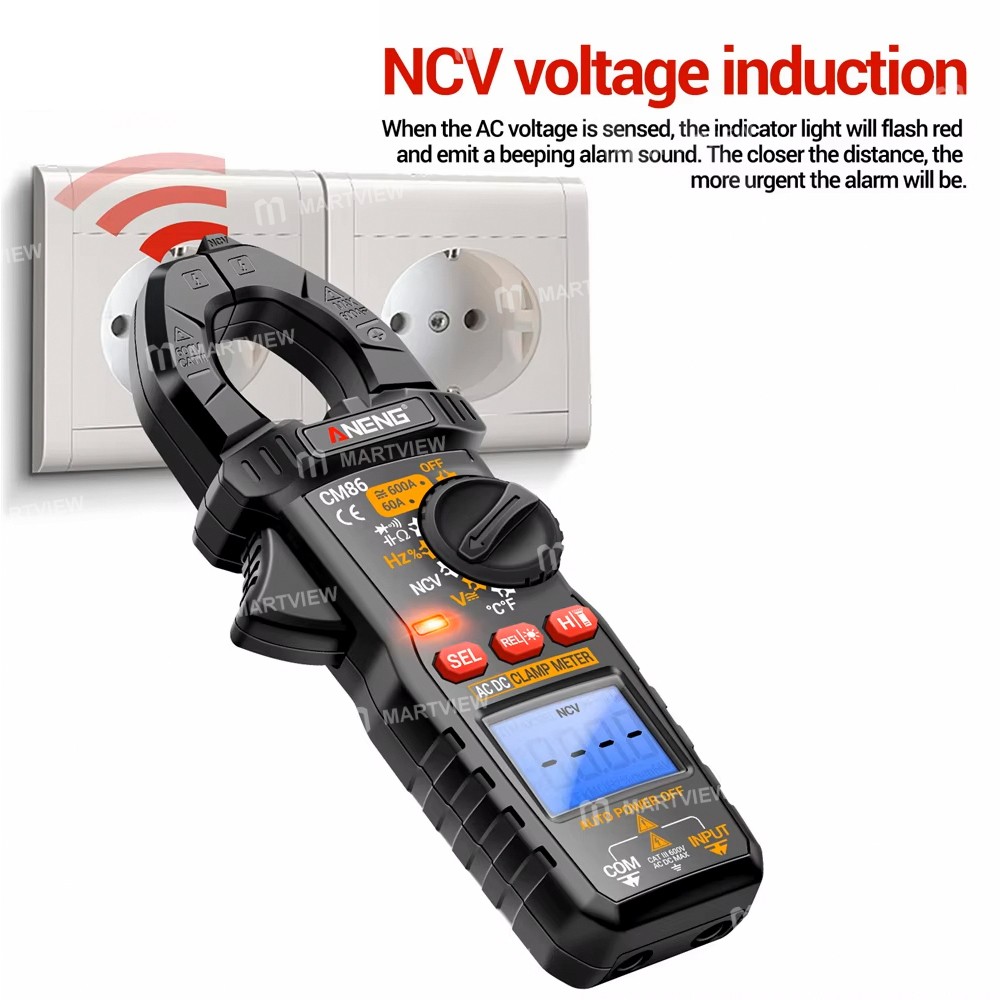

• NCV contactless voltage detection: When the clamp senses AC voltage, the indicator light will flash red and issue a beep alarm

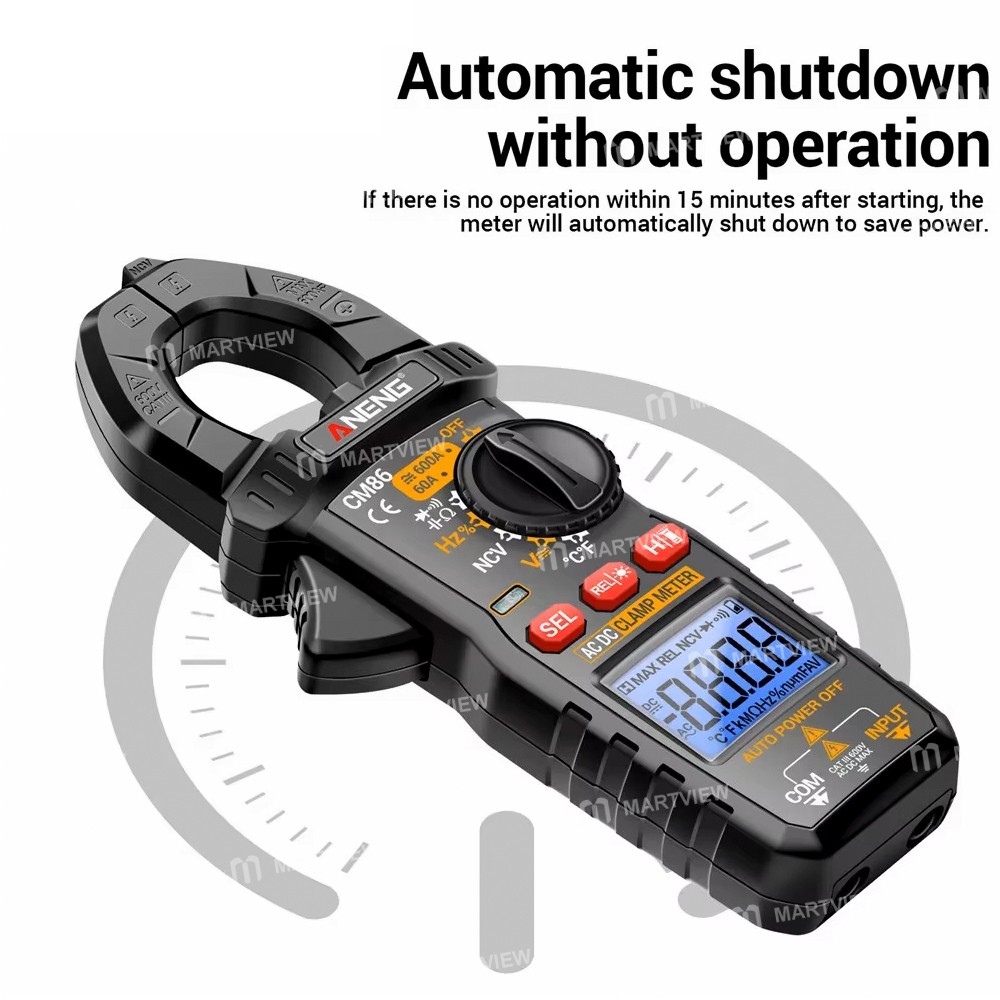

• Automatic shutdown without operation: If there is no operation within 15 minutes after starting, the meter will automatically shut down to save power

Specification:

Function	Range	Resolution		Precision
DC current	OA-600A	0.01A-0.1A		±(2.5%+8)
AC current	OA-600A	0.01A-0.1A		±(3.5%+6)
DC voltage	0mV-600V	0.1mV-1V		±(2.0%+2)
AC voltage	OV-600V	0.001V-1V		±(0.8%+3)
Resistance	0Ω-60MΩ	0.1Ω-0.01MΩ		±(1.2%+3)
Capacitor	OnF-60mF	0.001nF-0.01mF		±(4.0%+5)
Hz	OHz-9.999MHz	0.001Hz-0.001MHz		±(1%+2)
Temperature °C°F	-50~1300°C	1℃
	-58~2372°F	1°F		±(1%+2)
NCV voltage induction	Yes	Low power prompt		Yes
On/Off	Yes	Flashlight lighting		Yes
Diode	Yes	Battery type		2X1.5V AAA battery (Without battery)
LCD backlit display	Yes	Maximum		6000 count
Data retention	Yes	count Material		ABS
REL relative value measurement	Yes	Automatic shutdown		If there is no operation within 15 minutes after starting,the meter will automatically shut down to save power.

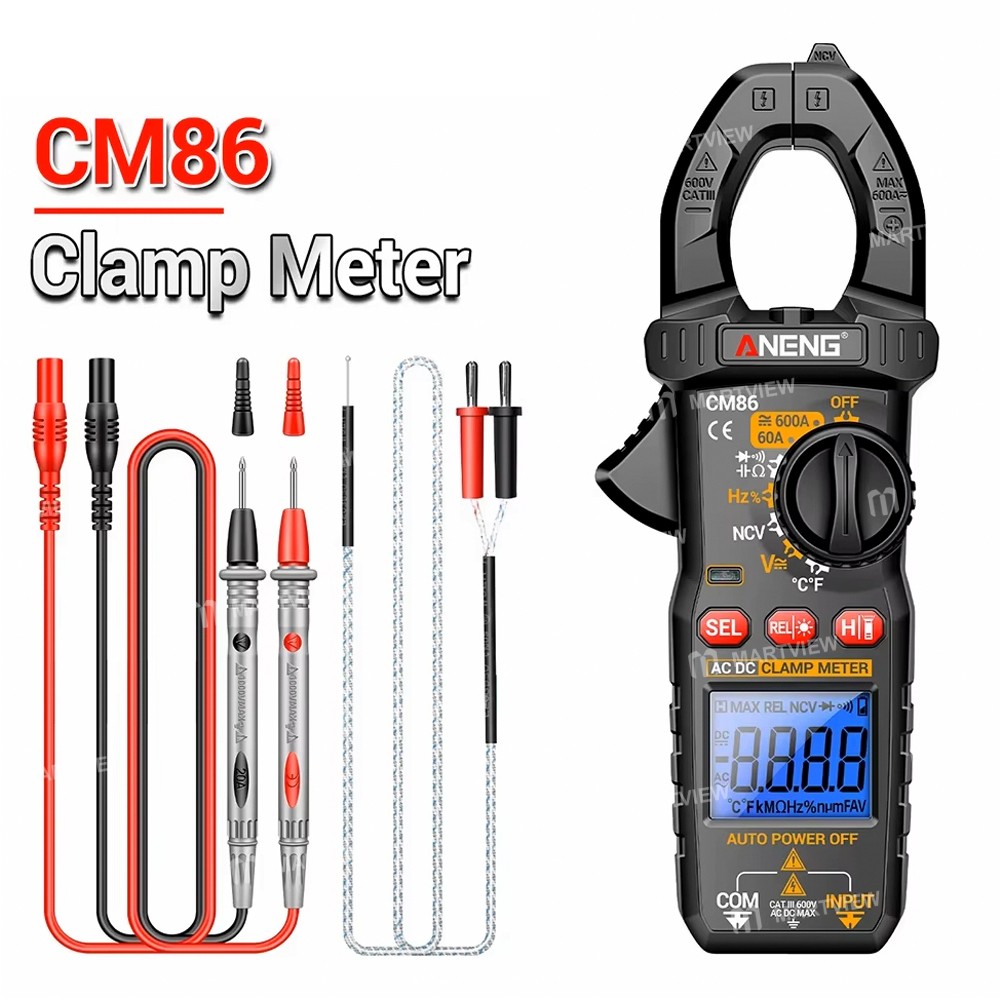

Package includes:

• 1 x Clamp Meter (without Battery)

• 1 x Test Line

• 1 x Temperature Measurement Line
