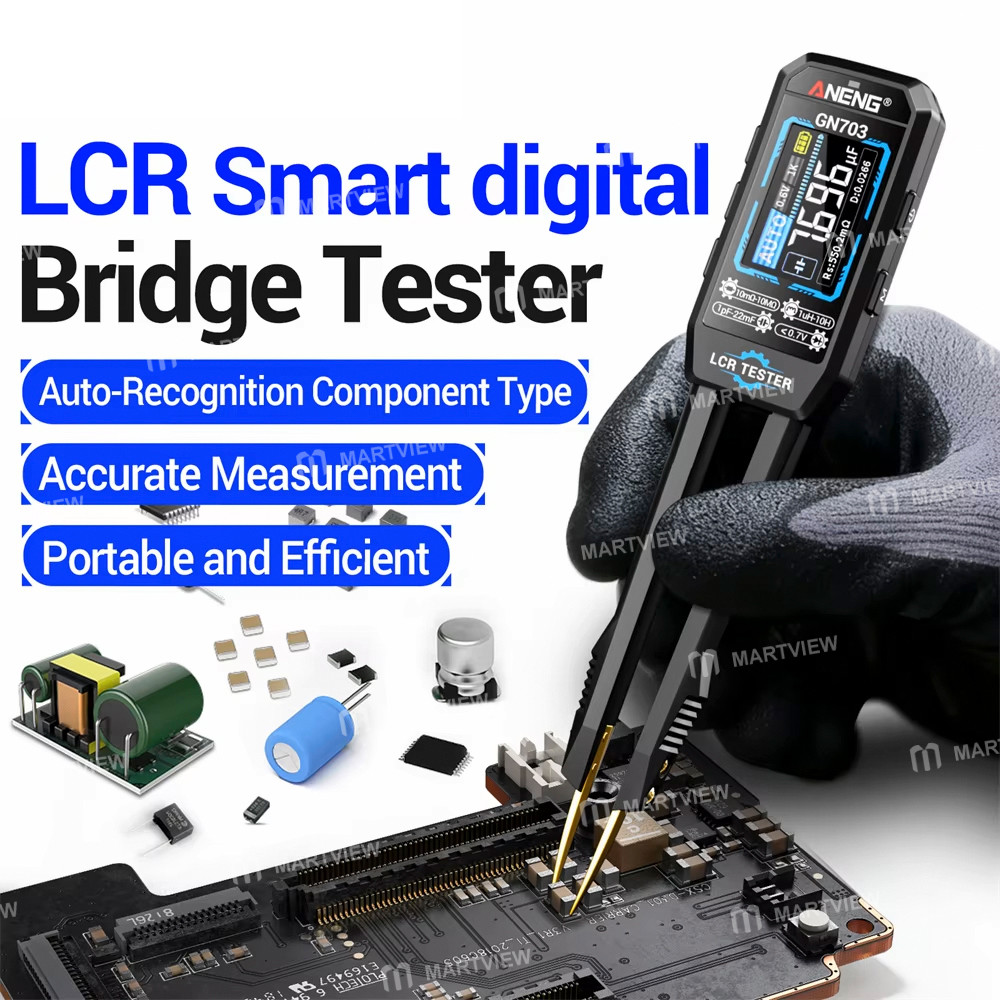

Aneng GN703 Type-C Rechargeable LCR Smart Forceps Bridge for LCR SMD ESR Test

Aneng GN703 Type-C Rechargeable LCR Smart Forceps Bridge for LCR SMD ESR Test

Features:

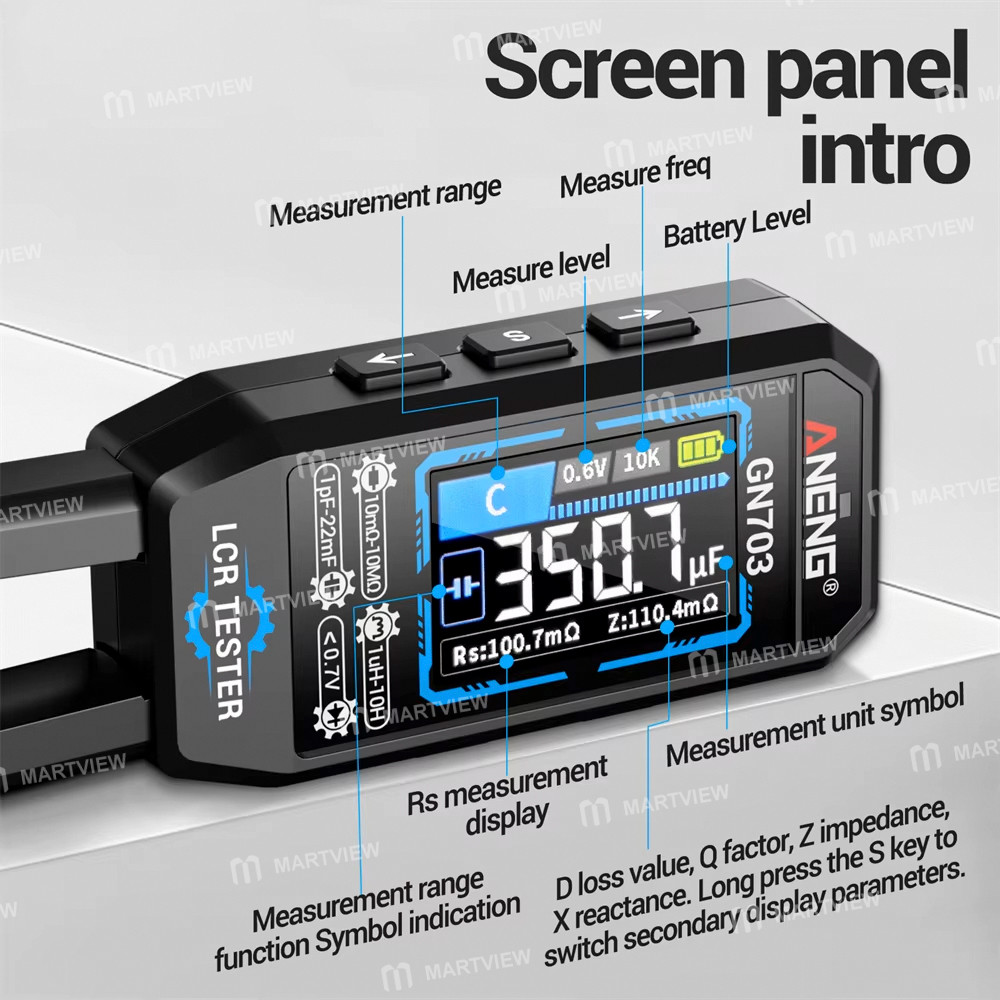

• This product is our latest research and development of a handheld tweezer-shaped LCR bridge, equipped with a built-in 250mAh rechargeable lithium polymer battery, long standby time, fast measurement speed, and a TFT color display screen.

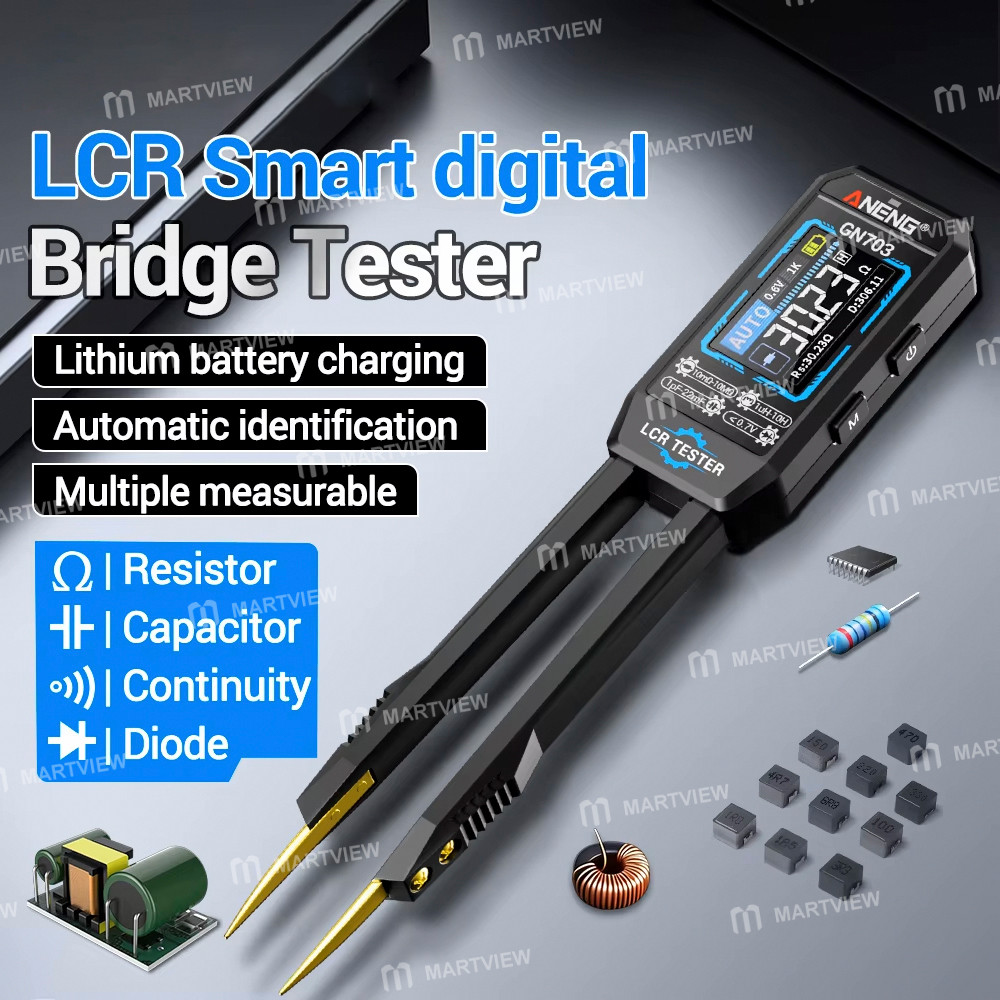

• LCR smart forceps bridge, lithium battery charging, multiple measurable, data retention

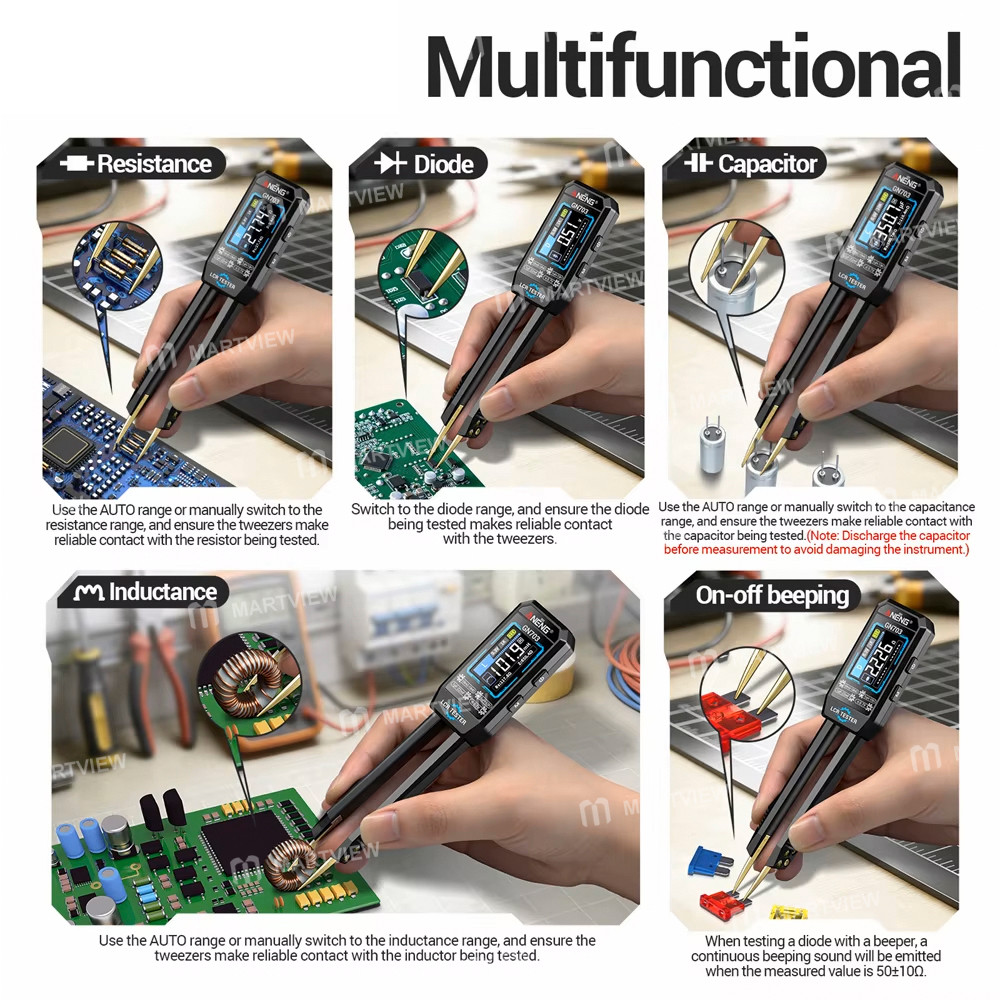

• Multi-scene measurement, adopting the main control chip, has a higher and more stable experience, sensitive/stable/intelligent

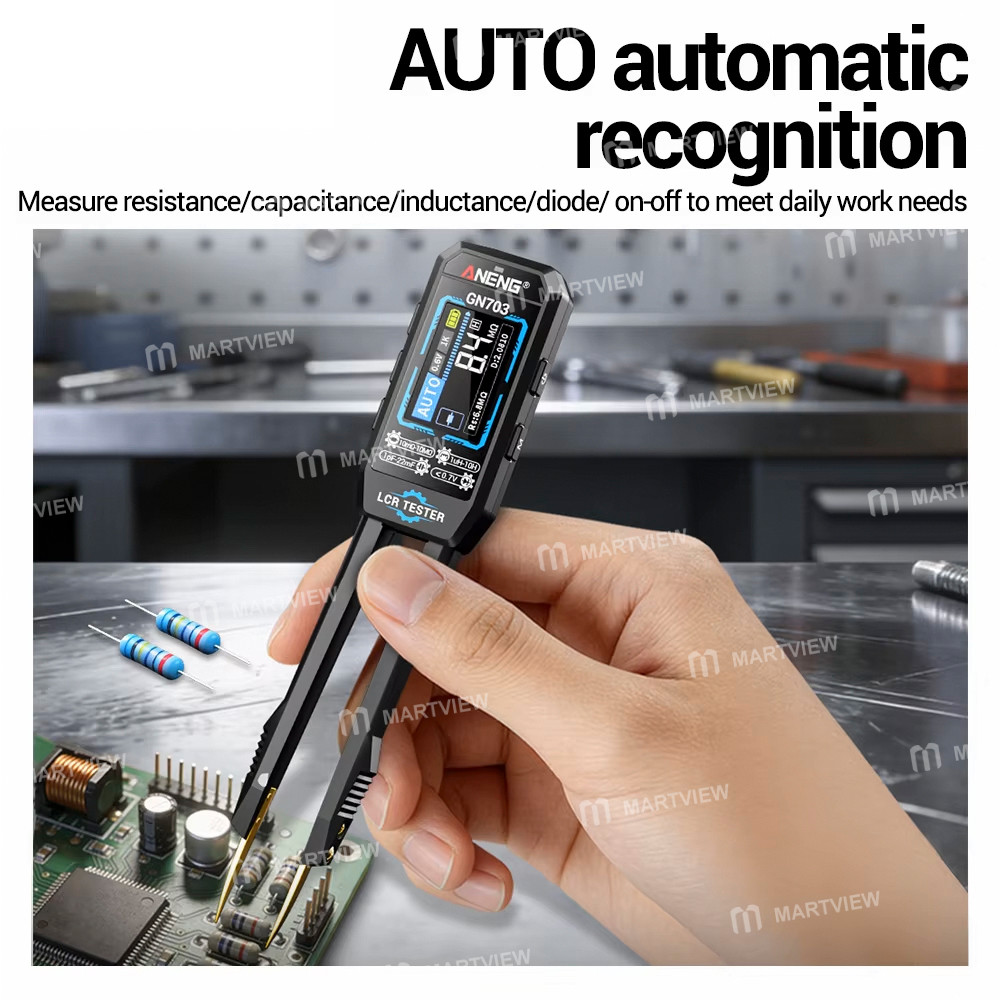

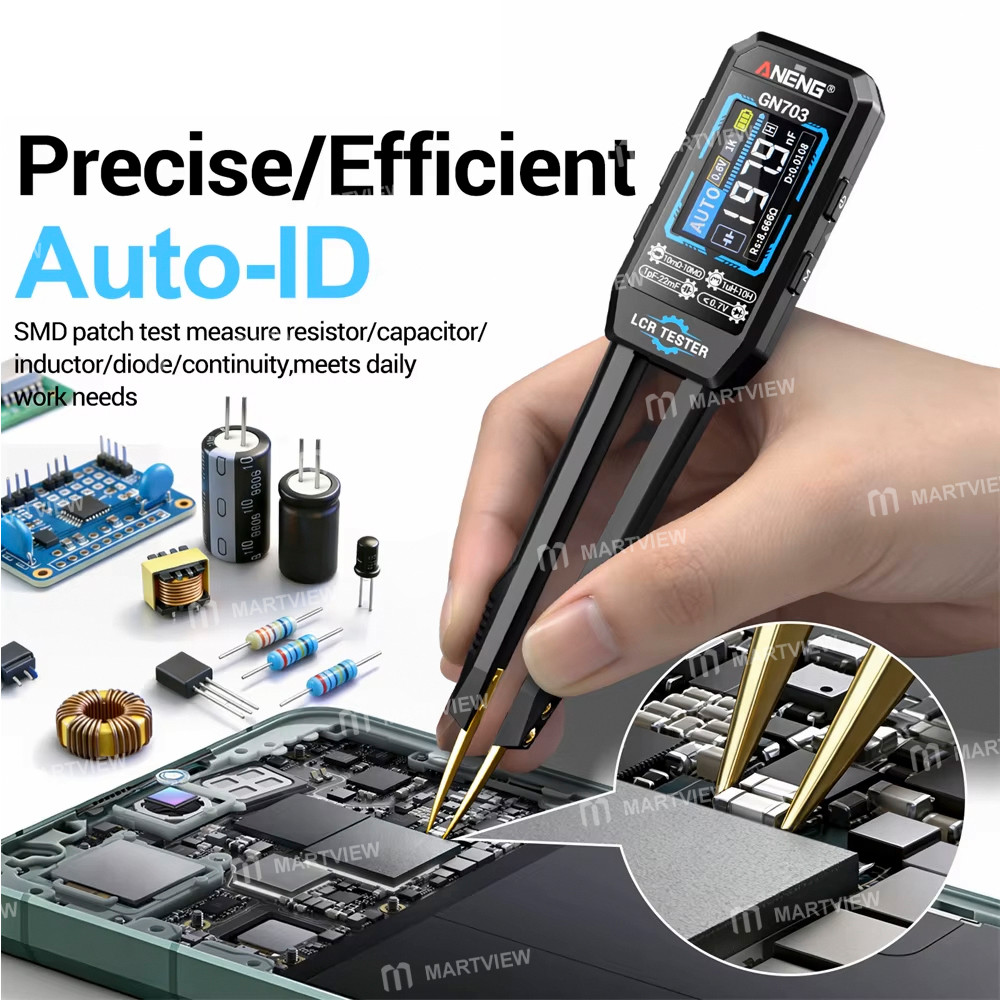

• SMD patch test can identify components such as resistors/capacitors/diodes, which are a good helper for electronic factories and electronic maintenance

• Lithium battery charging mode, no need to buy the battery again, equipped with a Type-C cable for charging

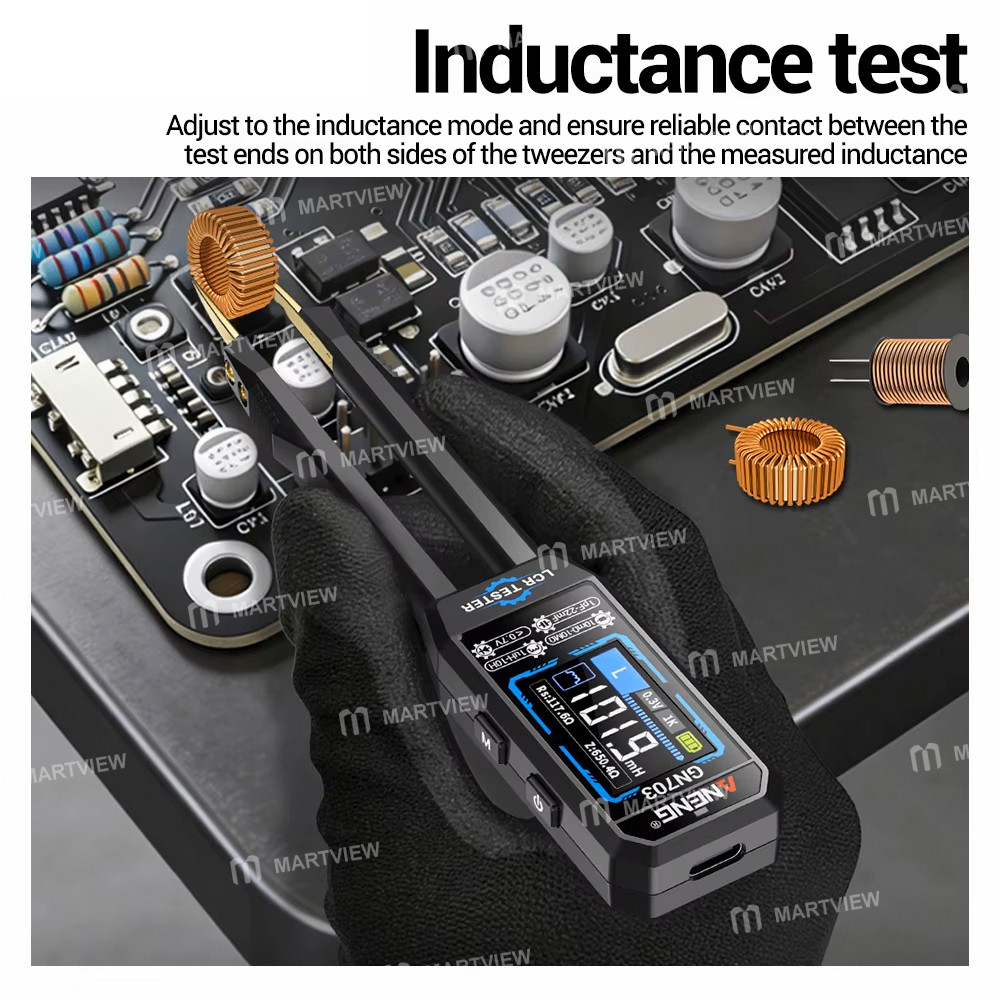

• Auto-distinguish inductance, automatically identify the inductance gear, just contact both sides of the inductor in the circuit board, light and convenient

Specifications:

Function	Range	100Hz	1KHz	10KHz
Resistance	10mΩ~1Ω	3%±5dig	3%±5dig	2%±5dig
	1Ω~1KΩ	1%+3dig	0.5%±5dig	0.5%±5dig
	1KΩ~1MΩ	1%±5dig	0.5%±5dig	1%±5dig
	1MΩ~10MΩ	5%±3dig	5%±3dig

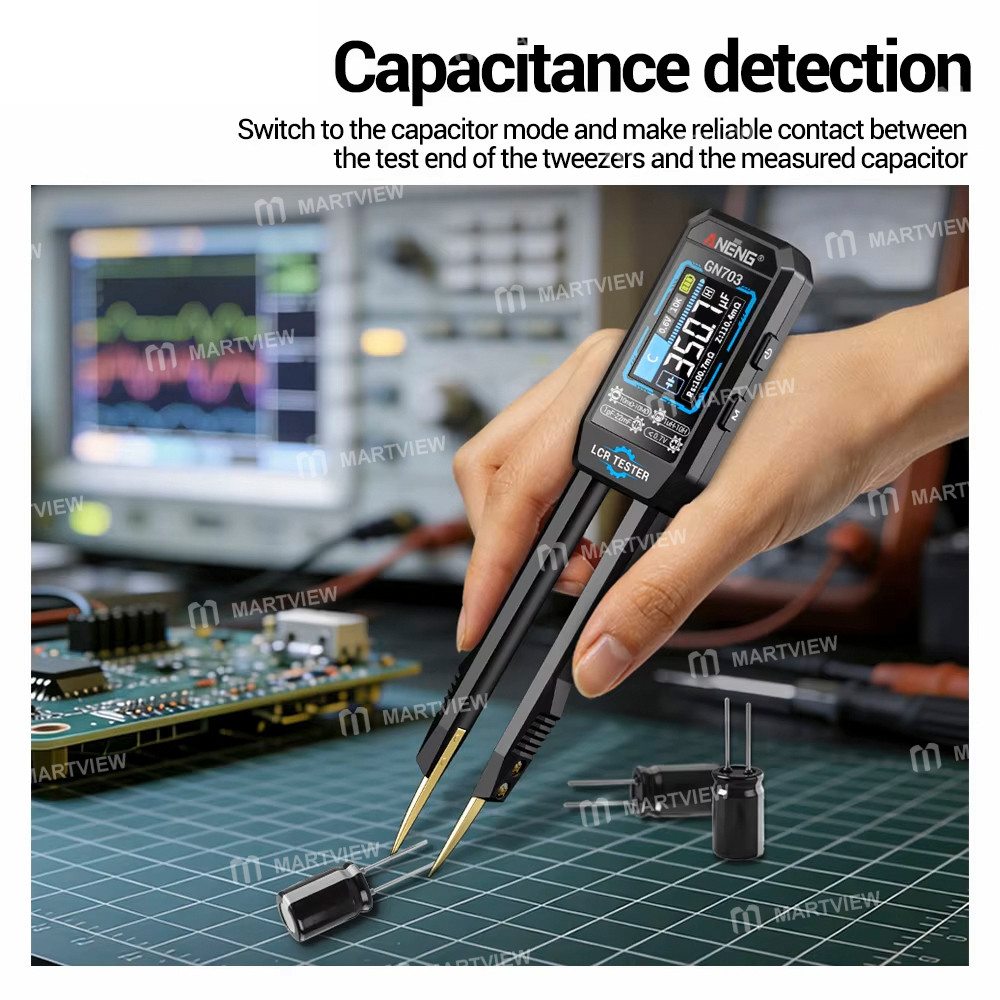

Capacitance	1pF~1nF		5%±5dig	5%±5dig
	1nF~1uF	2%±5dig	0.5%±5dig	0.5%±5dig
	1uF~1mF	2%±5dig	2%±5dig	2%±5dig
	1mF~22mF	5%±5dig	5%±5dig
Inductance	1uH~10uH			2%±3dig
	10uH~1mH	2%±3dig	0.5%±3dig	0.5%±3dig
	1mH~100mH	2%±3dig	2%±3dig	2%±3dig
	100mH~10H	5%±3dig
Diode	On Voltage< 0.7V
Continuity	√

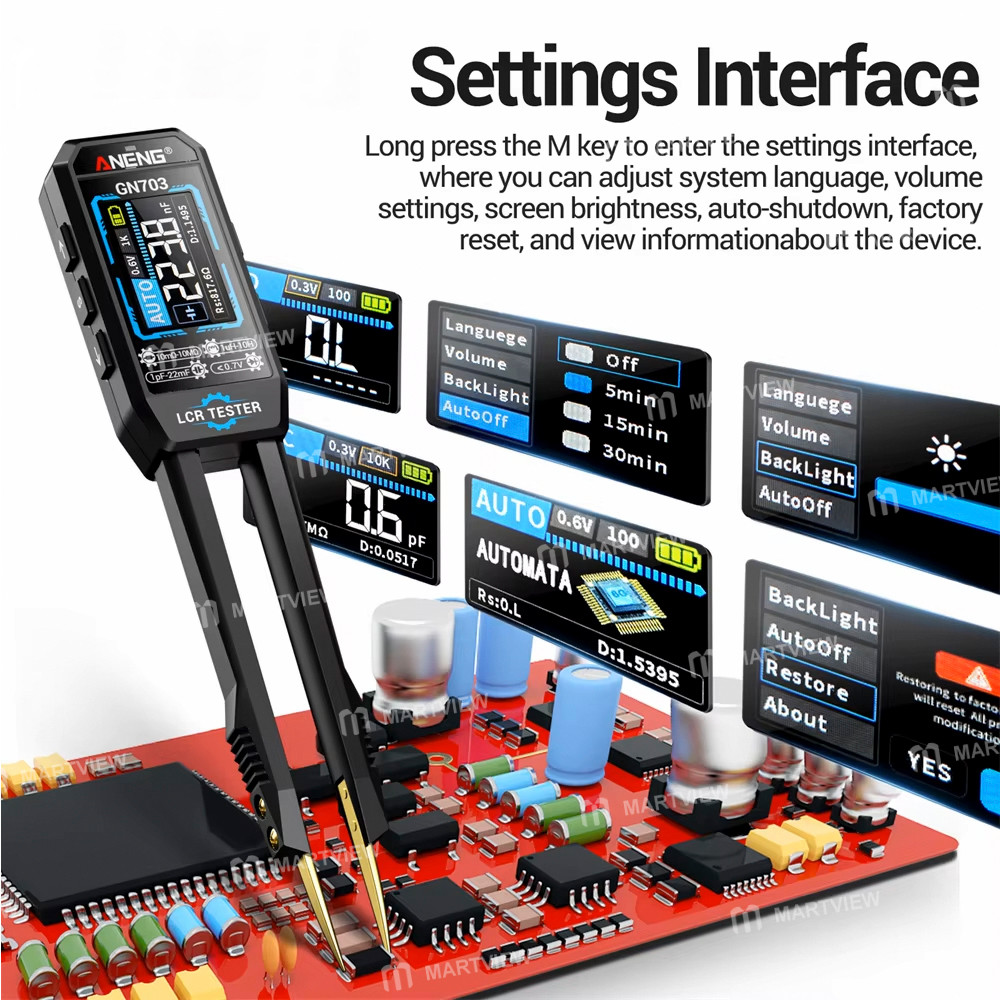

Brightness	0~100 Stepless Dimming
Reset	Factory Reset, Clear All Params
Volume	0~5 Gear Adjust

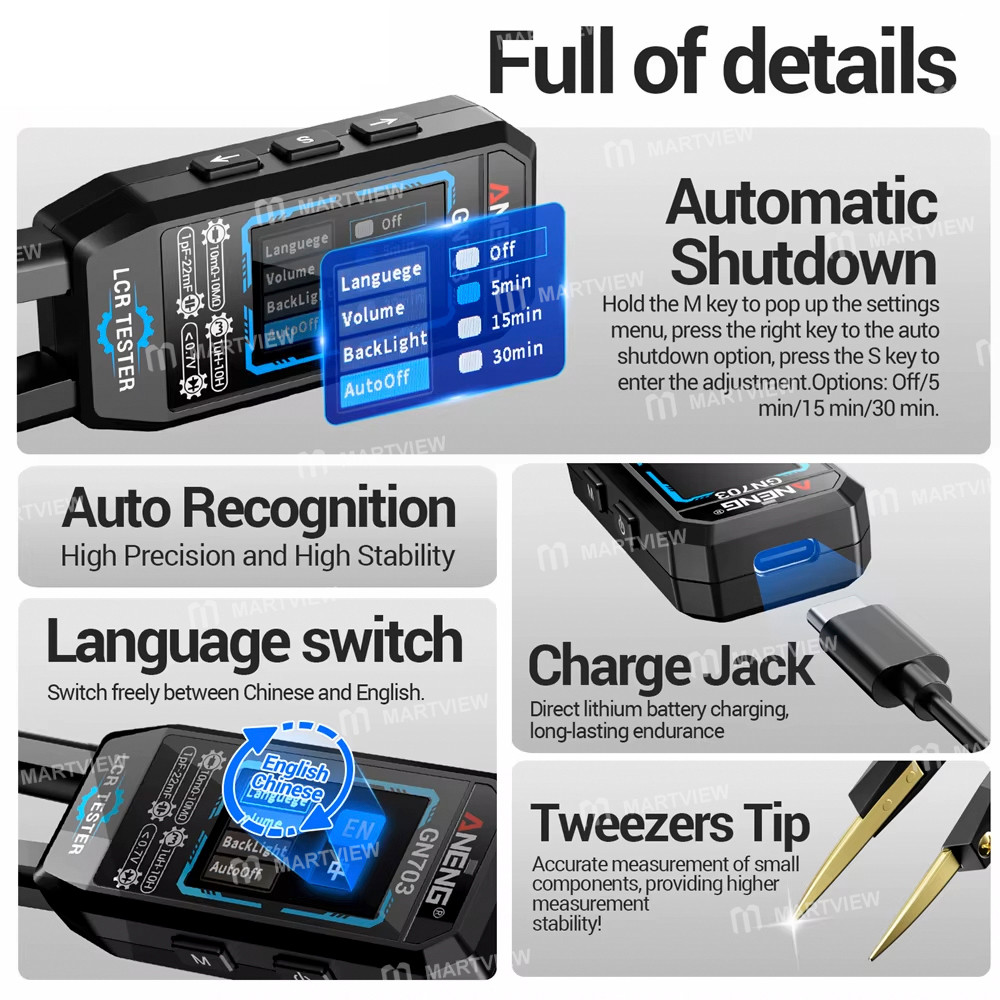

Auto off	Off/5/15/30min
Li-ion chg	250mAh Li-ion Rechg
Charge spec	USB 5V/1A	Data Hold	√

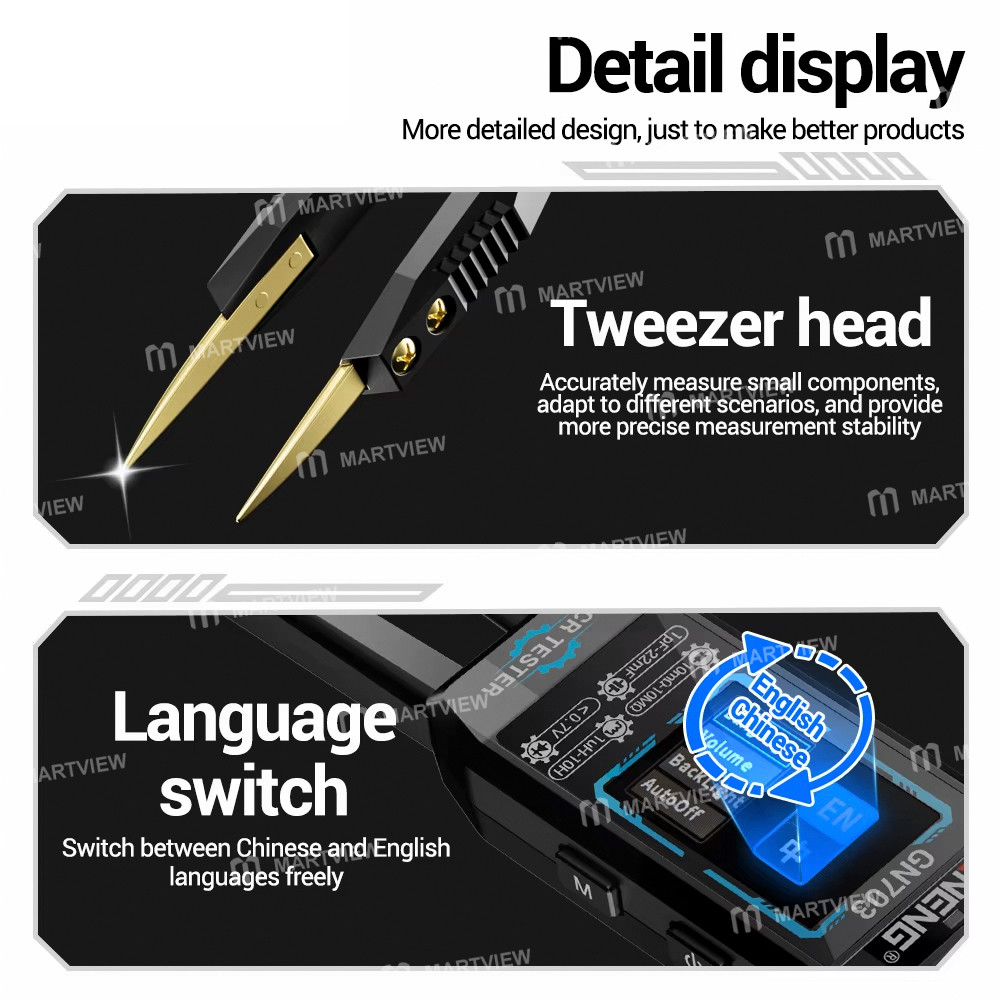

Language	Chinese/English	Calibration	√
Material	ABS	Test level	0.3V/0.6V

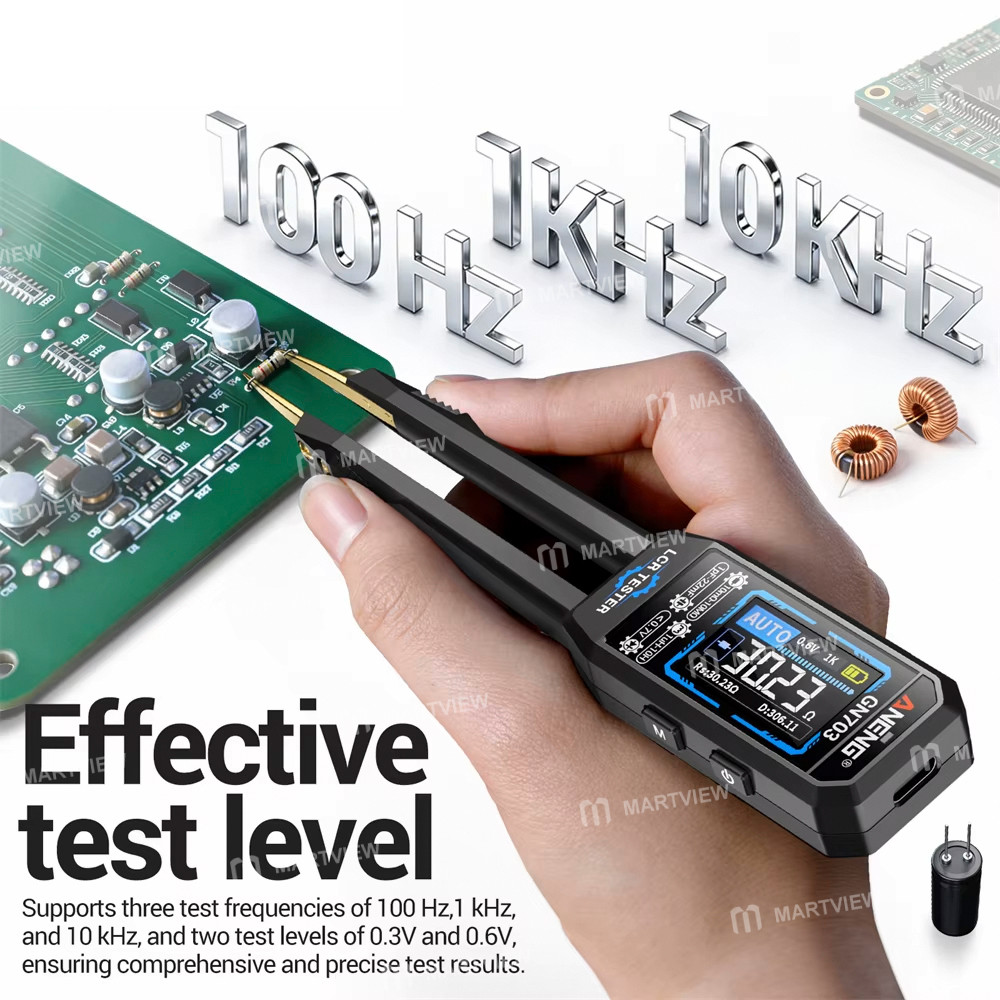

		Test freq	100Hz/1K/10K

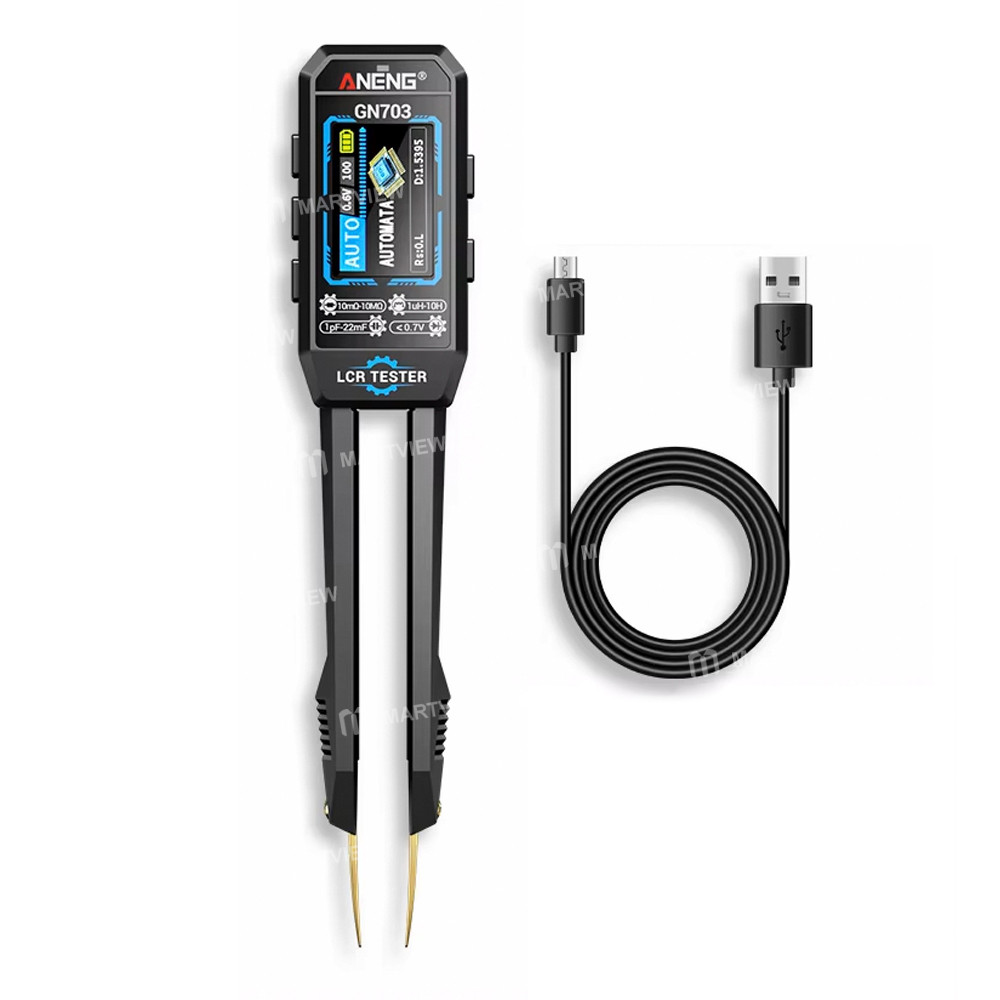

Package includes:

• 1 x Tweezers Bridge

• 1 x Charging Cable
