Aneng M469D RJ45 Network Cable Tester for RJ45 / RJ11 Repair

Aneng M469D RJ45 Network Cable Tester for RJ45/RJ11 Repair

Features:

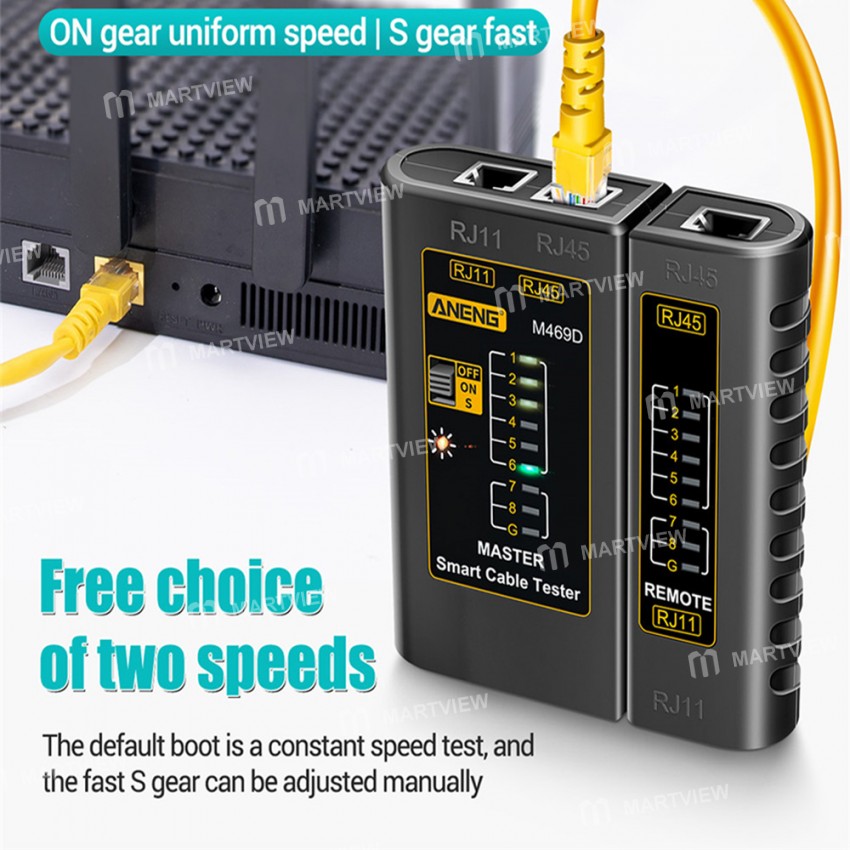

• Test of double-twisted cables: Switch on the power. (S is slow automatic grade, Mis manual.) Put cables into both the main tester and the remote tester. The lights of the main tester will turn on sequently from 1 to G

• Main tester: 1-2-3-4-5-6-7-8-G

• Remote tester: 1-2-3-4-5-6-7-8-G RJ45; 1-2-3-4-5-6 RJ11

• It can test two-core/four-core/six-chip telephone lines, and test different line core indicators to light up the corresponding lights

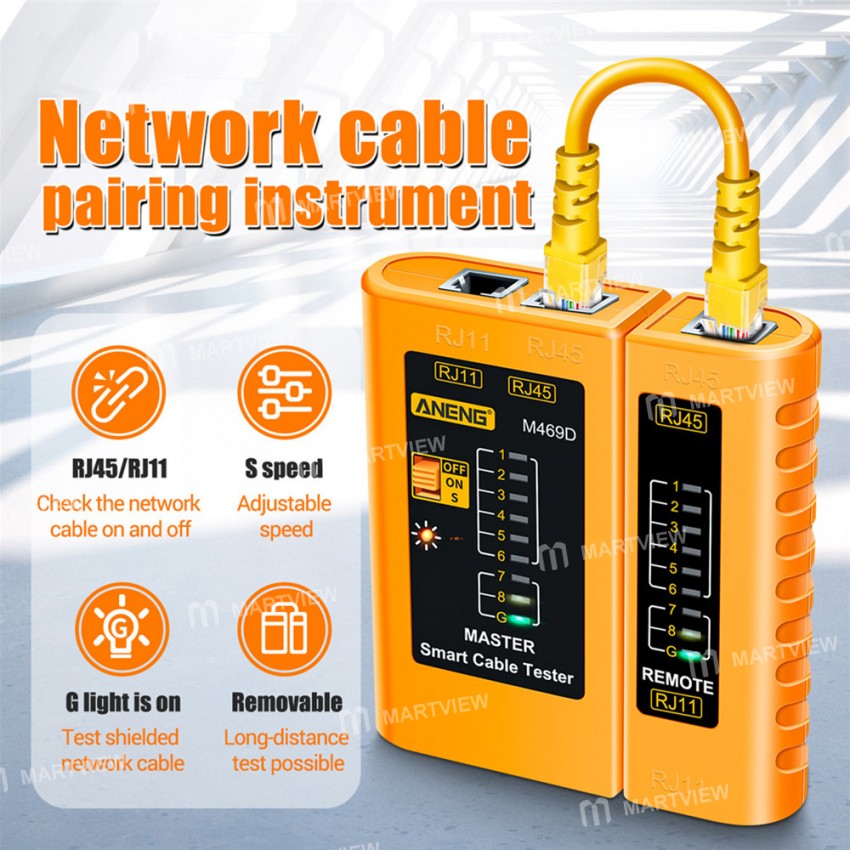

• Turn on the switch, plug in the cable, and the 1~8+G lights will light up in sequence to test the shielded network cable

• The split structure is free to open and close, and it is easy to operate when integrated

The following are abnormal connections:

• If one cable, for example, cable NO.3 is open-circuited, the two NO.3 lights of the main tester and remote tester will not turn on.

• If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on

• If two ends of a cable are disordered, for example, NO.2 and NO.4, then displays on: Main tester: 1-2-3-4-5-6-7-8-G; Remote tester: 1-4-3-2-5-6-7-8-G

• If two cables are short-circuited, neither of the corresponding lights is on of the remote tester while the main tester remains unchanged

• If three cables, including three, are short-circuited, none of the corresponding lights are on

• If test patch panels or wall plate outlets, two cables that can match each other (RJ45) will be connected to the tester

• If test cables of the same axes, BNC turns on when the cable works

Package includes:

• 1 x Network Cable Tester(without battery)
