Aneng MH12 500V High Precision Digital Megohmmeter Insulation Earth Resistance Meters

Aneng MH12 500V High Precision Digital Megohmmeter Insulation Earth Resistance Meters

Features:

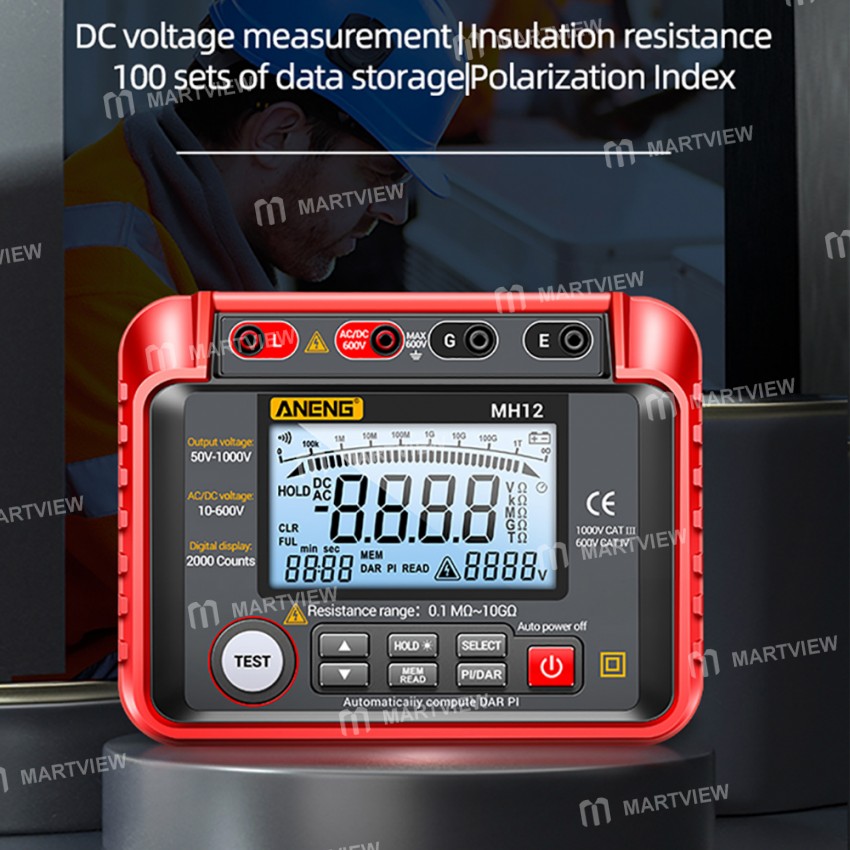

• Insulation resistance tester, DC voltage measurement Insulation resistance, 100 sets of data storagePolarization Index

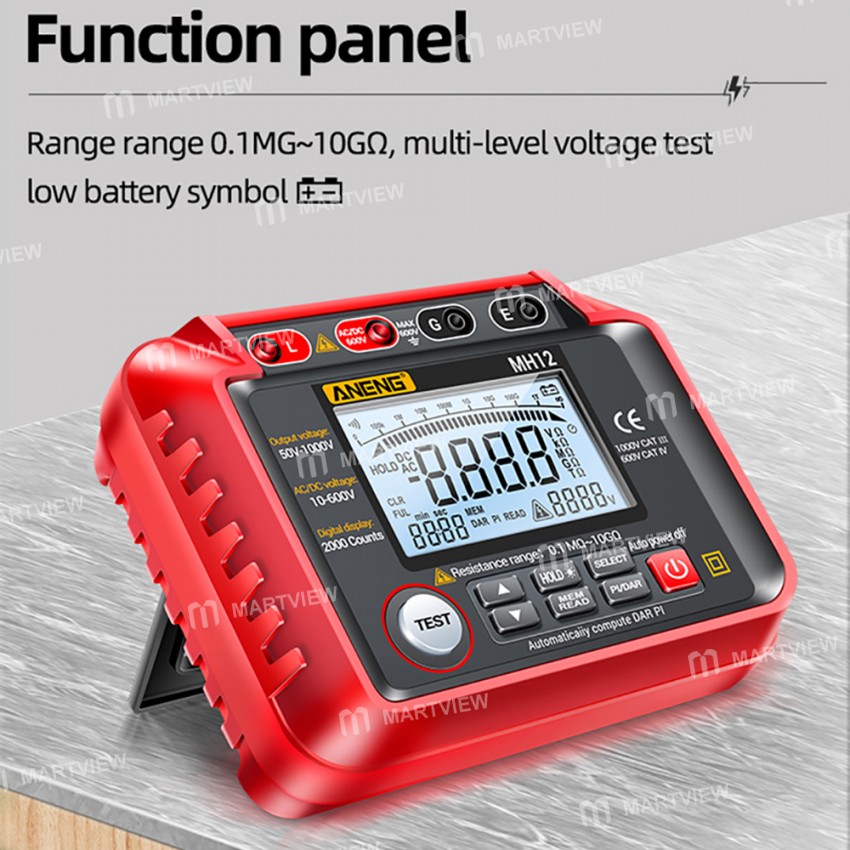

• Range range 0.1MΩ~10GΩ, multi-level voltage tes, low battery symbol

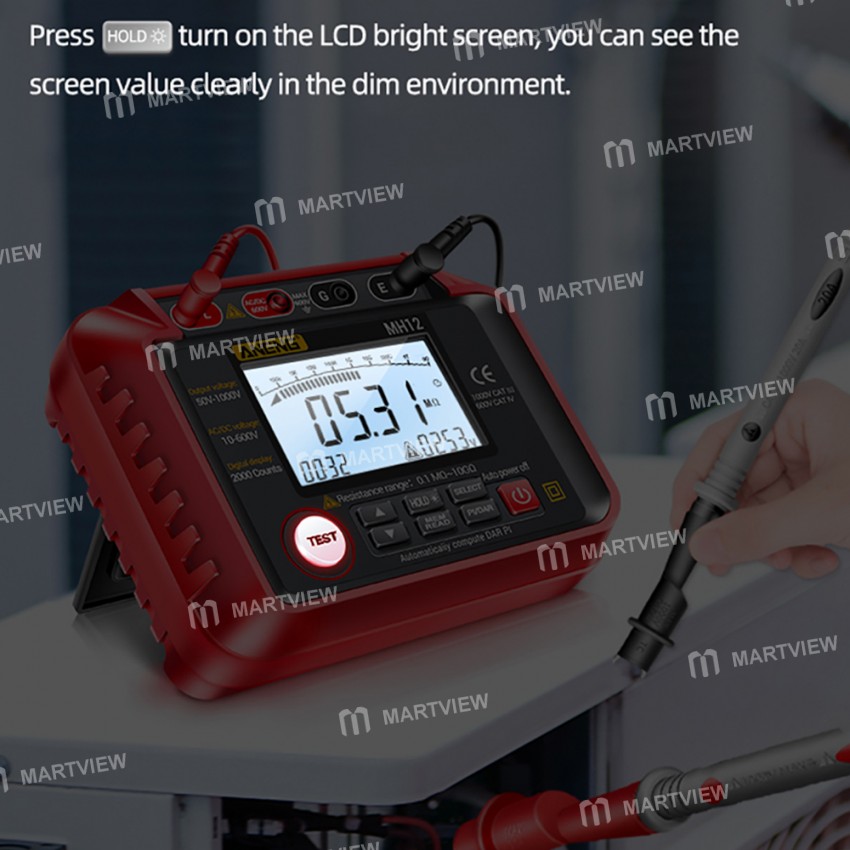

• Press "HOLD" and turn on the LCD bright screen, you can see the screen value clearly in the dim environment

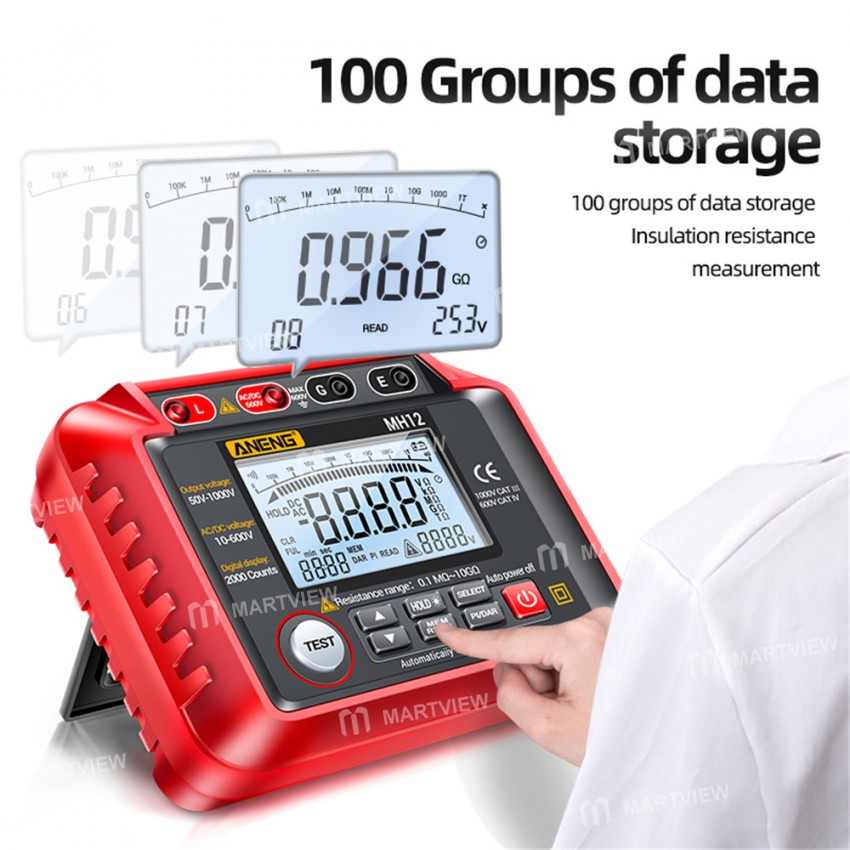

• After measuring, press "HOLD", hold the measurement data, and press "MEM READ", to view stored data "MEM READ", for other group data press to read "▲▼" read other groups of data

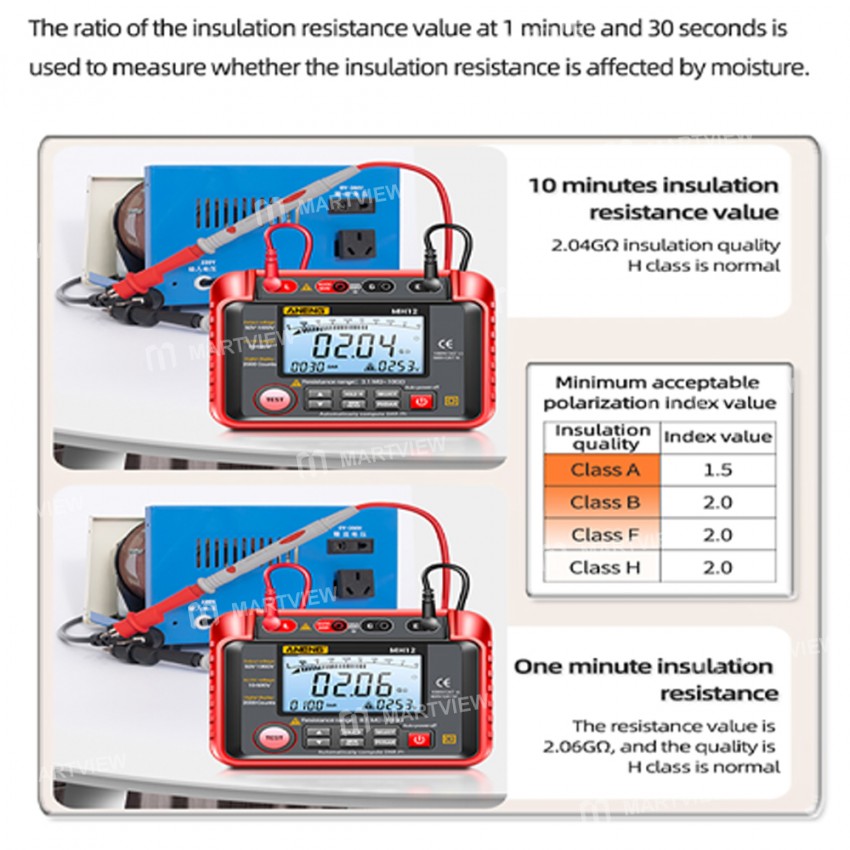

• The ratio of the insulation resistance value at 1 minute and 30 seconds is used to measure whether the insulation resistance is affected by moisture

• The resistance value is 2.06GΩ, and the quality of is H class is normal

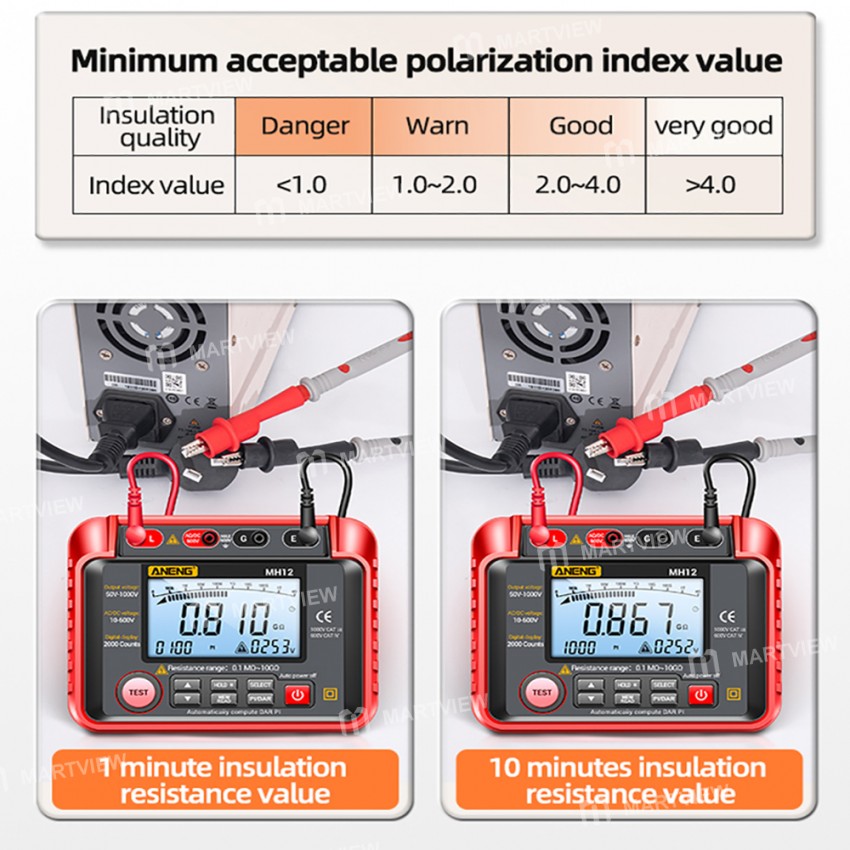

• The power system requires that the polarization index should be measured in the insulation test of the main transformer, cable, motor, etc. to judge the quality and aging problems

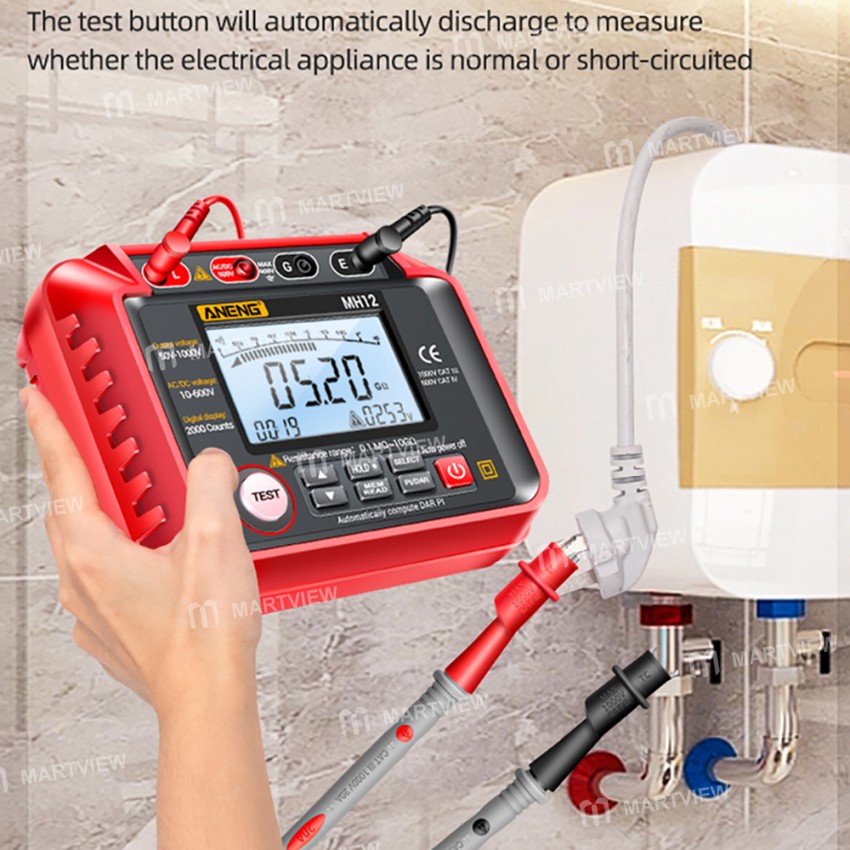

• The test button will automatically discharge to measure whether the electrical appliance is normal or short-circuited

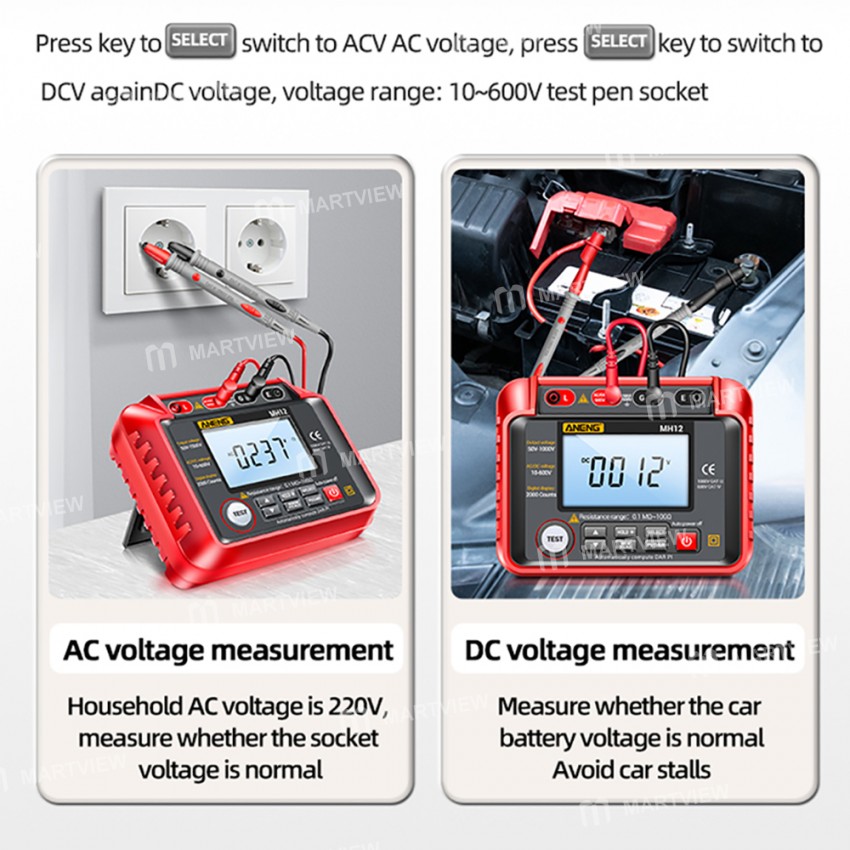

• Press the key to "SELECT" switch to ACV AC voltage, press the "SELECT" key to switch to DCV again DC voltage, voltage range: 10~600V test pen socket

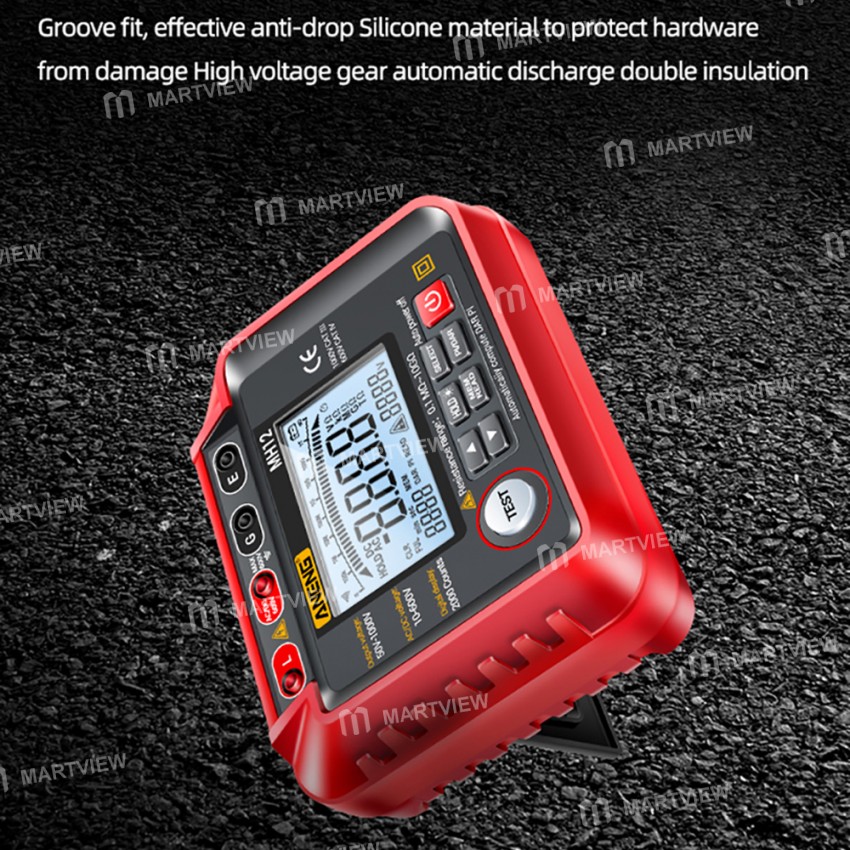

• Groove fit, effective anti-drop, silicone material to protect hardware from damage, high voltage gear automatic discharge double insulation

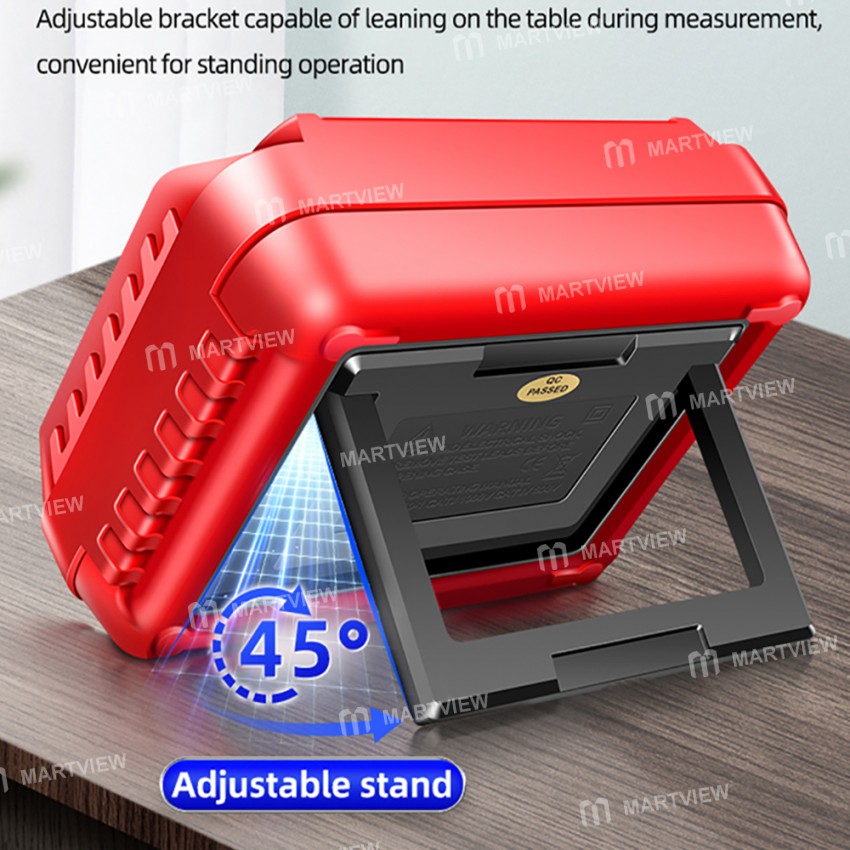

• Adjustable bracket capable of leaning on the table during measurement, convenient for standing operation

Specification:

• 50V/100V: 0.1MΩ~200MΩ ±(5%+10) Less than 1.8mA

• 250V: 0.4MΩ~10GΩ (5%+10) Less than 1.8mA

• 500V: 1MΩ~10GΩ (5%+10) Less than 1.8mA

• 1000V: 2MΩ~10GΩ ±(5%+10)

• AC voltage: 10~600V ±(1%+5)

• DC voltage: 10~600V ±(0.8%+5)

• 100 groups of data storage: Yes

• Autoranging: Yes

• Absorption ratio: Yes

• Low battery alert: Yes

• Backlight bright screen: Yes

• Automatic shut-down: Yes

• Polarization Index: Yes

• Data retention: Yes

• Time display: Yes

• Automatic discharge: Yes

• Battery model: 8 AA batteries(Not included)

• Maximum display: 2000 Counts

• The overall length of test leads: 110cm/43.3in

• Product material: Silicone/ABS

• Pen material: PCV/Brass

• Net Weight: 621.9g (without battery)

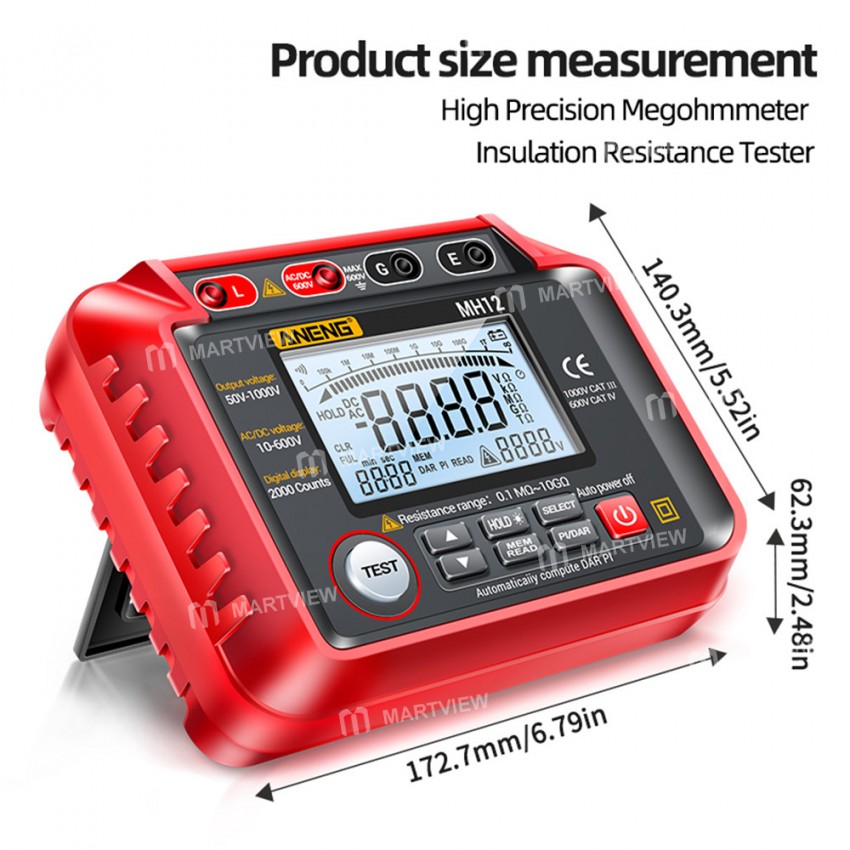

• Product Size: 17.2*14.0*6.2cm

Package includes:

• 1 x Megohmmeter (Without Battery)

• 1 x Test leads

• 1 x Alligator clips

• 1 x Storage bag
