Aneng ST209 AC/DC Voltage Current LCD Backlight Digital Clamp Multimeter
Features:
- The 6000 counts clamp meter is a pocket-sized 3 5/6-digit automatic digital instrument with stable performance, high precision, high reliability, clear reading and overload protection
- Driven by AAA 1.5V battery, the instrument adopts a large screen LCD display and adopts a boost power supply
- Even at the edge of 2.3V low battery, it can ensure the ultra-high brightness of backlight and flashlight. This watch is easy to carry and is very popular among users
- The instrument can be turned on and off automatically after 15 seconds

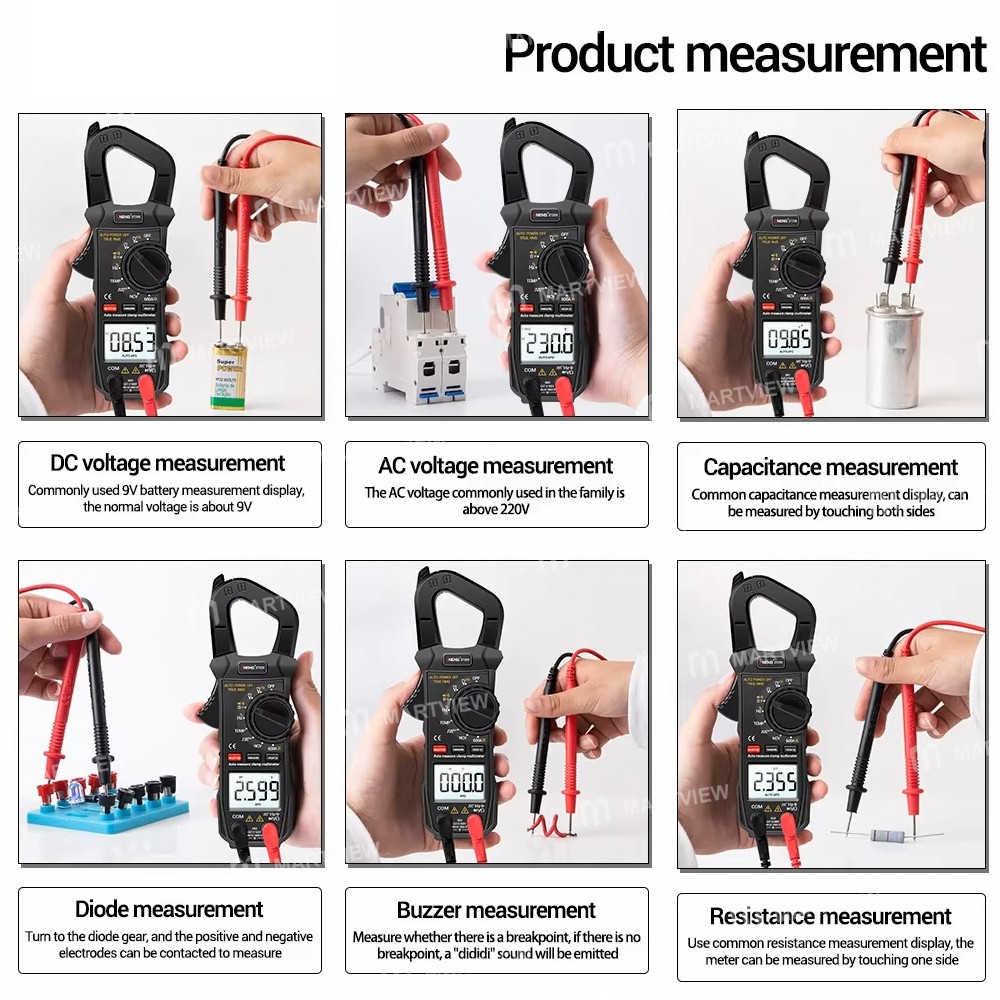

- This series of instruments can be used to measure DC voltage and AC voltage, AC and DC current 600A, resistance, capacitance, diode, temperature, continuity test, square wave output, frequency measurement, and true RMS
Specification:
DC voltage DCV
Yes
AC voltage ACV
Yes
DC current DCA
Yes
AC current ACA
Yes
Resistor / Diode /
On-Off Test / CapacitorYes
Frequency F
Yes

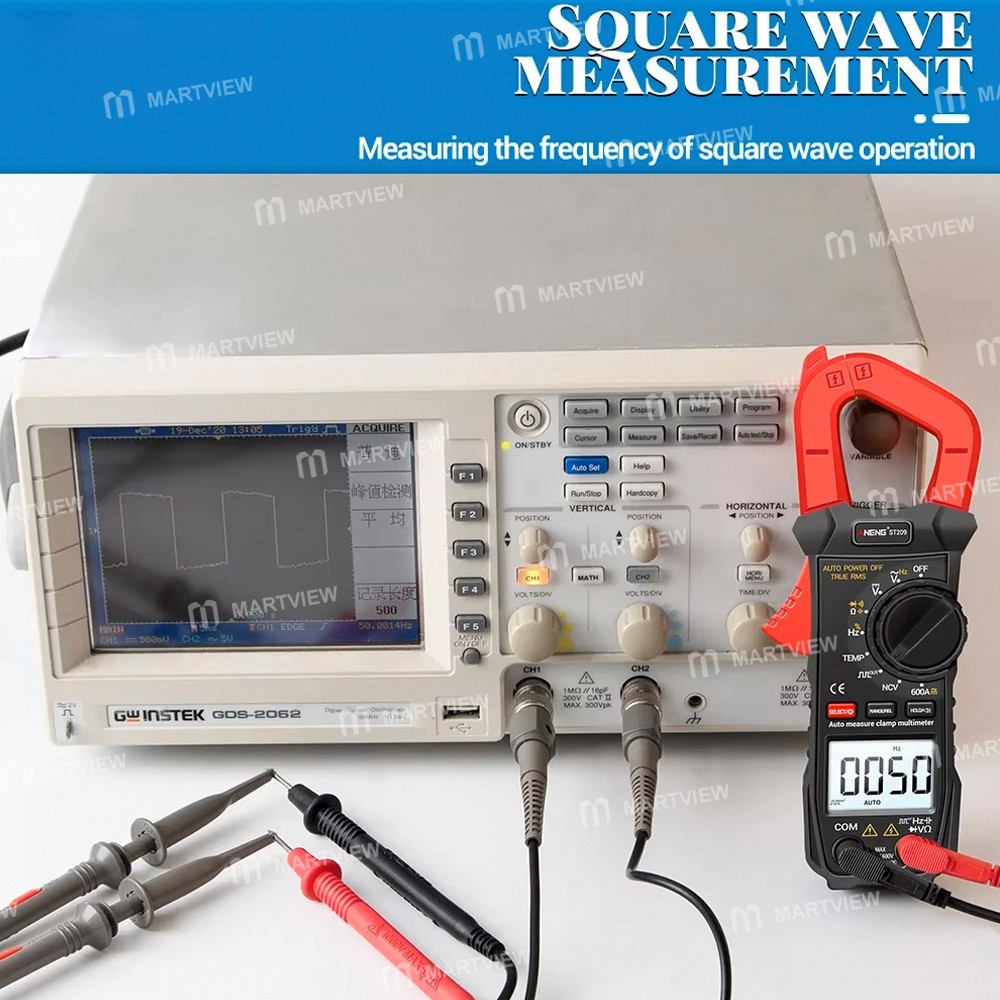

Square wave output
Yes

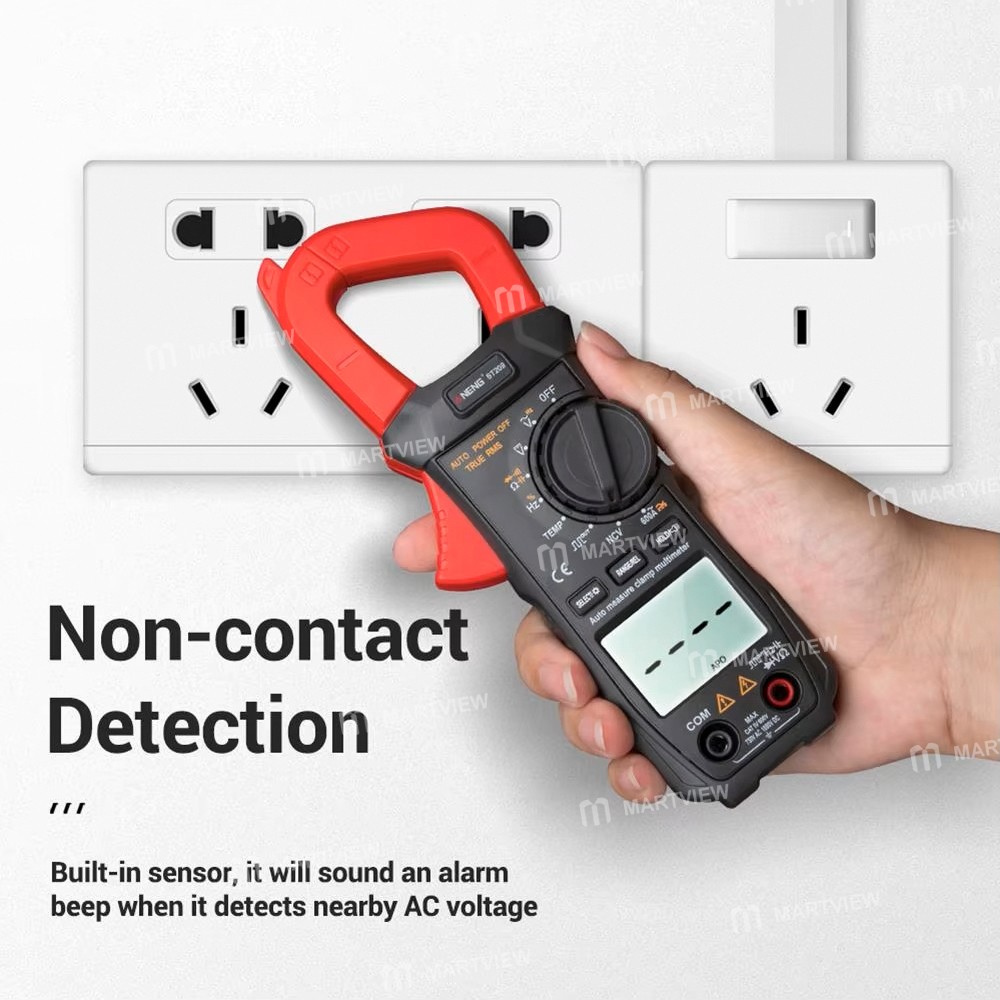

NCV
Yes
Zero line /Fire line test
-
Full unit symbol
Yes
Backlight manual/Auto off
Yes
True RMS measurement
Yes
Temperature(°/°)
Yes
Flashlight lighting
Yes
Range
Accuracy
Resolution

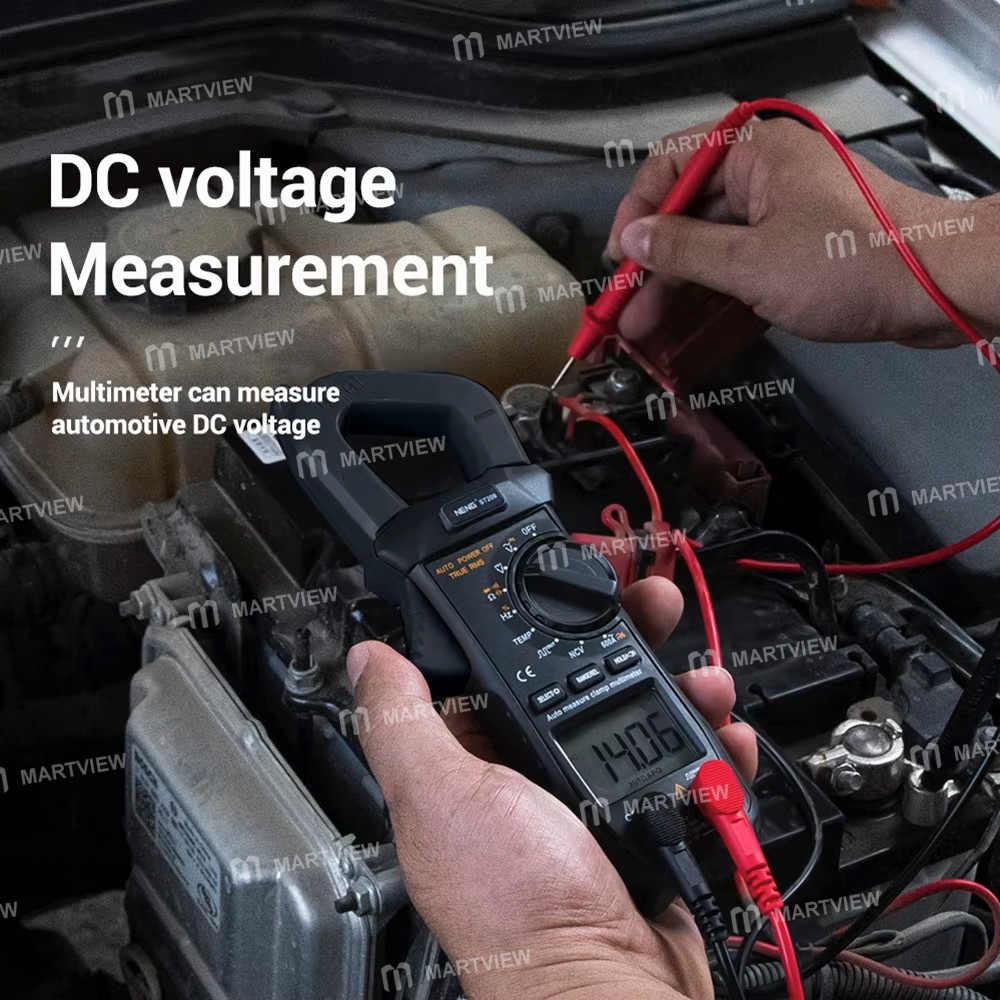

DC voltage
6V/60V/600V
± (0.8%+10)
0.001V/ 0.01V/0.1V
DC voltage
1000V
±(0.5%+3)
1V
AC voltage
6V/60V/600V
± (0.8%+3)
0.001V/0.01V/0.1V
AC voltage
750V
± (1.2%+10)
1V
DC current
60A/600A
± (2.5%+30)
0.01A/0.1A
AC current
60A/600A
± (2.5%+30)
0.01A/0.1A
Resistance (omh)
600
± (0.8%+5)
0.1
Resistance (omh)
6K/60K/600K/6M
± (0.8%+3)
1/10/100/1k
Resistance (omh)
40M
± (2.5%+3)
10k
Capacitance(C)
60nF/600nF/6uF/60uF/600uF
± (3.5%+20)
10pF/100pF/1nF/10nF/100nF
Capacitance(C)
6mF/30mF
± (5%+3)
1uF/10uF
Frequency
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
± (0.1%+3)
0.01Hz/0.1Hz/1Hz/10Hz/100Hz/1kHz/10kHz

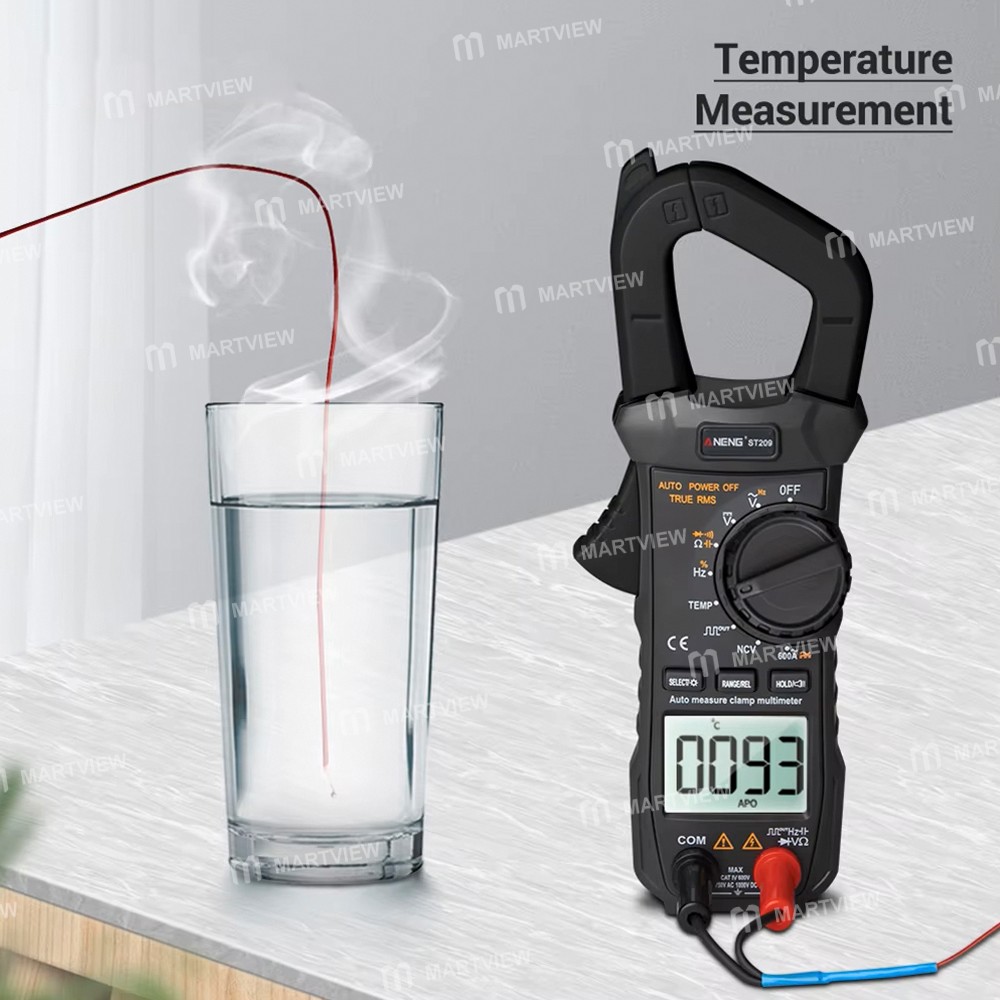

Temperature
(-20~1000℃)
As the instructions
1℃
(0~1832℉)
As the instructions
1℉

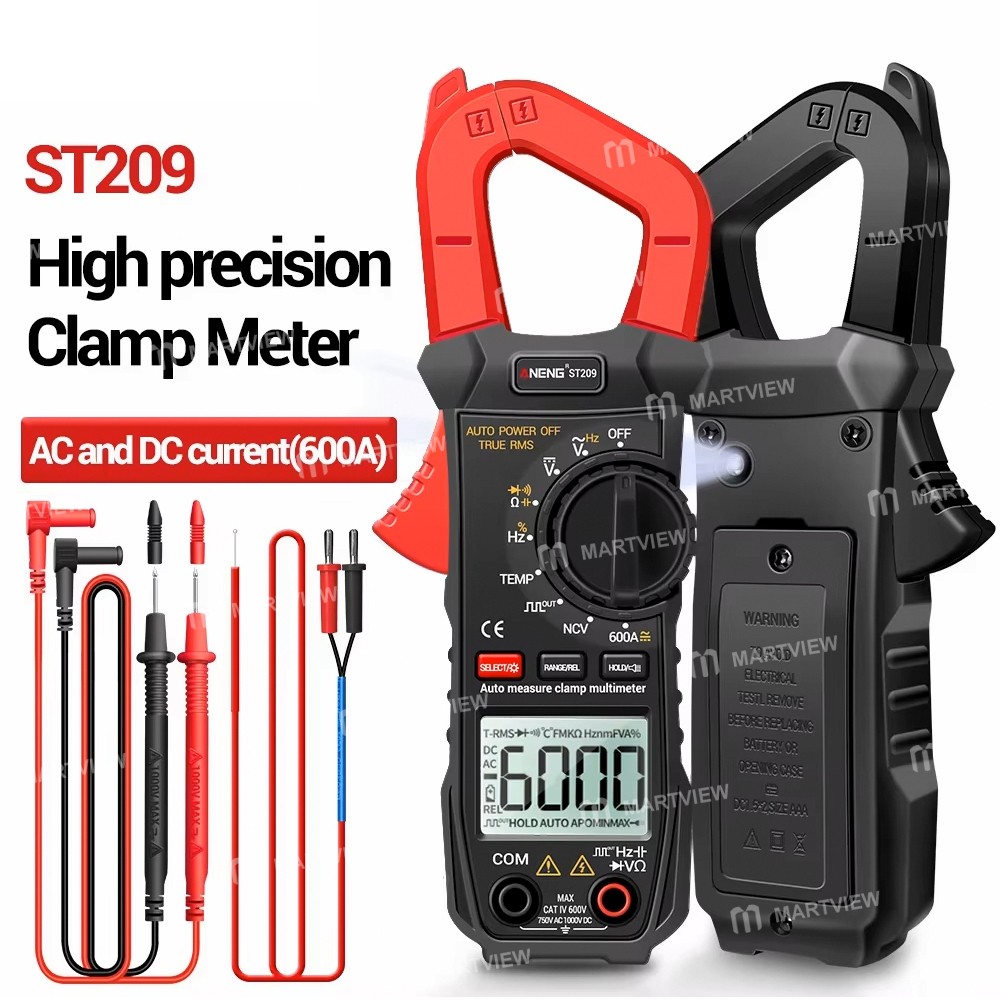

Package includes:
- 1 x Clamp Multimeter (without Battery)
- 1 x Test Leads
- 1 x Temperature Probe
