Aneng SZ11 Magnetic Wall-Mounted High-Precision Intelligent Multimeter with Capacitance Measurement

Aneng SZ11 Magnetic Wall-Mounted High-Precision Intelligent Multimeter with Capacitance Measurement

Features:

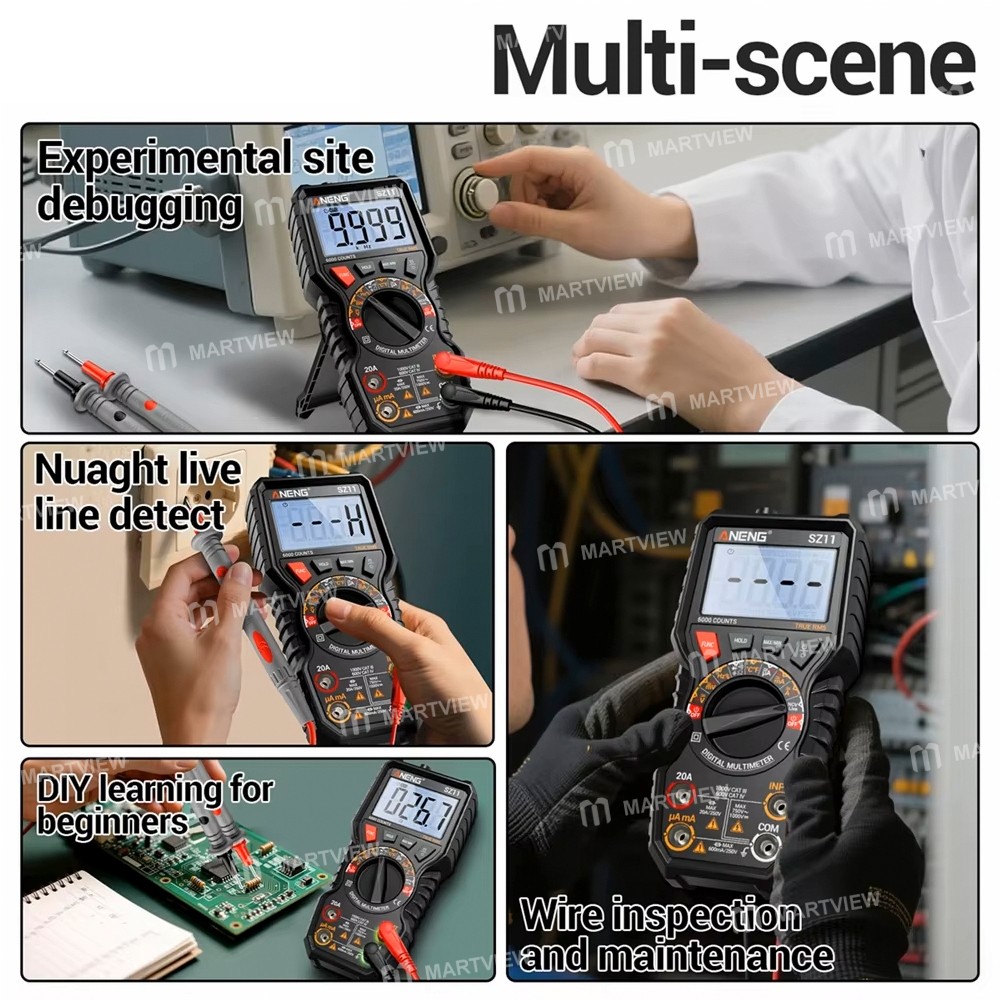

• Multi-scene measurement: Smart anti-burn have a more secure experience sensitive/stable/intelligent

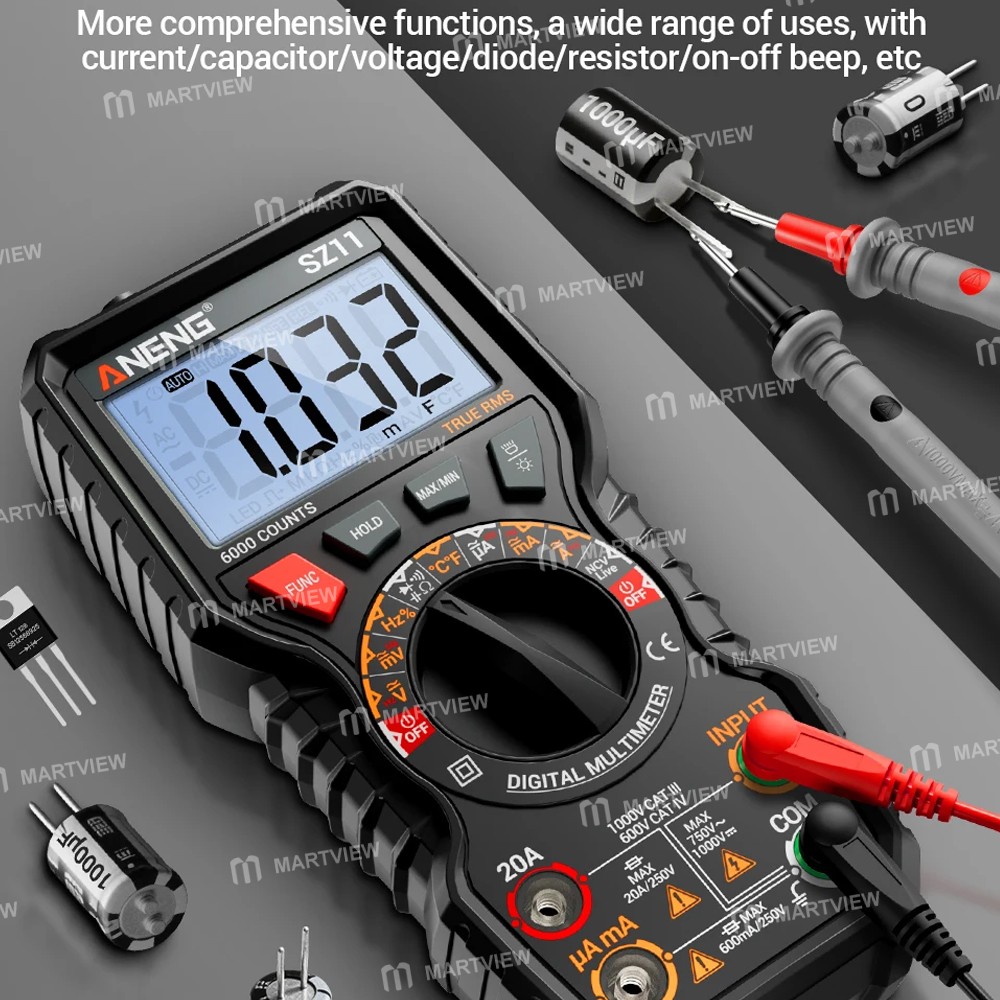

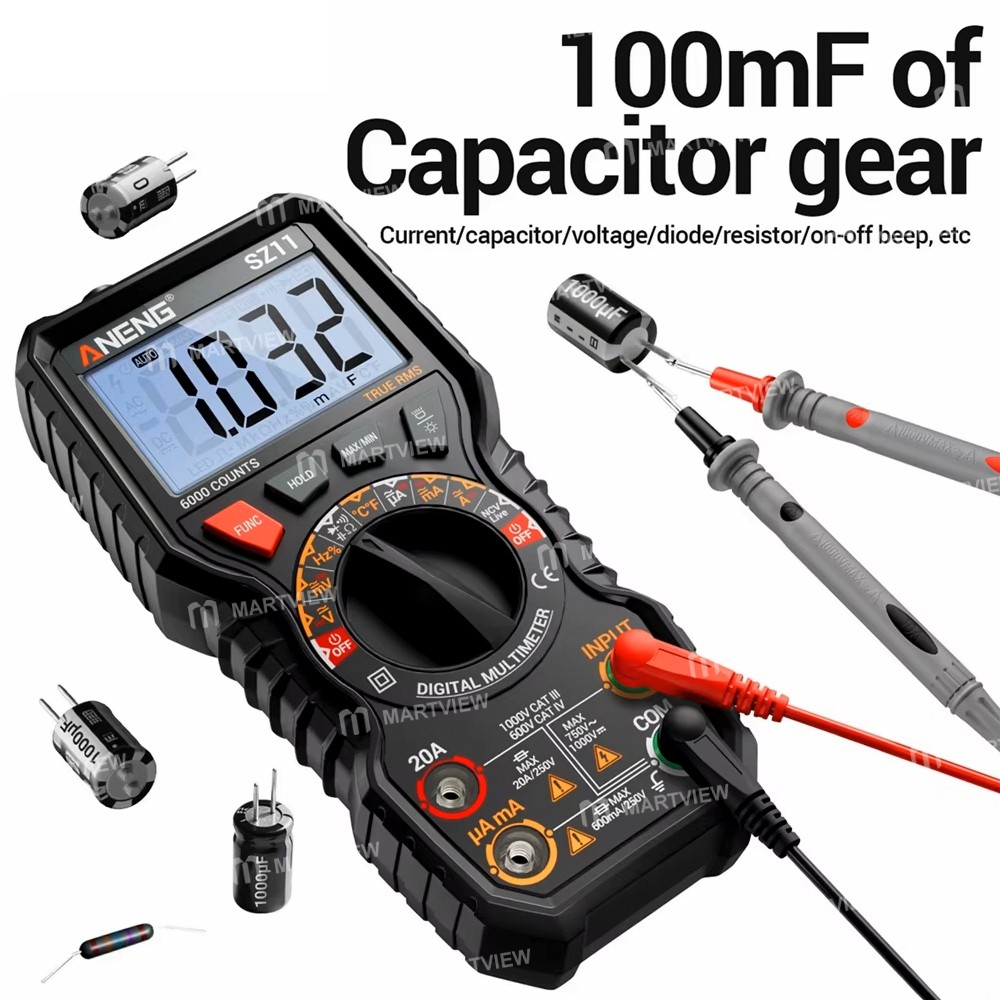

• 100mF of Capacitor Gear: More comprehensive functions, a wide range of uses, with current/capacitor/voltage/diode/resistor/on-off beep, etc

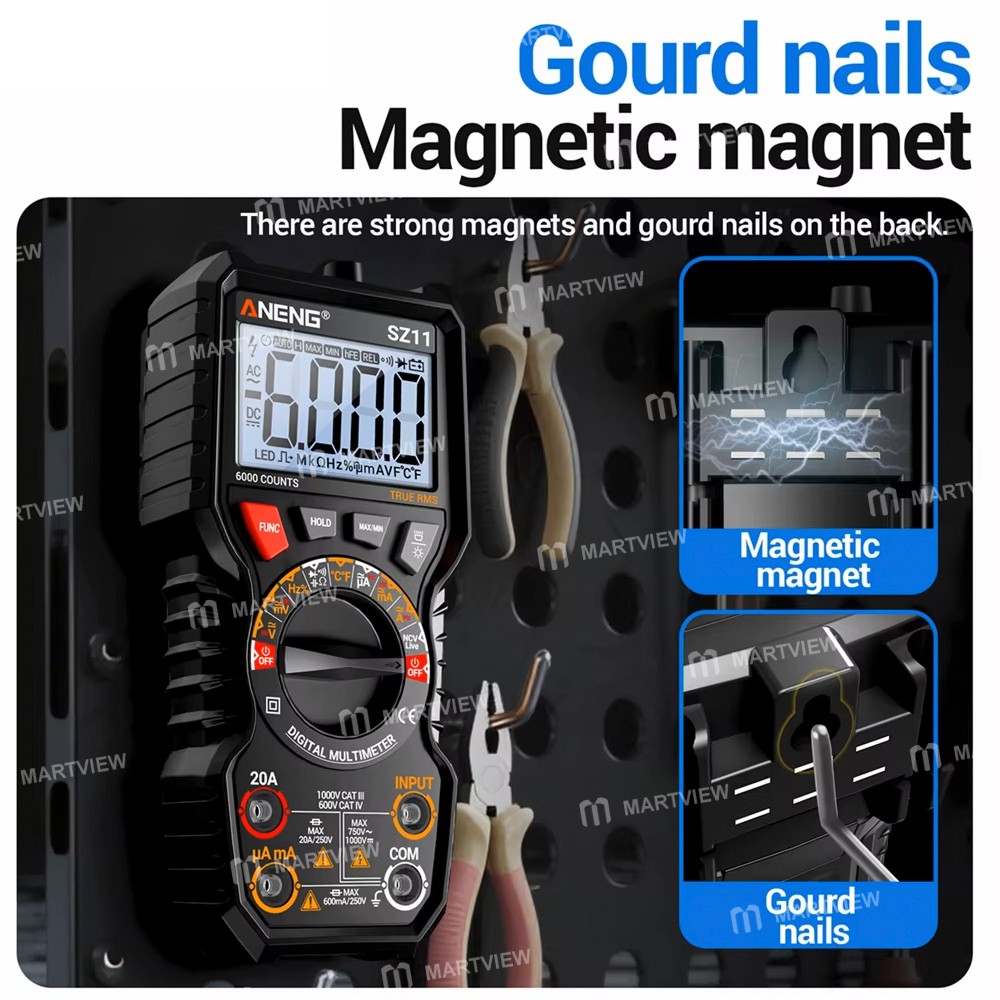

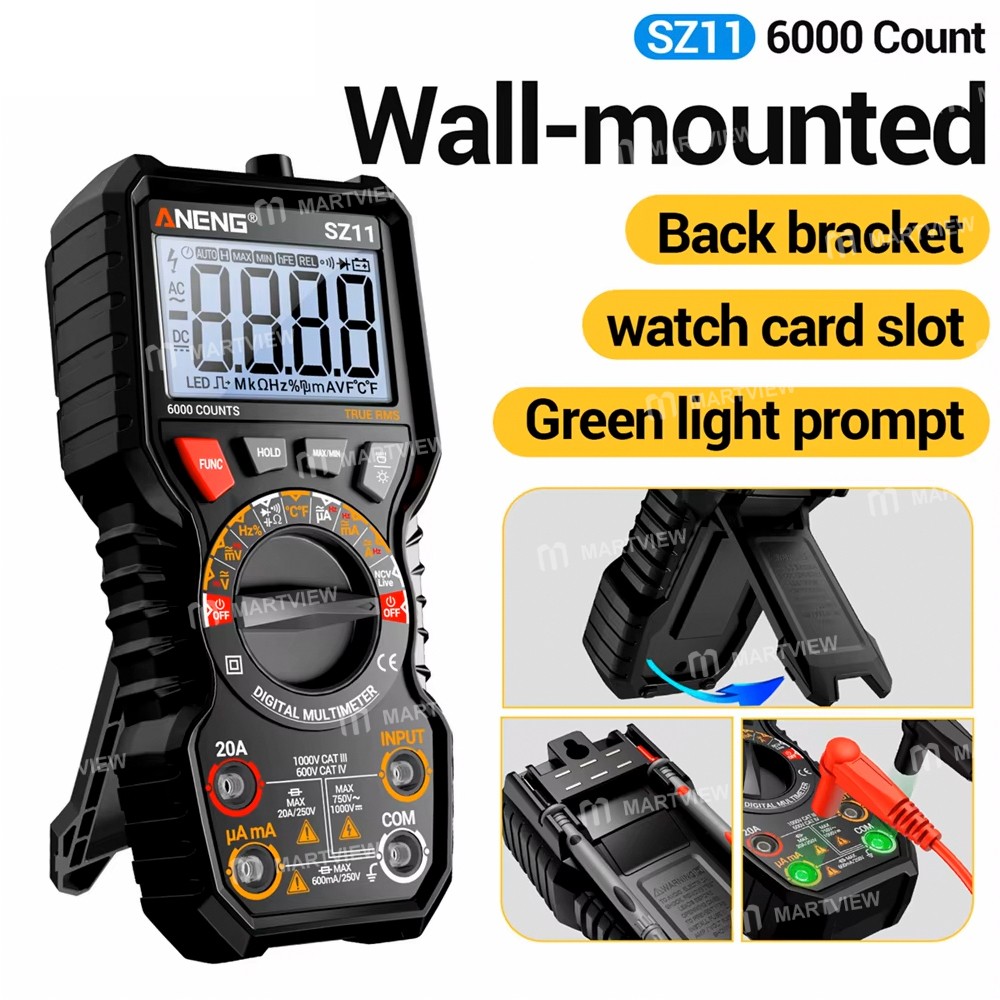

• Gourd Nails, Magnetic Magnet: With strong magnetic magnets on the back, measure adsorption on the iron plate or secure with hanging holes

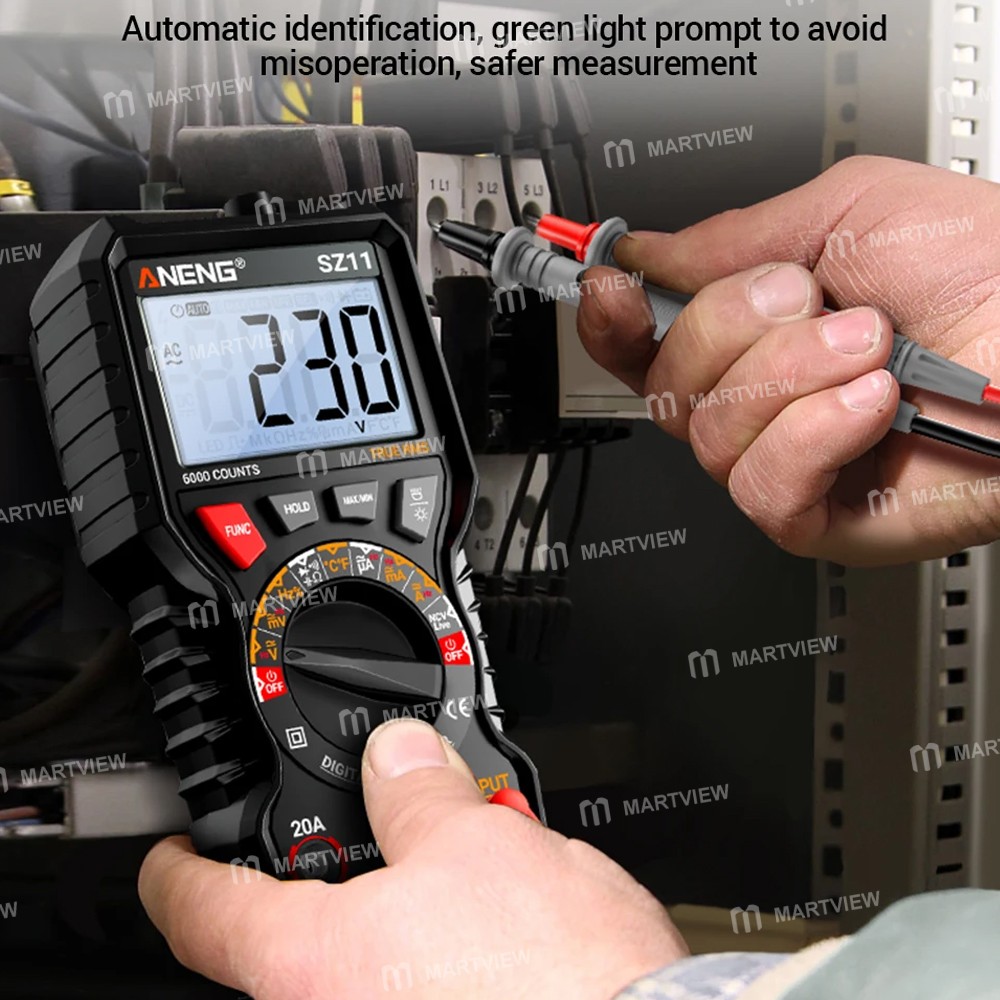

• AC voltage measurement: Automatic identification, green light prompt to avoid misoperation, safer measurement

• With Pen holder: The back pen slot precision card pen, easy to carry and fix the pen

• Double tube anti-burn: Built-in double fuse measurement is more secure

• Shrink bracket: Extension bracket adjustable angle fixed standing

• Silicone sheath: Silicone material effectively prevents cracking

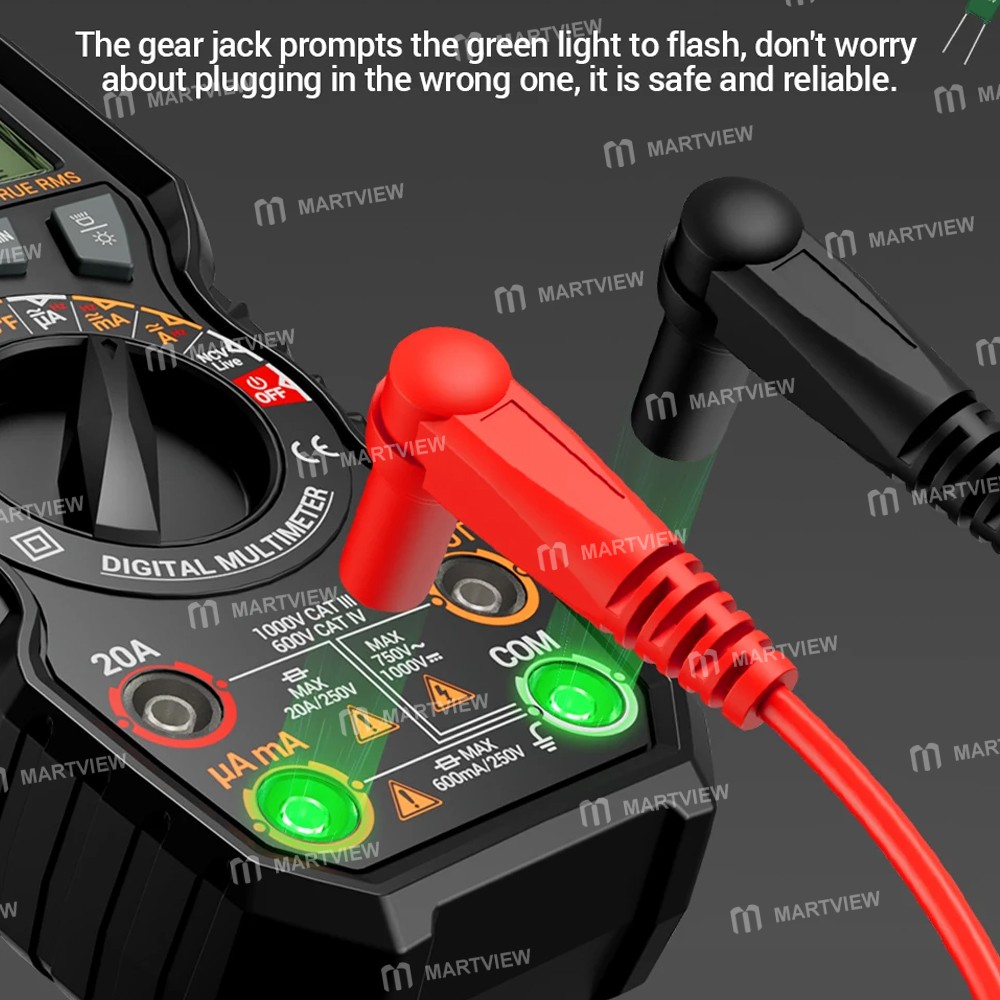

• LED green light & Jack Tip: The gear jack prompts the green light to flash, don't worry about plugging in the wrong one, it is safe and reliable

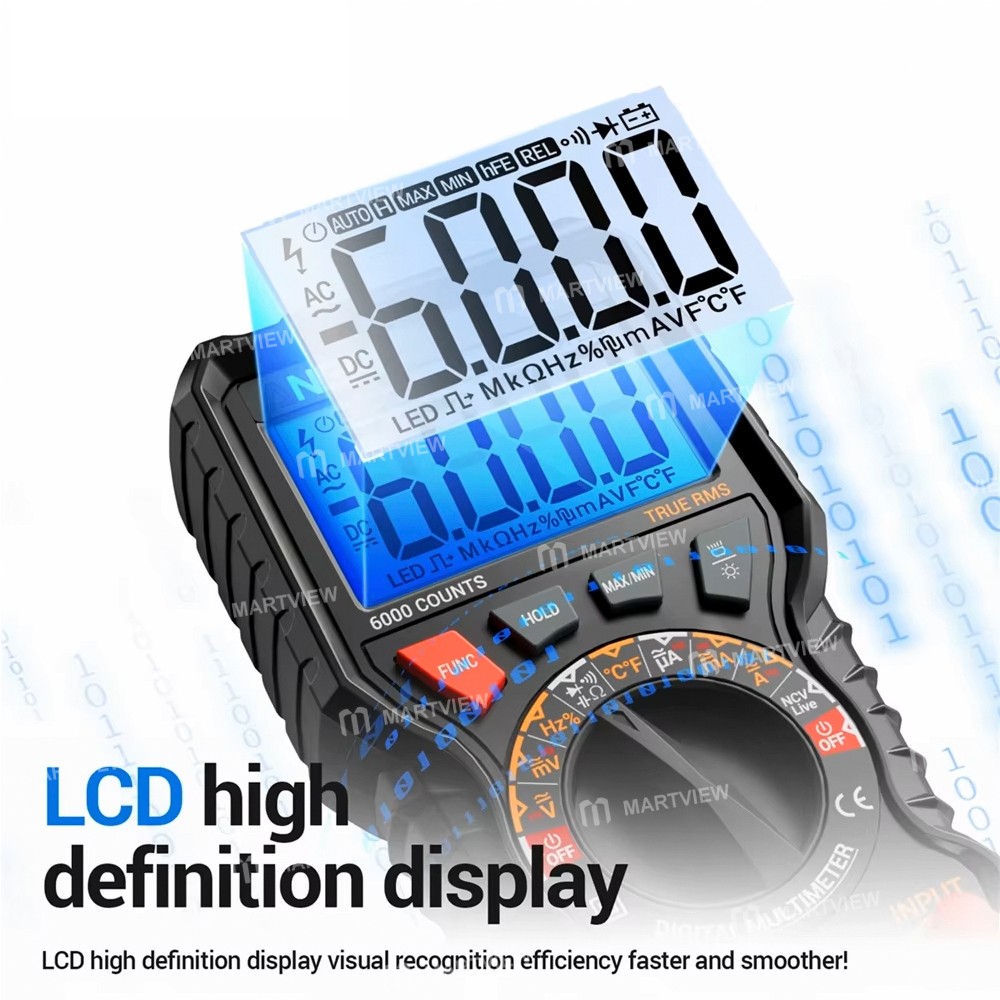

• LCD high definition display: LCD high definition display function parameters at a glance, visual recognition efficiency faster and smoother

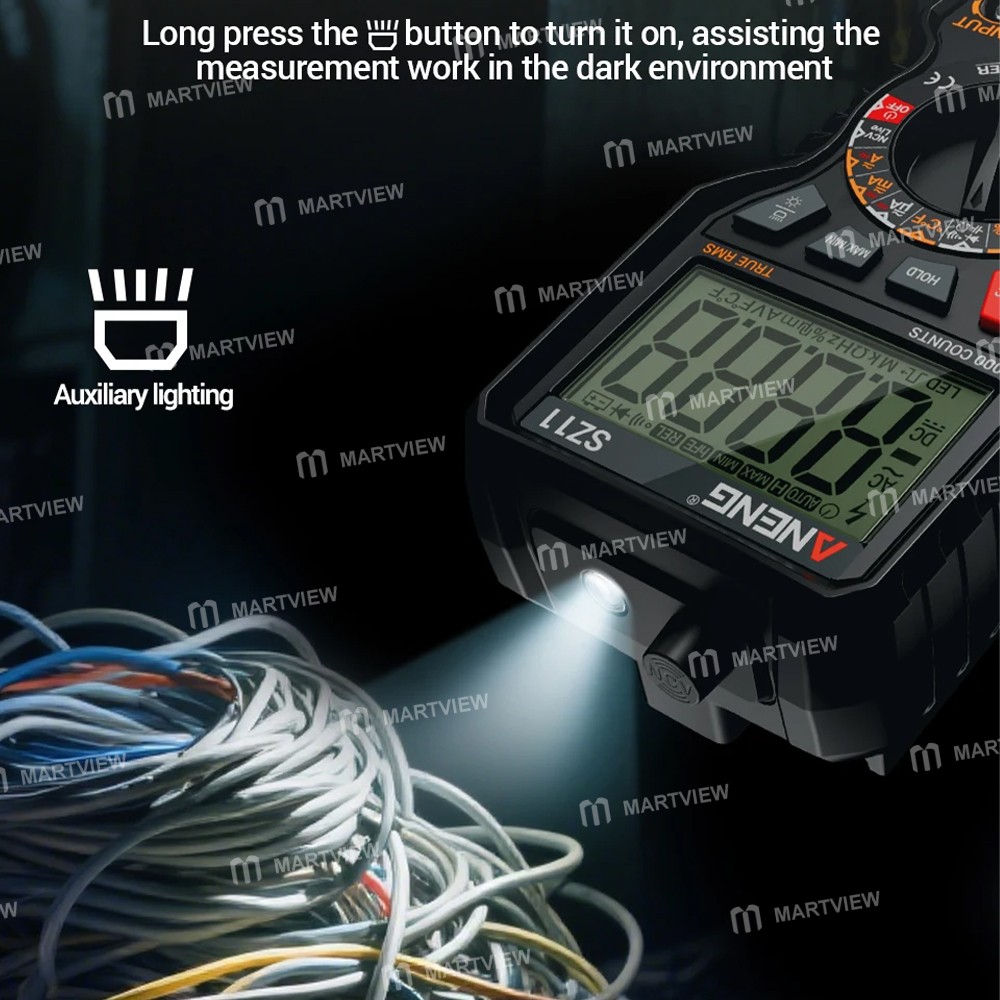

• Night flashlight assisted lighting: Long press the button to turn it on, assisting the measurement work in the dark environment

Specification:

Function	Range	Resolution	Precision
DC voltage	0mV~1000V	0.1mV~1V	± (0.5%+3)
AC voltage	0mV~750V	0.1mV~1V	± (0.8%+5)
DC current	0μA~20A	0.1μA~0.01A	± (1.2%+3)
AC current	0μA~20A	0.1μA~0.01A	± (1.2%+3)
Resistance	0Ω ~60MΩ	0.1Ω~0.01MΩ	±(1.5%+3)
Capacitor	0nF~100mF	0.001nF~0.01mF	± (5.0%+5)
Hz	0Hz~10MHz	0.001Hz~10kHz	± (1.0%+3)
Duty cycle%	1~99%	0.1%	± (3.0%+3)
Temperature °C/°F	-20~1000℃	1℃	±2.0% reading
	-4~1832°F	1°F	±2.0% reading
Nuaght live line	Yes	Low power prompt	Yes
NCV voltage induction	Yes	MAX MIN	Yes
On/Off	Yes	Flashlight lighting	Yes
Diode	Yes	Battery type	AA 1.5V battery*2 (without shipment)
LCD Backlight bright screen	Yes	Automatic shutdownA	After 15 minutes without operation
HOLD Data retention	Yes	Maximum count	6000 count
Back magnetic magnet	Yes	Material	ABS/Silicone
Wall-mounted hole	Yes	Weight	342g

Package includes:

• 1 x Clamp Meter (without Battery)

• 1 x Test Line

• 1 x Temperature Measurement Line
