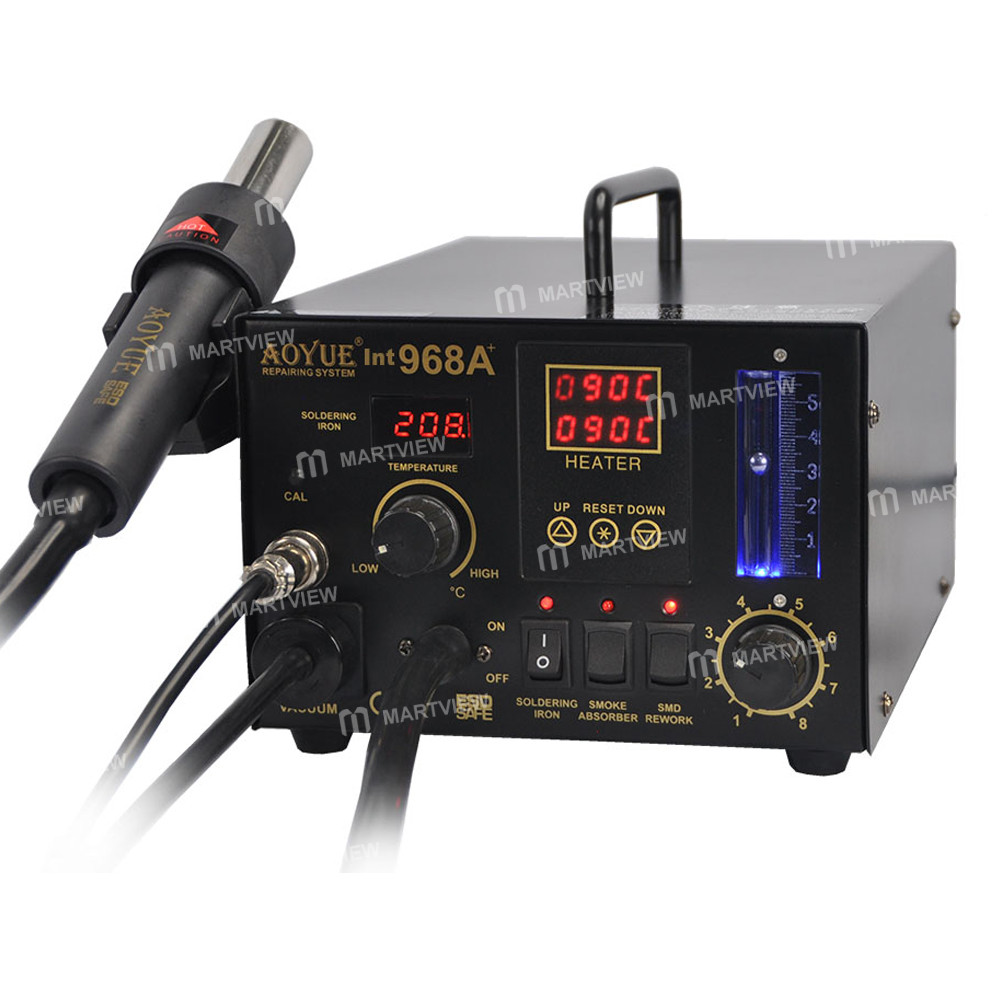

Aoyue 968A+ Anti-Static 3-in-1 Hot Air Gun + Soldering Iron + Fume Extractor Built-in Smoke Extractor

Aoyue 968A+ Anti-Static 3-in-1 Hot Air Gun + Soldering Iron + Fume Extractor Built-in Smoke Extractor

Features:

• Microprocessor-controlled ESD-safe equipment

• 3-in-1 system: Soldering Iron, Smoke Absorber, and Hot Air Gun

• Digital control and display of temperature

• Built-in smoke extractor that absorbs fumes created at the source

• Knob-type soldering iron temperature control for simple yet efficient working temperature selection

• Sleep mode for soldering iron. The soldering iron goes into sleep mode based on a user-defined duration

• Soldering iron digital calibration: soldering iron tips can be calibrated + or -50 degrees. Easily adjust temperature offset with a few simple adjustments

• Auto-cooling functionality. Blows air to cool down the system to a safe temperature before turning OFF

• Various types of available air nozzles. (QFP, BGA, PLC, SOP, SIP, etc)

• Wide selection of soldering iron tips (T Series Soldering tips) for different soldering requirements.

Specifications:
Hot Air Gun:

• Power Consumption: 550W

• Temperature Range: 100°C~480°C

• Heating Element: Metal Heating Core

• Pump Type: Diaphragm Pump

• Air Capacity: 23 L/Min (Max)

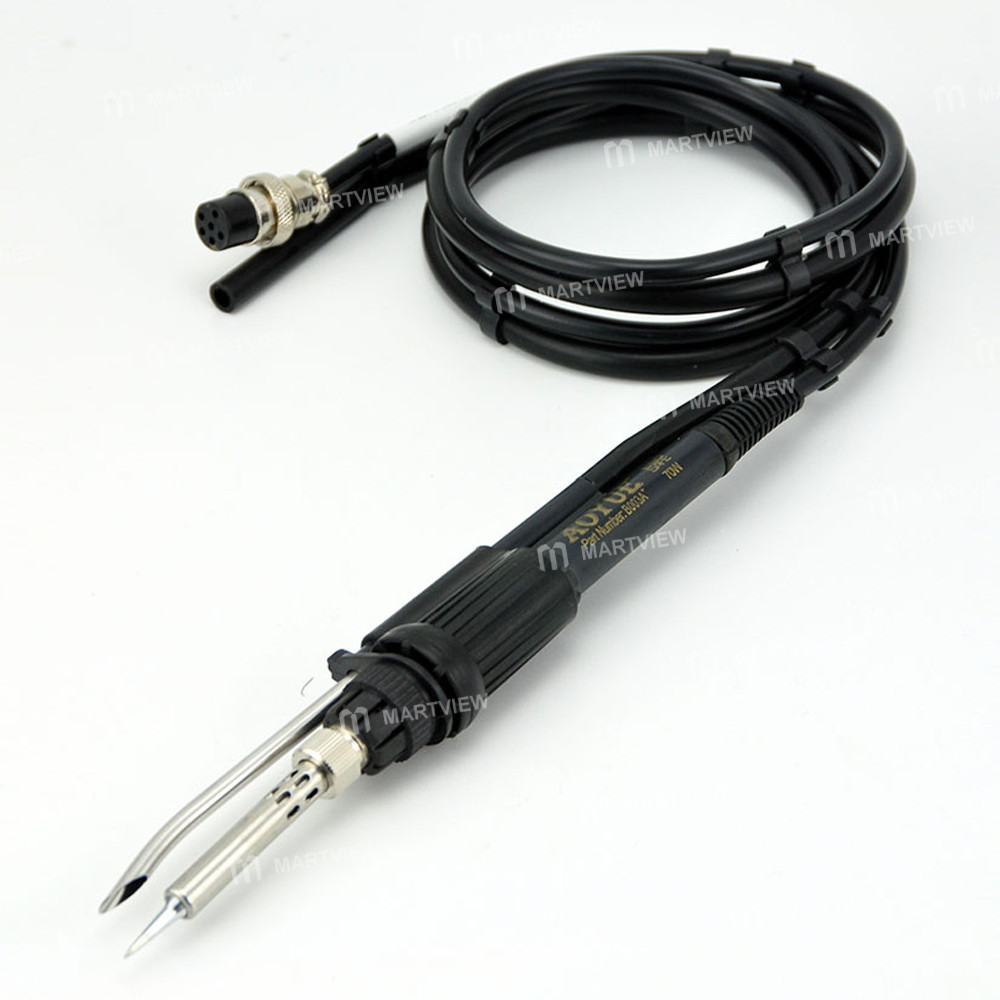

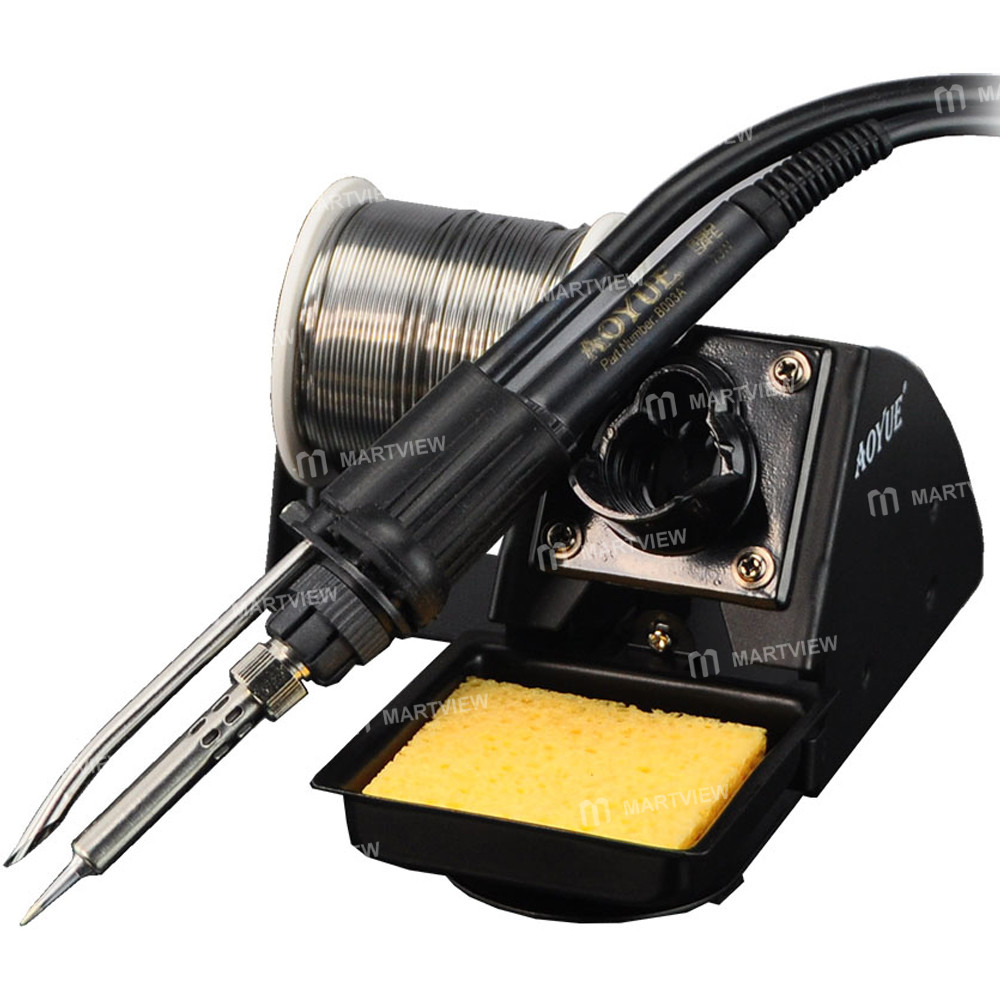

Soldering Iron:

• Power Consumption: 70W

• Output Voltage: 24V

• Temperature Range: 200°C~480°C

• Heating Element: Ceramic Heater

• Tip-to-Ground Resistance: Below 2Ω

• Tip-to-Ground Potential: Below 2mV

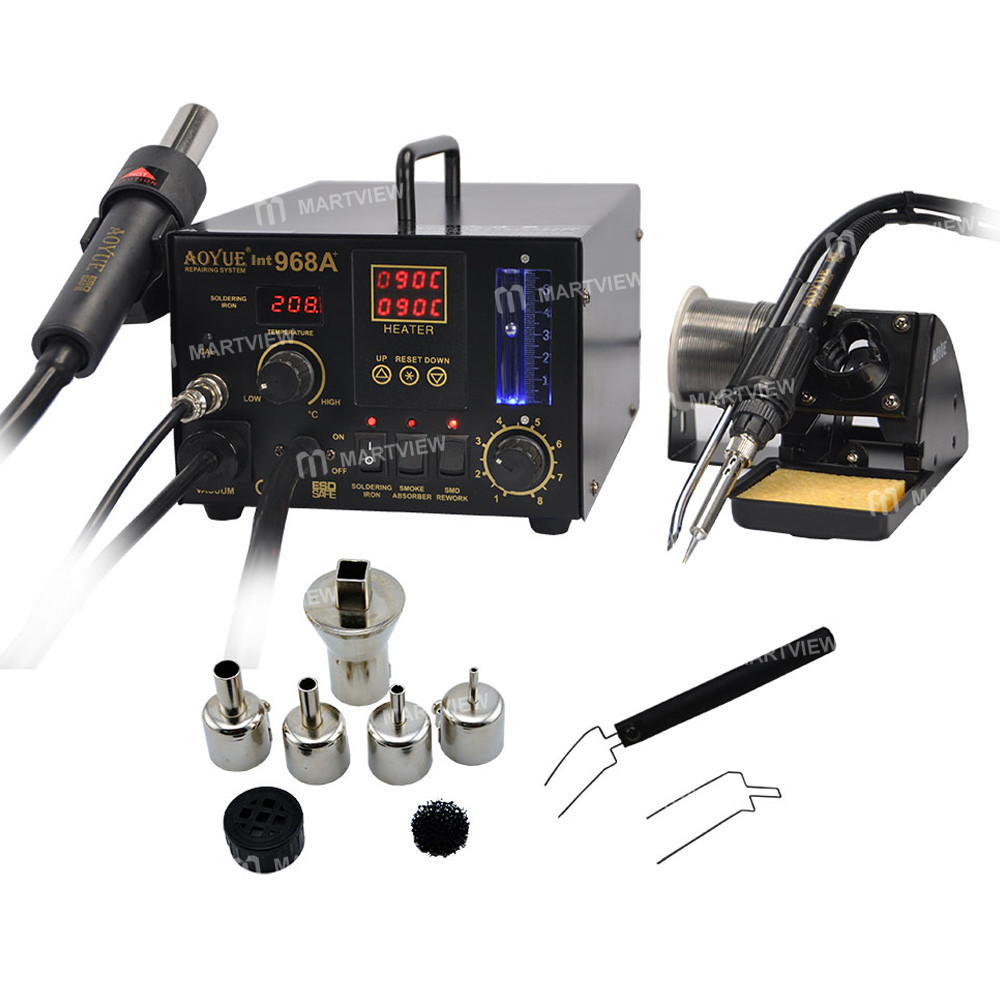

Package includes:

• 1 x Soldering Station

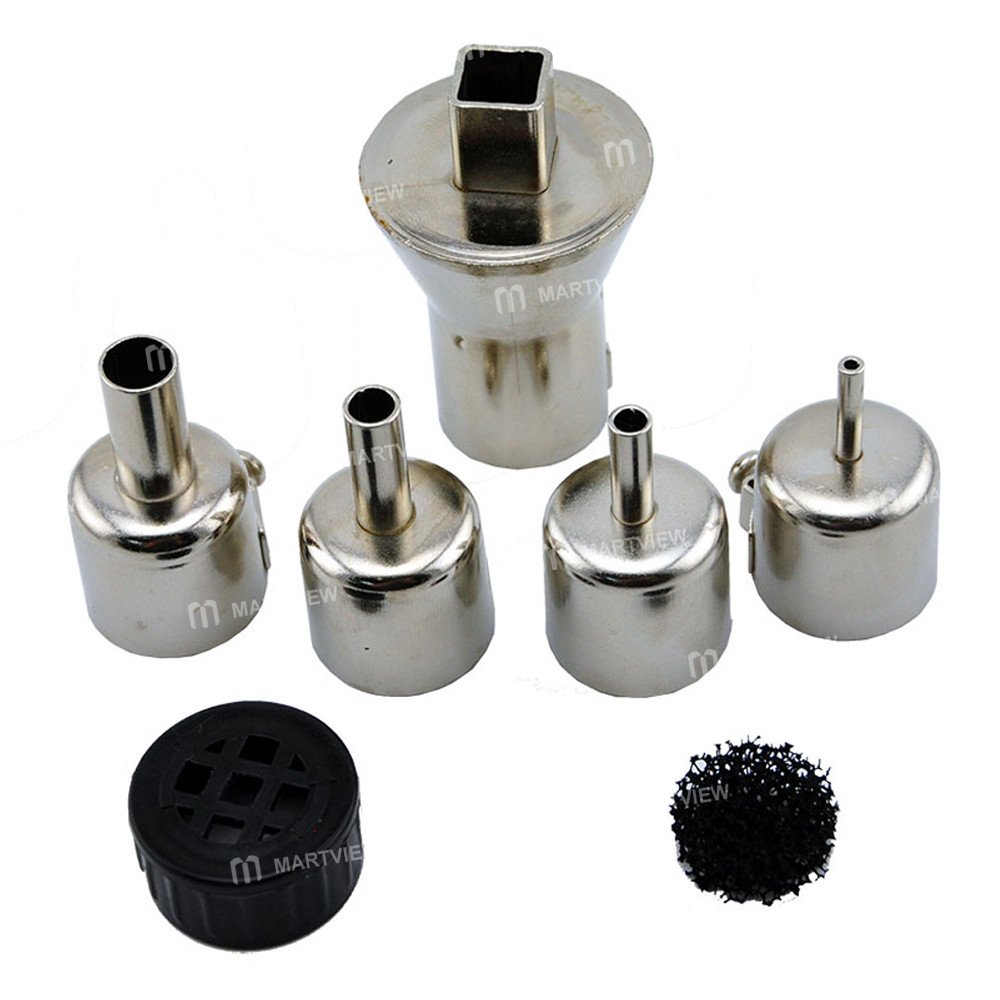

• 5 x Air Nozzles

• 1 x Filter Vacuum Cap

• 1 x Black Filter Pad (Round)

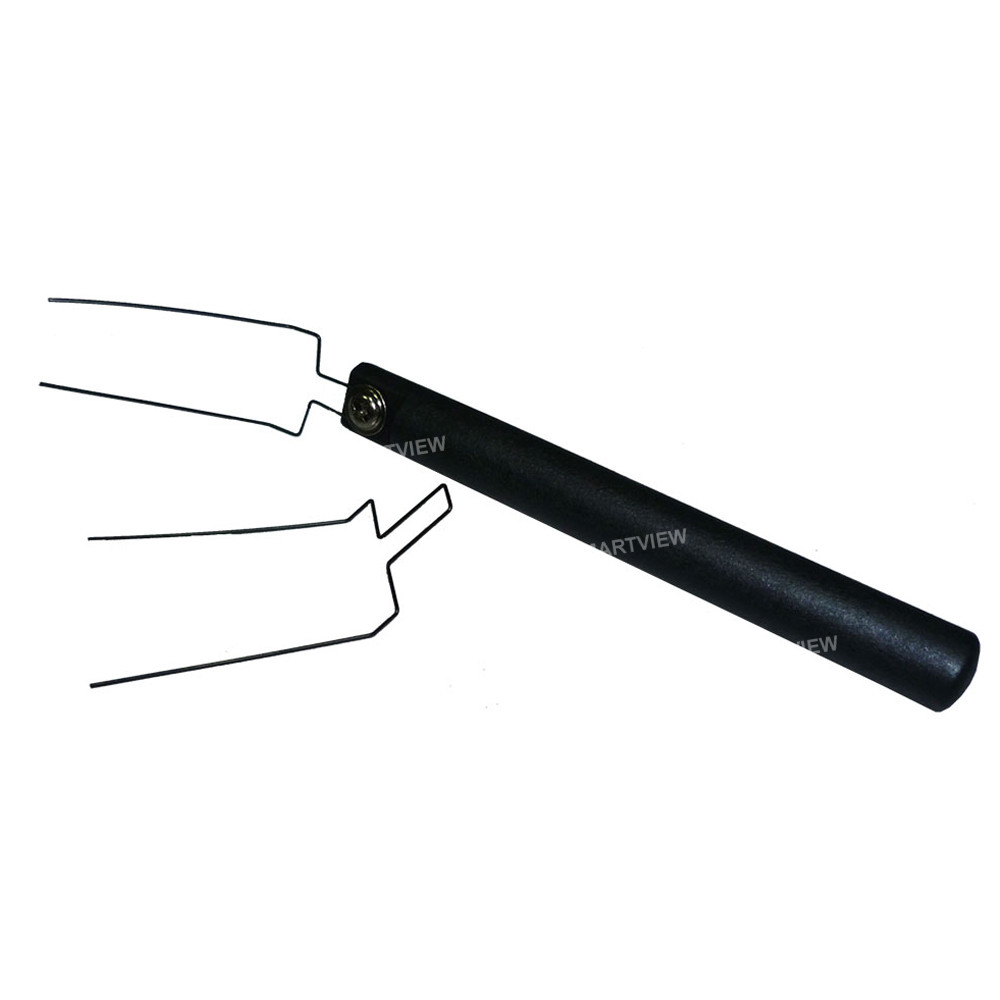

• 1 x G001 IC Popper

• 1 x Power Cord
