AOYUE INT-860 Hot Air Rework Station – High‑Precision Soldering & Desoldering Tool for PCB Repair

Description

• Compact unit with electrostatic discharge‑safe design.
• Adjustable hot‑air temperature and air pressure via knob controls, plus an airflow gauge for precise adjustments.
• Auto cool‑down system that draws heat from the nozzle before shutdown, enhancing safety and extending heater life.
• Over‑heat protection: heating element automatically shuts off if temperature exceeds the safety limit.
• Compatible with a wide range of nozzles.

• POWER INPUT: 110V / 220V
• WEIGHT: 2.1 Kg
• MAIN STATION DIMENSIONS: 132 × 195 × 127 mm
• HOT AIR GUN POWER CONSUMPTION: 300 W
• TEMPERATURE RANGE: 100 °C – 480 °C
• HEATING ELEMENT: Metal heating core
• PUMP TYPE: Diaphragm pump
• AIR CAPACITY: 23 L/min (max)

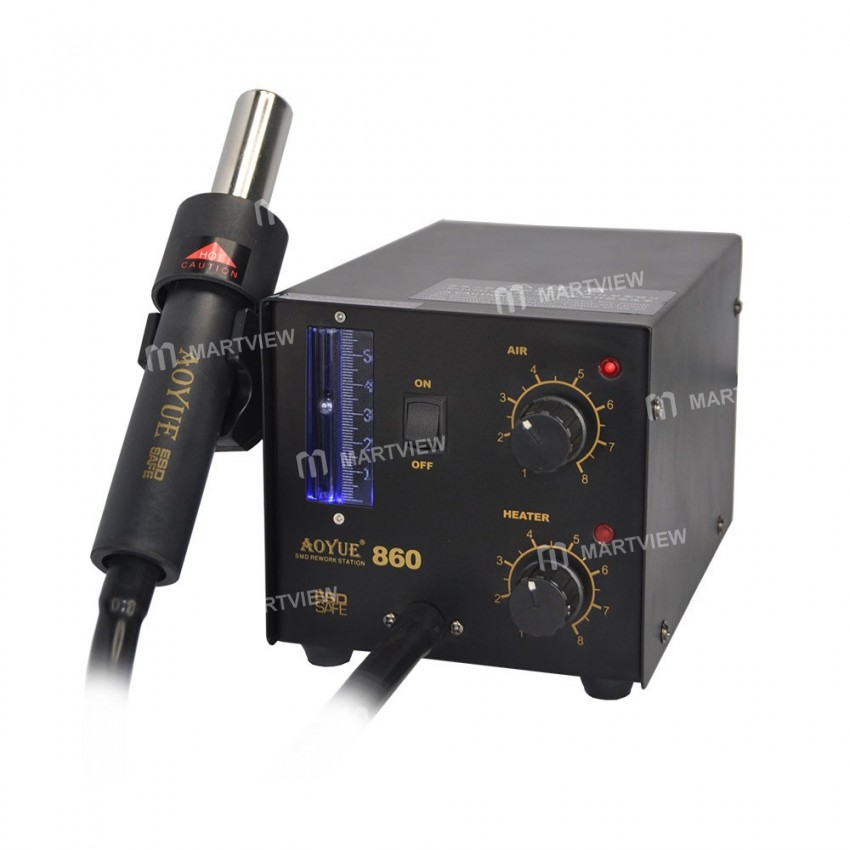

• 1 × 860 Main Station with hot‑air gun and holder

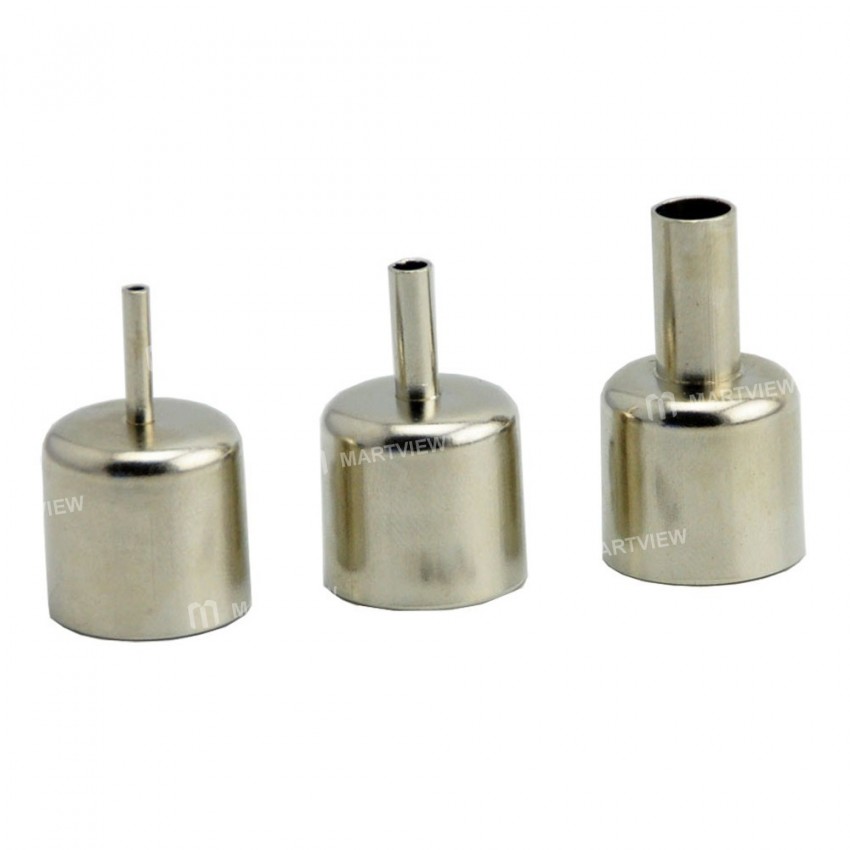

• 1 × Air nozzle set (T1124, T1130, T1197)
• 1 × G001 IC popper
• 1 × Power cord
• 1 × Instruction manual
