AOYUE INT-852 Hot Air Rework Station

Features:

• Digital display of actual temperature and set temperature.
• Airflow gauge provides visual feedback of air flow.
• Cool down safety feature. Unit blows air at room temperature to remove excess heat from the nozzle. This feature prolongs the usage life of the heating system.
• The anti-static design prevents damage of the Circuit Board due to static or electricity leak.
• The nozzle of the gun doesn’t need direct contact with the components, therefore, lessening the possibility of moving or overheating surrounding components.
• A wide range of adjustable temperature and air flow.
• Has different kind of nozzles for different purposes. Best suited
• for repairing QFP, SOP, PLCC and SOJ components

SPECIFICATIONS

• POWER INPUT：available in 110V / 220V

• WEIGHT：4.80 Kg

• MAIN STATION DIMENSION：188 x 244 x 127 mm

• HOT AIR GUN

• POWER CONSUMPTION：400W

• TEMPERATURE RANGE：100°C- 480°C

• HEATING ELEMENT： Metal Heating Core

• PUMP TYPE：Diaphragm pump

• AIR CAPACITY：23 L/min (max)

Package includes:

• 1 x Int852 Main Station with Hot Air Gun and holder.

• 1 x AT-2 Air Nozzle Set (T1124, T1130, T1196, T1197,)

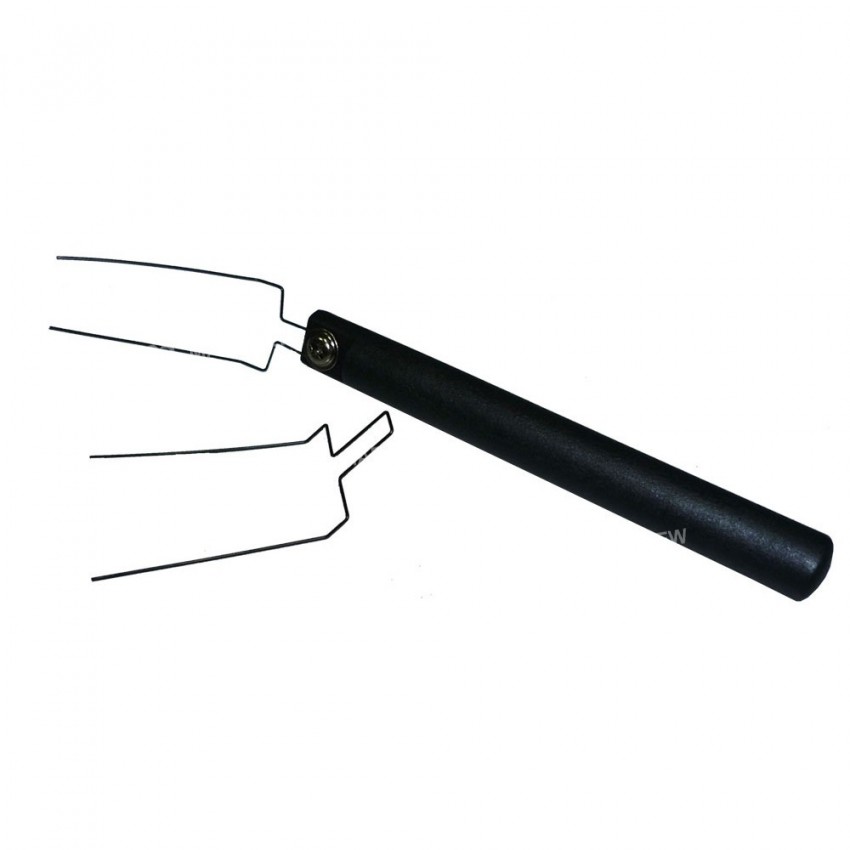

• 1 x G001 IC Popper

• 1 x Power Cord

• 1 x Instruction Manual
