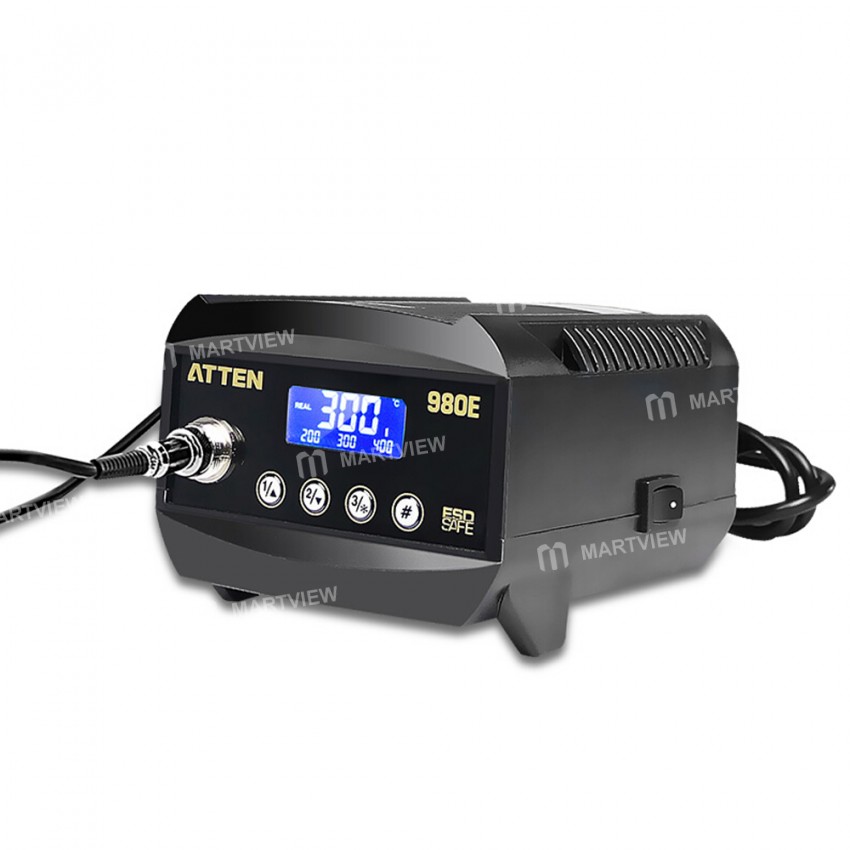

Atten AT980E 80W Lead-free Anti-static Digital Display Rework Soldering Station

Atten AT980E 80W Lead-free Anti-static Digital Display Rework Soldering Station

Features:

• The high-performance pluggable four-core heating element

• The temperature read out in ℃ and ℉

• On/Off switch on the right side of the unit

• MCU-controlled temperature calibration

• Simulate bar indicating the heating status

• LCD screen-making control visualization

• User-friendly menu enables system setting easier

• Separate iron stand to save room and to make easier deposit

• Buttons(1,2,3) for pre-setting or switching frequently used temperature

• Low-voltage heater separated from power supply to keep soldering work safer

• Soldering tip designed separate from heater and using exchangeable 900M series to save use-cost

Specification:

• Voltage: AC110V/220V

• Power: 80W

• Heater Voltage: AC 26V

• Temperature range: 150~480°C

• Temperature offset range: +50°C

• Temperature stability: +2°C (in still air, no load)

• Setting method: Adjust by buttons

• Temperature calibration: Digital

• Heater: 80W High quality pluggable four-core heating element

• Tip-to-ground impedance: 2Ω

• Tip-to-ground voltage: 2mV

Package includes:

• 1 x Soldering Station

• 1 x Soldering Iron Handle

• 1 x Soldering Iron Tip

• 1 x Soldering Iron Holder

• 1 x Power Cable
