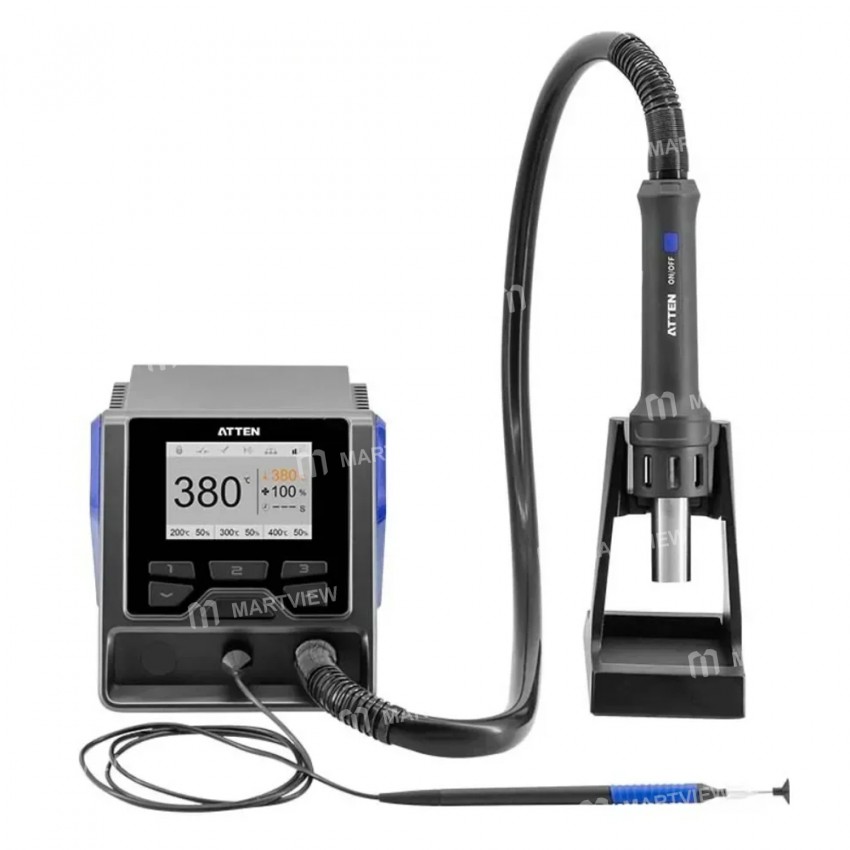

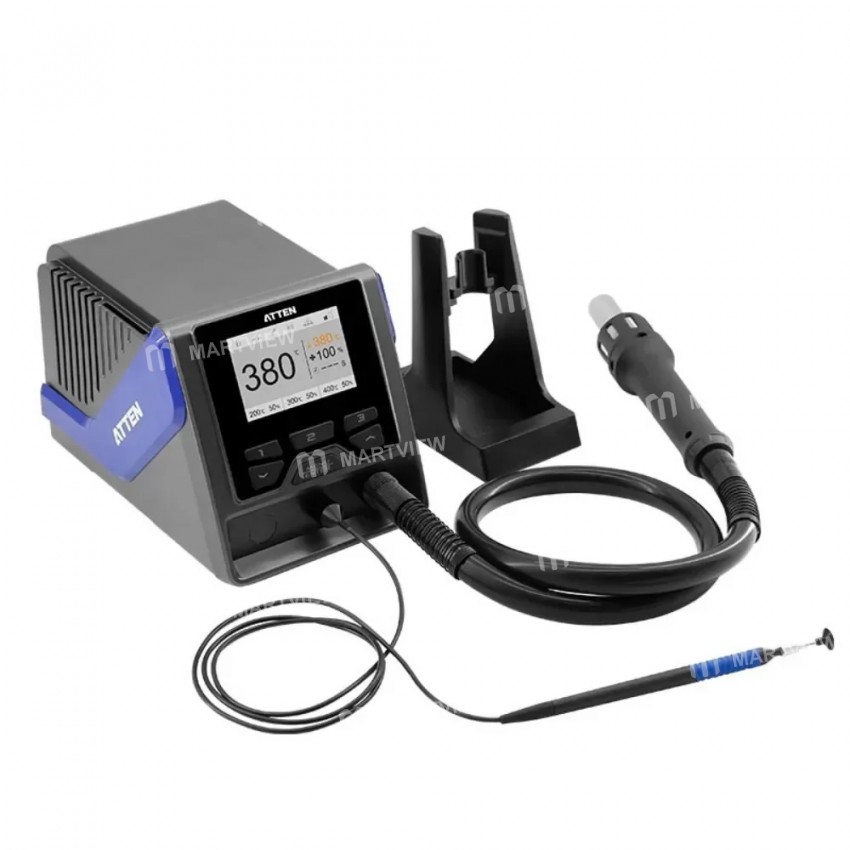

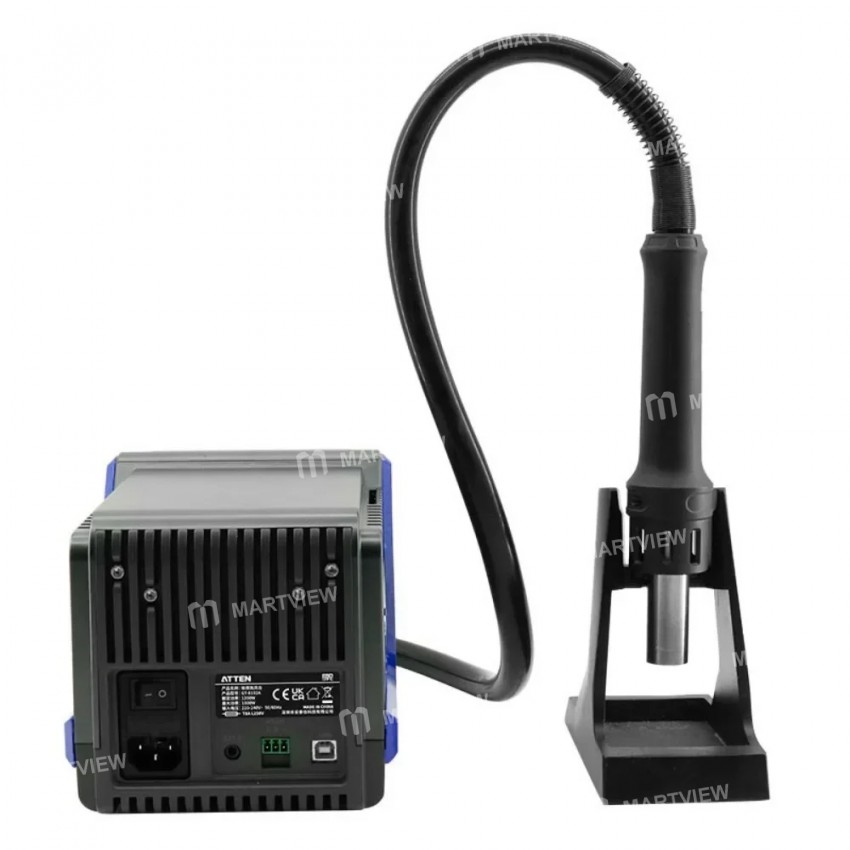

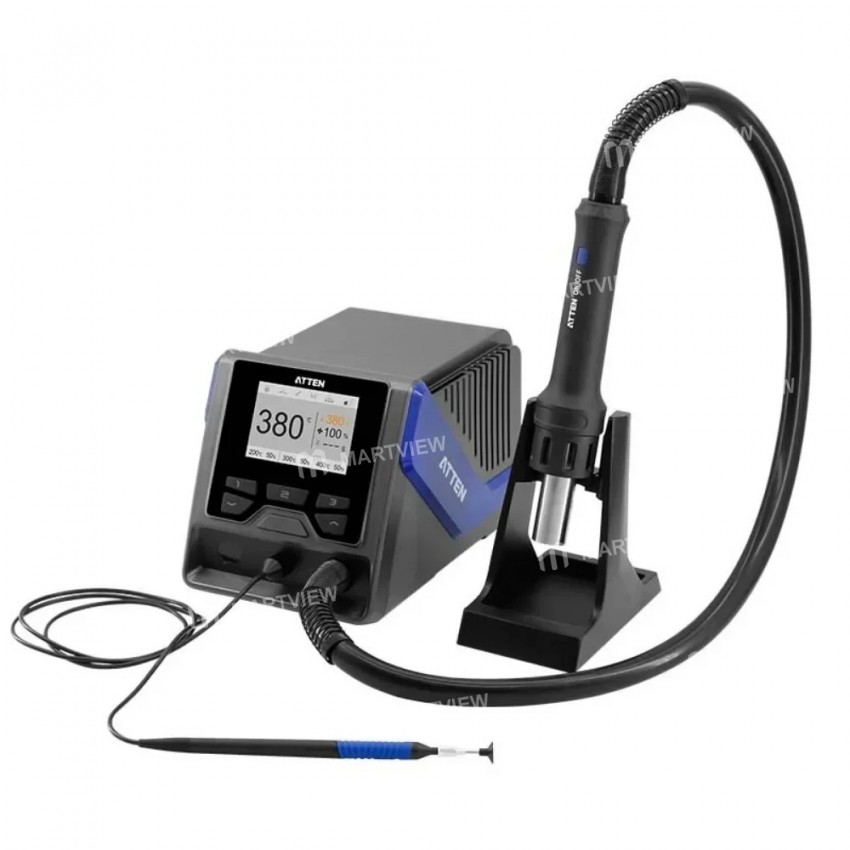

Atten GT-1028 1300W High Power Programmable Intelligent Digital Display Hot Air Desoldering Station

Atten GT-1028 1300W High Power Programmable Intelligent Digital Display Hot Air Desoldering Station

Features:

• GT-1028 2-Tools Intelligent Rework Station with Vacuum pick-up tool

• Large TFT color screen, more convenient to set and monitor parameters

• 1300W pluggable ceramic heater, heating fast

• Equipped with a vacuum suction pen, components can be extracted after desoldering

• Built-in brushless fan, long use life, and low noise

• PID algorithm temperature control, accurate, and stable temperature

• Infrared temperature calibration function

• Temperature curve setting function

• 3 sets of shortcut air volume/temperature to simplify operations

• Support control the switch on and off of the smoke purifier

• Can be controlled by an external pedal

• Built-in RS-485 communication interface, supports IoT function

Specification:

• Model: GT-1028

• Rated operating voltage: AC 110V/220V

• Power: 1330W(220-240V)/1000W(110-120V)

• Fuse: T8A(AC 250V)/T12A (AC 125V)

• Temperature Range: 100℃~500℃/212℉~932℉

• Air Volume Range: 1%~100%

• Timing Time: 10~900s (Can be turned off)

• Temperature unit: ℃/℉, default ℃

• Vacuum pressure: -60Kpa

• Airflow: 120L/Min (Max)

• Multiple alarm and protection functions: Heater open circuit alarm, sensor fault alarm, zero crossing signal alarm, SCR damage alarm, over-temperature protection alarm

• Password protection function: Available (Off by default)

• Alarm function: Available (On by default)

• User temperature compensation: ±50℃/±90℉

• Multiple languages for user interface: Chinese/English

• Heating power display: 5 dynamic power bars

• Temperature adjustment step: Long press for 10 units adjustment, short press for 1 unit adjustment

• Air volume adjustment step: Long press for 2 units adjustment, short press for 1 unit adjustment

• Rapid temperature air volume time: 3 groups of temperature/air volume/time, can be called quickly

• Working conditions: Temperature 0℃~40℃; Relative humidity<85%RH

• Dimension: 230*142*145mm

• Weight (N.W.): Approx. 4Kg

Package includes:

• 1 x Desoldering Station

• 1 x Power Cord

• 1 x Hot Air Gun Handle

• 3 x Hot Air Gun Nozzle

• 1 x Hot Air Gun Holder

• 1 x USB Cable (A To B)

• 1 x Vacuum Pen (Included Tool Box)

• 2 x Bent Suction Nozzle

• 2 x Straight Suction Nozzle

• 12 x Suction Disc
