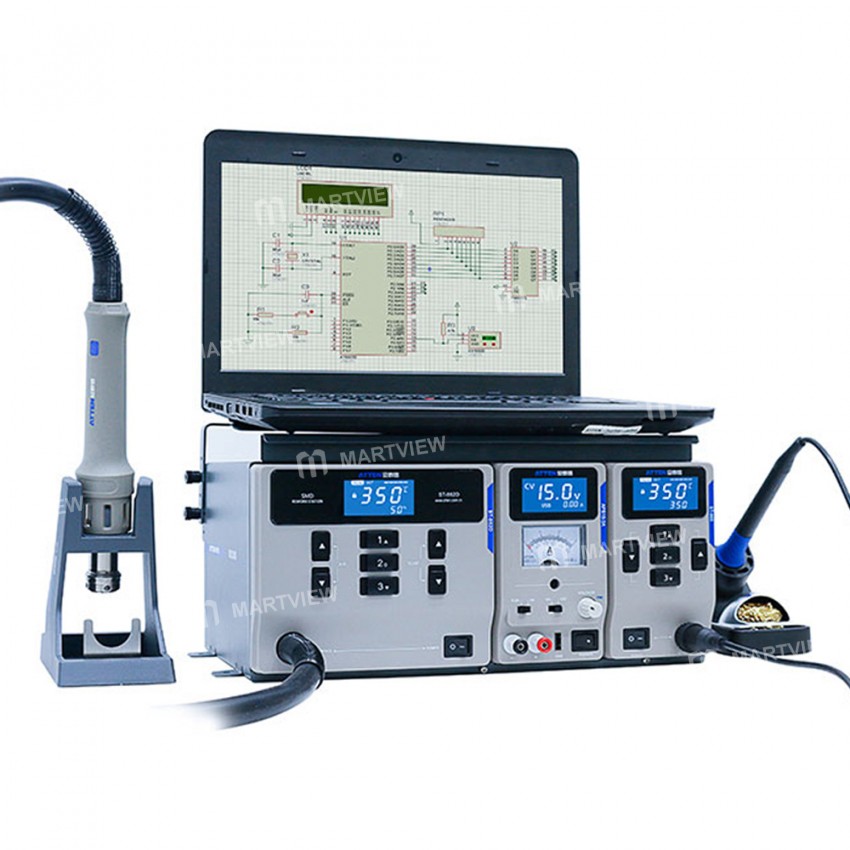

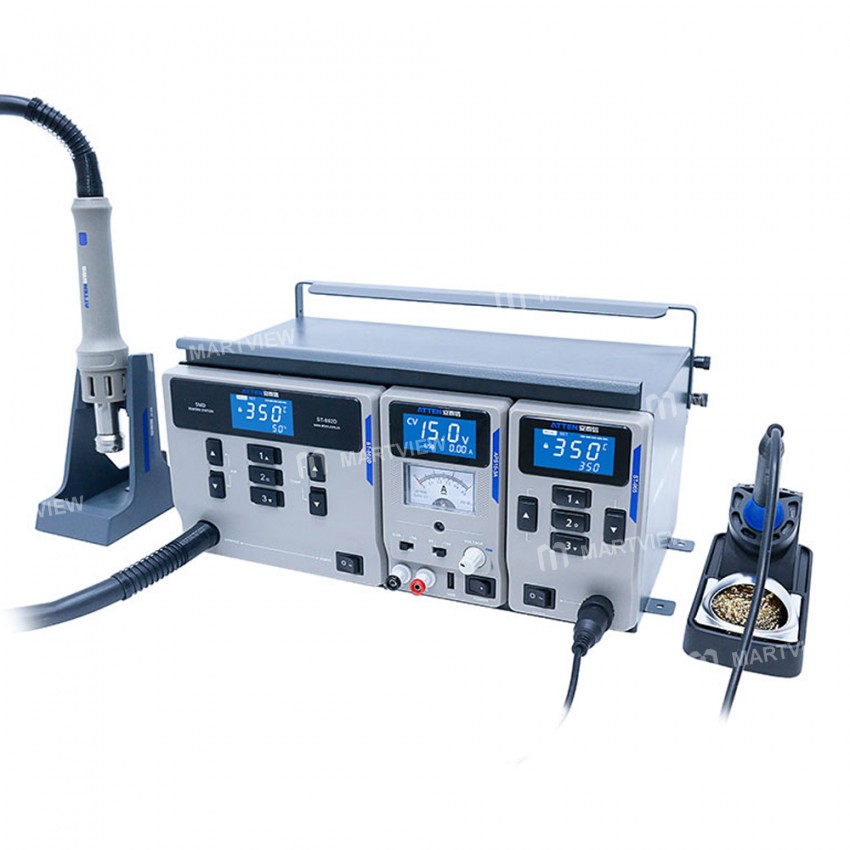

Atten MS-300 3 in 1 Soldering Rework Station Maintenance System with Electric Soldering iron Station and Heat Gun

Atten MS-300 3 in 1 Soldering Rework Station Maintenance System with Electric Soldering iron Station and Heat Gun

Features:
ST-862D (Hot Air Rework Station)

• Input Voltage : 220V / 110V

• Power: 1000W

• Temperature Range: 100~480℃

• Maximum Air Flow:120L/min

• The LCD screen displays the operating temperature and status to achieve visual and human-machine interaction.

• The menu-style operation, three sets of fast temperature/air volume access keys to achieving common temperature fast switching

• Strong airflow with brushless fans

• Plug-in heating chip replacement is fast

• Straight wind and spiral wind convertible

• Automatic sleep

• Temperature lock function timed work function

• Software calibration temperature control function, temperature compensation, to achieve constant temperature work

ST-965 (Soldering Station)

• Temperature locking, temperature calibration, and temperature alarming function

• Password protecting function and temperature unite switching function

• Buttons(1,2,3) for pre-setting or switching frequently used temperature

• New design with LCD screen making control visualization

• Automatic standby, shutdown with smart time setting

• MCU controlled temperature calibration

• Beep alarm function available

• Security sticker

• Copper transformer

• Pluggable heater

• SMT Process

• Product No: ST-965

• Rated working voltage: AC 230V±10% 50Hz(110V±10% 60Hz)

• Rated power65W(Max)

• Security Level: Class 1(Host of the controller)Class 3(Accessories of soldering handle)

• Power fuse: T1A(230VAC) T2A(110VAC)

• Temperature range:200℃~450℃/392℉~842℉

• Temperature accuracy：±10℃

• Temperature stability emperature：±1℃

APS15-3A(DC Regulated Power Supply)

• Double-type header design, more suitable for the use of communication equipment products

• Fast dynamic load response speed, optimized processing for communication equipment

• The product is designed with a cut-off self-recovery protection function and over-temperature protection function

• Independent 5γUSB interface, providing 2.1A current output capability, with overcurrent

• Short circuit protection function

• Voltage and current dual gear switch, respectively adapt to different equipment

• Built-in voltage gear automatic adjustment function, which can better adapt to full load use

• Digital encoder adjusts voltage, coarse adjustment and fine adjustment function switch, more precise control and longer life

• With input adjustment and lock function, alarm prompt function, effectively prevent misoperation

• Intelligent fan control automatically controls the temperature of the internal power device

• Input voltage: AC 220V/110V (optional)

• Main output voltage: 0-5V/0-15V dual gear

• Main output current: 0.5A/3A dual gear

• Rated output power: 56W (including USB interface output)

• Ripple and noise: CV≤0.5mvrms

• Power regulation rate: CV≤0.01%+3mV

• Load regulation rate: CV≤0.01%+8mV

• Readback accuracy: LCD meter head: ± (0.5 reading + 2 digits)

• Current pointer meter head: CLASS-2.5

• Protection function: OCP (over current cut-off recoverable type) / OHP (overheat protection)

• Other functions: coarse adjustment and fine adjustment, 5V/15V switching, 0.5A/3A switching, parameter lock function

• USB interface: fixed 5V output (±5% accuracy, 2.1A maximum (overcurrent protection, cut-off output)

• Cooling method: intelligent temperature control air cooling

• Digital control, series adjustment mode control, low ripple, low noise, high stability

Package includes:

• 1 x Soldering Station (ATTEN ST-965)

• 1 x Hot Air Station (ATTEN ST-862D)

• 1 x DC Power Supply (ATTEN APS15-3A)
