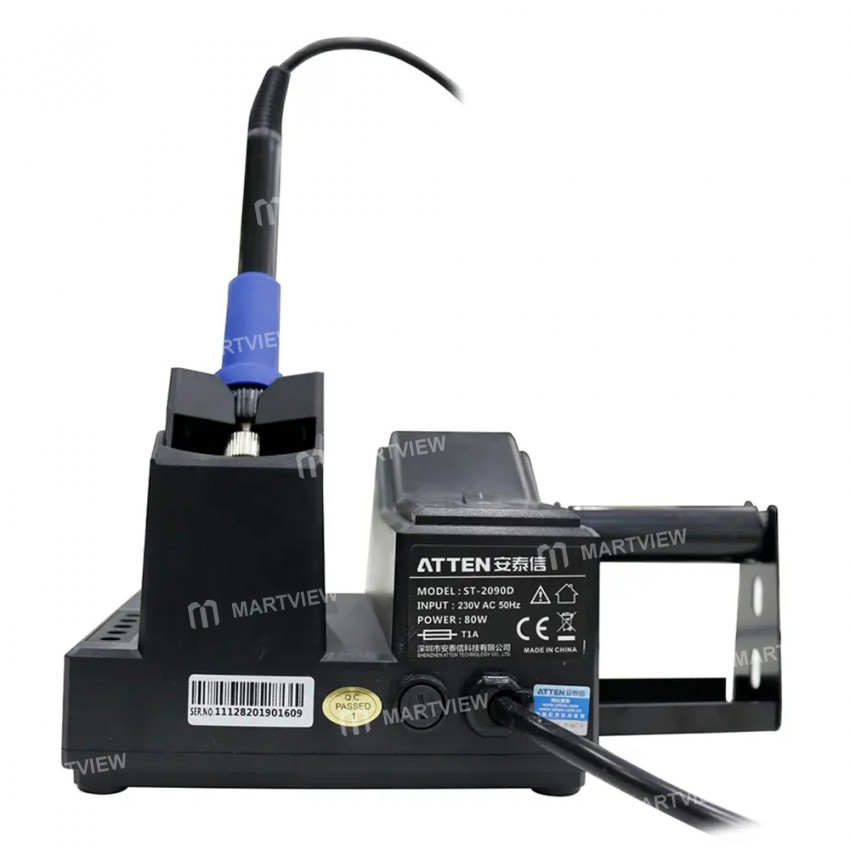

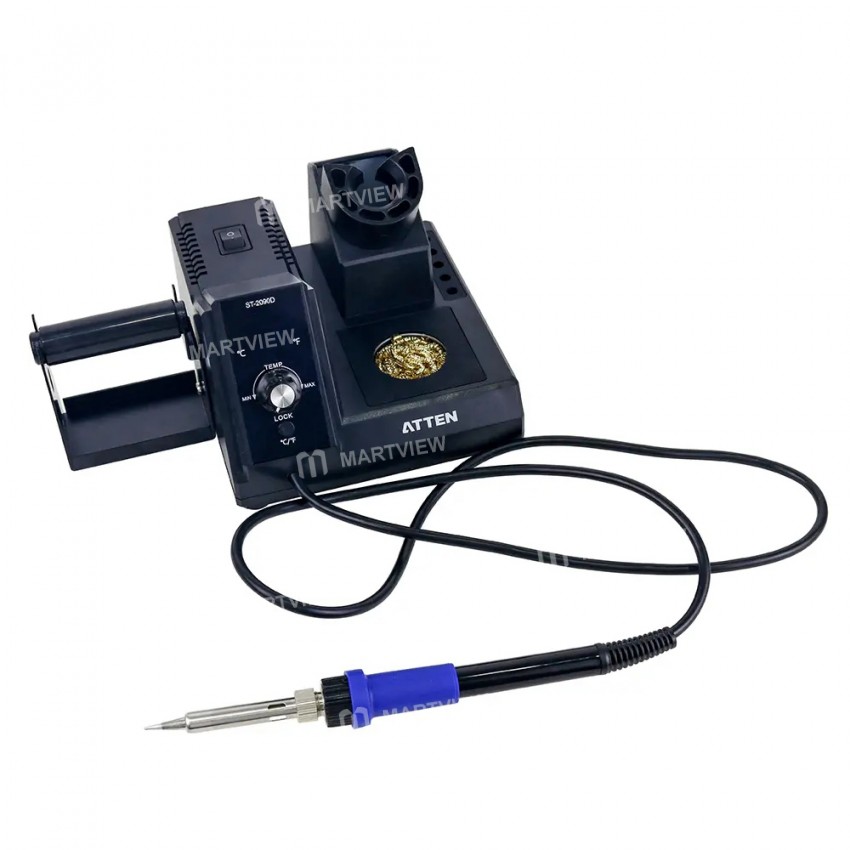

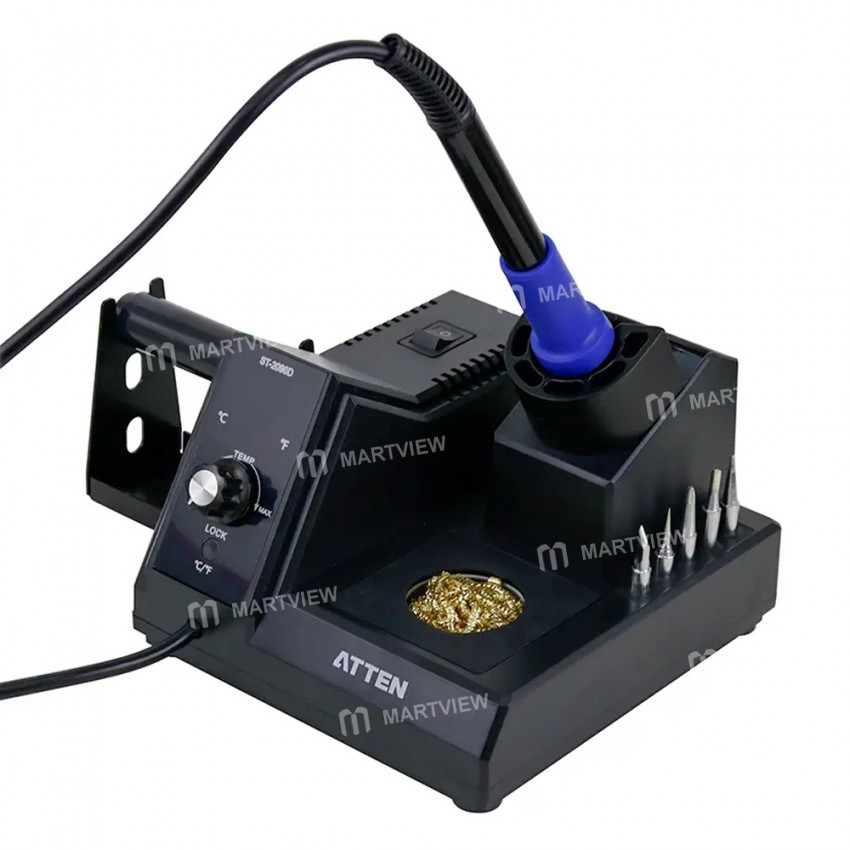

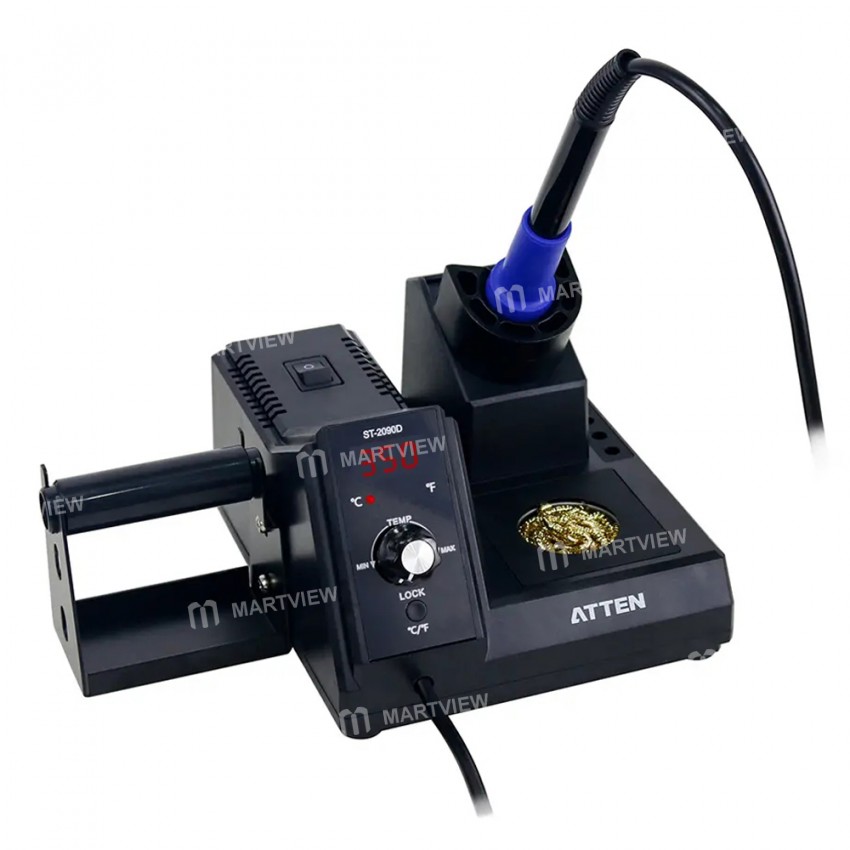

Atten ST-2090D 80W Multi-function Thermostatic Digital Soldering Station with Soldering Wire Holder

Atten ST-2090D 80W Multi-function Thermostatic Digital Soldering Station with Soldering Wire Holder

Features:

• This product is designed with a digital nixie tube display segmented display

• Combined soldering station with a soldering iron and solder wire holder

• MCU controlled temperature calibration with PID system equipped, adjust the temperature by knob button, easy to operate

• The handle structure is ergonomically designed for a comfortable grip

• The heating wire and sensor are made of PTC material which is quick in temperature rise and precise in temperature control

• Auto-standby and auto-shutdown are available

• It can adjust temperature rapidly by temperature knob, the setting temperature will be shown when adjusting the temperature, and the real temperature of the soldering tip will be displayed after stopped adjusting the temperature for 3 seconds

• The temperature range is 80~480℃

• Press the LOOK/℃/℉ button for 3 seconds at the same time, the current temperature will be locked and display LOC for locking temperature. It can unlock by pressing the LOOK/℃/℉ button for 3 seconds again

• When the soldering is not in use and put the soldering iron on the iron holder, it will auto standby after 10 minutes, the heater temperature will drop to 200 ℃, the nixie tube display STB, pick up the soldering iron and back to normal working mode

• In auto standby mode, the soldering station will auto-sleep after 20 minutes, nixie tube display SLP, it will get back to normal work mode by adjusting the knob or pressing the button

• E02 shown on the display screen means there is an error in the sensor

Specification:

• Model: ST-2090D

• Power consumption: 80W

• Input voltage: AC 220V

• Output voltage: AC 24V

• Display method: LED

• Temperature range: 80~480℃ (176 ～896℉)

• Temperature offset range: ±50℃ (±90℉)

• Temperature stability: ±2℃ at idle temperature

• Tip to ground resistance: <2Ω

• Tip to ground potential: <2mV

• Temperature accuracy: ±15℃

• Temperature adjustment: Knob control

• Heating element: Four-core PTC heater

• Soldering tip: T900-B

• Dimensions: 20*18*12.5 cm

• Net weight: 0.7kg

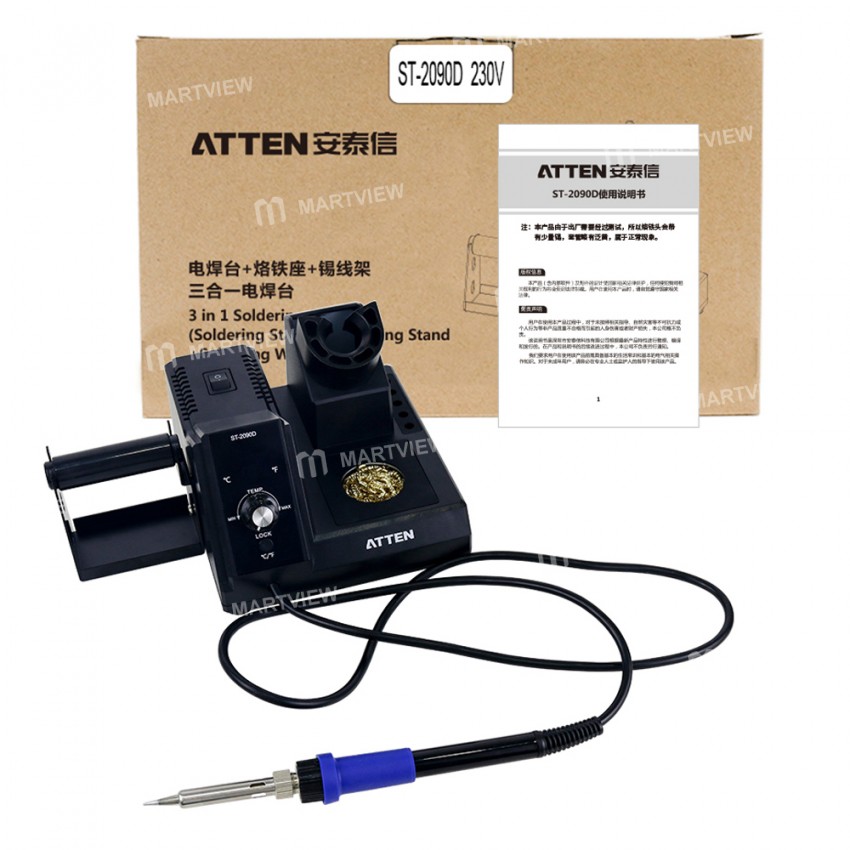

Package includes:

• 1 x Soldering station

• 1 x Soldering iron handle

• 1 x Soldering iron tip

• 1 x Cleaning balls

• 1 x Power cord
