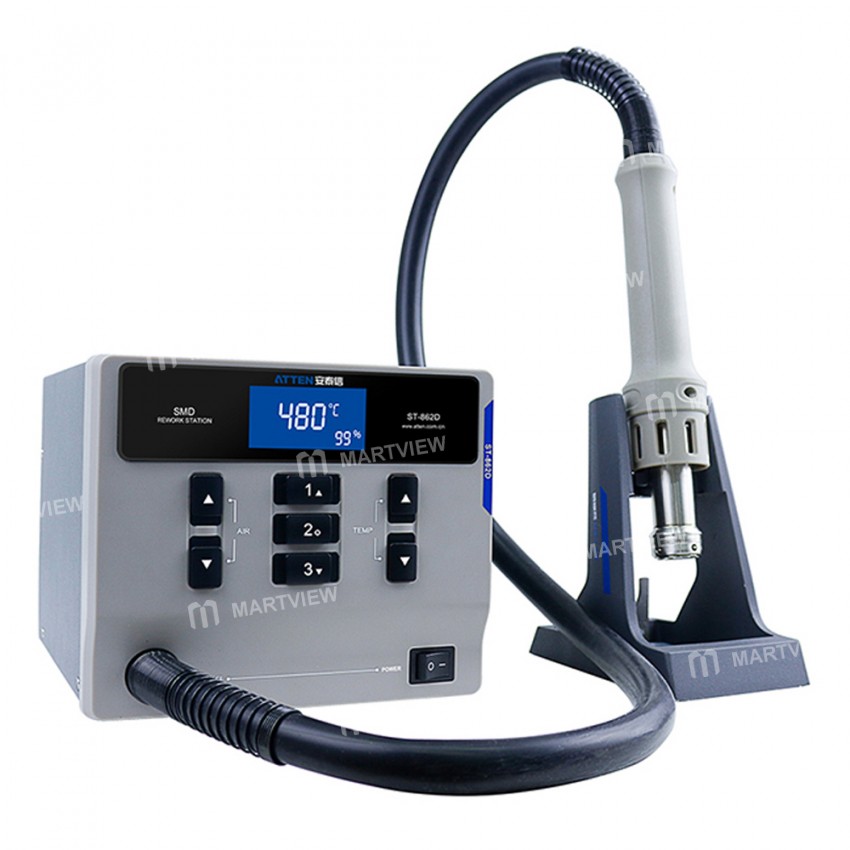

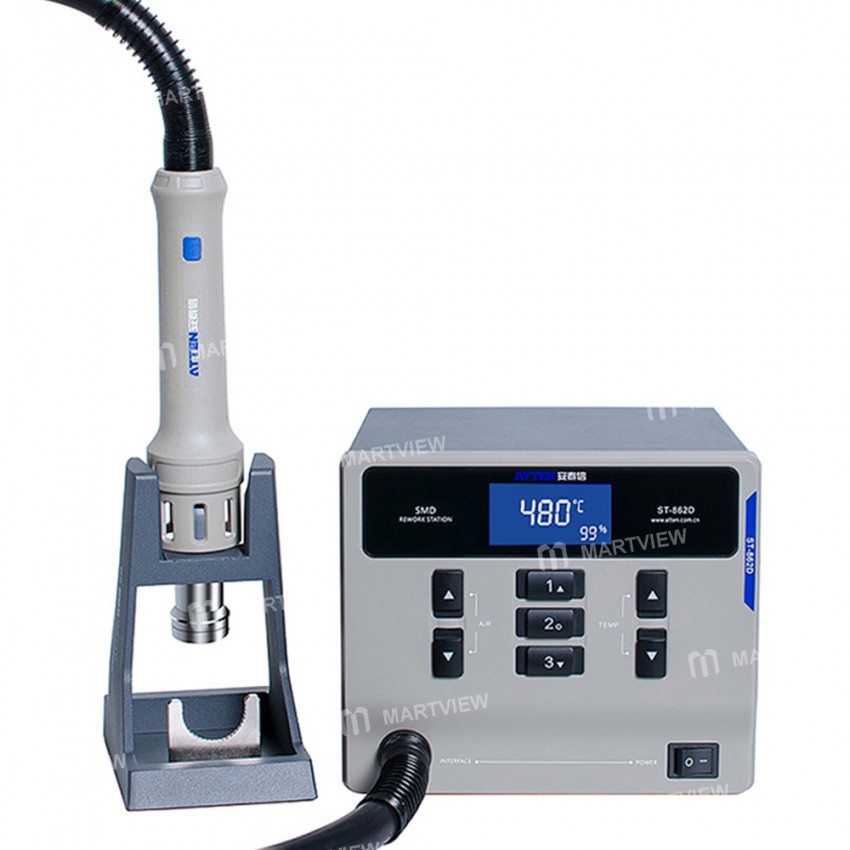

Atten ST-862D 1000W Lead-free Hot Air Gun Soldering Station with Intelligent Digital Display

Atten ST-862D 1000W Lead-free Hot Air Gun Soldering Station with Intelligent Digital Display

Features:

• Input Voltage: 110V/220V

• Power: 1000W

• Temperature Range: 100~480℃

• Maximum Air Flow:120L/min

• Three regular channels are "CH1", "CH2" and "CH3". Each channel's parameters including temperature and airflow can be set

• Real-time operation by the magnetic switch: It will Cooling status when the handle is placed on the holder When the temperature drops to 100 degrees Celsius into sleep mode

• Auto sleeping function: Parameters can be set in a sleeping state

• Closed-loop sensor: Temperature can be controlled by zero voltage triggering modes, and adjusted conveniently, accurately and stable, not affected by airflow.

• Large power, rapid heating

• A multipurpose unit, having a brushless whirlpool motor, a wide range

• An automatic cooling system can prolong the lifetime of the heating element and protect the handle

Specifications:

• Model: ST-862D

• Voltage:AC230V±10%50Hz(110V±10%60Hz Optional)

• Power:1000W(Max)

• Fuse type:T6.3A(230VAC) T10A(110V AC)

• Temperature range:100℃~480℃/212F~896F

• Temperature accuracy:±35℃

• Setting range of air volume:10%~99%

• Temperature unit℃/°F(default℃)

• Air flow:120L/min(Max)30L/min(Min)

• Standby heater cooling function: Support

• Quick function:3 sets shortcut temperatures

• Temperature compensation:±50℃/±90F

• Heating status display:5 dynamic simulate bars

• Temperature adjustment:10 digits(Coarse)/1 digit(Fine-tuning)

• Airflow adjustment:2 digits (Coarse)/1 digit(Fine-tuning)

• Shortcut temperature/ air flow:3 sets shortcut temperatures/airflow for quick selection

• Working conditions:Temperature 0-40C,relative humidity <80%

• Storage conditions:Temperature-20-80C,relative humidity<80%

• Size:208(L)*175(W)*150(H)mm

• Weight: About 3340g

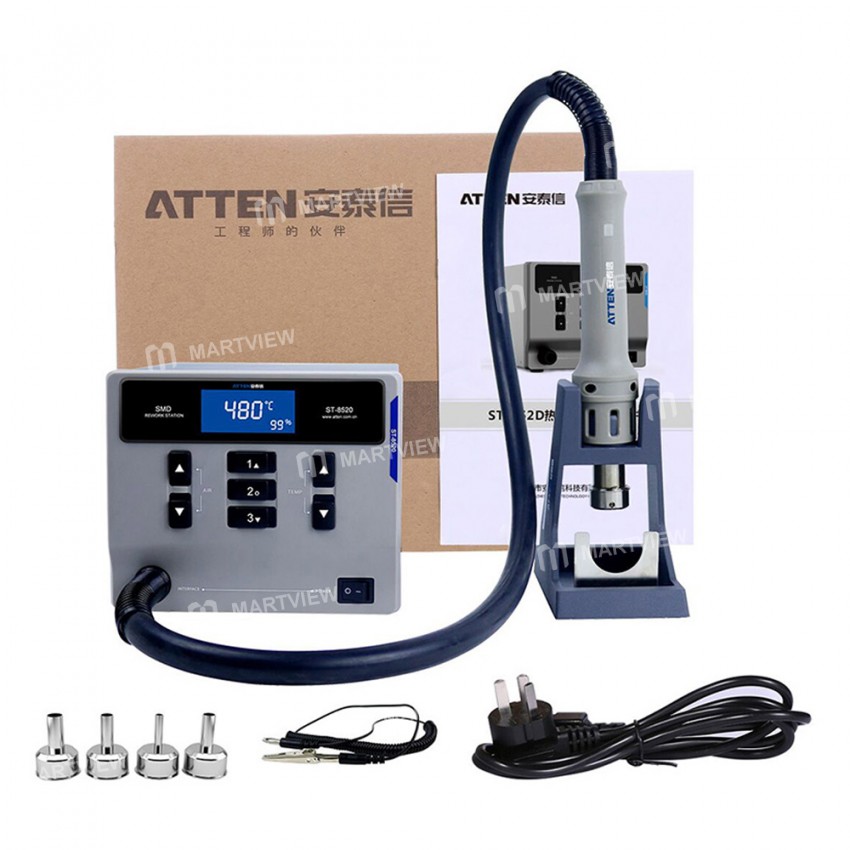

Package includes:

• 1 x Soldering Station

• 1 x Power cable

• 1 x Synopsis

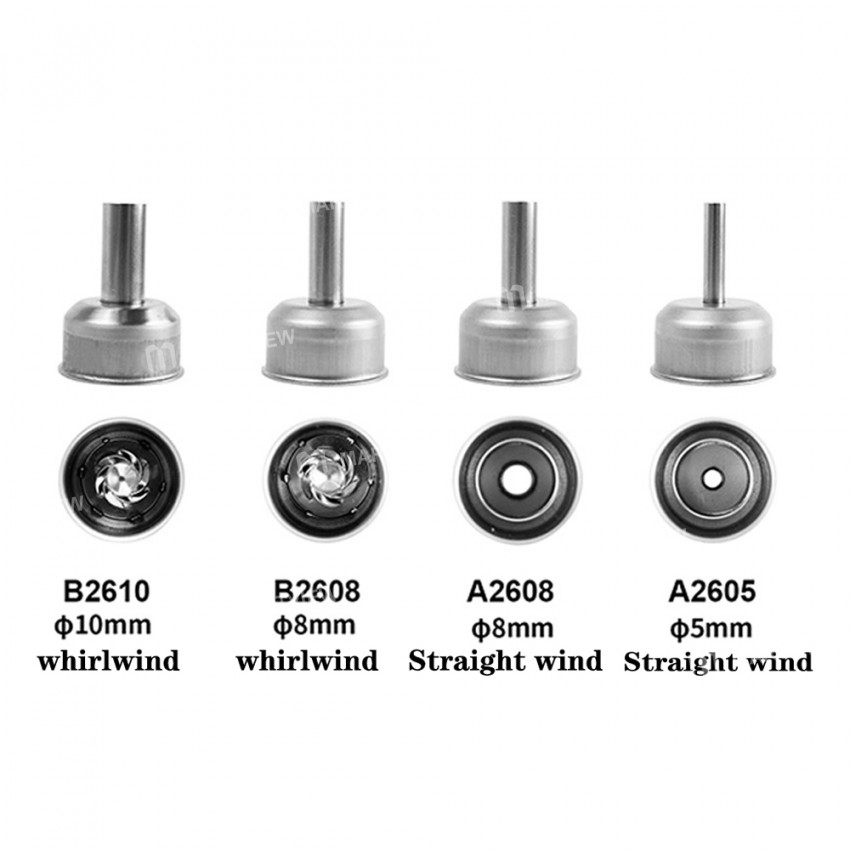

• 4 x Nozzles
