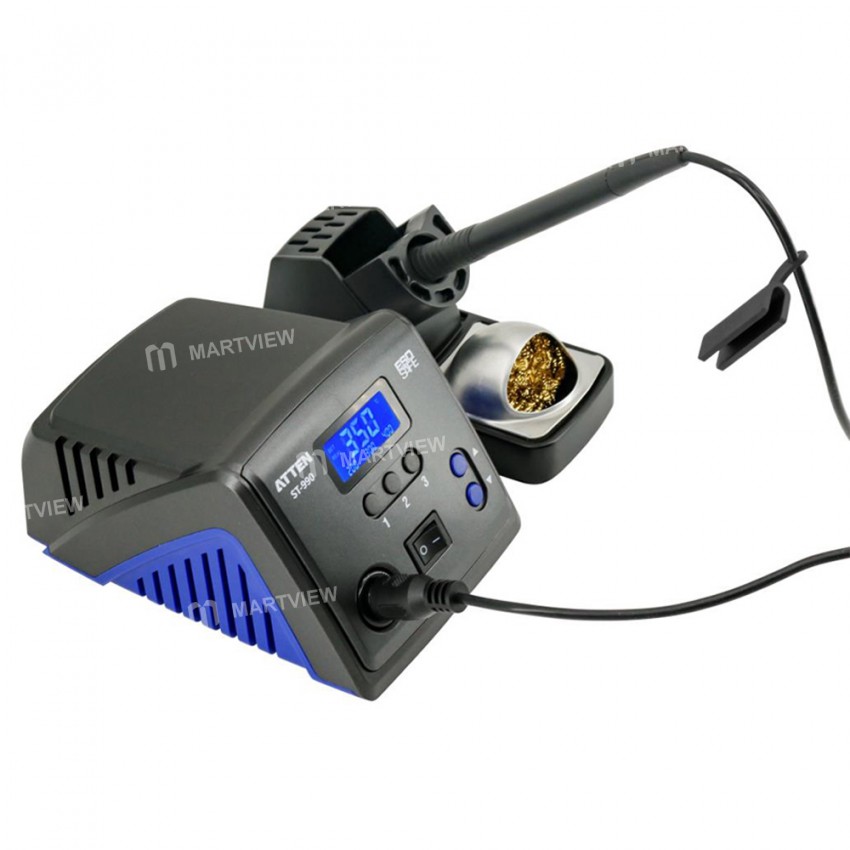

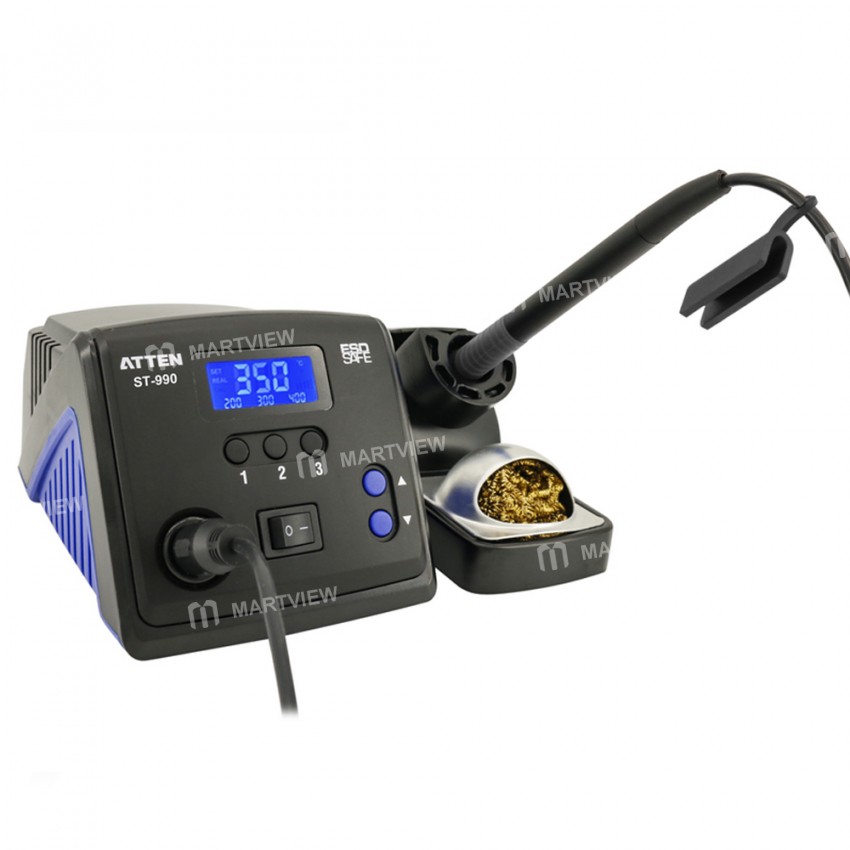

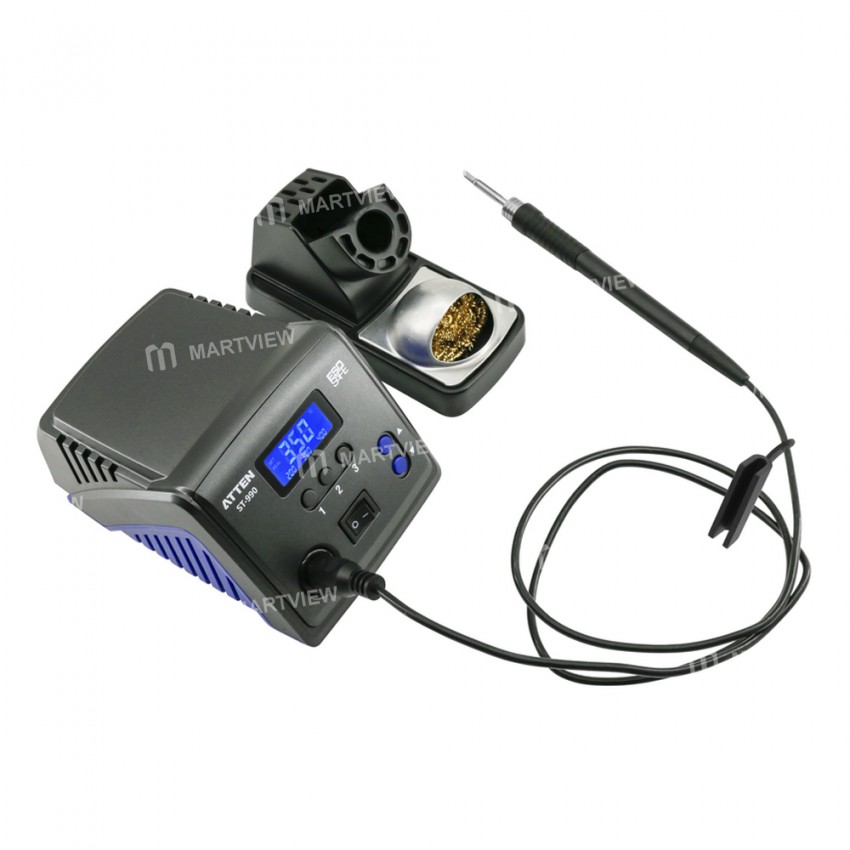

Atten ST-990 90W Lead-Free Intelligent Digital Display Soldering Station for Mobile Phone Repair

Atten ST-990 90W Lead-Free Intelligent Digital Display Soldering Station for Mobile Phone Repair

Features:

• Brand new design, LCD screen display, can display a variety of setting parameters.

• Menu operation and parameter adjustment are simpler and more intuitive

• In visual process control, the analog bar indicates the heating intensity

• Three sets of shortcuts are used to access the temperature, and quickly switch to the common temperature

• Provide a temperature lock function, which is convenient for production line process control

• Intelligent standby, and shutdown function

• Beeper function

• MCU precise temperature control function, automatic temperature compensation, to achieve constant temperature work

• The software temperature calibration is more accurate and convenient so that users can still maintain the same good performance as the factory after long-term use

• This product adopts a low-voltage heating core, which completely isolates the power grid to ensure welding safety

• Separate design of soldering iron holder and host, saving space and easy to place

Specification:

• Voltage: AC 110V/220V

• Power: 90W

• Temperature range: 200~500℃

• Heater voltage: AC 24V

• Heating core: Integrated heating core

• Effective temperature range: ±50℃/±90℉

• Temperature stability: ±2℃ (no load)

• Automatic standby time: 1-60 minutes (can be set, can be closed)

• Temperature lock: with a signal

• Whole machine package: 17.5*11.5*9.5 (cm)

• Host net weight: 2.2kg

• Soldering iron tips to ground impedance: <2Ω

• Soldering iron tips to ground voltage <2 mV

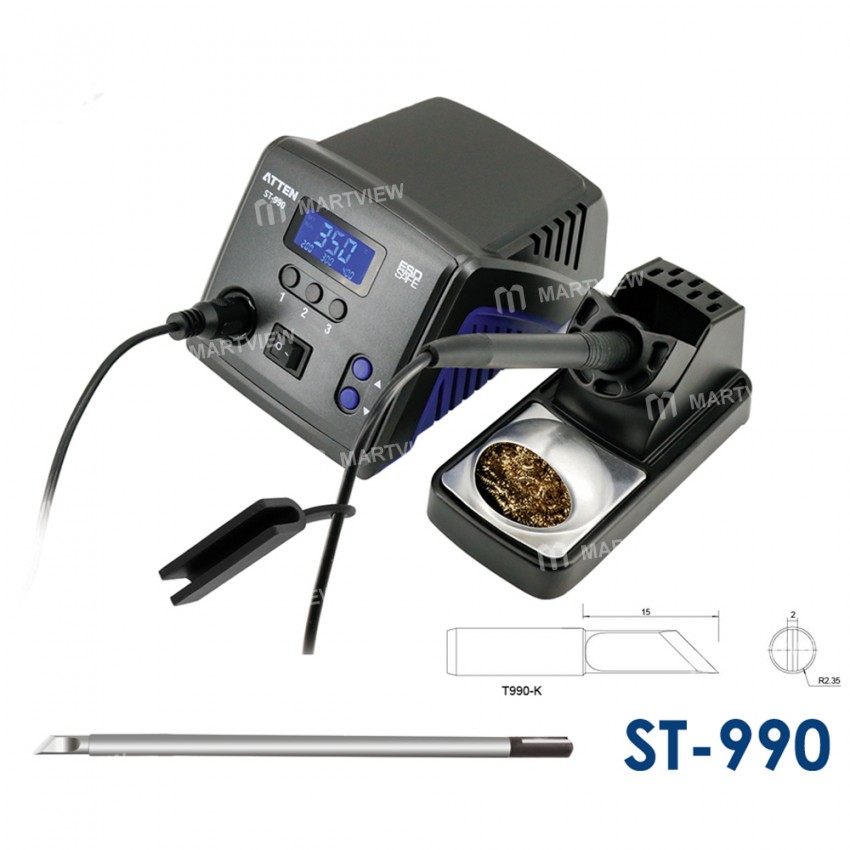

• Soldering iron head: 990-K tip (knife type)

Package includes:

• 1 x Soldering Station

• 1 x Soldering Iron Handle

• 1 x Soldering Iron holder

• 1 x Power Cord

• 1 x Copper Ball
