Atten TPS300P 0-75V 0-10A 300W Adjustable Single Channel Mobile DC Linear Power Supply

Atten TPS300P 0-75V 0-10A 300W Adjustable Single Channel Mobile DC Linear Power Supply

Specification:

• Model: TPS300P

• Rated output voltage: 0～75V

• Rated output current: 0～10A (limited by output power)

• Input voltage/frequency: AC 115V / 230V 50~60HZ (optional)

• Rated output power: 300W

• Setting accuracy: Voltage: ±(0.1%set+0.05%rating), Current: ±(0.3%set+0.1%rating)

• Display accuracy: Voltage: ±(0.1%rdng+2digits), Current: ±(0.2%rdng+2digits)

• Power regulation rate: Voltage: ≦0.01%+3mV, Current: ≦0.1%+5mA

• Load regulation rate: Voltage: ≦0.01%+5mV(<5A), Current: ≦0.01%+5mA

• Ripple: Voltage: ≤5mVrms, Current: ≤3mArms

• Dynamic response: ≤100us

• Quick access: 10 groups (including OVP, OCP)

• Protection function: OVP/OCP/OHP

• Cooling method: temperature-controlled air cooling

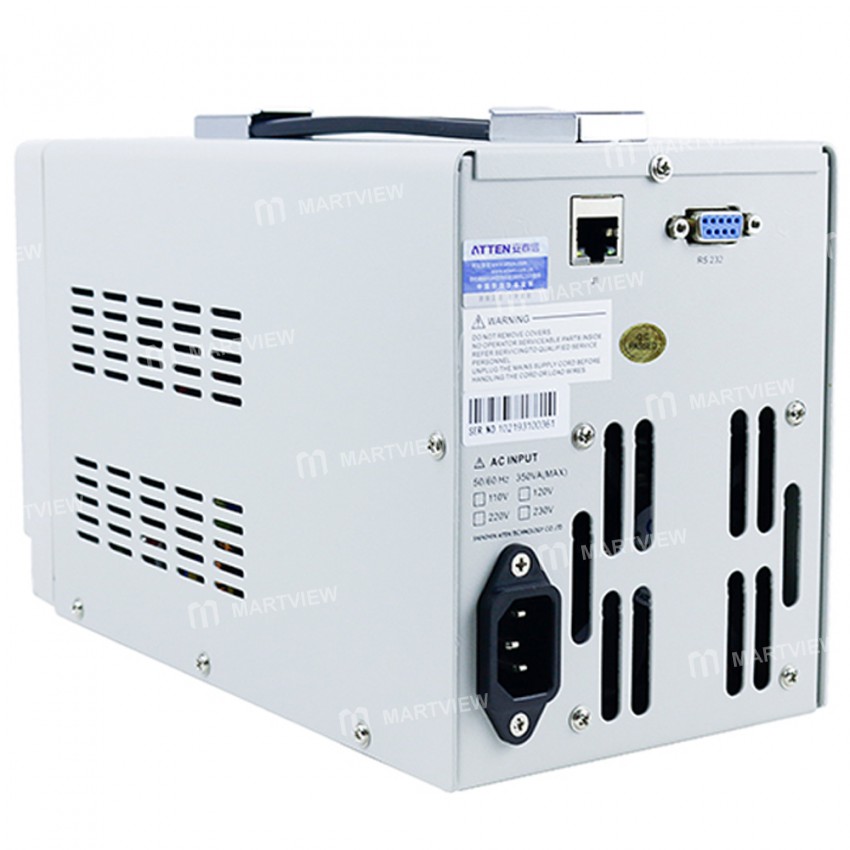

• Communication method: RS232

• Weight: About 3KG

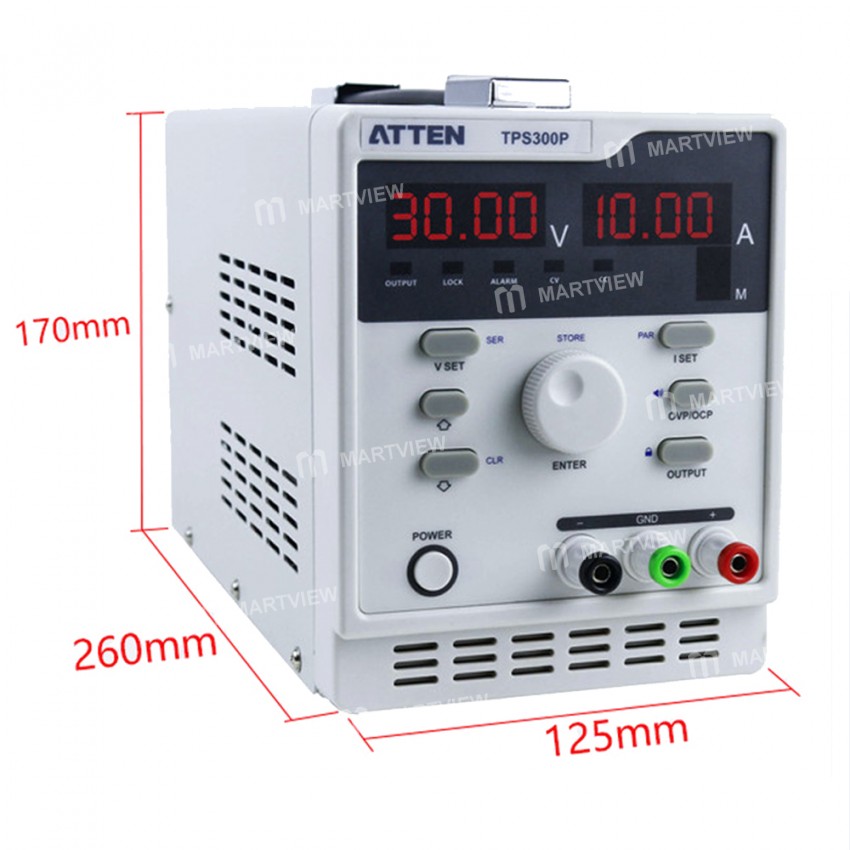

• Dimensions: 125*170*260mm

Package includes:

• 1 x Power Supply

• 1 x Power Cable
