Atten WX-2008D Hot Air Soldering Station

Atten WX-2008D Hot Air Soldering Station

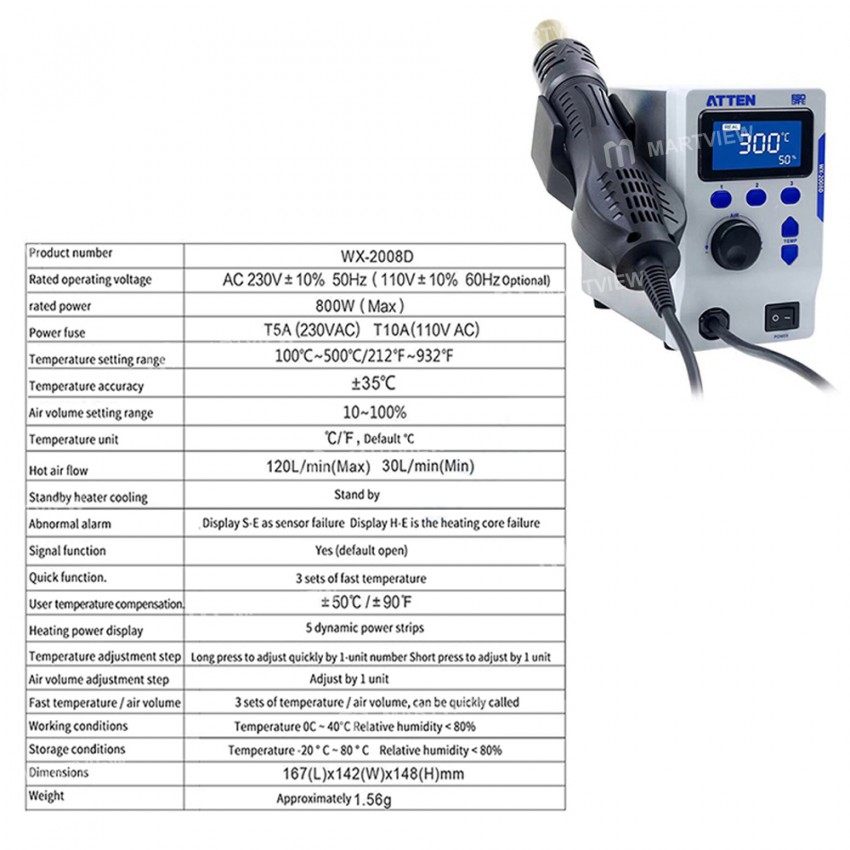

Specification :

• Rated working voltage: AC 230V±10% 50Hz (110V±10% 60Hz Optional)

• Rated power: 800W (Max)

• Power fuse: T5A(230V AC) T10A(110V AC)

• Temperature setting range: 100℃~500℃ / 212ºF~932ºF

• Temperature accuracy: ±35℃

• Air volume setting range: 10-100%

• Temperature unit: ºC / ºF, Default ºC

• Hot air flow: 120L/min (Max) 3L/min (Max

• Standby heater cooling function: Stand by

• Abnormal alarm: Display S-E as sensor failure, Display H-E is the heating core failure

• Signal function: Yes (default open)

• Quick function: 3 sets of fast temperature

• User temperature compensation: ±50ºC / ±90ºF

• Heating power display: 5 dynamic power strips

• Temperature adjustment step: Long press to adjust quickly by 1-unit number short press to adjust by 1 unit

• Air volume adjustment step: Adjust by 1 unit

• Fast temperature/air volume: 3 sets of temperature/air volume, can be quickly called

• Working conditions: Temperature 0ºC~40ºC Relative humidity <80%

• Storage conditions: Temperature -20ºC~80ºC Relative humidity <80%

• Dimensions: 167(L) * 142(W) * 148(H)mm

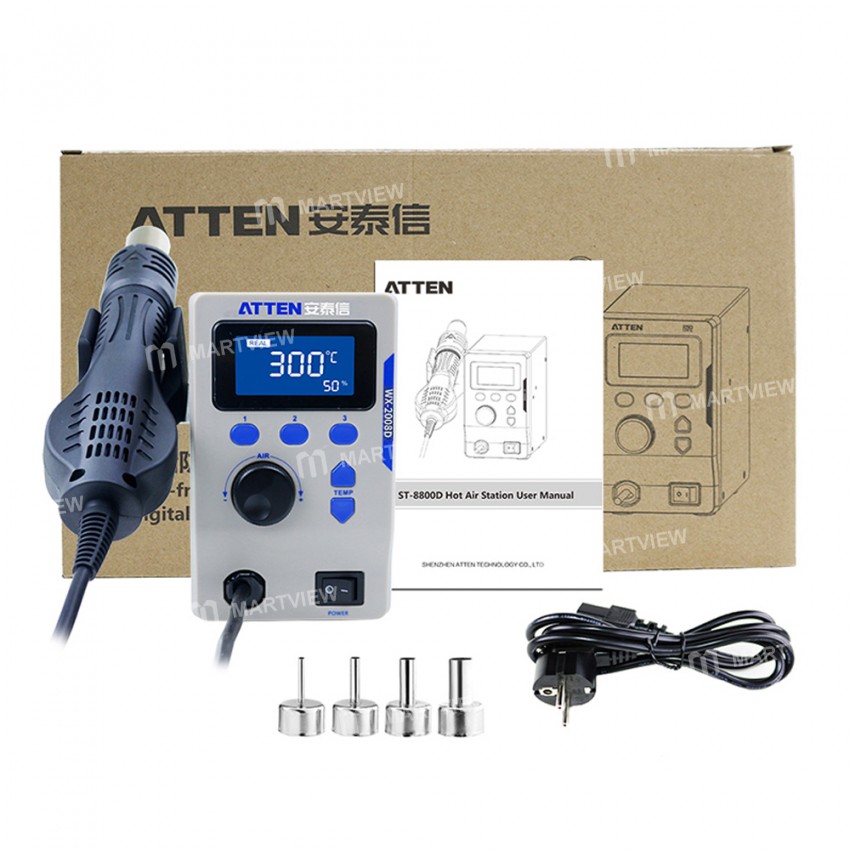

Package includes:

• 1 x Hot Air Soldering Station

• 1 x Hot Air Gun
