Aweshine P6 32V / 6A High-Precision CNC Programmable Intelligent DC Regulator Power Supply

Aweshine P6 32V / 6A High-Precision CNC Programmable Intelligent DC Regulator Power Supply

Features:

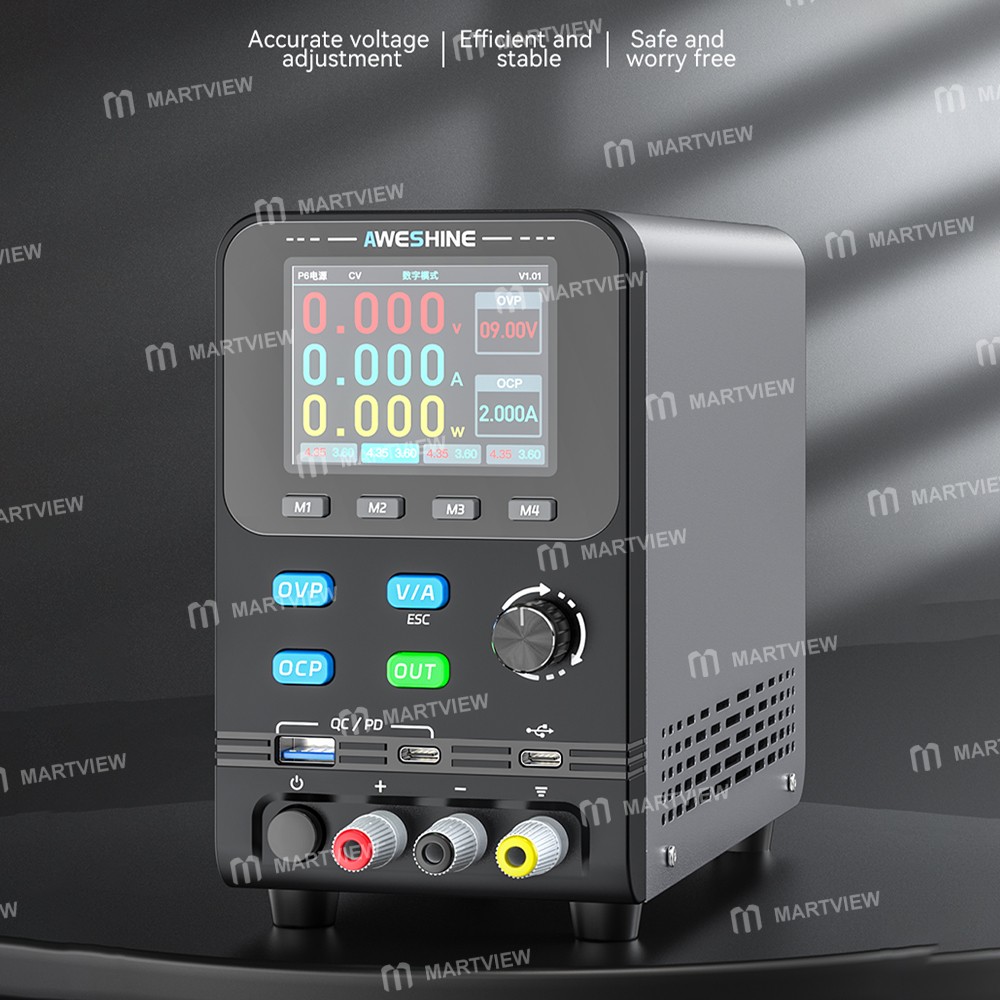

• Accurate voltage adjustment/Efficient and stable/Safe and worry-free

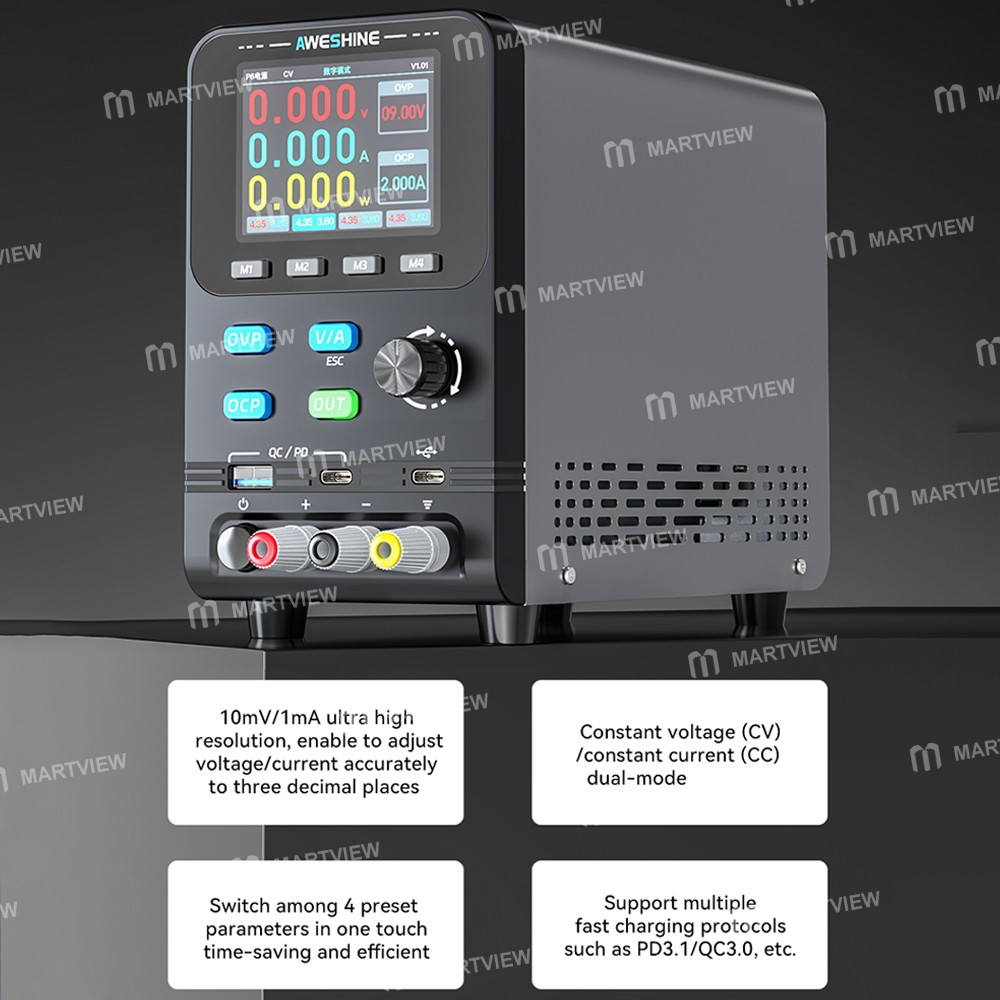

• 10mV/1mA ultra high resolution, enabling to adjustment of voltage/current accurately to three decimal places

• Constant voltage(CV)/constant current (CC) dual-mode

• Switch among 4 preset parameters in one touch, time-saving and efficient

• Support multiple fast charging protocols, such as PD3.1/QC3.0, etc

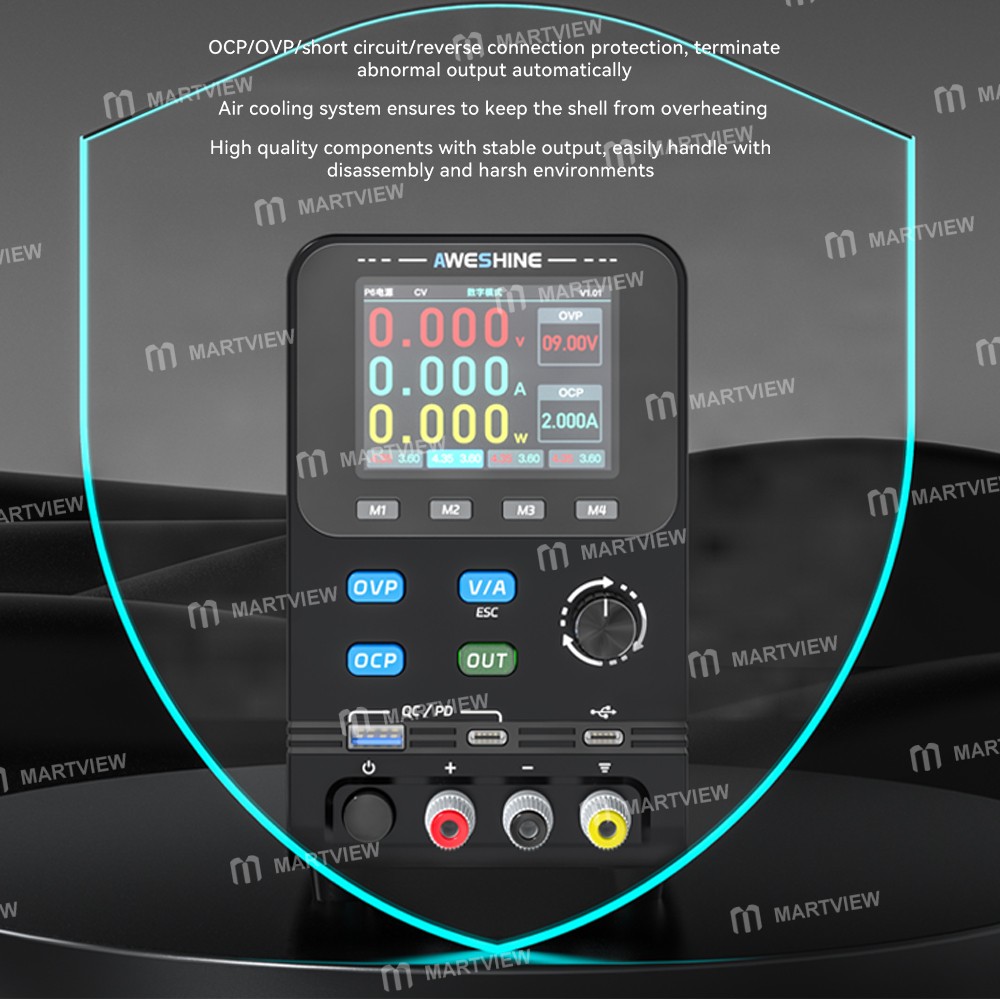

• OCP/OVP/short circuit/reverse connection protection, terminate abnormal output automatically

• The air cooling system ensures that the shell does not overheat

• High-quality components with stable output, easily handled with disassembly, and harsh environments

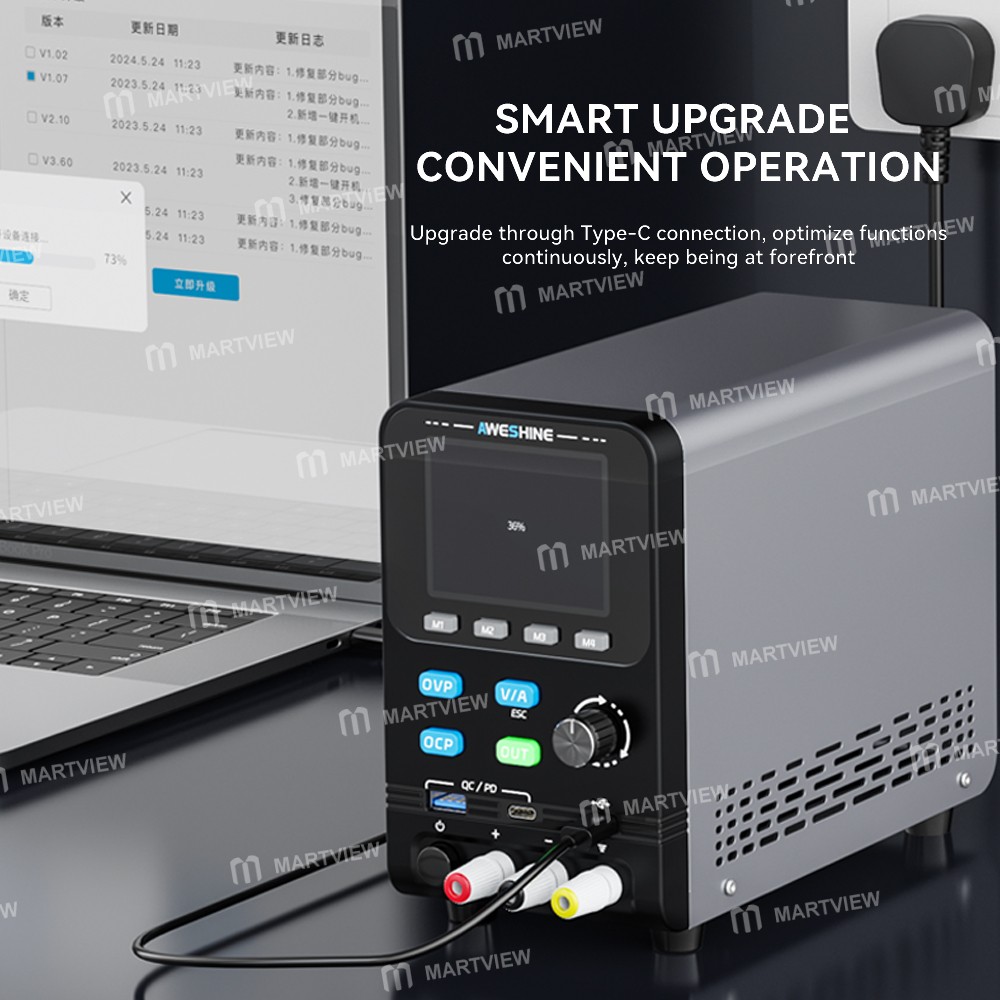

• Upgrade through Type-C connection, optimize functions continuously, and keep being at the forefront

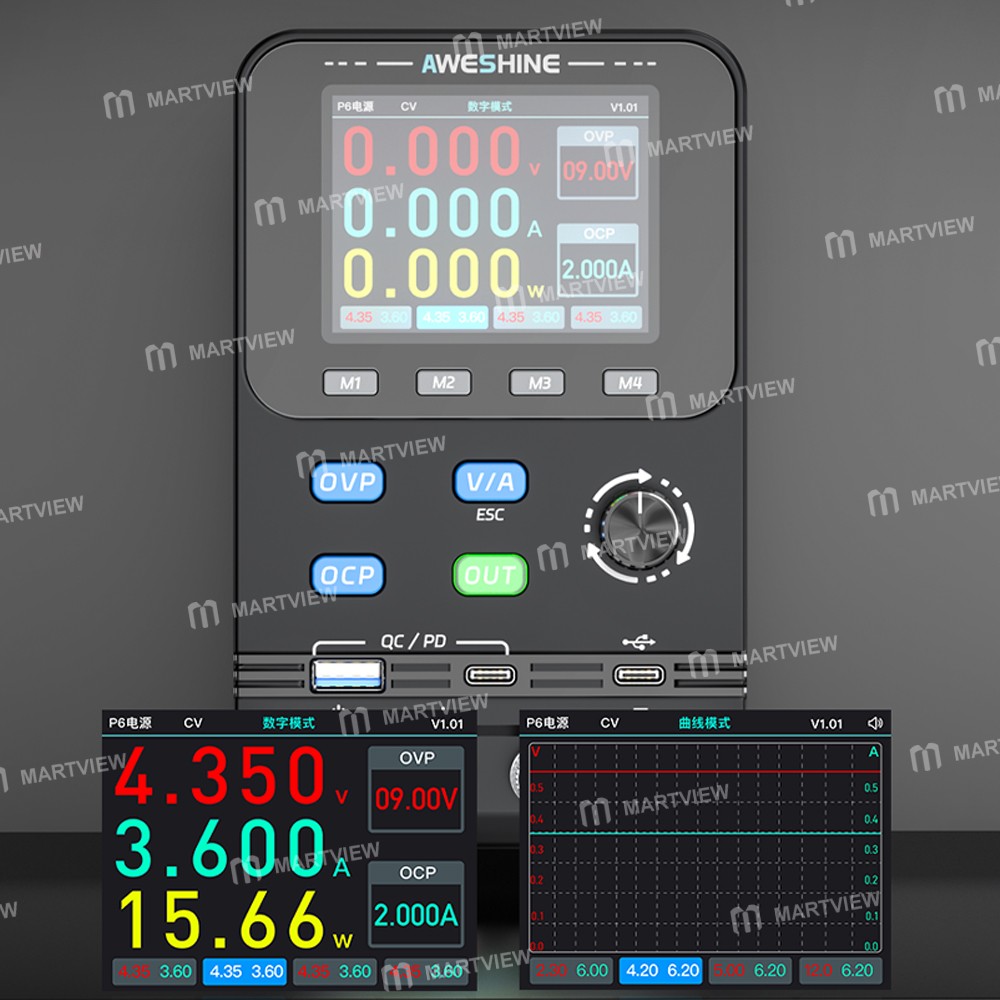

• 2.8-inch LCD screen, digital/curve dual display mode, and monitoring in real time

• Application scenarios: Electronic maintenance, laboratory testing, charging equipment debugging, embedded development

Specification:

• Brand: AWESHINE

• Model: P6

• Name: Smart Power Supply

• Display type: 2.8-inch LCD screen

• Input voltage: AC 110V/220V

• Rated power: 192W

• Max current: 6A

• Max voltage: 32V

• OCP: 0-6A

• OVP: 0-32V

• Load regulation rate: ≤0.3%+5mV

• Readback resolution: 10mV/1mA

• Working mode: CC/CV

• Net weight: 1.77kg

• Power regulation rate: ≤0.3%+5mV

• Set resolution: 10mV/1mA

• Communication: USB

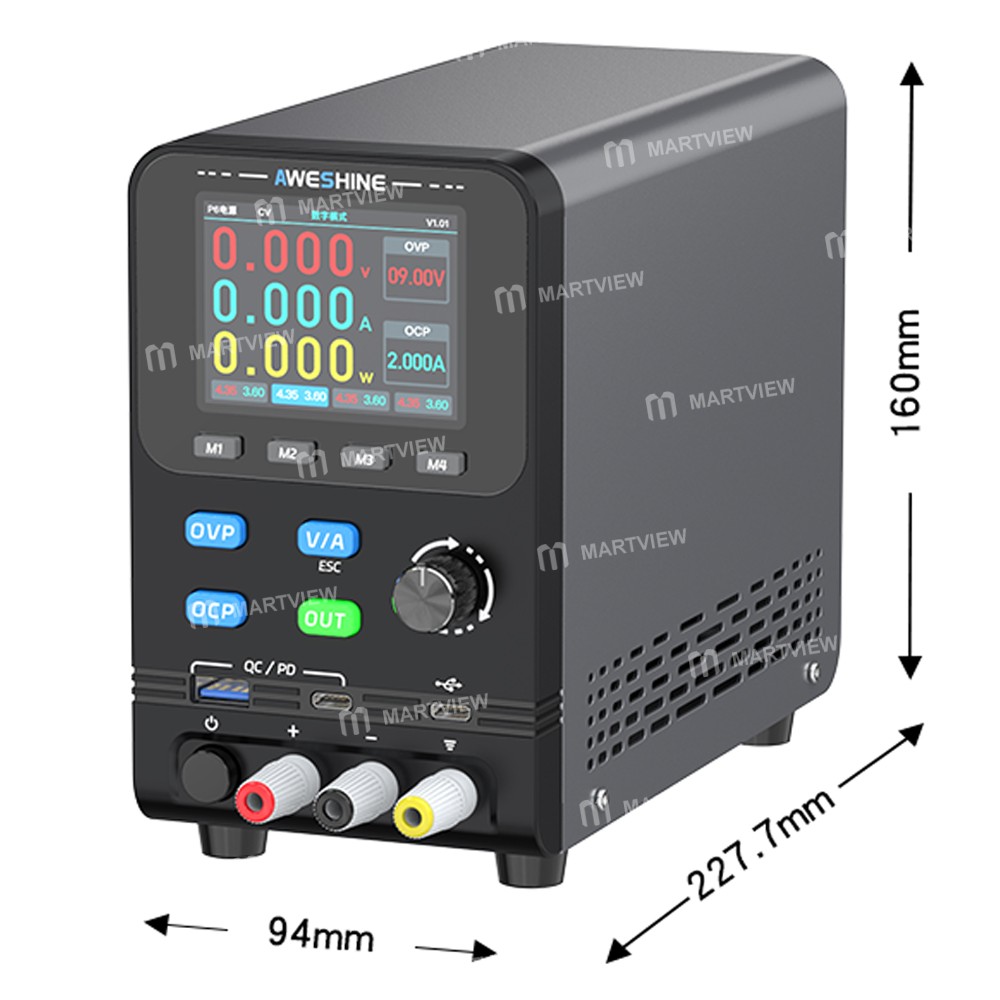

• Package dimensions: 264*194*202mm

• Material: Sheet metal + plastic

Package includes:

• 1 x Power Supply

• 1 x Power Cable

• 1 x Test Cable
