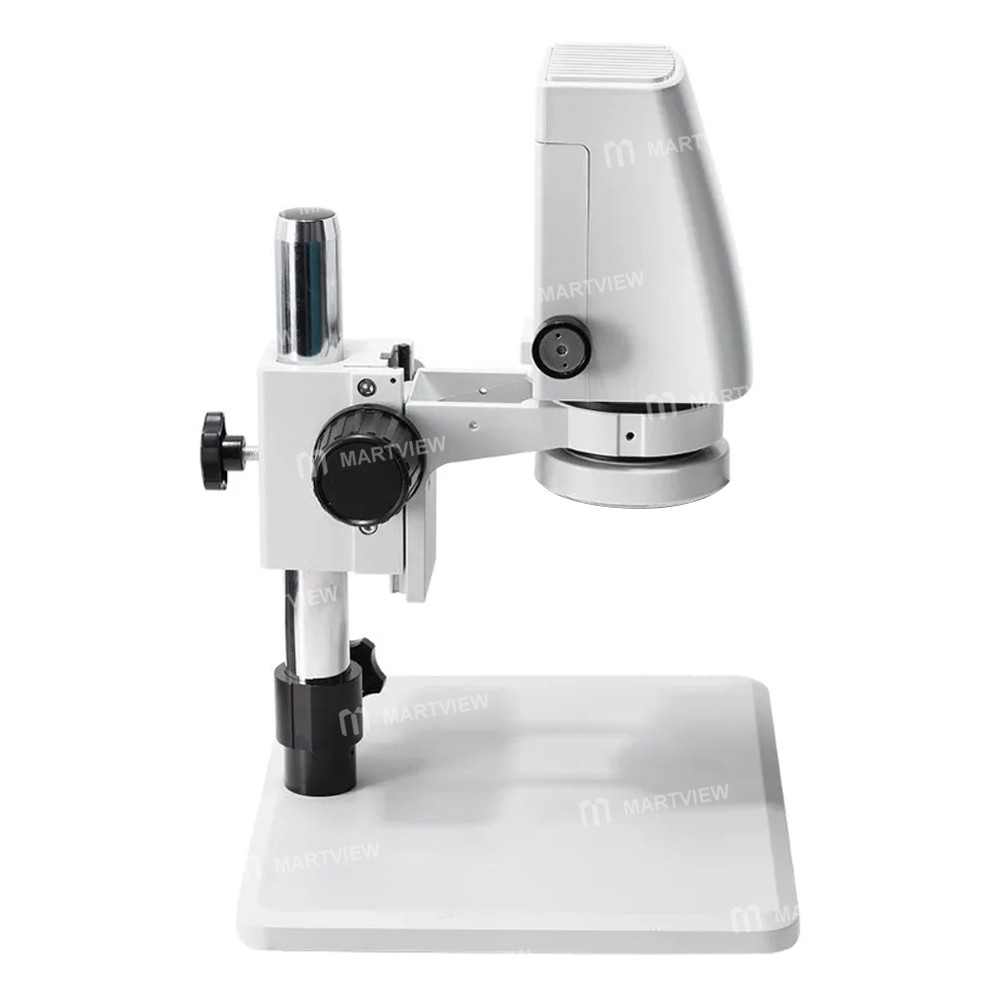

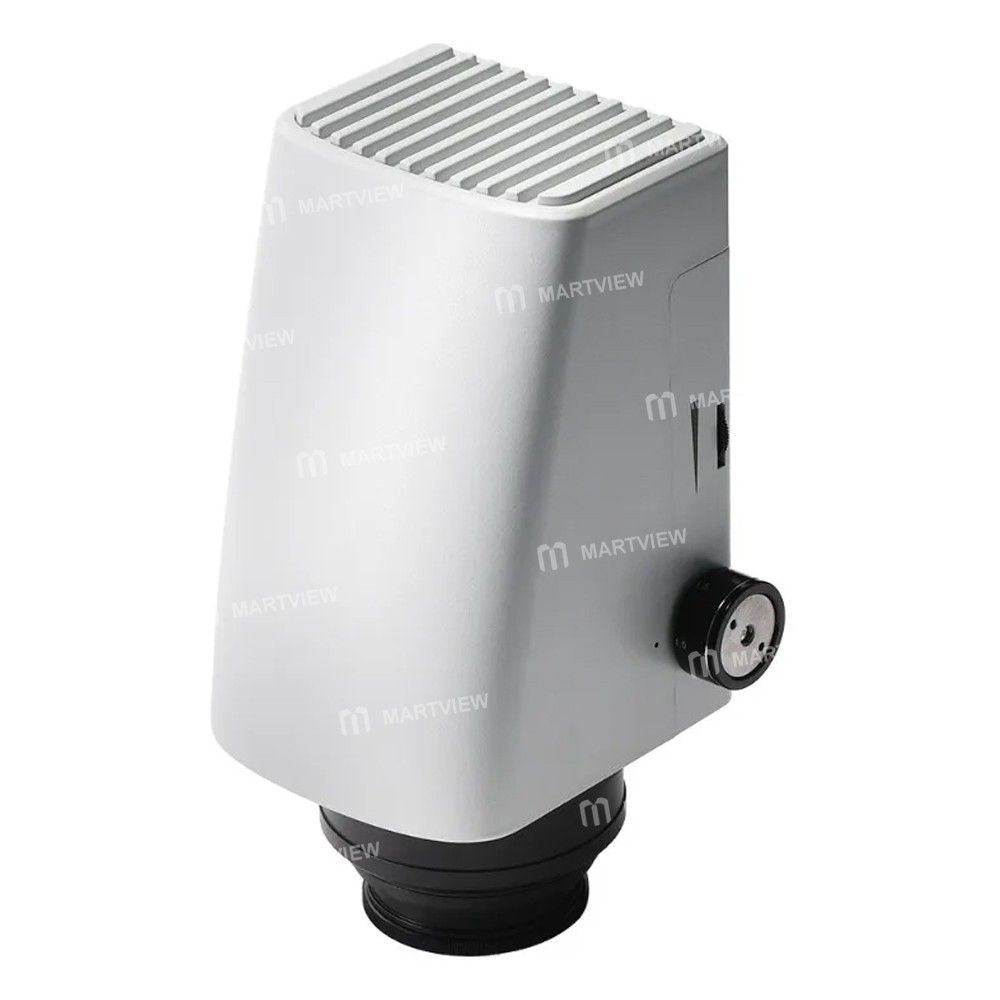

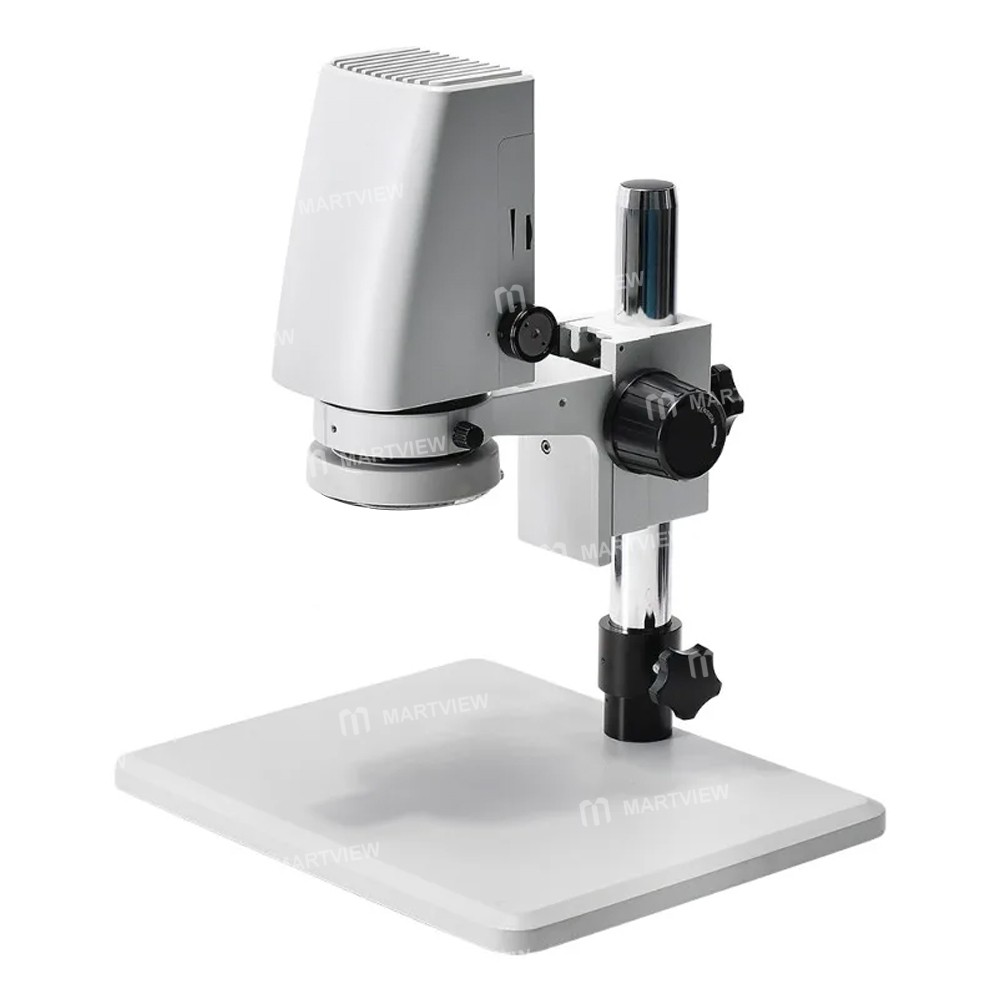

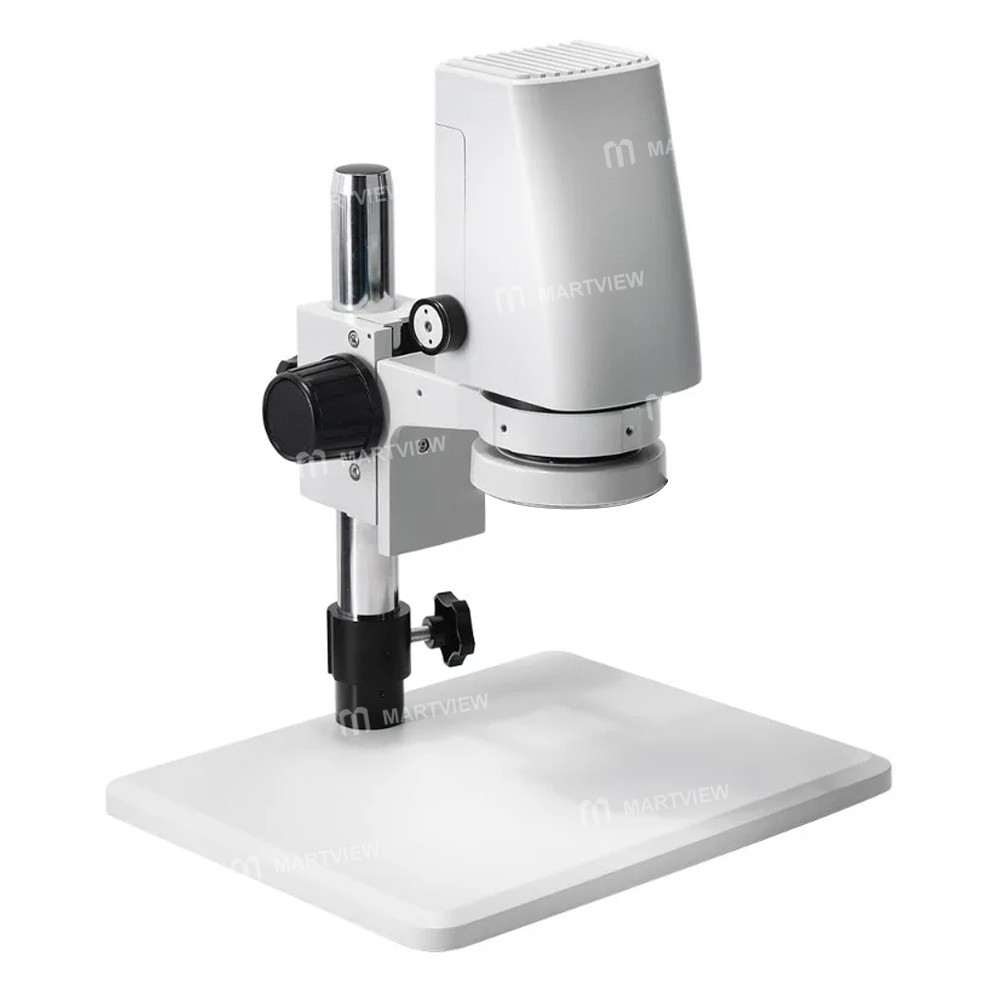

BC6000A 2K HD HDMI Digital Calibration Video Measurement Microscope Integrated Machine

BC6000A 2K HD HDMI Digital Calibration Video Measurement Microscope Integrated Machine

Features:

• High-definition display / Adjustable illumination / Product magnification / Product dimension measurement

• Continuously variable magnification adjustable from 20-150X, field of view 1mm-25mm or 3mm-40mm, working distance 60-180mm

• Over 40 measurement tools with customisable functionality; multiple automated tools streamline workflows; product measurement capability post-microscope calibration

• Integrated design for user-friendly operation; high material safety and stability

• Galvanised steel tube stand with 260mm × 320mm oversized base; industrial-grade stainless steel construction

Specifications:

• Image Specifications: 1920*1080*24Bit

• Chip Architecture: FPGA+ARM

• Optical Size: 1/2 inch

• Operating System: Dual-core Cortex-A9

• Clock Speed: 1GHz

• Data Storage: Saves measurement results as images or Excel data

• Measurement Methods: Mouse operation, intelligent point selection/manual point selection

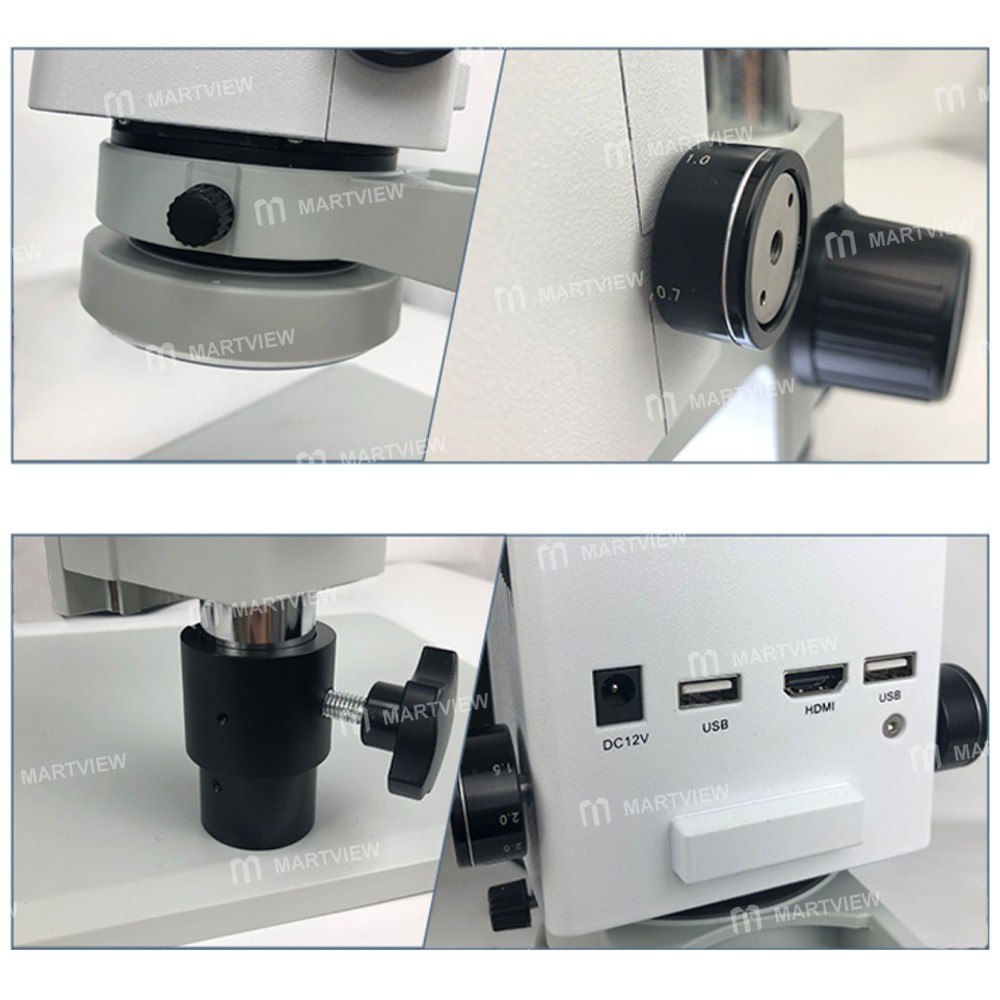

• Interfaces: 2x USB ports supporting USB drives, wireless mice or keyboards

• Measurement Tools: Distance between two points, point to line, circle from three points, centre distance, concentric circles, point to circle, line to circle, parallel lines, rectangle, angle, arc length, polygon

• Frame Rate: 1920×1080@60 frames

• Operating temperature: 0~70°C

• Operating voltage: 12V

• Dimensions: 260*320*350 mm

• Working distance: 60~180mm

• Field of view: 1~25mm or 3~40mm

• Magnification: 20X~150X

Package includes:

• 1 x Microscope

• 1 x HDMI cable

• 1 x Power Cable
• 1 x LED Light
