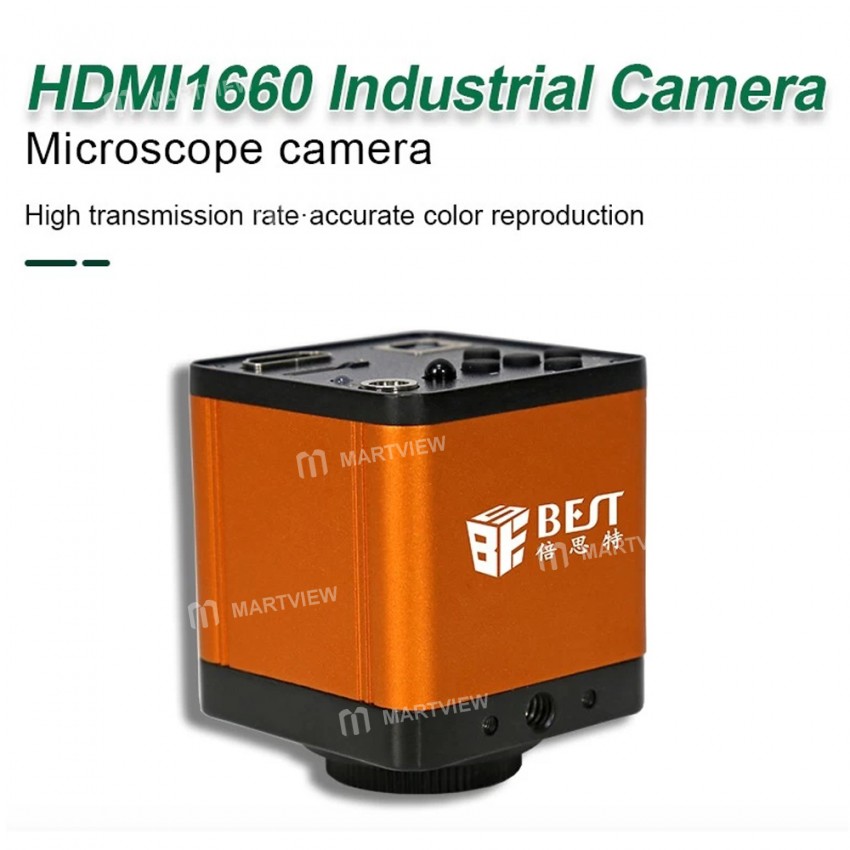

BEST HDMI 1660 16MP HDMI Microscope Industrial Camera for Phone CPU PCB Repair

BEST HDMI 1660 16MP HDMI Microscope Industrial Camera for Phone CPU PCB Repair

Specification:

• Module: HDMI 1660

• Sensor: Panasonic 16MegaPixel  MN34120 CMOS Sensor

• Optical format: 1/2.3 inch

• Pixel size: 1.335µm * 1.335µm

• Interface: HDMI(Type-A)、USB(Type-B)、TF Card

• Image resolution: 16 MegaPixel

• Video record resolution: 1080P@60FPS

• HDMI resolution: 1920*1080 60FPS, Can output with USB at the same time

• HDMI scale: Support 4:3, 16:9, 16:10 screen

• USB2.0(Drive free): 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS, Can output with HDMI at the same time

• TF card: Max 64GB

• AWB: WB color correction/Auto/Manual R,G,B value setting independent

• Exposure: Auto/Manual, AE value can be set

• Cross lines: 8 lines, Can set color& width& position

• Scale mark lines: 2 lines

• Dotted lines: 2 lines, Can set color& width& position

• Sharpness Contrast Color Gain: Support

• Mono Negative: Support

• Mirror: Horizontal vertical mirror

• Language: English/Simplified Chinese

• Digital Zoom: Support

• IR remoter: Support

• Voltage in: DC 12V (5-19V)，55-21mm size

• Power consumption: Max 0.15W (12V, 0.12A)

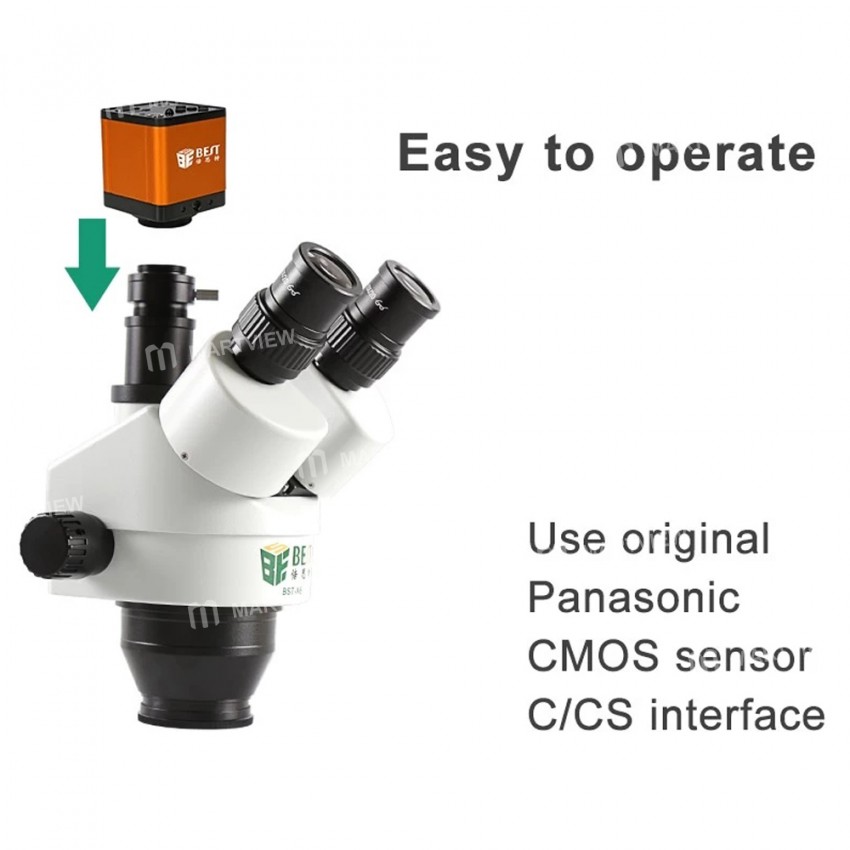

• Lens interface: C/CS

• Net weight: 180g

• Camera size: 51*51*55mm

Package includes:

• 1 x Camera

• 1 x Power Cable

• 1 x Remoter

• 1 x USB Cable
