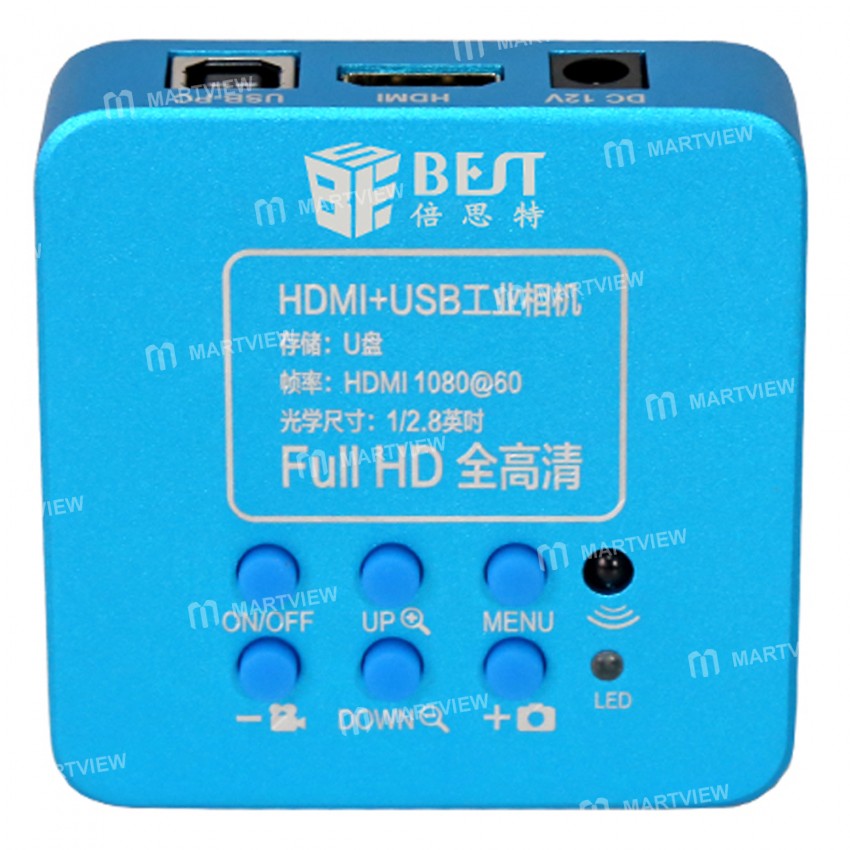

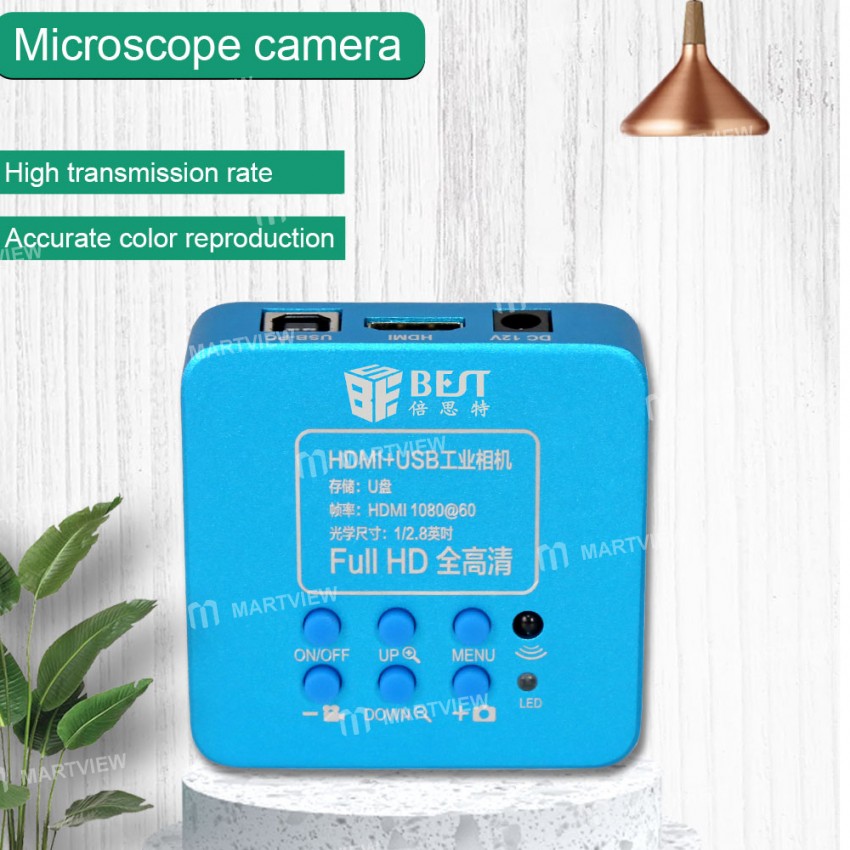

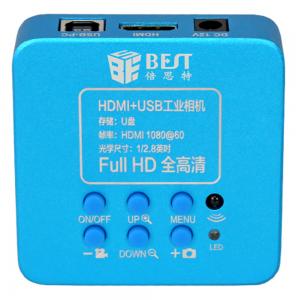

BEST HDMI1030UUC Full HD 2MP 2K HDMI Microscope Industrial Camera for Phone CPU PCB Repair

BEST HDMI1030UUC Full HD 2MP 2K HDMI Microscope Industrial Camera for Phone CPU PCB Repair

Specification:

• Model: HDMI1030UUC

• Image Sensor: Panasonic's original CMOS Sensor

• Sensitivity size: 1/2.8 inch

• Pixel size: 2.8μmx2.8μm

• Output Interface: HDMI, USB-Disk, USB-PC, TF Card

• Effective Pixels: 2MP

• Clarity: 2000TVLine

• HDMI output: Progressive 1920*1080 30 frames

• HDMI output ratio: Support 4:3, 16:9, and 16:10 screens to ensure that the image is not deformed

• USB2.0 output (free drive):1920*1080@30frame, 1280*720@30frame, 640*480@30frame

• TF card storage capacity: Up to 128GB

• White balance: One-key white balance/auto/manual, R, G, and B are individually adjustable

• Exposure: Manual/automatic, the exposure value is adjustable

• Language: Chinese/English

• Remote control: Support, remote control camera, and video, the picture does not shake

• Input voltage: DC 12V (support 5-19V), 55-21 large interface

• Power consumption: Maximum 0.15W(12V,120mA)

• Lens interface: C/CS port

• Mirroring: Horizontal and vertical mirroring

• Net weight: 180g

• Gross weight: 400g

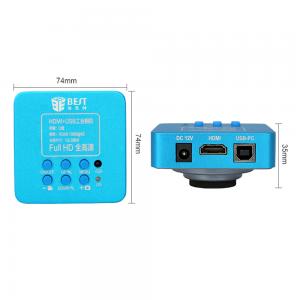

• Product Size: 74*74*35mm

• Package Size: 160*100*80mm

Package includes:

• 1 x Camera

• 1 x Adapter

• 1 x Remote control

• 1 x B-type square port USB cable
