Bside S10 / S11 Digital Smart Color LCD Display Multimeter

Bside S10 / S11 Digital Smart  Color LCD Display Multimeter

Features:

• Display: 9999 counts

• Screen: 3.5 inch

• DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V

• AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V

• Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω

• Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF

• Frequency:1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz
• Frequency:1KHz-60KHz ±(1.0%+5) (ACV:10V-620V);Resolution: 0.001Hz

• Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%

• Diode: Auto identify diode if less than 3.0V

• V-Alert(non-contact voltage detection): beep alarm sounds

• Live Check: alarm beep sounds, LCD screen display stripe

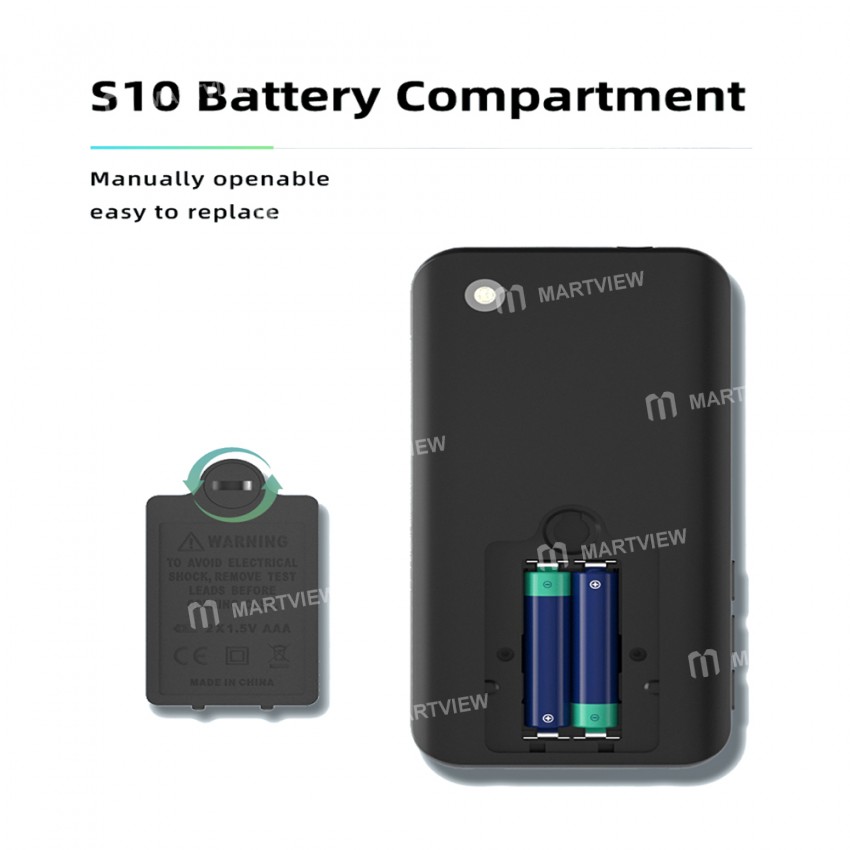

• S10 Power: 1.5V (AAA) x 2

• S11 Power: Built-in rechargeable lithium battery

• The EBTN LCD display greatly enhances the reading experience. The numbers and letters with a bright black background and color analog bars are very easy to read even in bright sunlight or under low light conditions.

• The high-resolution large screen can display 3 test results on screens, such as voltage, frequency, and analog bars

• Automatic identification can greatly improve test efficiency. BSIDE intelligent technology enables the multimeter to automatically identify the parameters of the test and select the required range

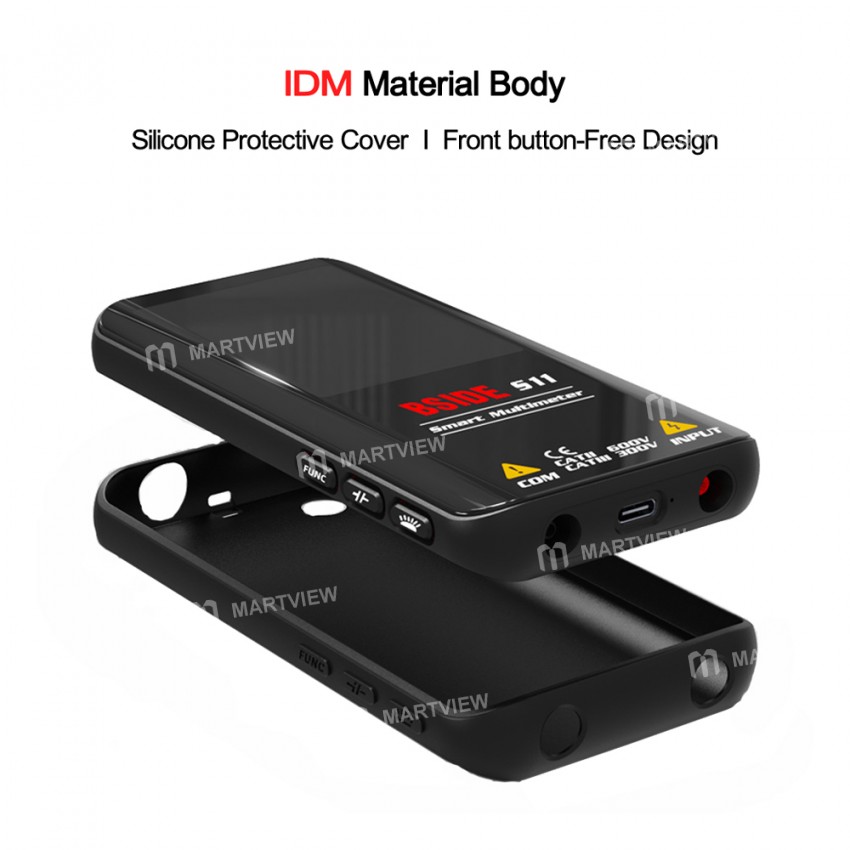

• Durable protective cover to prevent vibration, friction, and collision. This case is detachable and easy to replace

• The upgraded flashlight can change the dark environment

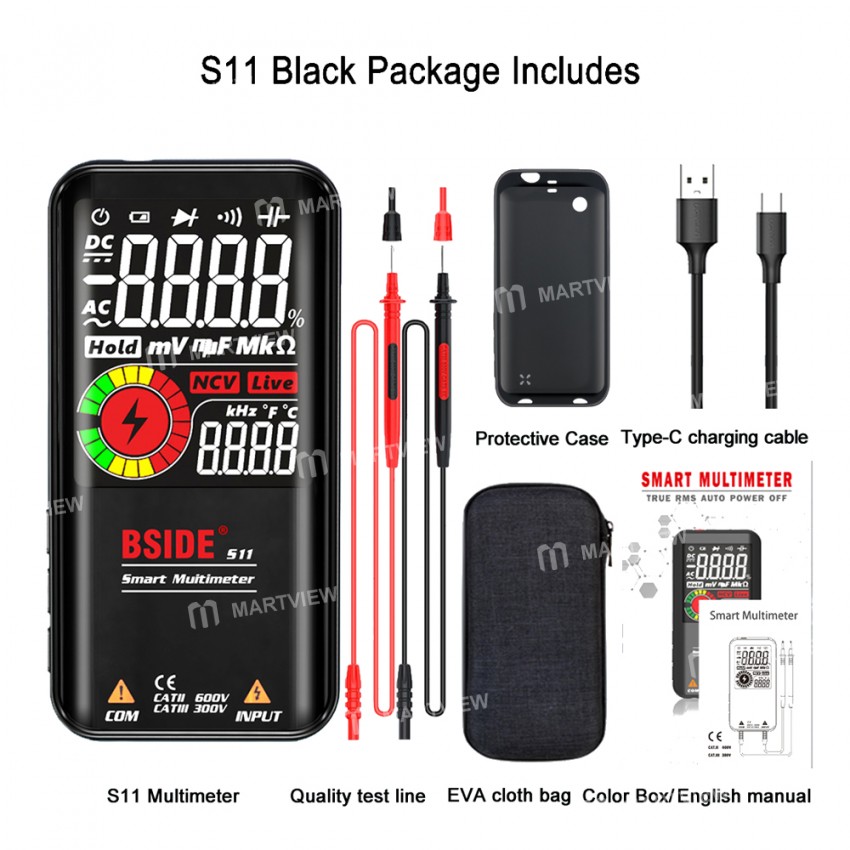

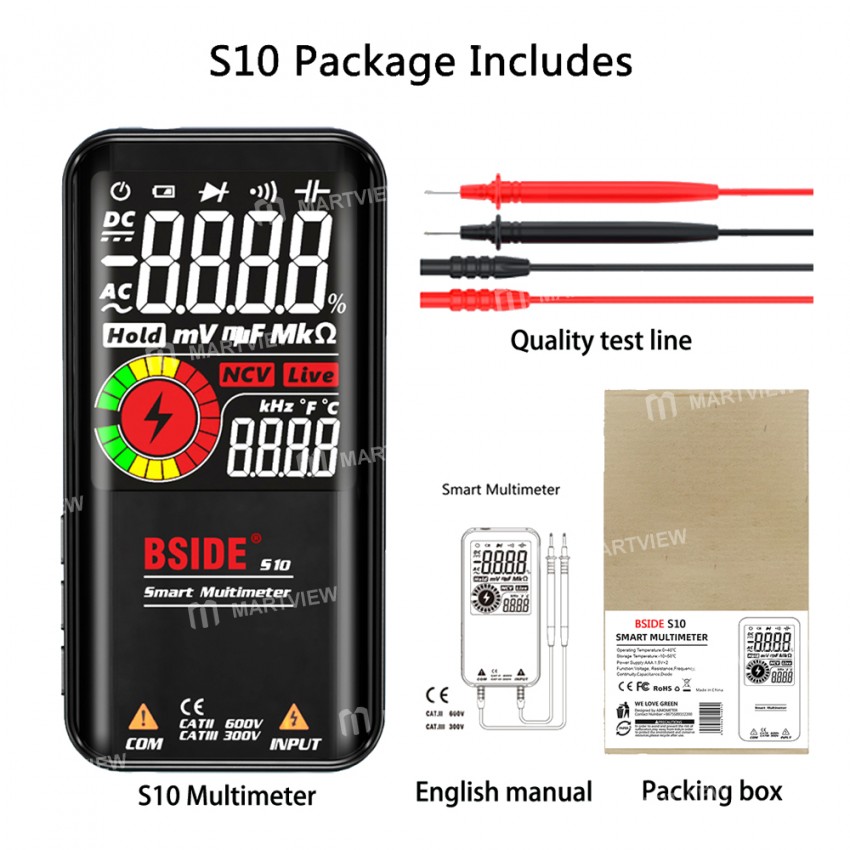

Package Includes:

• 1 x Multimeter(No Battery)

• 1 x Test Lead

• 1 x English User Manual.

• 1 x Packing Box

• 1 x USB charging cable（S11）

• 1 x EVA portable cloth bag（S11）

• 1 x Protective shell（S11）
