BSIDE X1 Voltage Detector Tester Smart Multimeter

BSIDE X1 Voltage Detector Tester Smart Multimeter

Features:

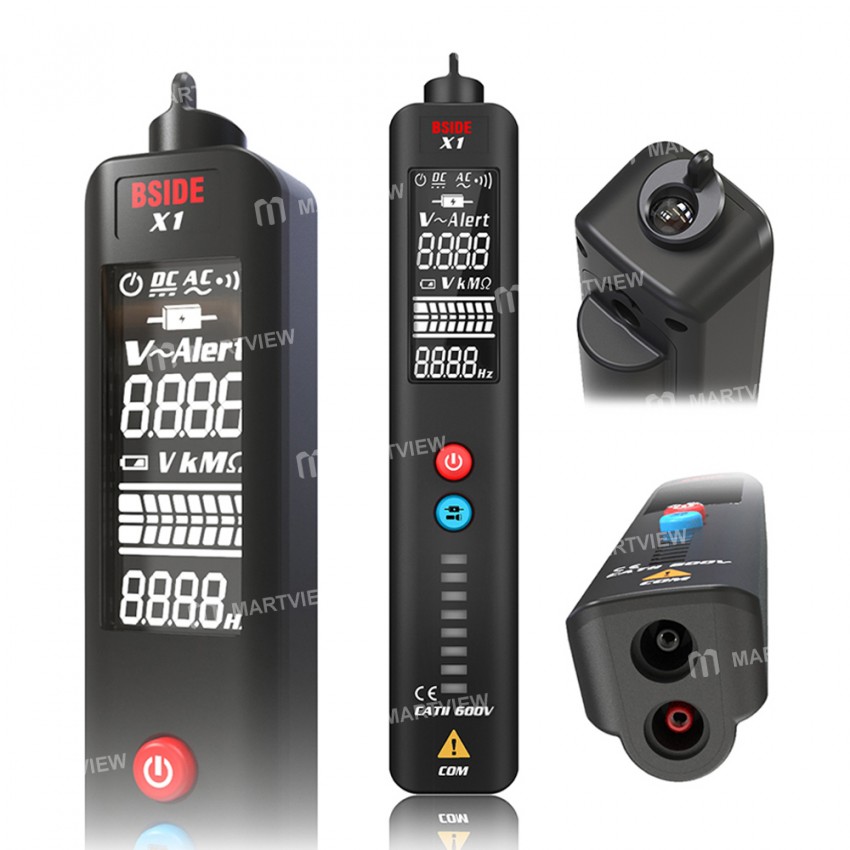

• The product has a 2.0-inch smart display and has the test attributes of a voltage detector and a smart multimeter. With the increasing importance of electrical safety, this product will become a necessity in your daily life.

• At the same time optimize the use of functions and test experience. And added the latest design of “High sensitivity detection mode”.

• LCD display greatly enhances the reading experience, the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.

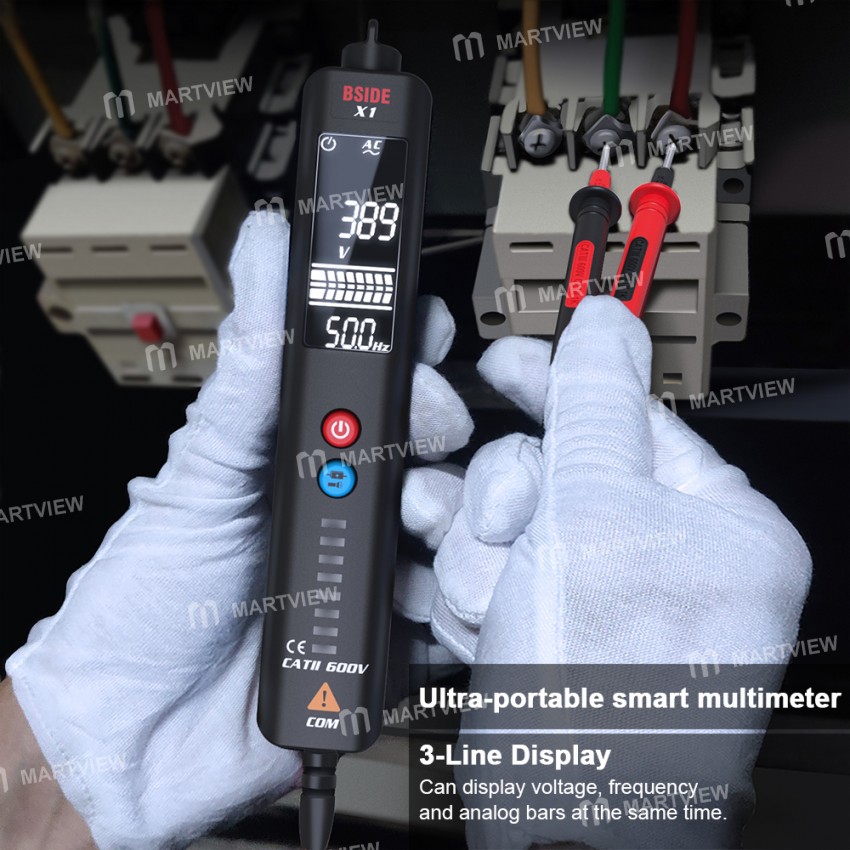

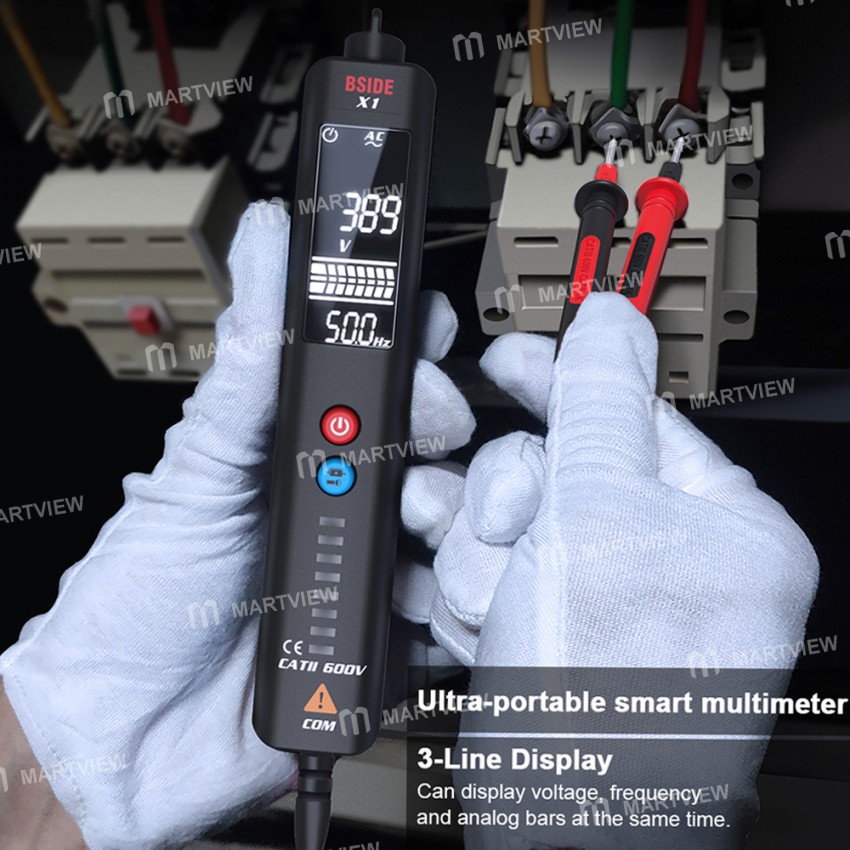

• A high-resolution large screen triple line display can show 3 test results on the screen, the voltage, frequency, and analog bar.

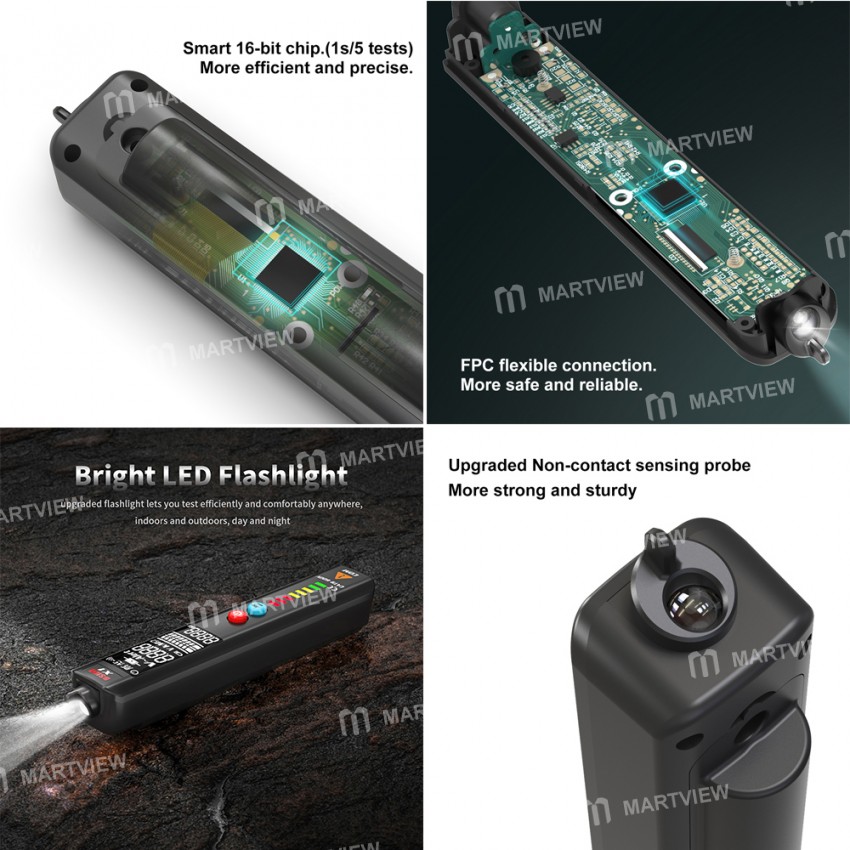

• Use the latest smart chip ( 16-bit chip ), which can intelligently identify all test functions.

• Real-time display of test results ( 1s/5 tests ), bringing you unexpected fluency. (1S boot to work; 1S display test results)

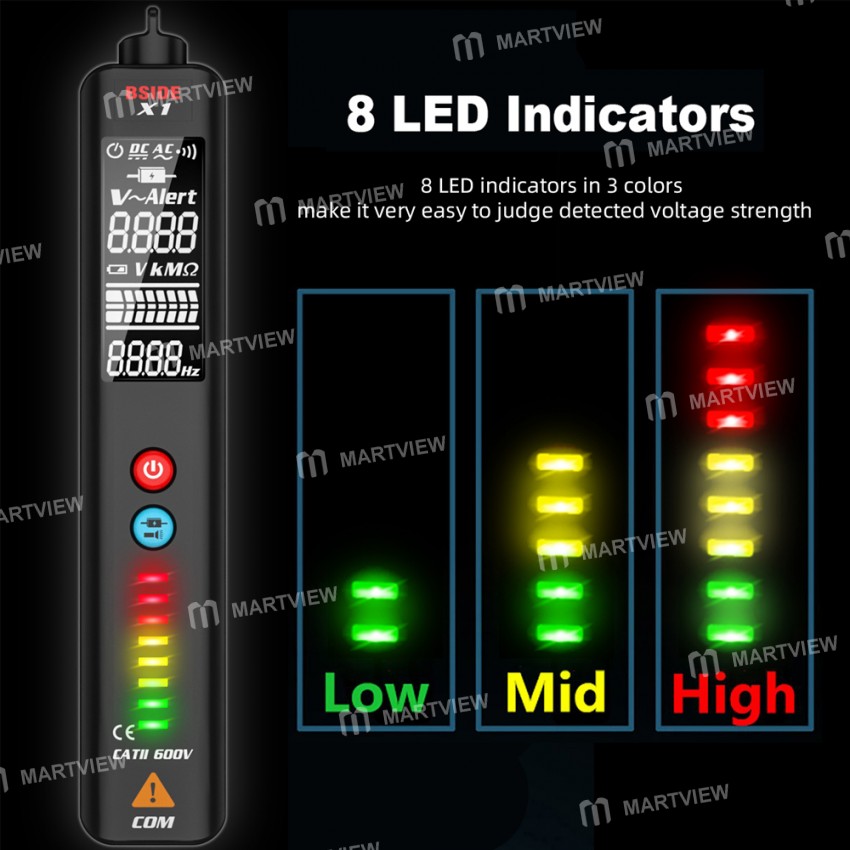

• 8 LED Indicators in 3 colors make it very easy to judge the detected voltage strength.

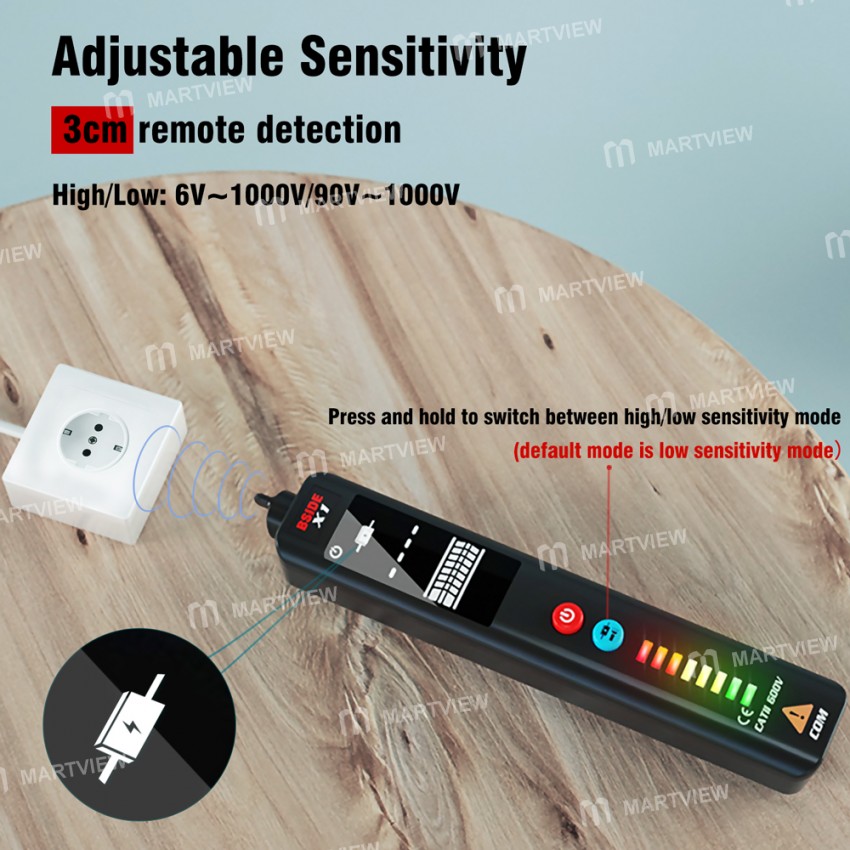

• Adjustable sensitivity makes measurement more convenient, when adjusting to low sensitivity, it can more accurately distinguish the specific situation in complex lines.

• FPC flexible connection technology is used behind the conductive strip of the product, which greatly increases the reliability of the product.

• The compact product uses 8 metal fixing positions inside, giving you the ultimate safety experience.

• Non-contact and pen-shaped design, convenient to operate and carry.

• Dual-mode operation. (Low sensitivity and High sensitivity)

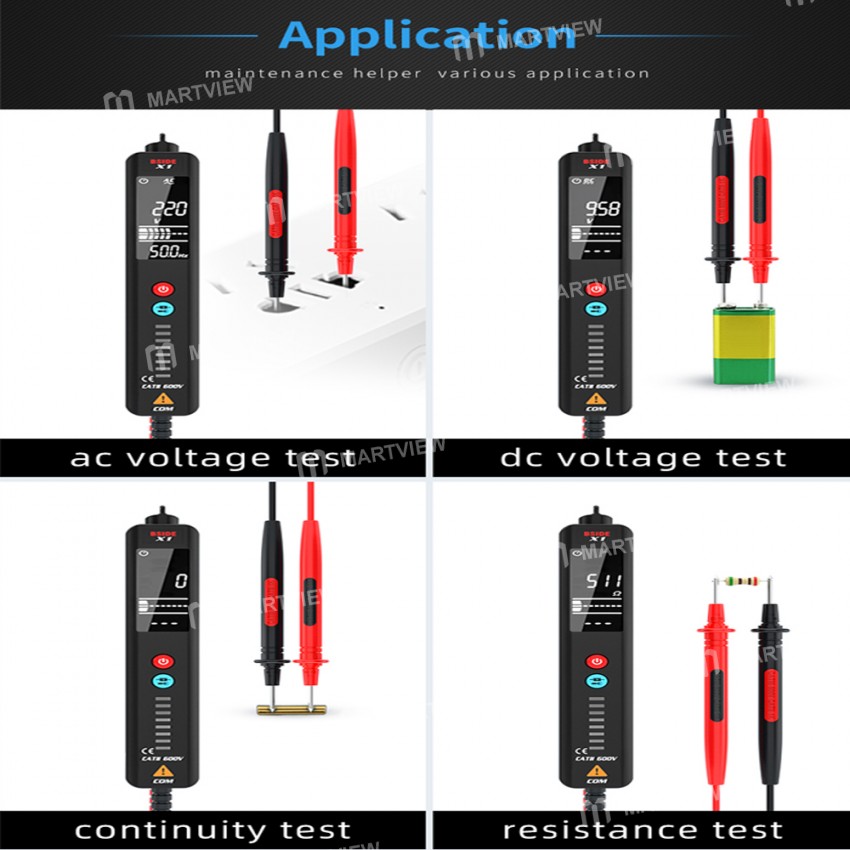

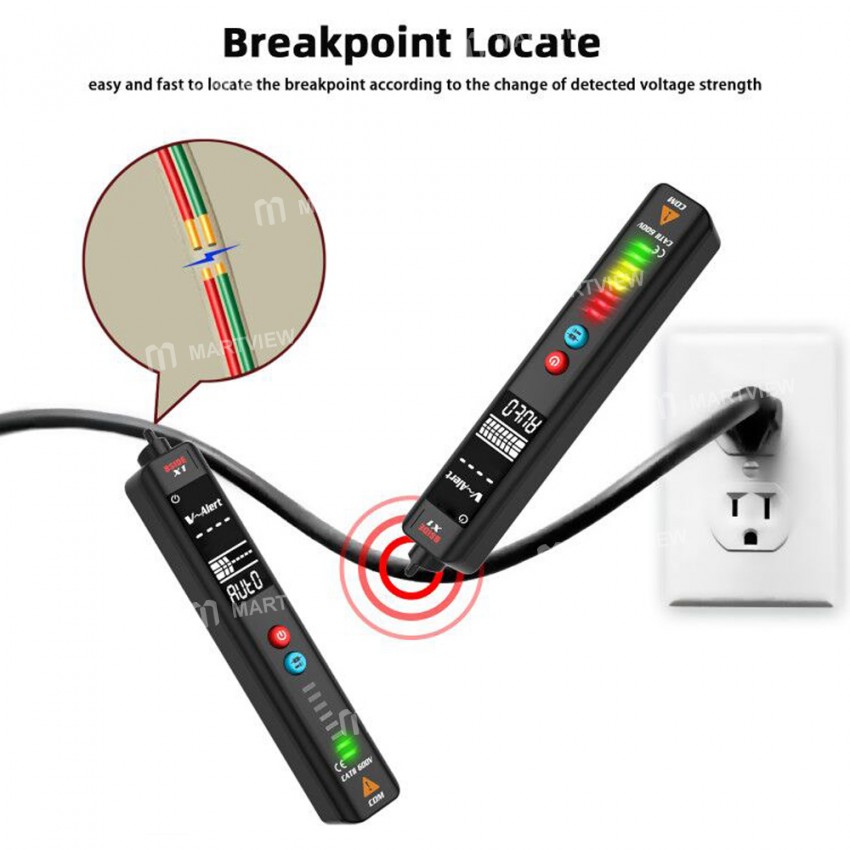

• Has Induction dangerous voltage alarm, DC/AC Voltage, Resistance, Frequency, Live/Neutral wire distinction, Live Wire Breakpoint Locate, Continuity check, flashlight features, etc.

• Has 8 LED indicators in 3 colors (Red/Yellow): Automatic identification of high/medium/low voltage.

• Alarm mode: Sound、Analog strip and light (Red/Yellow).

• LED spotlight, Battery low voltage reminder, Auto power off features.

• Safety level: CAT II 600V.

• Compliance with international safety standards.

• Maximum display: 2000 counts.

• Meter Thickness: 1.5 cm.

• DC Voltage: 600V 0.01V ±(0.8%+3)

• AC Voltage: 600V 0.01V ±(1.2%+5)

• Resistance: 10MΩ 1Ω ±(1.2%+3)

• Frequency: 1000Hz 1Hz ±(2.0%+3)

• Non-contact dangerous voltage detection:Yes.

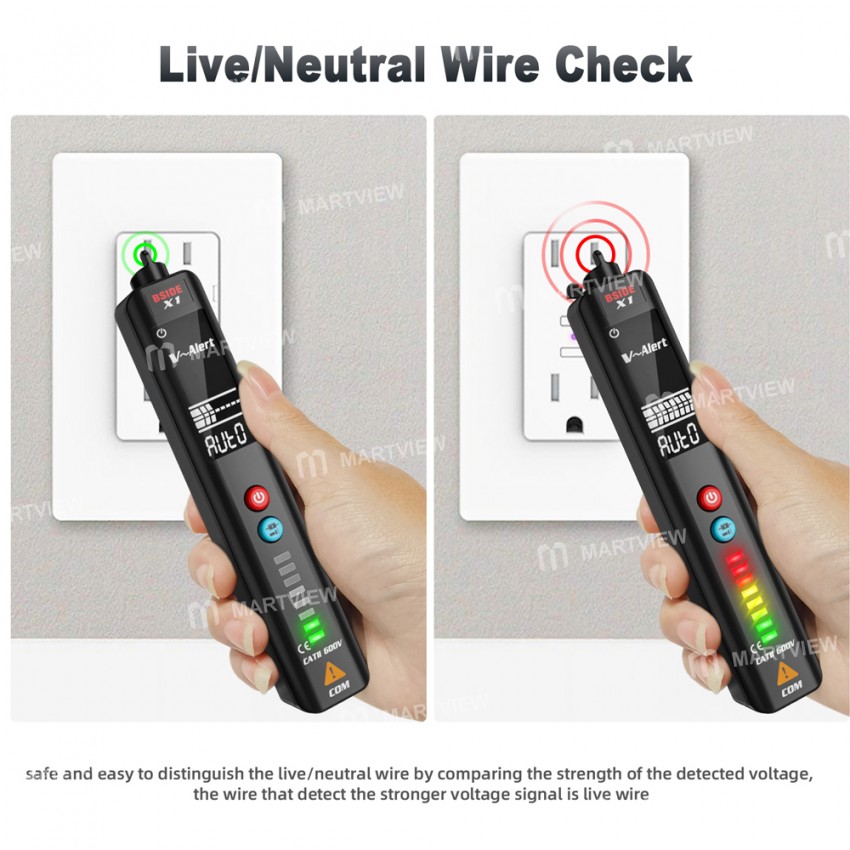

• Live/Neutral Check: alarm beep sounds, LCD screen display stripe.

• Continuity test: If the resistance is less than 30Ω, the beeper sounds.

• Battery test: 1.5V/6V/9V/12V.

• Power: 2 *  1.5v AAA battery.

• Size: 160*30*25mm.

• Security Level: Comply with international safety standards. CE certification.

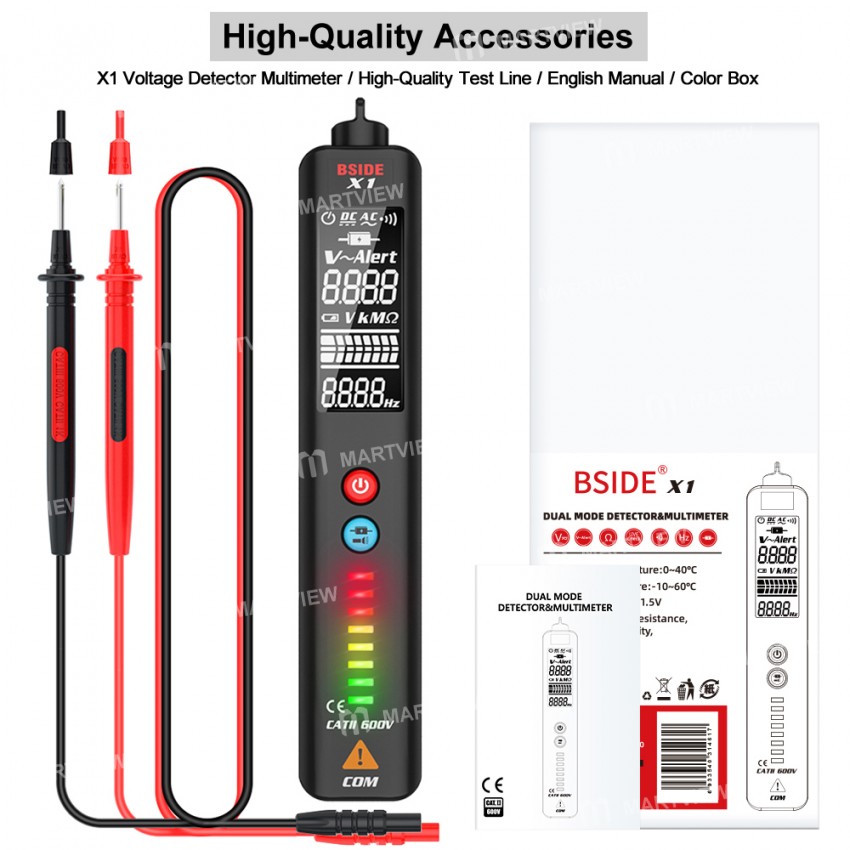

Package includes:
1 x X1 Voltage detector.
1 x High-quality test lead
1 x English manual.
