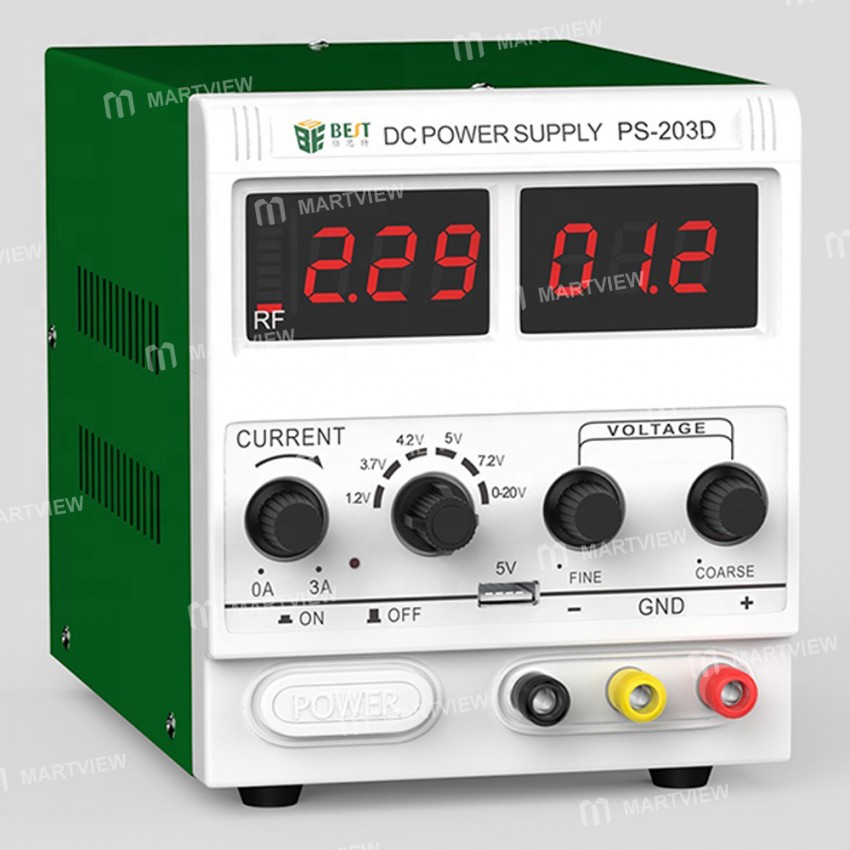

BST-203D Digital Display Adjustable DC Regulated Power Supply for Mobile Phone Repair

BST-203D Digital Display Adjustable DC Regulated Power Supply for Mobile Phone Repair

Features:

• Upholds high precision and great stability

• Values of voltage and current continuously are adjustable from zero to rated value

• Constant voltage and current are in automatic conversion

• Voltage and current are displayed on the digital LED at the same time

• Voltage can be adjusted between 0~20V, Current can be adjusted between 0~3A. Overvoltage/Overcurrent protection

Specification:

• Model: PS-203D

• voltage: 110V/220V

• working environment: -10℃~40℃

• Relative humidity: <90%

• Storage environment: -20℃~40℃

• Relative humidity: <80%

• Corrugated factor: <=0.5mvrs(5Hz-1MHz)Iomax> 1A

• Power stability: <=0.01%+2mV

• Load stability: <=0.01%+2mV(1max<1A)

• Recovery Time: <=100us (maximum current <=3A)

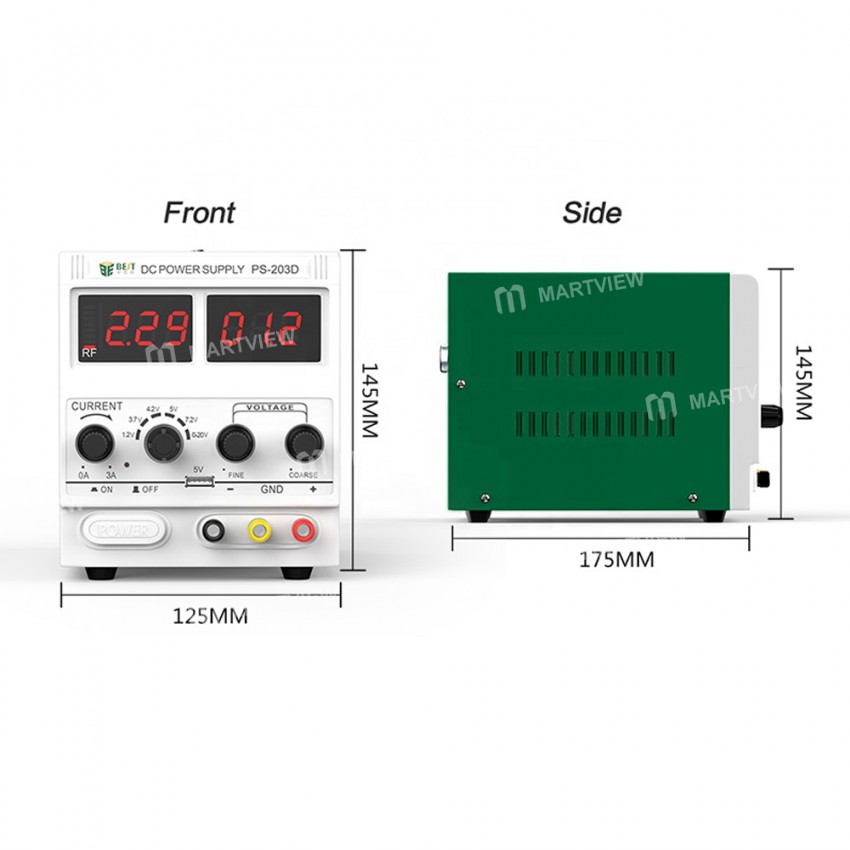

• Dimensions: 125*175*145MM

• Voltage and current: 0-20V/0-3A

• GSM signal detection: Can detect RF signals

• Overload protection current: 2A

• Voltage display accuracy: 0.1V

• Current display accuracy: 0.01A

• Mobile signal strength indicator: Have

• Brush power supply function: No

• Smart cooling: Have

• Body weight: 2.2KG

• Functions: Short circuit protection/overload protection/alarm function/continuity test/automatic recovery

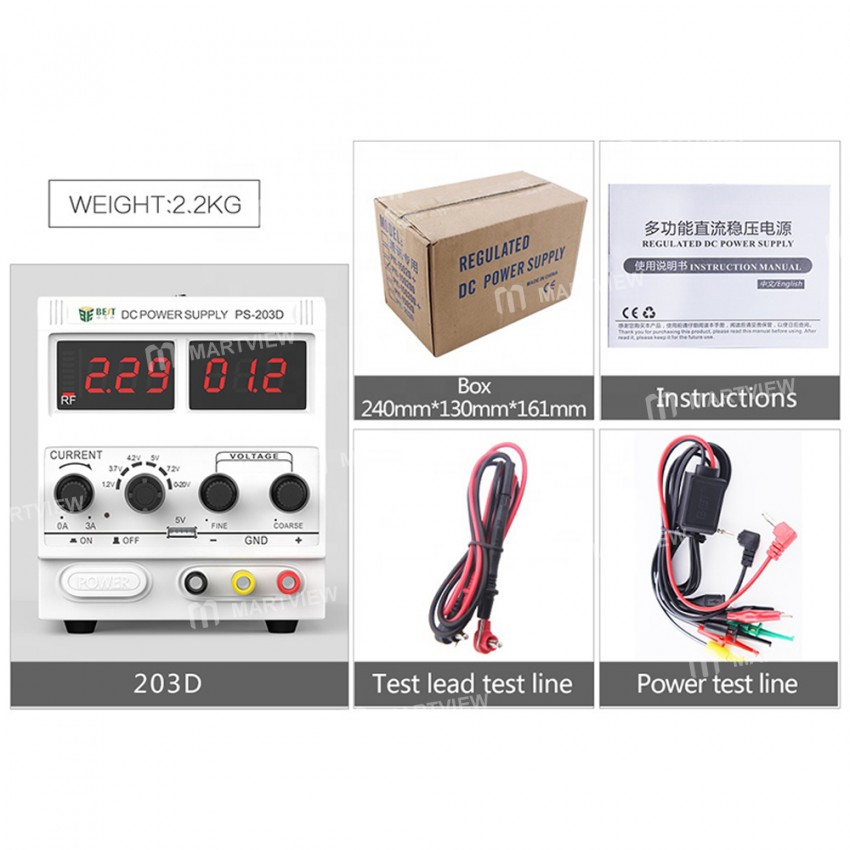

Package includes:

• 1 x Power Supply

• 1 x Power cable
